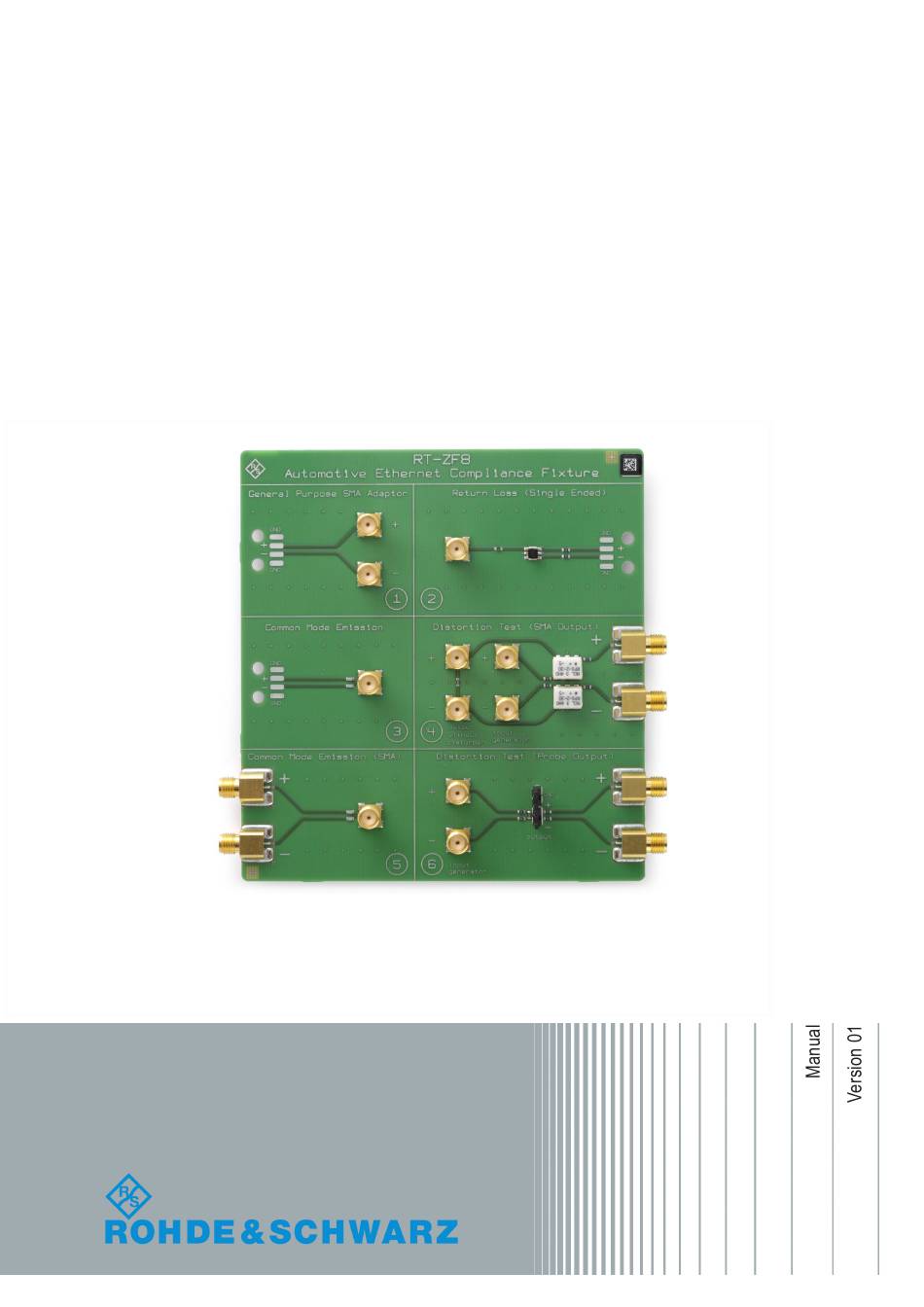

- Page 1 ® R&S RT-ZF8 Automotive Ethernet Compliance Fixture Manual (B1Z:2) 1801421002...
- Page 2 This manual describes the R&S RT-ZF8 Automotive Ethernet Compliance Test Fixture Set (1801.3694.02). © 2019 Rohde & Schwarz GmbH & Co. KG Mühldorfstr. 15, 81671 München, Germany Phone: +49 89 41 29 - 0 Fax: +49 89 41 29 12 164 Email: info@rohde-schwarz.com...
-
Page 3: Safety Information
® Safety Information R&S RT-ZF8 Safety Information The product documentation helps you to use the product safely and efficiently. Keep the product documentation nearby and offer it to other users. Safety information warns you about the potential dangers and gives instructions how to prevent personal injuries or damage caused by dangerous situations. -
Page 4: Product Description
R&S RT-ZF8 Board Description Product Description The R&S RT-ZF8 automotive Ethernet compliance fixture is a product for testing of the 100BASE-T1 and 1000BASE-T1 standards. It is used in combination with: ● R&S RTO/R&S RTP oscilloscope ● 100BASE-T1: R&S RTO-K24 (1329.7483.02), R&S RTP-K24 (1800.6531.02) ●... - Page 5 ® Product Description R&S RT-ZF8 Board Description X40, X41, X60, X61, X70,X71 Connectors for the Ethernet device under test (DUT). Connectors for a vector network analyzer. X20, X21, X30, X42 Connectors for a vector network analyzer or an oscilloscope. Manual 1801.4210.02 ─ 01...
- Page 6 ® Connecting the Board R&S RT-ZF8 X62, X65, X73, X74 Connectors for an arbitrary waveform generator. X63, X64 Connectors for an oscilloscope. X72, X75 Connectors for an oscilloscope with a probe. General Purpose SMA Adaptor This section of the board can be used for several compliance test cases, includ- ing the Common Mode Conversion Tests.
