Mechanical Dimensions; Front View; Bottom View - Unitronics UniStream PLC Series Installation Manual

®
UniStream PLC
13 Internal
Door, open
14 Power
Supply Input
15 USB Device
port
16 microSD Slot
17 Battery
Holder
* These are available by separate order.
Installation Space Considerations
Allocate space for:
 The controller
 I/O wiring
 Access to ports, jacks, and the microSD card slot
 Any modules that will be installed; ensure you allow space to install/uninstall modules
Module dimensions and installation instructions are in the modules' specifications.
For exact dimensions, please refer to the Mechanical Dimensions shown below.

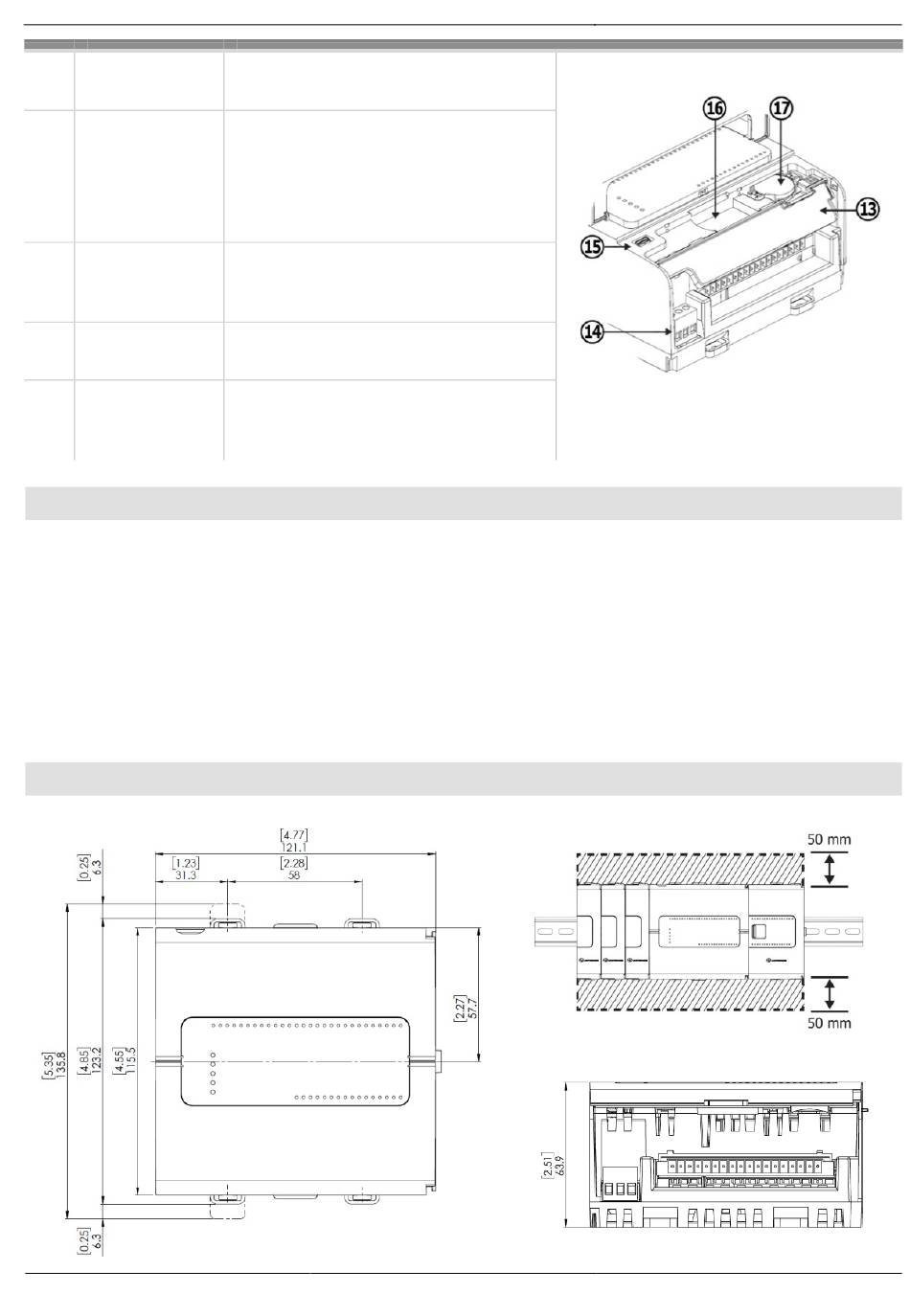

Mechanical Dimensions

Unitronics
Open this to access the battery
+ microSD slot.
Connection point for the
controller power source.
Connect the Terminal Block
supplied with the kit to the
power cable.
Use for application download
and direct PC-UniStream
communication.
Supports standard microSD
cards.
The battery is supplied installed;
the user must remove the pull
tab during installation.

Front View

Bottom View

Bottom View
5
