Mircom FX-2000 Series Operation page 7

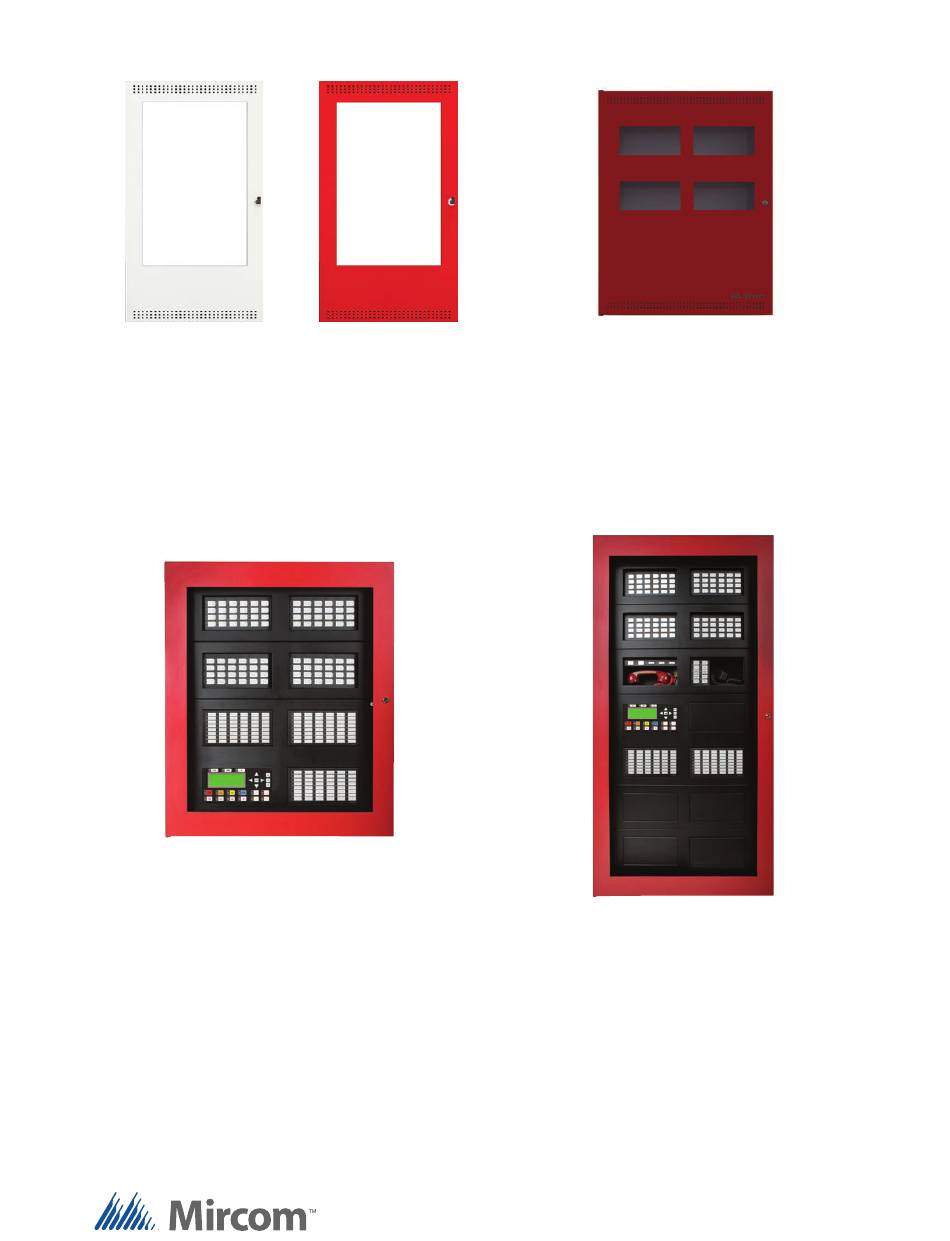

Enclosures
DOX-1024DS
UB-1024DS Universal Backbox
The UB-1024DS Universal Backbox houses the FX-2003-
6DS or FX-2003-12DS main control unit and provides
space to mount up to 17 AH batteries. A DOX-1024DS(R)
door is ordered separately.
Dimensions (minus built-in trim ring): 26"H x 14.5"W x 4.2"D
DOX-1024DS(R) Door
The DOX-1024DS mounts on the UB-1024DS backbox.
The door features the universal CAT-30 lock and is available
in a white (DOX-1024DS) or red exterior (DOX-1024DSR).
BB-5008
The BB-5008 is a lobby control centre enclosure which
is capable of handling one FX-2009-12DS Large Main
Control Unit which supports 2 internal annuciator modules
such as the IPS-2424DS, FDX-008, RAX-1048TZDS, etc.
In addition the BB-5008 allows for 4 footprints for mounting
Audio Lobby Control modules, Fire Fighter's Lobby Control
modules and FX-2000 Internal Annunciator modules. The
cabinet hold up to 24 AH batteries. Door and Chassis
hardware are ordered seperately.
Dimensions: 36"H x 30"W x 7"D
Other Enclosures
BB-1001: 9"H x 12.75"W x 1.2"D
BB-1002: 18"H x 12.75"W x 1.2"D
BB-1003: 26.4"H x 12.75"W x 1.2"D
BB-1008: 33"H x 22.5"W x 1.25"D
BB-1012: 45"H x 22.5"W x 1.25"D
DOX-1024DSR
BBX-1072ADS
The BBX-1072ADS enclosure is capable of handling one
FX-2017-12ADS Mid-Size Main Control Unit as well as
up to 24 AH Batteries. The cabinet features the universal
CAT-30 lock and a removable door for easy installation
and servicing. The cabinet is available in a white or red
exterior (BBX-1072ARDS).
Dimensions (minus built-in trim ring): 32.5"H x 25"W x 6 .5"D
BB-5014
The BB-5014 is a lobby control centre enclosure which
is capable of handling one FX-2009-12DS Large Main
Control Unit which supports 2 internal annuciator modules
such as the IPS-2424DS, FDX-008, RAX-1048TZDS, etc.
In addition the BB-5014 allows for 10 footprints for mounting
Audio Lobby Control modules, Fire Fighter's Lobby Control
modules and FX-2000 Internal Annunciator modules. The
BB-5014 can also support a graphic annunciator in place
of these modules. The cabinet holds up to 24 AH batteries.
Door and Chassis hardware are ordered seperately.
Dimensions: 60"H x 30"W x 7"D
NOT TO BE USED FOR INSTALLATION PURPOSES.
CAT. 5910
