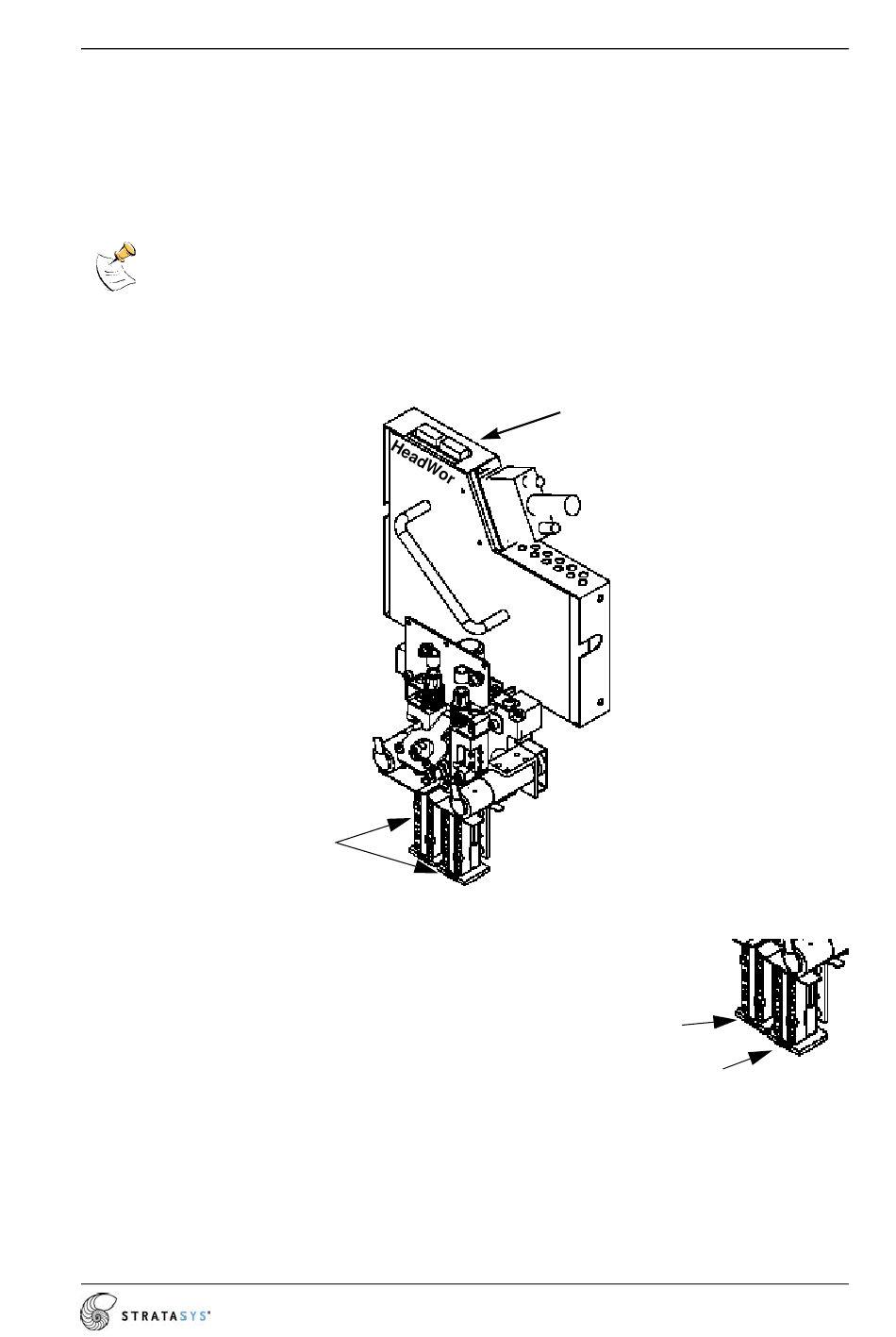

Head Assembly

The Headworks head assembly has been designed for various materials. The board
inside the head provides direct heater and thermocouple control. The head extrudes
modeling material and support material with two identical liquefiers. The support
liquefier moves up and down via a solenoid.
Note: You must replace each liquefier tip and tube assembly when you load a
different type of material.
The liquefier tips are clamped directly between the heated block and liquefier clamp
block with two screws.
Liquefier Tips
(2 screws)

Liquefier Tips and Slice Heights

The head assembly uses a support liquefier tip
and a model liquefier tip. When building with
WaterWorks (WW), use the T12 WW tip for
support when using T10, T12, & T16 modeling
tips or use the T20 for support when using the
T20 modeling tip. The standard tip is used for
Break-Away Supports (BASS) and modeling
materials.
• There are five tips available:
- T10, T12, T12 WW, T16, & T20
Machine Components
HeadWorks Head
Assembly
Model Material
Liquefier Tip
Support Material
Liquefier Tip
