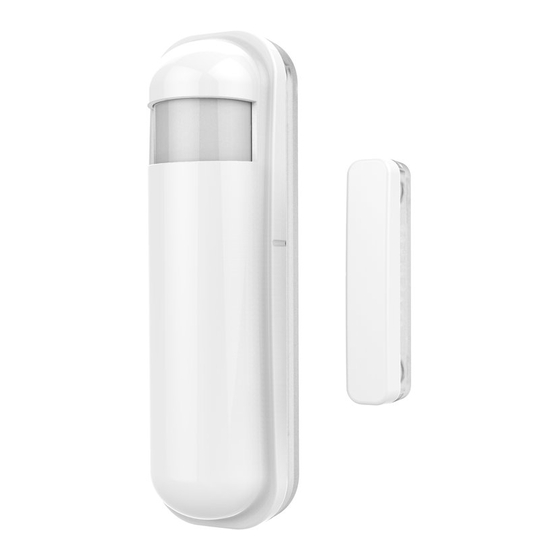

Philio PHI PST02-1B Quick Start Manual

Philio Tech
Z-Wave 3 in 1 Sensor (Motion, Illumination,
Temperature)
SKU: PHI_PST02-1B
Quickstart
This is a secure Alarm Sensor for Europe. To run this device please insert fresh 1 * CR123A batteries. Please make sure the internal battery is
fully charged. To add this device to your network execute the following action:
1. Have Z-Wave Controller entered inclusion mode.
2. Pressing tamper key three times within 1.5 seconds to enter the inclusion mode.
3. After add successful, the device will wake to receive the setting command from Z-Wave Controller about 20 seconds.
What is Z-Wave?
Z-Wave is the international wireless protocol for communication in the Smart Home. This device is suited for use in the region mentioned in the Quickstart
section.
Z-Wave ensures a reliable communication by reconfirming every message ( two-way communication)
and every mains powered node can act as a repeater for other nodes (meshed network) in case the
receiver is not in direct wireless range of the transmitter.
This device and every other certified Z-Wave device can be used together with any other certified Z-
Wave device regardless of brand and origin as long as both are suited for the same frequency
range.
If a device supports secure communication it will communicate with other devices secure as long as
this device provides the same or a higher level of security. Otherwise it will automatically turn into a
lower level of security to maintain backward compatibility.
For more information about Z-Wave technology, devices, white papers etc. please refer to www.z-wave.info.

Product Description

The Z-Wave Plus 3 in 1 sensor is designed with three detection sensors:
1. PIR/Motion
2. temperature
3. illumination
The detector can be used as a security device or home automation device. When the detector is cooperated with security appliances, the detector is acting
as a security device by detecting changes in infra-red radiation levels. If a person moves within or across the devices field of vision, a trigger radio signal
will be transmitted to cause full alarm condition in order to frighten intruders away. Once night falls, the percentage of ambient illumination is lower than
preset value. If a person moves within or across the devices field of vision, a trigger radio signal will be transmitted so as to turn connected lightings for
better illumination. Every time when PIR trig, the sensor will also send temperature and illumination value as well. Also the temperature will send out the
value when temperature changes. Note: The illumination sensor does not work with Fibaro Homecenter 2 and Zipabox yet.
When included securely the device is able to accept secure commands and to send secure commands to other devices. The commands and the receiver
of the commands sent out on single click and on double click of the rocker can be defined in configuration parameters and association groups.
Prepare for Installation / Reset
Please read the user manual before installing the product.
In order to include (add) a Z-Wave device to a network it must be in factory default state. Please make sure to reset the device into factory default. You
can do this by performing an Exclusion operation as described below in the manual. Every Z-Wave controller is able to perform this operation however it is
recommended to use the primary controller of the previous network to make sure the very device is excluded properly from this network.
