PAN11
Smart energy plug in switch

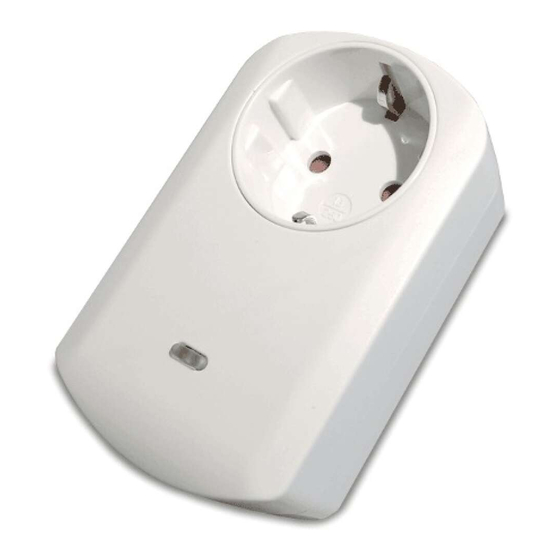

This plug-in ON/OFF switch PAN11 is a security enabled wireless switch, based on
Z-Wave Plus technology. Z-Wave Plus
TM
Plus
logo can also be used with it regardless of the manufacturer, and can also be
used in other manufacturer's Z-Wave
the connected load is possible with other manufacturer's wireless Controller. Each
switch is designed to act as a repeater. Repeaters will re-transmit the RF signal to
ensure that the signal is received by its intended destination by routing the signal
around obstacles and radio dead spots. Because PAN11 supports Security Command
Class, it can learn with Secured controller. Its functionality and supported command
classes is identical when included as a secure and non-secure device.
This plug-in ON/OFF switch is able to detect instance wattage (3000W/CE/CN,
1560W/UL/TW/JP) and overload current (14.5A with resistive load) of connected
lights or appliances. When detecting overload state, the Switch will be disabled and its
On/Off button will be lockout of which LED will flash quickly. However, unplug and
re-connect the switch will reset its overload condition to normal status.
TM
Adding to Z-Wave
Network
In the front casing, there is an On/Off button with LED indicator which is used to toggle
switch on and off or carry out inclusion, exclusion, reset or association. When first
power is applied, its LED flashes on and off alternately and repeatedly at 0.5 second
intervals. It implies that it has not been assigned a node ID and start auto inclusion.
TM
enabled devices displaying the Z-Wave
TM
enabled networks. Remote On/Off control of
Auto Inclusion
The function of auto inclusion will be executed as long as the switch does not have
Node ID and just plug the switch into a wall outlet.
Note: Auto inclusion timeout is 2 minute during which the node information of explorer
frame will be emitted once several seconds. Unlike "inclusion" function as shown in
the table below, the execution of auto inclusion is free from pressing the On/Off button
on the Switch.
The table below lists an operation summary of basic Z-Wave functions. Please refer to
the instructions for your Z-Wave
function, and to Add/Remove/Associate devices
Function
No node ID
The Z-Wave Controller does not allocate
a node ID to the Switch.
1.
Add
Put your Z-Wave controller into
inclusion mode by following the
instructions provided by the
controller manufacturer.
2. Pressing On/Off button three times
within 2 seconds will enter inclusion
mode.
1.
Remove
Put your Z-Wave controller into
exclusion mode by following the
instructions provided by the
controller manufacturer.
2.
Pressing On/Off button three times
within 2 seconds will enter exclusion
mode.
Node ID has been excluded.
Reset
1.
Pressing On/Off button three times
within 2 seconds will enter inclusion
mode.
2.
Within 1 second, press On/Off
button again for 5 seconds.
3.
IDs are excluded.
1
TM
Certificated Primary Controller to access the Setup
Description
LED 2-second on,
2-second off
LED 0.5s On, 0.5s Off
(Enter auto inclusion)
Use this procedure only in
the event that the primary
controller is lost or
otherwise inoperable.
LED 0.5s On, 0.5s Off
(Enter auto inclusion)
Annotation

Advertisement

loading
Need help?

Need help?

Do you have a question about the PAN11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Philio PAN11

  • Page 1 ID to the Switch. 2-second off Put your Z-Wave controller into This plug-in ON/OFF switch PAN11 is a security enabled wireless switch, based on inclusion mode by following the Z-Wave Plus technology. Z-Wave Plus enabled devices displaying the Z-Wave...
  • Page 2: Installation

    On/Off state to the node asked. intervals. By pressing On/Off button, it will stop flashing temporarily. Learning When PAN11 is in learning mode, LED flashes on and off Basic Get Command: [Command Class Basic, Basic Get] alternately and repeatedly at 0.5 second intervals.
  • Page 3 2-1-3 Overload alarm report attached to the Switch turns on. When PAN11 detects the current is more than 14.5A, it will send Alarm Report to [Command Class Basic, Basic Set, Value = 0(0x00)]: the load attached to Group 1 node.
  • Page 4 When receiving Meter Get Command, it will report Meter Report Command to Meter Report Command: the node. [Command Class Meter,Meter Report,Rate Type = 0x01,Meter Type = 0x01,Precision = 1,Scale = 0x04,Size = 2, Meter Value(V)] Meter Get Command: [Command Class Meter, Meter Get, Scale = 0x00 KW/h)] Example: Scale = 0x04 (V) Meter Report Command:...
  • Page 5 Meter Report Period: 0x01, Precision = 2,Scale = 0x06,Size = 1 Bytes,Meter Value(PF)] If the setting is configured for 1hour (set value =720), the PAN11 will report its instant power consumption every 1 hour to Group1 node. The maximum interval Example: to report its instant power consumption is 45 hours (5s*32767/3600=45hr).
  • Page 6 * COMMAND_CLASS_ASSOCIATION_V2 3-8 Auto off timer: * COMMAND_CLASS_ASSOCIATION_GRP_INFO Whenever PAN11 switches to on, the auto off timer begin to count down. After the * COMMAND_CLASS_POWERLEVEL timer decrease to zero, it will switch to off automatically. However if Auto off timer * COMMAND_CLASS_SWITCH_BINARY is set as 0, the auto off function will be disabled.
  • Page 7 14.5A (Resistive load) Specification Operating Voltage 100 ~240VAC /50Hz/60Hz Maximum Load 13A (Resistive load) UK type PAN11-3B Range Minimum 40m in door 100m outdoor line of sight Operating Temperature 0°C ~ 40°C Frequency Range 868.40MHz & 869.85MHz/EU/CN(PAN11-1B/-2B/-3B/-8B), 908.40MHz & 916.00MHz/UL 922~927MHz/TW/JP(PAN11-5B) ** Specifications are subject to change and improvement without notice.
