PAN11-4/-5

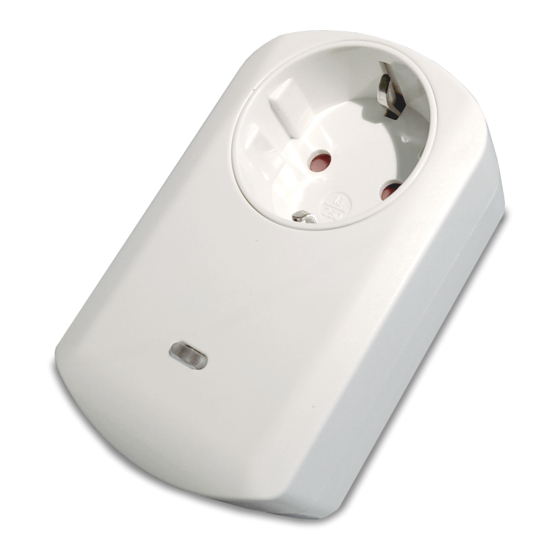

Smart energy plug in switch
P
This plug-in ON/OFF switch PAN11 is a wireless switch, based on Z-Wave
technology. Z-Wave
TM
enabled devices displaying the Z-Wave
used with it regardless of the manufacturer, and can also be used in other
manufacturer's Z-Wave
TM
enabled networks. Remote On/Off control of the connected
load is possible with other manufacturer's wireless Controller. Each switch is
designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure that
the signal is received by its intended destination by routing the signal around
obstacles and radio dead spots.
This plug-in ON/OFF switch is able to detect current wattage (5~1500W) and
overload wattage (1550~1700W) of connected lights or appliances. When detecting
overload state, the Switch will be disabled and its On/Off button will be lockout of
which LED will flash quickly. However, unplug and re-connect the switch will reset its
overload condition to normal status.
Adding to Z-Wave

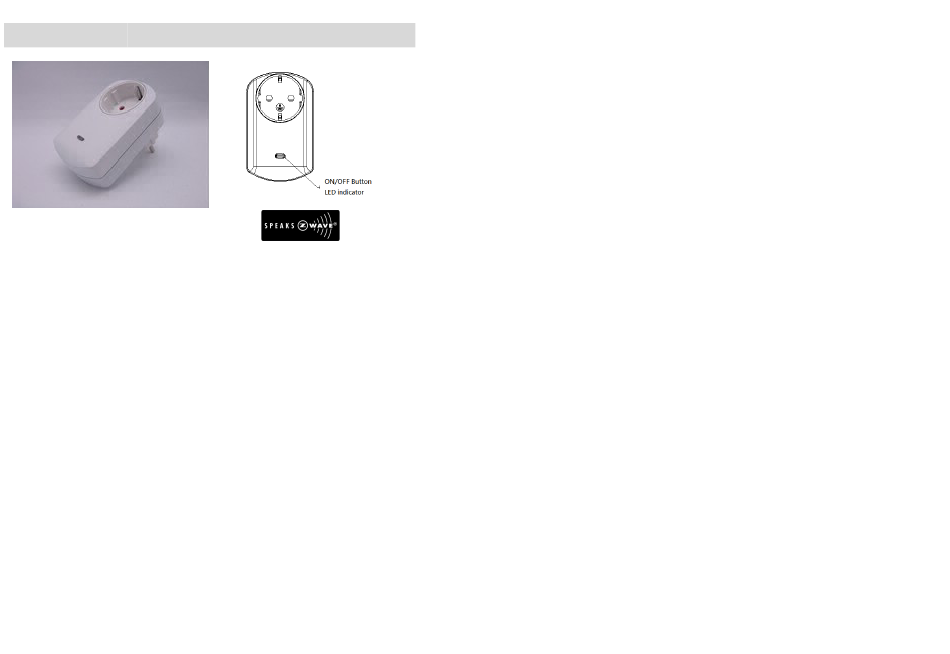

In the front casing, there is an On/Off button with LED indicator which is used to
toggle switch on and off or carry out inclusion, exclusion, reset or association. When
first power is applied, its LED flashes on and off alternately and repeatedly at 2-
second intervals. It implies that it has not been assigned a node ID and cannot work
with Z-Wave enabled devices.
Auto Inclusion
The function of auto inclusion will be executed as long as the switch does not have
Node ID and just plug the switch into a wall outlet.
TM
logo can also be
Note: Auto inclusion timeout is 4 minute during which the node information of
explorer frame will be emitted once every 5 seconds. Unlike "inclusion" function as
shown in the table below, the execution of auto inclusion is free from pressing the
On/Off button on the Switch.
The table below lists an operation summary of basic Z-Wave functions. Please refer
to the instructions for your Z-WaveTM Certificated Primary Controller to access the
Setup function, and to include/exclude/associate devices
1
TM
Network
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Philio PAN11-5
Summary of Contents for Philio PAN11-5
- Page 1 overload condition to normal status. PAN11-4/-5 Smart energy plug in switch Adding to Z-Wave Network In the front casing, there is an On/Off button with LED indicator which is used to toggle switch on and off or carry out inclusion, exclusion, reset or association. When first power is applied, its LED flashes on and off alternately and repeatedly at 2- second intervals.
-
Page 2: Led Indication
Function Description LED Indication association mode No node ID The Z-Wave Controller does not allocate 2-second on, 2-second off a node ID to the Switch. Inclusion Have Z-Wave Controller entered Press On, for on 2. There are only one group for the inclusion mode. -
Page 3: Choosing A Suitable Location
The LED will turn OFF and the load plugged into the Switch will also turn OFF. state can be cleared by unplugging and reconnecting the Switch to the wall outlet. Programming Choosing a Suitable Location 1. Basic Command Class / Binary Switch Command Class 1. - Page 4 2-1-1 On/Off Event Report 1-2 BASIC_SET / SWITCH_BINARY_SET When “on” or “off ” state has been changed, it will send Binary Switch Report to the Upon receipt of the following commands from a Z-Wave Controller, the load nodes of Grouping 1. attached to the Switch will turn on or off.
- Page 5 Command from Z-Wave Controller. Meter Value 2 = 0x00 (W) Meter Value 3 = 0x03 (W) Meter Value 4 = 0xEA (W) 2-2-1 Instant Power Consumption (Watt) of Switch Meter(W) = Meter Value 3 *256 + Meter Value 4 = 100.2W When receiving Meter Get Command, it will report Meter Report Command to the node.
- Page 6 Example: Scale = 0x00 (KWh) Precision = 2 Size = 4 Bytes (KW/h) Meter Value 1 = 0x00(W) Rate Type = 0x01 Meter Value 2 = 0x01(W) Meter Type = 0x01 Meter Value 3 = 0x38(W) Precision = 1 Meter Value 4 = 0xA3(W) Scale = 0x04(V) Size = 2 Bytes (Meter Value) Accumulated power consumption (KW/h) = (Meter Value 2*65536) + (Meter Value...
- Page 7 node. Meter Get Command: [Command Class Meter, Meter Get, Scale =0x06(PF)] Meter Report Command: [Command Class Meter，Meter Report，scale(bit 2) +Rate Type +Meter Type，Precision + Scale(bit 1,0)+ Size，Meter Value 1，Meter Value 2] Meter Report Command: [Command Class Meter，Meter Report，scale(bit 2) +Rate Type +Meter Type，Precision + Scale(bit 1,0)+ Size，Meter Value 1] Rate Type = 0x01 Meter Type = 0x01...
- Page 8 * COMMAND_CLASS_BASIC Configuration Function Size Value Unit Default Description * COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Parameter (Byte) * COMMAND_CLASS_VERSION Watt Meter 0x01- 5*720s=3600s=1 hour * COMMAND_CLASS_SWITCH_ALL Report Period 0x7FFF * COMMAND_CLASS_ASSOCIATION_V1 KWH Meter 0x01- 10min 6*10min= 1 hour * COMMAND_CLASS_METER_V3 Report Period 0x7FFF * COMMAND_CLASS_CONFIGURATION Socket Type Since the socket type for each country in Europe varies, refer to the outline for each Watt...
-
Page 9: Troubleshooting
PAN11-4 (USA/Canada) PAN11-5 (Taiwan/JP) France type PAN11-2 Note: Please make sure that the intensity of the plug of the electrical device must be 16A and have same head as the enclosed plug before inserting to the socket. Troubleshooting Symptom Cause of Failure... -
Page 10: Specification
Specification purchased. They can take this product for environmental safe recycling. 100~240VAC / 50-60Hz Operating Voltage Company of License Holder：Philio Technology Corporation Maximum Load 1500W for UL/TW/JP Address of License Holder：8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257,Taiwan(R.O.C) - Page 11 • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause...
