SUPPLEMENTAL CHARACTERISTICS

The following specifications are supplemental characteristics that provide additional information about
instrument functions and performance. These characteristics are nonwarranted specifications; they
describe the typical performance of the Models 2601B, 2602B and 2604B.

PULSE CHARACTERISTICS

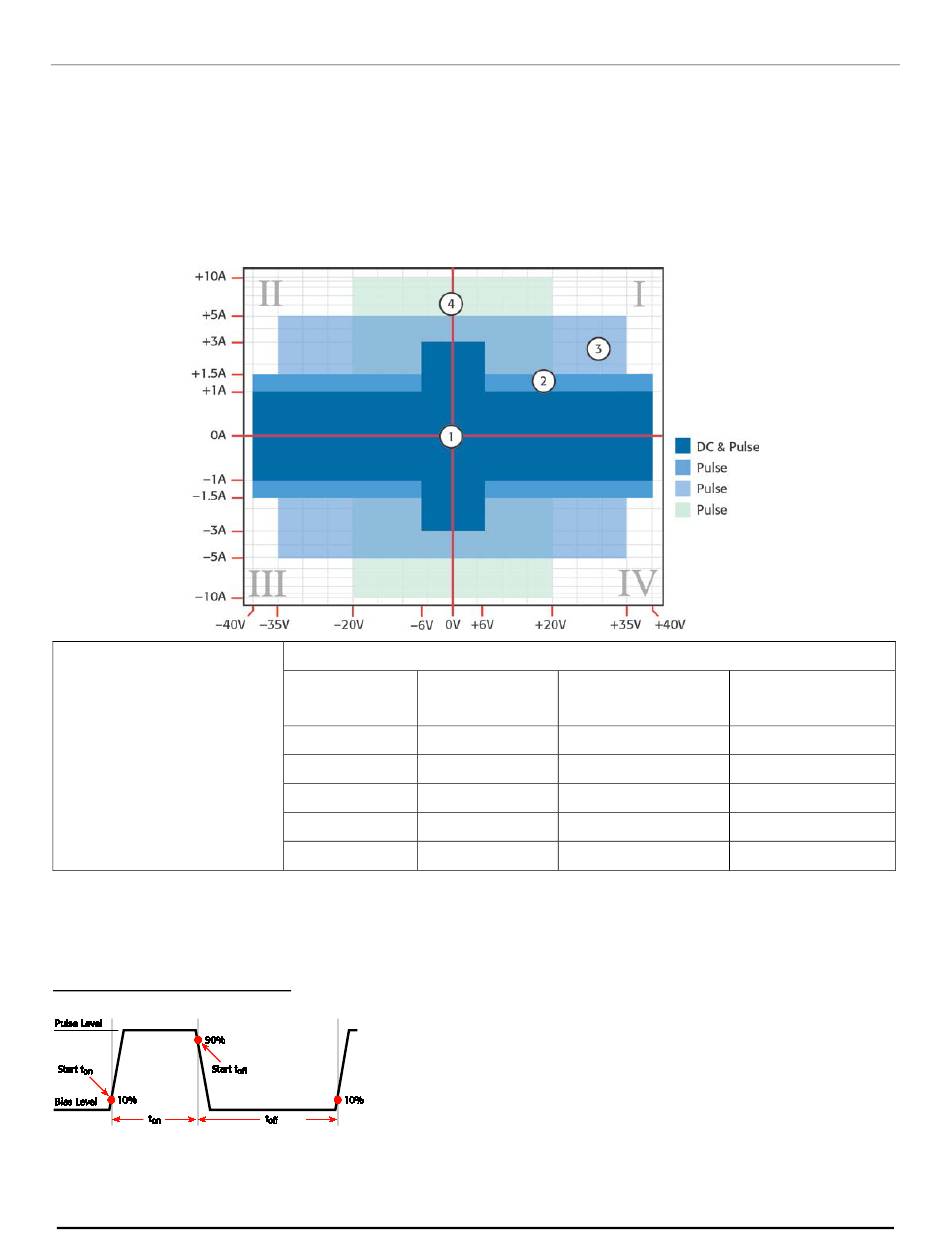

Pulse region specifications
6
Times measured from the start of pulse to the start off-time; see figure below.
7
Thermally limited in sink mode (quadrants 2 and 4) and ambient temperatures above 30° C. See power equations in the Series 2600B
Reference Manual for more information.
Specifications are subject to change without notice
SPEC-2602B Rev. B / February 2014
Models 2601B, 2602B and 2604B System SourceMeter Instrument Specifications
Pulse region specifications
Region Region
maximums
quadrant diagram
1 1 A at 40 V
1 3 A at 6 V
2 1.5 A at 40 V
3 5 A at 35 V
4 10 A at 20 V
Maximum pulse Maximum duty
6
width cycle
DC, no limit 100 %
DC, no limit 100 %
100 ms 25 %
4 ms 4 %
1.8 ms 1 %
7
