will occur. To de-assert the shutdown function,
press the button again and the conversions will
resume. Figure 5 shows what the GUI looks like
when the shutdown control function is enabled.
7) A shutdown between conversions function is
available by selecting the "Shutdown between
conversions" box. Refer to Figure 4. When
performing a continuous conversion, press the
"shutdown" button
"Shutdown between conversions" box. The
samples vs code and the FFT plot will update
after every
Sampling section
TSM1285 ADC section
Samples vs Code plot
FFT plot
.
TSM1285-EVB Rev. 1.0
and then select the
conversion.

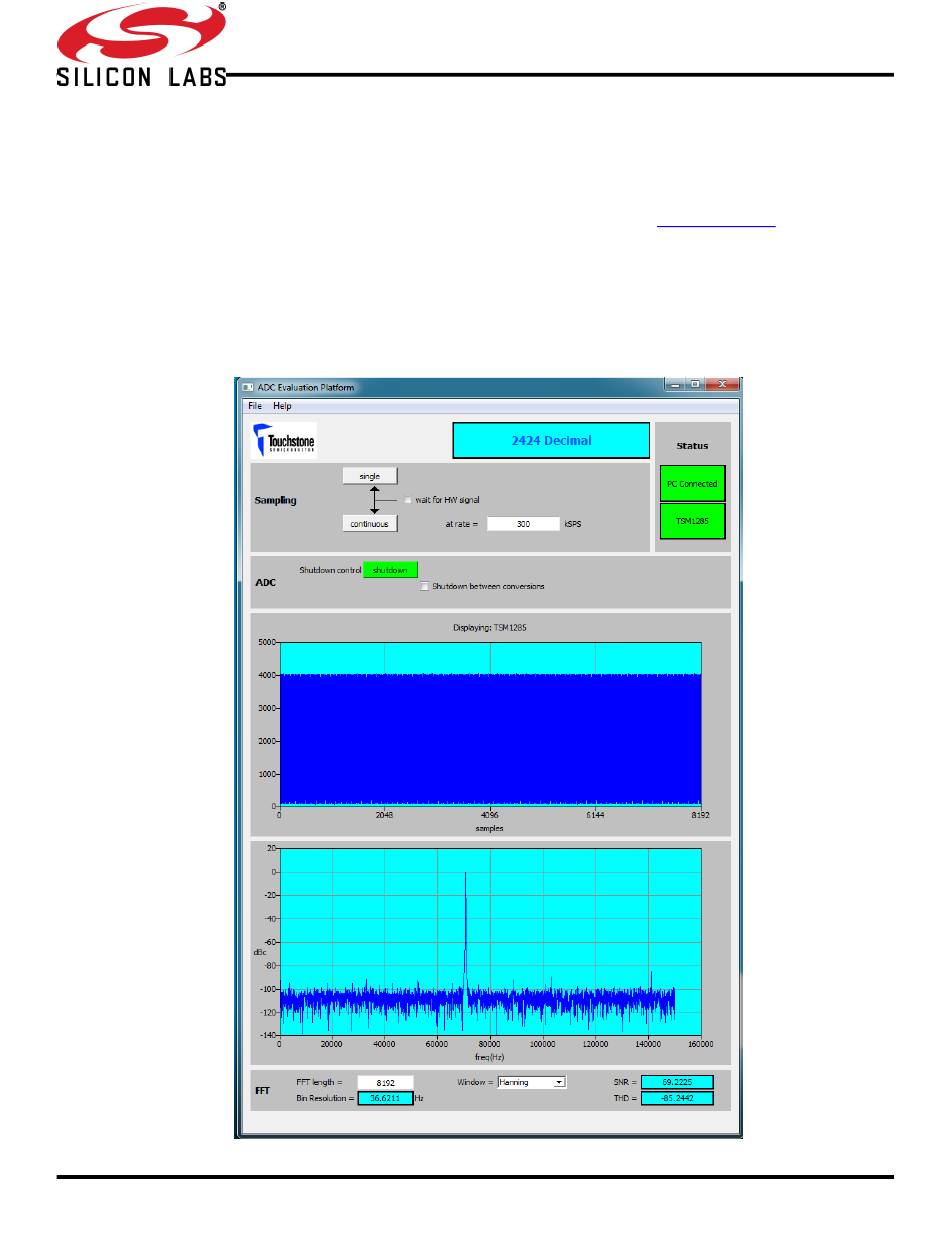

Figure 4. TSM1285 Response with GUI
TSM1285 Demo Board
8) To perform a single conversion, press the "single"
button in the sampling section.
9) For details on the evaluation platform GUI, refer
to the "Touchstone ADC Evaluation Platform GUI"
user's manual at: www.silabs.com.
