UG465: BGM220 Explorer Kit User's Guide
The BGM220 Explorer Kit is an ultra-low cost, small form factor
development and evaluation platform for the BGM220P Wireless
Gecko Bluetooth® Module.
The BGM220 Explorer Kit is focused on rapid prototyping and concept creation of IoT
applications. It is designed around the BGM220P Module, based on the EFR32BG22
System-on-Chip, which is an ideal device family for developing energy-friendly connec-
ted IoT applications.

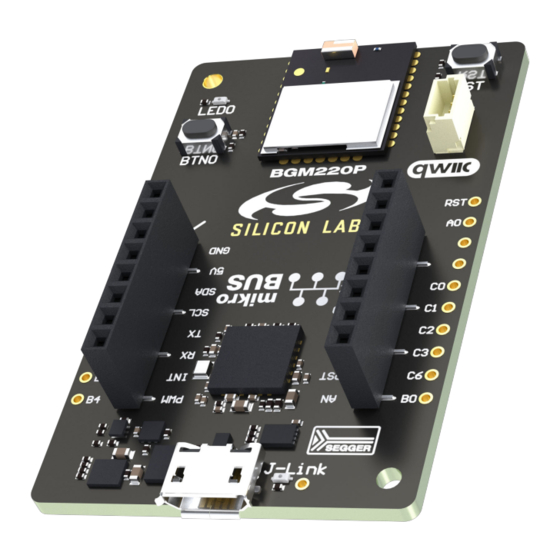

The kit features a USB interface, an on-board SEGGER J-Link debugger, one user-LED
and button, and support for hardware add-on boards via a mikroBus socket and a Qwiic
connector. The hardware add-on support allows developers to create and prototype ap-
plications using a virtually endless combination of off-the-shelf boards from mikroE,
sparkfun, AdaFruit, and Seeed Studios.
silabs.com | Building a more connected world.
TARGET DEVICE
• BGM220P Wireless Gecko Bluetooth®
Module (BGM220PC22HNA)
• High performance 2.4 GHz radio
• 32-bit ARM® Cortex®-M33 with 76.8 MHz
maximum operating frequency
• 512 kB flash and 32 kB RAM
KIT FEATURES
• User LED and push button
• 20-pin 2.54 mm breakout pads
• mikroBUS™ socket
• Qwiic® connector
• SEGGER J-Link on-board debugger
• Virtual COM port
• Packet Trace Interface (PTI)
• USB-powered.
SOFTWARE SUPPORT
• Simplicity Studio™
ORDERING INFORMATION
• BGM220-EK4314A
Rev. 1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Silicon Laboratories BGM220 Explorer Kit
Summary of Contents for Silicon Laboratories BGM220 Explorer Kit
- Page 1 Gecko Bluetooth® Module. • BGM220P Wireless Gecko Bluetooth® Module (BGM220PC22HNA) The BGM220 Explorer Kit is focused on rapid prototyping and concept creation of IoT • High performance 2.4 GHz radio applications. It is designed around the BGM220P Module, based on the EFR32BG22 •...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ....... . 3 1.1 Kit Contents ....... 3 1.2 Getting Started . -
Page 3: Introduction
The following items are included in the box: • 1x BGM220 Explorer Kit board (BRD4314A) 1.2 Getting Started Detailed instructions for how to get started with your new BGM220 Explorer Kit can be found on the Silicon Labs web pages: silabs.com/start-bgm220ek 1.3 Hardware Content The following key hardware elements are included on the BGM220 Explorer Kit: •... -
Page 4: Kit Hardware Layout
UG465: BGM220 Explorer Kit User's Guide Introduction 1.4 Kit Hardware Layout The layout of the BGM220 Explorer Kit is shown below. 35.6 mm BGM220P Module Top View Reset Button Push Button Qwiic Connector Breakout Pads 55.9 mm On-board USB J-Link Debugger... -
Page 5: Specifications
UG465: BGM220 Explorer Kit User's Guide Specifications 2. Specifications 2.1 Recommended Operating Conditions Parameter Symbol Unit USB Supply Input Voltage +5.0 Supply Input Voltage (VMCU supplied externally) +3.3 VMCU Operating Temperature ˚C The typical supply voltage to the BGM220P is 3.0 V, but the maximum voltage is a function of temperature and average lifetime cur- rent load. -
Page 6: Hardware
UG465: BGM220 Explorer Kit User's Guide Hardware 3. Hardware The core of the BGM220 Explorer Kit is the BGM220P Wireless Gecko Bluetooth® Module. Refer to section 1.4 Kit Hardware Layout for placement and layout of the hardware components. 3.1 Block Diagram An overview of the BGM220 Explorer Kit is illustrated in the figure below. -
Page 7: Power Supply
Bluetooth Module Peripherals Figure 3.2. BGM220 Explorer Kit Power Topology The 5 volt power net on the USB bus is regulated down to 3.3 V using an LDO (low-dropout regulator). An automatic isolation circuit isolates the LDO when the USB cable is not plugged in. -
Page 8: On-Board Debugger
3.5 On-board Debugger The BGM220 Explorer Kit contains a microcontroller separate from the BGM220P Wireless Gecko that provides the user with an on- board J-Link debugger through the USB Micro-B port. This microcontroller is referred to as the "on-board debugger", and is not pro- grammable by the user. -
Page 9: Connectors
3.6 Connectors The BGM220 Explorer Kit features a USB Micro-B connector, 20 breakout pads, a mikroBUS connector for connecting mikroBUS add- on boards, and a Qwiic connector for connecting Qwiic Connect System hardware. The connectors are placed on the top side of the board, and their placement and pinout are shown in the figure below. -
Page 10: Breakout Pads
The pin-routing on the Wireless Gecko is very flexible, so most peripherals can be routed to any pin. However, pins may be shared between the breakout pads and other functions on the BGM220 Explorer Kit. The table below includes an overview of the breakout pads and functionality that is shared with the kit. -
Page 11: Mikrobus Socket
Qwiic connector, and all mikroBUS signals are also routed to adjacent breakout pads. When inserting a mikroBUS add-on board, refer to the orientation notch on the BGM220 Explorer Kit, shown in the figure below, to ensure correct orientation. -
Page 12: Qwiic Connector
The BGM220 Explorer Kit features a Qwiic® connector compatible with Qwiic Connect System hardware. The Qwiic connector provides an easy way to expand the functionality of the BGM220 Explorer Kit with sensors, LCDs, and other peripherals over the I C interface. -
Page 13: Debugging
4. Debugging The BGM220 Explorer Kit contains an on-board SEGGER J-Link Debugger that interfaces to the target BGM220P using the Serial Wire Debug (SWD) interface. The debugger allows the user to download code and debug applications running in the target BGM220P. Addi- tionally, it also provides a virtual COM port (VCOM) to the host computer that is connected to the target device's serial port, for general purpose communication between the running application and the host computer. -
Page 14: Schematics, Assembly Drawings, And Bom
UG465: BGM220 Explorer Kit User's Guide Schematics, Assembly Drawings, and BOM 5. Schematics, Assembly Drawings, and BOM Schematics, assembly drawings, and bill of materials (BOM) are available through Simplicity Studio when the kit documentation pack- age has been installed. They are also available from the kit page on the Silicon Labs website: http://www.silabs.com/... -
Page 15: Kit Revision History And Errata
UG465: BGM220 Explorer Kit User's Guide Kit Revision History and Errata 6. Kit Revision History and Errata 6.1 Revision History The kit revision can be found printed on the box label of the kit, as outlined in the figure below. The kit revision history is summarized in the table below. -
Page 16: Board Revision History And Errata
UG465: BGM220 Explorer Kit User's Guide Board Revision History and Errata 7. Board Revision History and Errata 7.1 Revision History The board revision can be found laser printed on the board, and the board revision history is summarized in the following table. -
Page 17: Document Revision History
UG465: BGM220 Explorer Kit User's Guide Document Revision History 8. Document Revision History Revision 1.0 October 2020 • Initial document release. silabs.com | Building a more connected world. Rev. 1.0 | 17... - Page 18 Trademark Information Silicon Laboratories Inc.®, Silicon Laboratories®, Silicon Labs®, SiLabs® and the Silicon Labs logo®, Bluegiga®, Bluegiga Logo®, ClockBuilder®, CMEMS®, DSPLL®, EFM®, EFM32®, EFR, Ember®, Energy Micro, Energy Micro logo and combinations thereof, “the world’s most energy friendly microcontrollers”, Ember®, EZLink®, EZRadio®, EZRadioPRO®, Gecko®, Gecko OS, Gecko OS Studio, ISOmodem®, Precision32®, ProSLIC®, Simplicity Studio®, SiPHY®, Telegesis, the Telegesis Logo®, USBXpress®, Zentri, the Zentri logo and...
