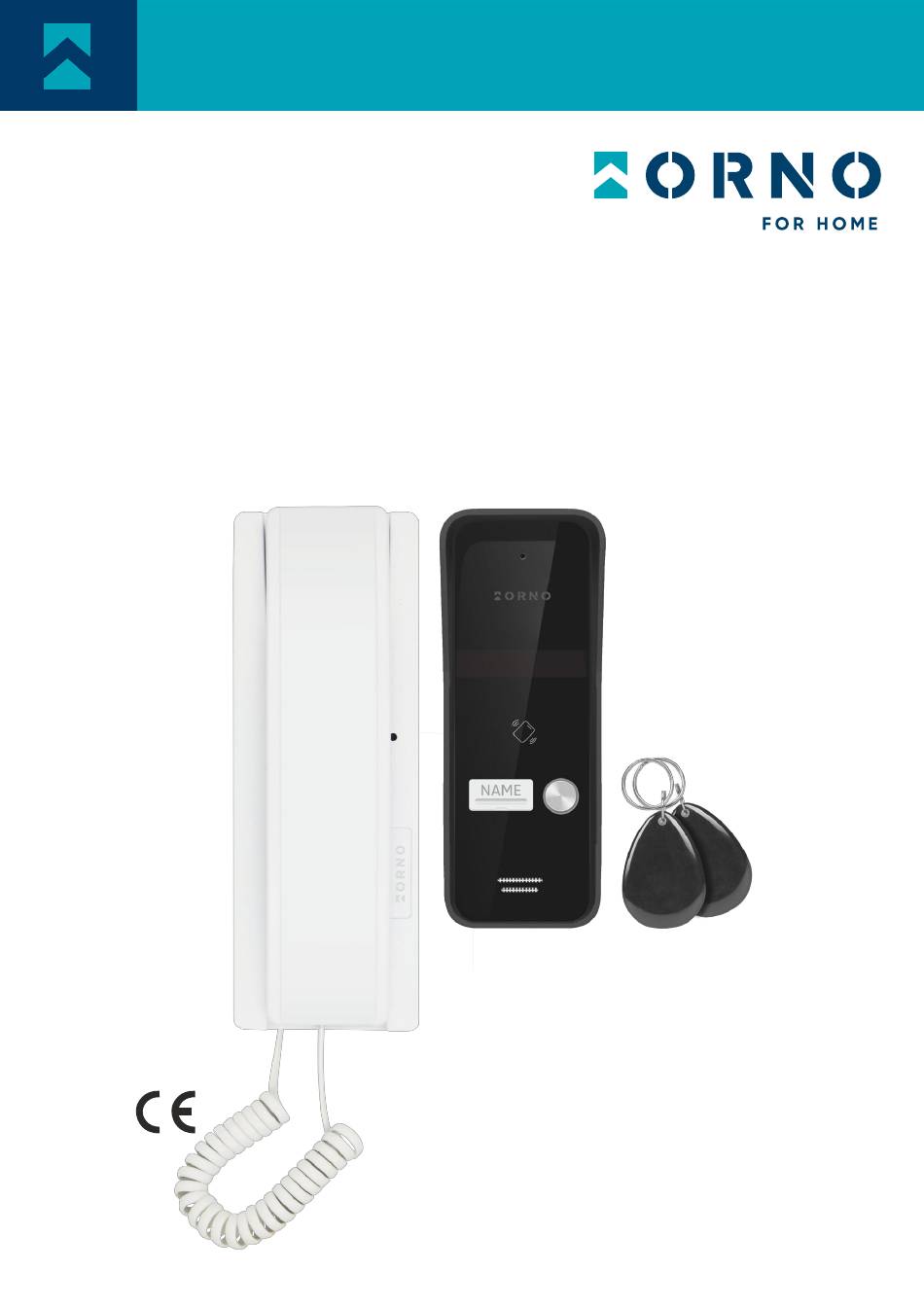

- Page 1 Installation and operation manual ENIR Audio doorphone set OR-DOM-BA-935 OR-DOM-BA-935ZD OR-DOM-BA-936ZD Be sure to read the instruction manual before installation! STOP! Damage resulting from incorrect connection ARE NOT SUBJECT TO REPAIR UNDER WARRANTY!
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. DIRECTIONS FOR SAFTY USE ................................2 2. PRODUCT DESCRIPTION .................................. 3 3. INTENDED USE ....................................3 4. TECHNICAL DATA ....................................3 5. SET CONSTRUCTION ..................................4 6. INSTALLATION ....................................6 OUTDOOR UNIT INSTALLATION ..................................6 INDOOR UNIT INSTALLATION ....................................8 7. -
Page 3: Product Description
2. PRODUCT DESCRIPTION The Enir doorphone set offers a range of features, such as remote communication between the outdoor unit and the indoor unit, a 2-wire connection, direct control of the electric strike, and additional gate control. The electric strike does not require additional power supply, and the built-in RFID reader allows access via proximity cards and tags. -
Page 4: Set Construction
5. SET CONSTRUCTION fig. 1 Construction of the indoor unit. INDOOR UNIT 1. Handset speaker 2. Handset handle 3. Handset microphone 4. Open the door/wicket 5. Open the gate 6. Indoor unit volume control 7. BUS1 terminal to outdoor or indoor unit 8. -
Page 5: Outdoor Unit
fig. 2 Construction of the outdoor unit. OUTDOOR UNIT WIRING DESCRIPTION 1. Microphone Orange – NO2 2. RFID reader White – COM2 3. Backlit nameplate Green – NC2 Lock connection 4. Call button Grey – GND 5. Speaker Red – VL+ Black –... -
Page 6: Installation
6. INSTALLATION The proper placement of the outdoor unit determines the comfort of working with the device. It is recommended to test the device before making the mounting holes. For this purpose, the outdoor unit and the indoor unit should not be placed in the same room, as feedback (a piercing squeal) may occur. - Page 7 fig. 4 Outdoor unit installation with the use of the rainshield. 1. Determine the installation location. The device should be installed in a location that allows for convenient use. 2. Make sure that the connection cable is brought to the chosen location and that its length is sufficient to connect the device.
-
Page 8: Indoor Unit Installation
INDOOR UNIT INSTALLATION fig. 5 Indoor unit installation. 1. Determine the installation location. Install the device at a location that best suits your eye level. 2. Make sure that the connection cable is brought to the chosen location and that its length is sufficient to connect the device. -
Page 9: Wiring Diagrams
7. WIRING DIAGRAMS Do not make any connections if the device is connected to the 230V/50Hz power network! Failure to follow this recommendation may result in damage to the device. To avoid interference, do not place "low-voltage" wires in the same conduit as high-power wires fig. - Page 10 fig. 7 Wiring diagram for a single-family set (OR-DOM-BA-935ZD). The set does not include connection cables and electric door strike! When designing the electrical installation, it is important to consider the appropriate cable cross-section: up to 30 m - recommended cable XzTKMXpw 2 x 2 x 0.5 mm from 30 m to 100 m - recommended cable XzTKMXpw 2 x 2 x 0.8 mm The connection to the electromagnetic lock should be made with 2 x 0,8 mm cable.
- Page 11 fig. 8 Wiring diagram for a two-family set (OR-DOM-BA-936) The set does not include connection cables and electric door strike! Indoor unit code Switch 1 indicates the family number: ON – family 1, OFF – family 2. Switch 2 indicates the indoor unit type: ON – additional indoor unit, OFF – main indoor unit. Note: the system can include a maximum of two indoor units –...
- Page 12 fig. 9 Wiring diagram for exit 1 (wicket). fig. 10 Wiring diagram for exit 2 (gate). fig. 11 Wiring diagram for electromagnetic lock or reversible electric strike.
-
Page 13: Set Operation
8. SET OPERATION INDOOR UNIT OPERATION Status indicator 1. When the power is properly connected, the LED indicator is always on in standby mode. 2. During an incoming call from the outdoor unit, the indoor unit will play the ringtone, and the LED indicator will be on. 3. -
Page 14: Outdoor Unit Operation
OUTDOOR UNIT OPERATION Opening time adjustment 1. The GND/VL+ wires are for electric door strike (12V DC max. 300mA), and the default opening time is set to 5 seconds. 2. To change the opening time, press and hold the call button and, at the same time, press exit button 1 (or short-circuit the brown and black wires shortly). -
Page 15: Cleaning And Maintenance
Orno-Logistic Sp. z o.o. holds no responsibility for the results of non-compliance with the provisions of the present Manual. Orno Logistic Sp. z o.o. reserves the right to make changes to the Manual - the latest version of the Manual can be downloaded from support.orno.pl. - Page 16 Responsible entity: ORNO-LOGISTIC Sp. z o.o. ul. Rolników 437, 44-141 Gliwice, Poland tel. (+48) 32 43 43 110, www.orno.pl NIP: 6351831853, REGON: 243244254...
