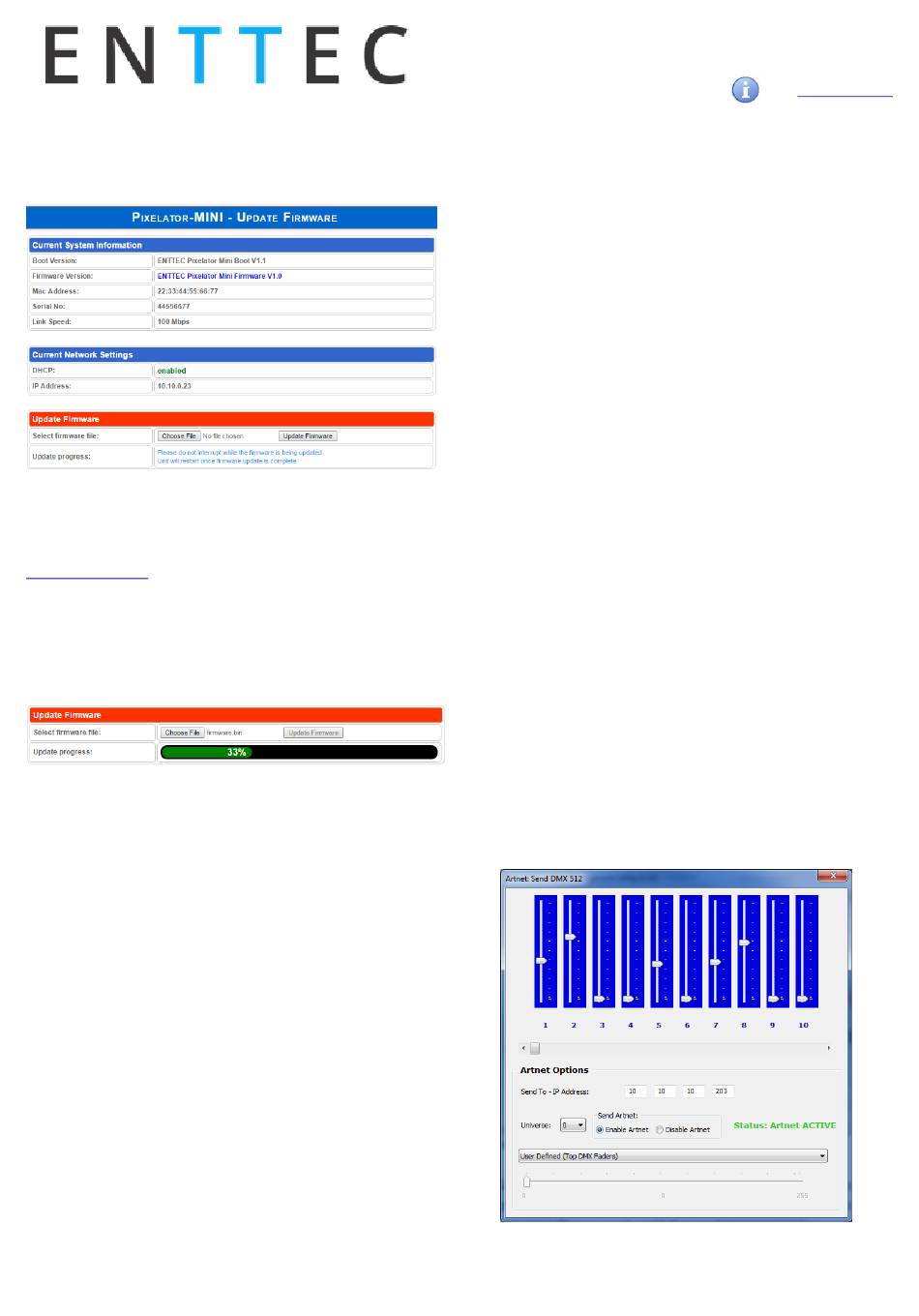

Update Firmware

From this page you can update Pixelator Mini to the lat-
est firmware. Latest firmware file is available at
enttec.com/mini.
Choose or browse the firmware file (as per your browser)
and click on Update firmware to start the process. The
update progress is shown in real-time, and will take a few
seconds for the update to complete
When the update is complete, the page will refresh and
you will be taken to the home page – where you can verify
the firmware version. If the update fails for any reason,
please try the same process again.
Pixelator Mini will reboot after a firmware update, please
allow a few seconds for it to be refreshed in the browser.
Please wait until the update process is complete.

Reset button

The reset button restores the configuration of the
Pixelator Mini to factory defaults:
DHCP is set to enabled
•
Static IP address is mapped to the Serial number
•
of the unit (used if DHCP is unavailable).
Netmask is set to 255.0.0.0
•
DMX Protocol is set to Art-Net (0-15)
•
Each Plink output is set to 2 Universe with RGB
•
ordering.
5
To successfully reset to factory defaults the Pixelator Mini,
the following procedure must be performed:
Power off the unit
•
Press and hold the Reset button.
•
While holding the Reset button, power up the unit,
•
and keep holding the button for 3 seconds.
Release the Reset button once the status led starts
•
blinking red.
Wait 3 seconds and cycle power
•
Connector pin out
Pixel Link pinout (RJ-45):
•
Pin 1: Data +
•
Pin 2: Data -
•
Pin 7: Ground
Art-Net Send Test
NMU can also be used to troubleshoot the Plink output on
the Pixelator Mini. Art-Net Test can be accessed from the
top menu: Art-net → Art-net Test
When first opened, the Art-Net is set to Disabled, please set
it to Enabled, and then you can use either the DMX faders to
test one or more DMX channels, or use the test-patterns
from the options available.
Please set the Pixelator Mini to be Art-Net output and on
the same universe as being used to send Art-Net from NMU.
