Summary of Contents for Enttec STORM10

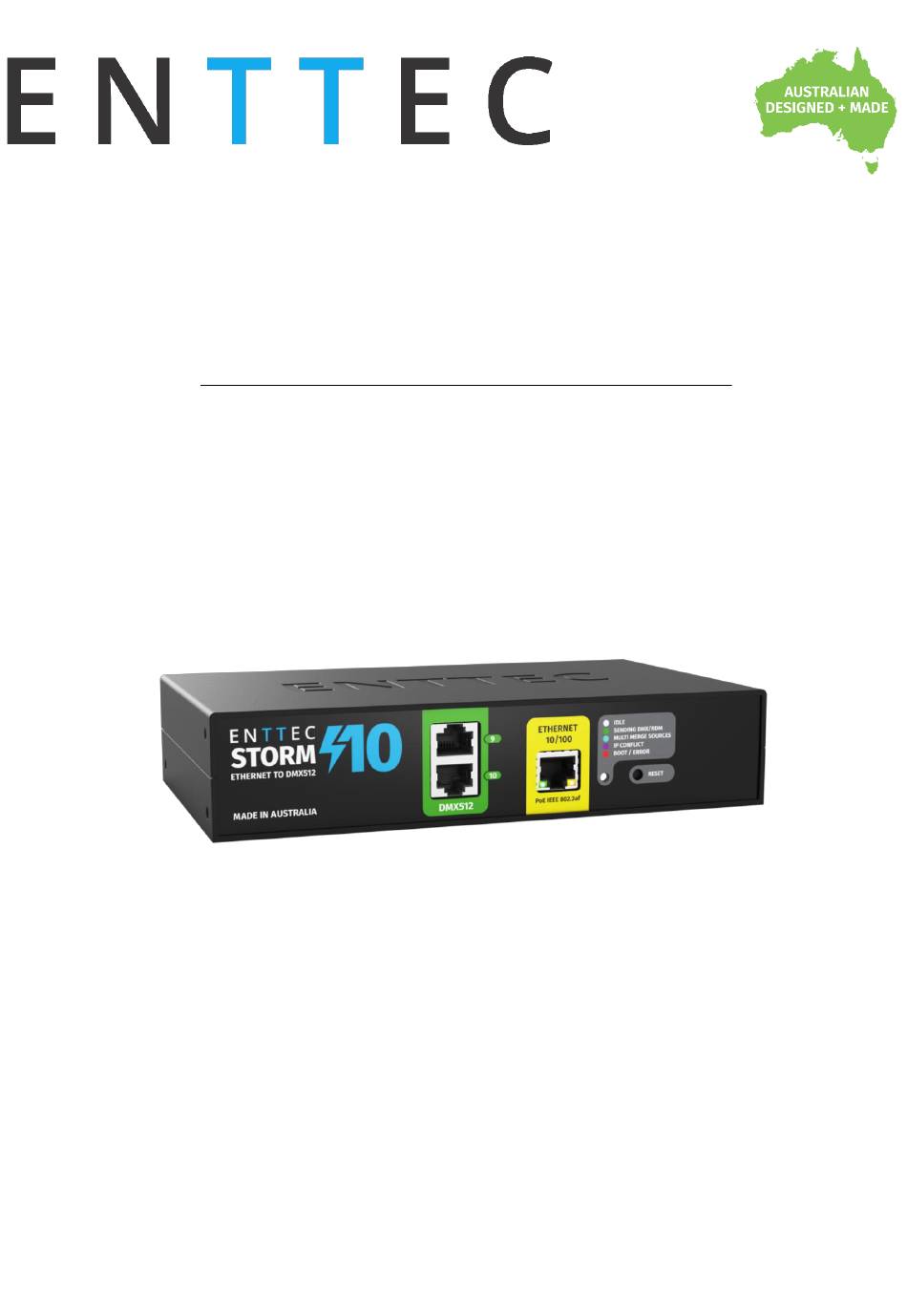

- Page 1 STORM10 70057 User Manual Compact 10 Universes DMX over Ethernet to DMX/RDM Converter. Document Updated: October 2022...
-
Page 2: Table Of Contents
Resetting via Web Interface ....................................10 Resetting by Reset Button ....................................10 Frequently Asked Question ..................................... 11 I’m unable to connect to the STORM10 web interface........................11 Servicing, Inspection & Maintenance ................................11 Cleaning ............................................11 Package Content .......................................... 12 Ordering Information ........................................ -
Page 3: Safety
ENTTEC device. If you are in any doubt about system safety, or you plan to install ENTTEC device in a configuration that is not covered within this guide, contact ENTTEC or your ENTTEC supplier for assistance. -
Page 4: Installation Safety Guidelines
Intuitive device configuration and updates through the local host web interface. RDM ANSI E1.20 is supported This will convert Art-RDM to RDM (ANSI E1.20) to use the STORM10 as a gateway to discover, configure and monitor RDM capable devices on the DMX line connected to the port. -
Page 5: Hardware Features
Visit the for the latest version. random data on your network sending your show into chaos. The STORM10 will display an error at Merge Status on the home page of the web interface and the status LED will light up cyan. -
Page 6: Poe (Power Over Ethernet)
Out of the Box STORM10 will be set to a DHCP IP address as default. If the DHCP server is slow to respond, or your network does not have a DHCP server, STORM10 will fall back to IP address 192.168.0.10. By Default, STORM10 port... -
Page 7: Top Menu
Note: As STORM10 is hosting a web server on the local network and does not feature an SSL Certificate (used to secure online content), the web browser will display the ‘Not secure’ warning, this is to be expected. -
Page 8: Settings
Universe: 0-32767 (Art-Net), 0-255 (ESP), 1-63999 (SACN) Refresh Rate: The rate at which the STORM10 will output the Data from its DMX port (40 Frames per second is default). It will repeat the last received frame to comply with DMX standard. -
Page 9: Update Firmware
▪ Update Firmware When selecting the Update Firmware tab, the STORM10 will stop outputting and the web interface boots into the Update Firmware mode. It may take a while depending on the network setting. An error message is expected as the webpage is temporary unavailable in boot mode. -
Page 10: Reset To Factory Defaults
Next click on the Update Firmware button to begin updating. Once the file has been downloaded, the STORM10 will begin installing the update. While doing that the Home page will be greyed out and a message indicating that the update is in progress will be displayed. -
Page 11: Frequently Asked Question
3. Open ENTTEC EMU software. 4. Once EMU finds the STORM10, you will be able to open the device webpage and configure it. Factory Reset the device using the reset button if the above steps do not resolve the issue. -
Page 12: Package Content
Din Rail Clip x 2pcs & Screws x 4pcs Read Me Card Ordering Information For further support and browse ENTTEC’S range of products, visit the ENTTEC website Item STORM10 70057 Due to constant innovation, information within this document is subject to change.
