Basic Setup; Led Status - Enttec PIXELATOR MINI User Manual

Safety
•
Do not expose the unit to rain or moisture, doing
this will void the warranty
•
Do not remove the cover, there are no
serviceable parts inside
•
This unit is intended for indoor use only

Basic Setup

Right out of the box, the Pixelator Mini is factory config-
ured to be a standard Art-Net node, listening to the first
16 Art-Net Universes (0 to 15). It is also set as a DHCP
node, so you can plug it into your existing router, and it's
good to go.
To make any changes to the configuration, you will need
the IP address of the unit. ENTTEC provides a free App
(available for Windows and Mac) called NMU, which will
find the Pixelator Mini on your network and display its IP
address.
Using the IP address one can access the built-in web-in-
terface inside the Pixelator Mini via any modern web-
browser. The web-interface allows the settings of the
unit to be changed.
Pixel Tape/Dots are to be connected to the Pixel Link
port using a PLink Injector (sold separately). The injector
takes external DC power and has appropriate terminals
to connect the tape.
Once setup, any Art-Net/sACN/ Kling-net/ESP enabled
software/app or a lighting control desk can be used to
drive the Pixel Link outputs on the Pixelator Mini. For a
list of recommended apps, please check the website
www.enttec.com/mini

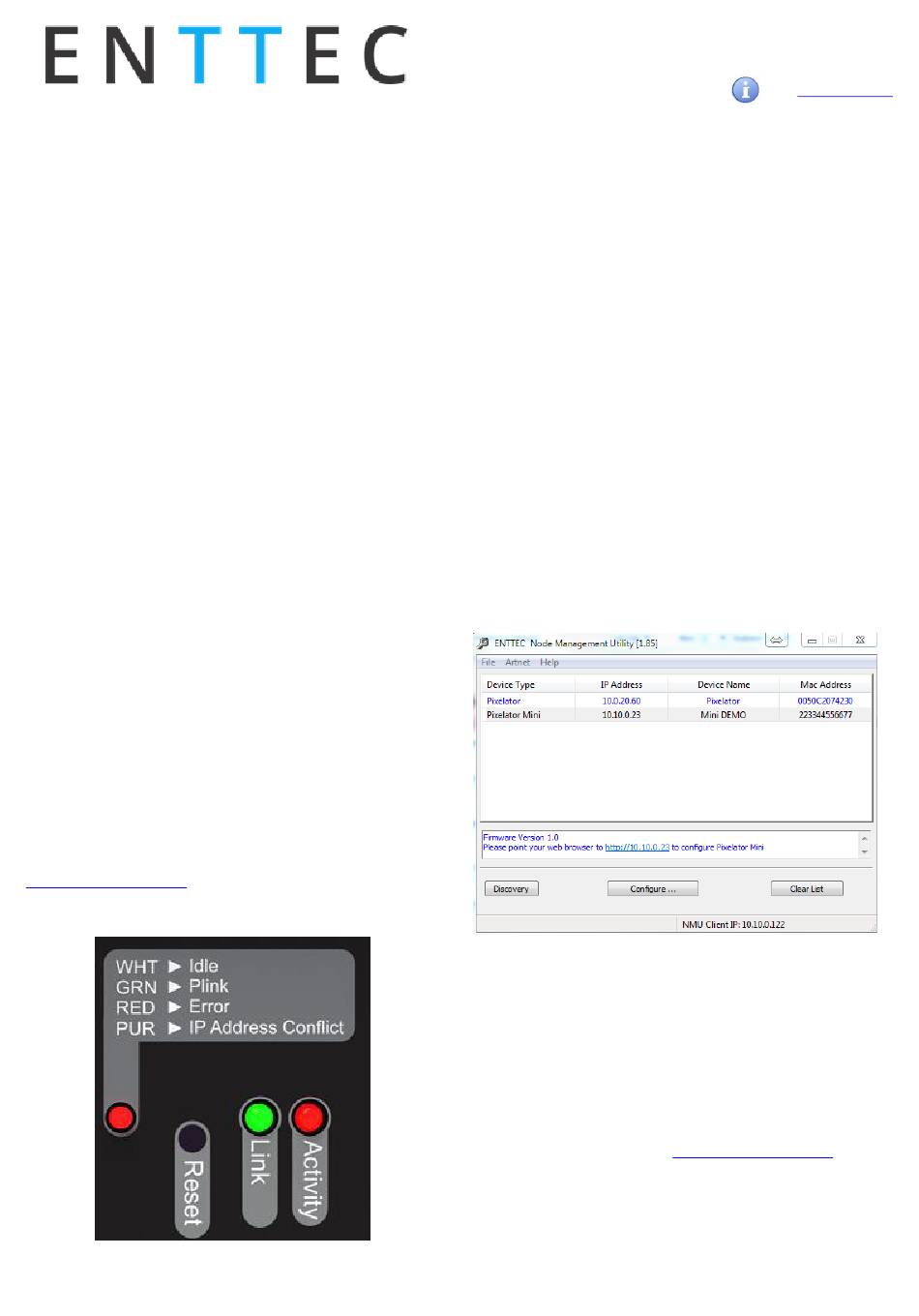

LED Status

2
The Pixelator Mini comes with one RGB status LED and two
green network LED indicators located on the right side of
the front panel
RGB Status LED:
WHITE:
idle, signifies that Pixelator Mini is
•
operating normally.
GREEN:
Pixel Link Data is being output. The led will
•
fade from white to green.
RED: (Blinking)
•
update or needs to be rebooted. A reset might be
required, if it stays in error-mode on reboot.
PURPLE: (Blinking)
•
change the IP address manually or enable DHCP.
Ethernet Link Speed
Ethernet Link @ 100 mbps. It will stay OFF @ 10 mbps.
Ethernet Activity
: This LED blinks when there is activity on
the Ethernet network.
NMU
NMU (Node Management Utility) is a free Windows and Mac
application that is used to manage compatible ENTTEC DMX
over Ethernet nodes.
NMU will help you find your unit's IP address and then open
a browser window to access the web-interface.
Please follow these steps:
1. Download NMU from
2. Ensure that Pixelator Mini is hooked up physically
by an Ethernet cable.
User Manual
PMINI-MANUAL (50881)
For latest version visit:
www.enttec.com
