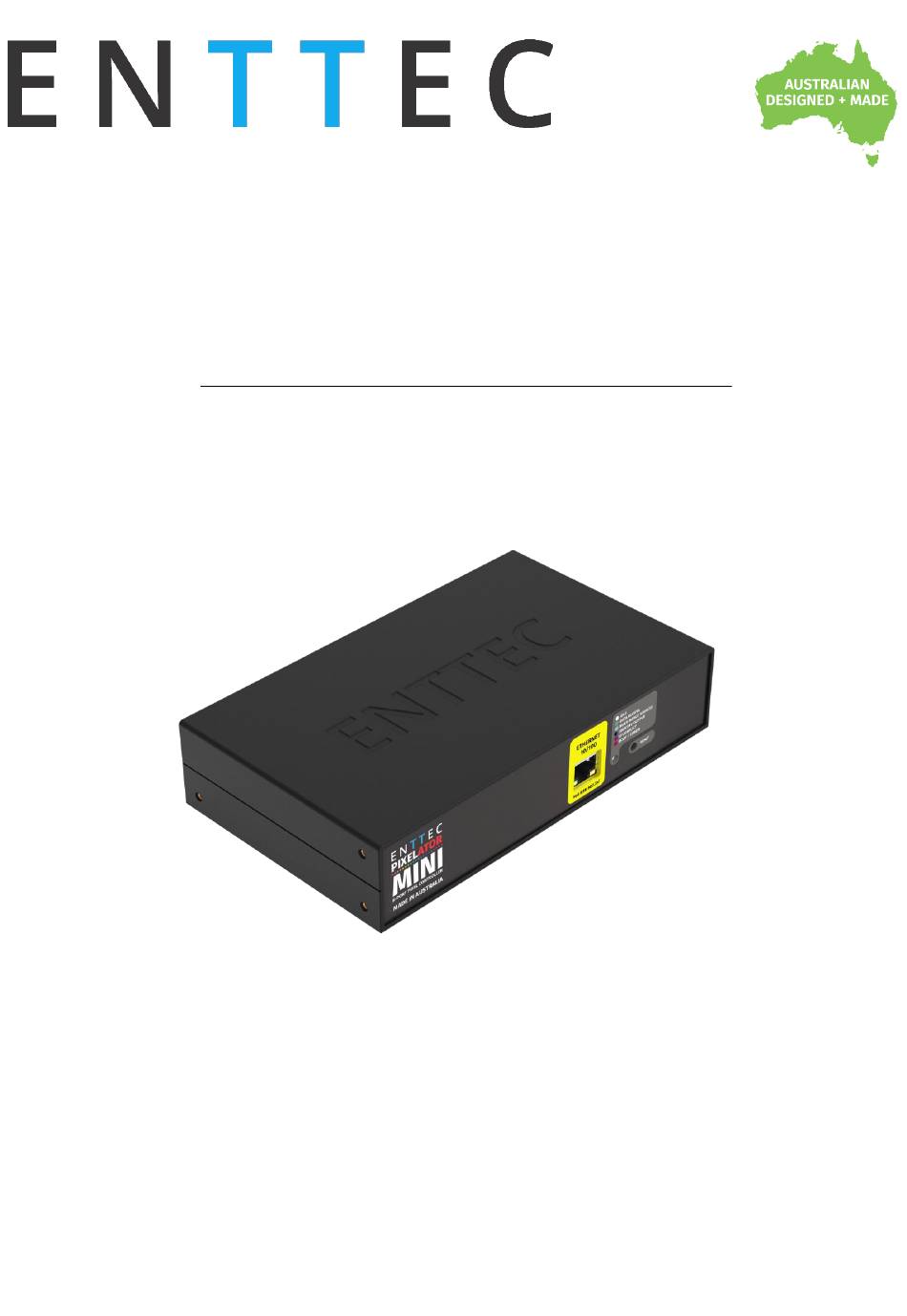

- Page 1 PIXELATOR MINI 70067 User Manual eDMX to SPI Pixel Controller: Transmitting up to 32 Universes of SPI Data reliably across long distance. Document Updated: Dec 2024...
- Page 2 PIXELATOR MINI (70067) ENTTEC website Visit the for the latest version. Contents Safety ................................................ 3 Electrical Safety ..........................................3 System Planning and Specification ..................................3 Protection from Injury During Installation ............................... 3 Installation Safety Guidelines ....................................4 Wiring Diagrams ..........................................5 Functional Features...........................................
- Page 3 ENTTEC documentation before specifying, installing, or operating an ENTTEC device. If you are in any doubt about system safety, or you plan to install ENTTEC device in a configuration that is not covered within this guide, contact ENTTEC or your ENTTEC supplier for assistance.
- Page 4 All network cabling should be terminated with an RJ45 connector in accordance with the T-568B standard. Always use suitable personal protective equipment when installing ENTTEC products. Once installation is completed, check that all hardware and components are securely in place and ...
- Page 5 PIXELATOR MINI (70067) ENTTEC website Visit the for the latest version. Wiring Diagrams Key Installation Guidelines: Ensure all safety guidelines within this User Manual and other product documentation are factored ▪ into the design. ▪ Controller and PSU can be wired up to 300 metres using Shielded Twisted Pair (STP) cable.
- Page 6 PLINK INJECTORs (Sold Separately) The ENTTEC PIXELATOR MINI supports transmission over 300 meters via Cat6 STP cable, ensuring a reliable connection to the PLINK INJECTOR. The ENTTEC PLINK INJECTOR seamlessly converts signals into SPI protocols, effortlessly delivering them up to 3 metres to pixel fixtures.
- Page 7 PIXELATOR MINI (70067) ENTTEC website Visit the for the latest version. PLINK Port Data Pinout: PLINK Data is sent over Cat5/6 STP cable over 3 pins within a RJ45 connector. These pins are: Pin 1: Data + Pin 2: Data –...
- Page 8 Unidentified IP address: If you are not aware of the PIXELATOR MINI’s IP address (either DHCP or Static) the following discovery methods can be used on a local network to discover devices: ENTTEC EMU software for Windows and MacOS (support Mac OSX 10.13 or later), which will Discover ...
- Page 9 PIXELATOR MINI (70067) ENTTEC website Visit the for the latest version. Home This is the landing page for the PIXELATOR MINI web interface and it displays the configuration overview for the followings: System Information: Network Information: Pixel Mapping Information: Node Name DHCP status –...
- Page 10 PIXELATOR MINI (70067) ENTTEC website Visit the for the latest version. Settings The PIXELATOR MINI main configuration is within the Settings page. Changes will only take affect after being saved; any unsaved changes will be discarded. Node Name: User can name the PIXELATOR MINI that aids identification within Poll replies.
- Page 11 However, where it applies, a start address offset may result in the split of a pixel. e.g., R channel in first universe and GB channels in the seconds universe for a RGB LED. For ease of pixel mapping, ENTTEC recommend offsetting the DMX start address to a number divisible by the number of channels per pixel. i.e.: Increments of 3 for RGB (i.e., 1,4,7, 10)
- Page 12 PIXELATOR MINI (70067) ENTTEC website Visit the for the latest version. Save Settings: All changes must be saved to take effect. Reset to Defaults: This button allows the PIXELATOR MINI to reset back to factory default via web interface. Please refer to the Reset to Factory Defaults section of this document for mor e information.
- Page 13 IP address information. latest firmware downloaded from www.enttec.com. Use the Browse button to select an PIXELATOR MINI firmware from your computer. PIXELATOR MINI firmware files have a .bin extension. Next click on the Update Firmware button to begin updating.
- Page 14 The PIXELATOR MINI allows the user to choose a pixel output protocol even it is not found in the drop-down list. Visit the ENTTEC Website to view the ‘Custom Protocol Creation Guide’ document for more information about the key criteria and the step-by-step guide.
- Page 15 Do not spray device or accessories. The device is an IP20 product. To clean an ENTTEC device, use low-pressure compressed air to remove dust, dirt and loose particles. If deemed necessary, wipe the device with a damp microfiber cloth.
- Page 16 PIXELATOR MINI (SKU:70067) released after SN: 2392325 (7-digit SN format), please load firmware version V2.0 onwards only. Ordering information For further support and browse ENTTEC’S range of products, visit the ENTTEC website. Item PIXELATOR MINI 70067 PLINK INJECTOR (5v)
