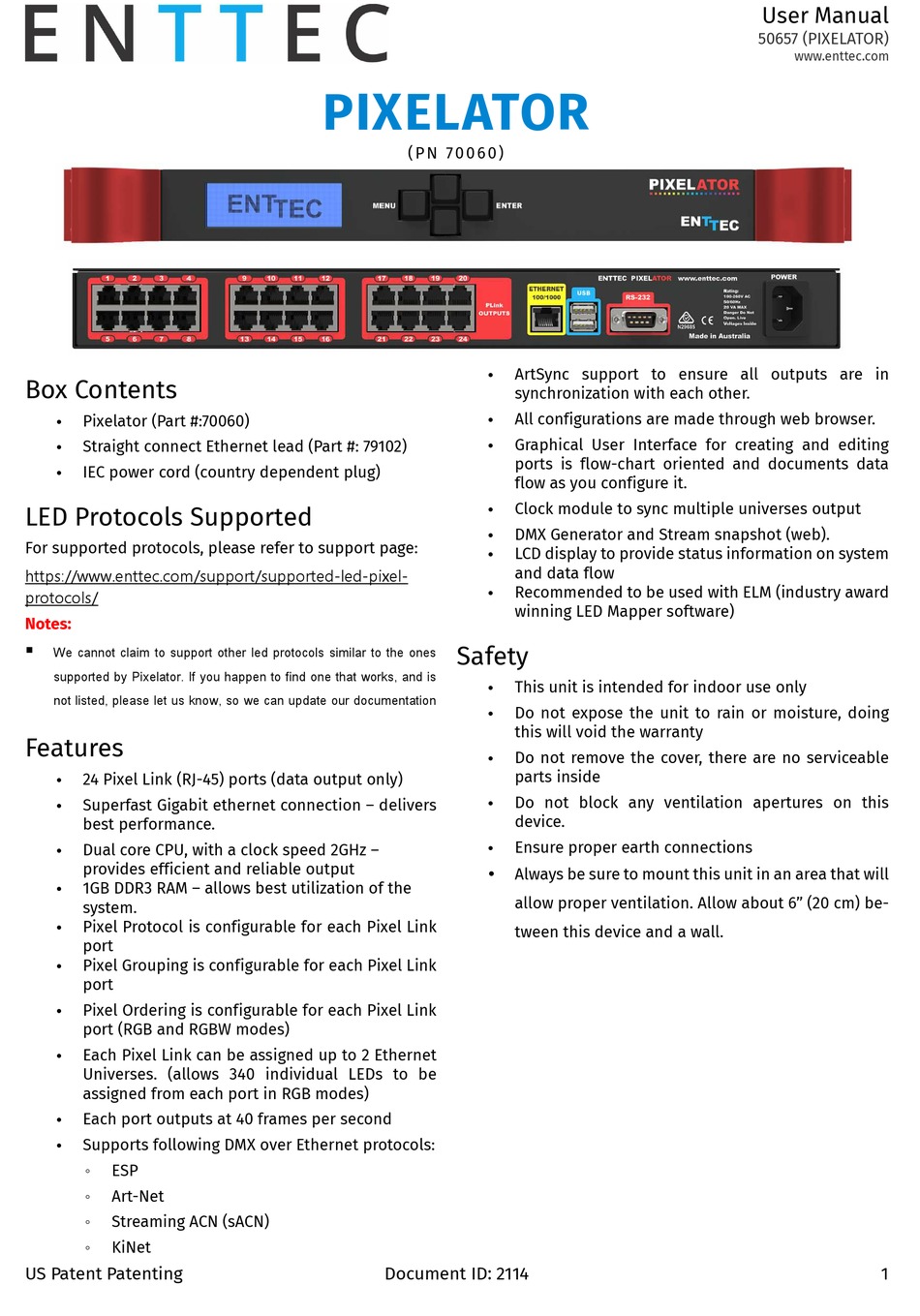

Enttec PIXELATOR User Manual

Hide thumbs Also See for PIXELATOR:
Table of Contents

Advertisement

Quick Links

Download this manual
Box Contents
Pixelator (Part #:70060)
•
Straight connect Ethernet lead (Part #: 79102)
•
IEC power cord (country dependent plug)
•
LED Protocols Supported
For supported protocols, please refer to support page:
https://www.enttec.com/support/supported-led-pixel-
protocols/
Notes:
 We cannot claim to support other led protocols similar to the ones
supported by Pixelator. If you happen to find one that works, and is
not listed, please let us know, so we can update our documentation
Features
24 Pixel Link (RJ-45) ports (data output only)
•
Superfast Gigabit ethernet connection – delivers
•
best performance.
Dual core CPU, with a clock speed 2GHz –
•
provides efficient and reliable output
1GB DDR3 RAM – allows best utilization of the
•
system.
Pixel Protocol is configurable for each Pixel Link
•
port
Pixel Grouping is configurable for each Pixel Link
•
port
Pixel Ordering is configurable for each Pixel Link
•
port (RGB and RGBW modes)
Each Pixel Link can be assigned up to 2 Ethernet
•
Universes. (allows 340 individual LEDs to be
assigned from each port in RGB modes)
Each port outputs at 40 frames per second
•
Supports following DMX over Ethernet protocols:
•
ESP
◦
Art-Net
◦
Streaming ACN (sACN)
◦
KiNet
◦
US Patent Patenting
PIXELATOR
( P N 7 0 0 6 0 )
•
•
•
•
•
•
•
Safety
•
•
•
•
•
•
Document ID: 2114
ArtSync support to ensure all outputs are in
synchronization with each other.
All configurations are made through web browser.
Graphical User Interface for creating and editing
ports is flow-chart oriented and documents data
flow as you configure it.
Clock module to sync multiple universes output
DMX Generator and Stream snapshot (web).
LCD display to provide status information on system
and data flow
Recommended to be used with ELM (industry award
winning LED Mapper software)
This unit is intended for indoor use only
Do not expose the unit to rain or moisture, doing
this will void the warranty
Do not remove the cover, there are no serviceable
parts inside
Do not block any ventilation apertures on this
device.
Ensure proper earth connections
Always be sure to mount this unit in an area that will
allow proper ventilation. Allow about 6" (20 cm) be-
tween this device and a wall.
User Manual
50657 (PIXELATOR)
www.enttec.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIXELATOR and is the answer not in the manual?

Questions and answers

Related Manuals for Enttec PIXELATOR

Summary of Contents for Enttec PIXELATOR

  • Page 1 Notes:  We cannot claim to support other led protocols similar to the ones Safety supported by Pixelator. If you happen to find one that works, and is This unit is intended for indoor use only • not listed, please let us know, so we can update our documentation Do not expose the unit to rain or moisture, doing •...

  • Page 2: Physical Dimensions

    The Pixelator occupies a single unit (1U) in a 19 inch rack. You may attach it to the rack either at this time or later after configuring it, if desired.

  • Page 3: Factory Profiles

    Factory Profiles through the Pixelator. This number of packets per second, The Pixelator has a set of factory profiles, to start you off. can be used as an indicator of the activity of DMX on your You're likely to see 2 or more of the following: network.

  • Page 4: Web Interface

    Web: Profiles 1-YES 2-NO Once confirmed, Pixelator will stop the output engine and restart the system. While rebooting the LCD screen will change between a couple of screens, and the LCD Main Menu will only be visible, once the system is fully From this screen you can manage your profiles.
  • Page 5 1 Universe. Protocol: select the led protocol that the pixel • ESP Stream ENTTEC Show protocol DMX over Ethernet tape conforms to. stream (ESP). Ordering: RGB or RGBW mapping that the pixel •...

  • Page 6: Firmware Update

    Press the Discovery button. always synced to the “latest universe” - especially if the 4. Once found, select Pixelator and use the IP address source adds a delay to each universe. to access the web interface via your web browser.

  • Page 7: Connector Pinout

    • Without rack ears 207 mm/8.2 inches individual pixels (2 DMX universes) - PLink 2U Height 32 mm/1.26 inches module must be used in Pixelator Profile Operating Environment PLink Injector sold separately (73546 / 73544) • 0 - 50° Celsius...

  • Page 8: Ordering Information

    User Manual 50657 (PIXELATOR) www.enttec.com Ordering Information To order Pixelator and related products from our website or through an ENTTEC dealer using the following part numbers. Part Number Description 70060 Pixelator 73546 Plink Injector 5V 73544 Plink Injector 12-24V CVC3...
