Plink Settings

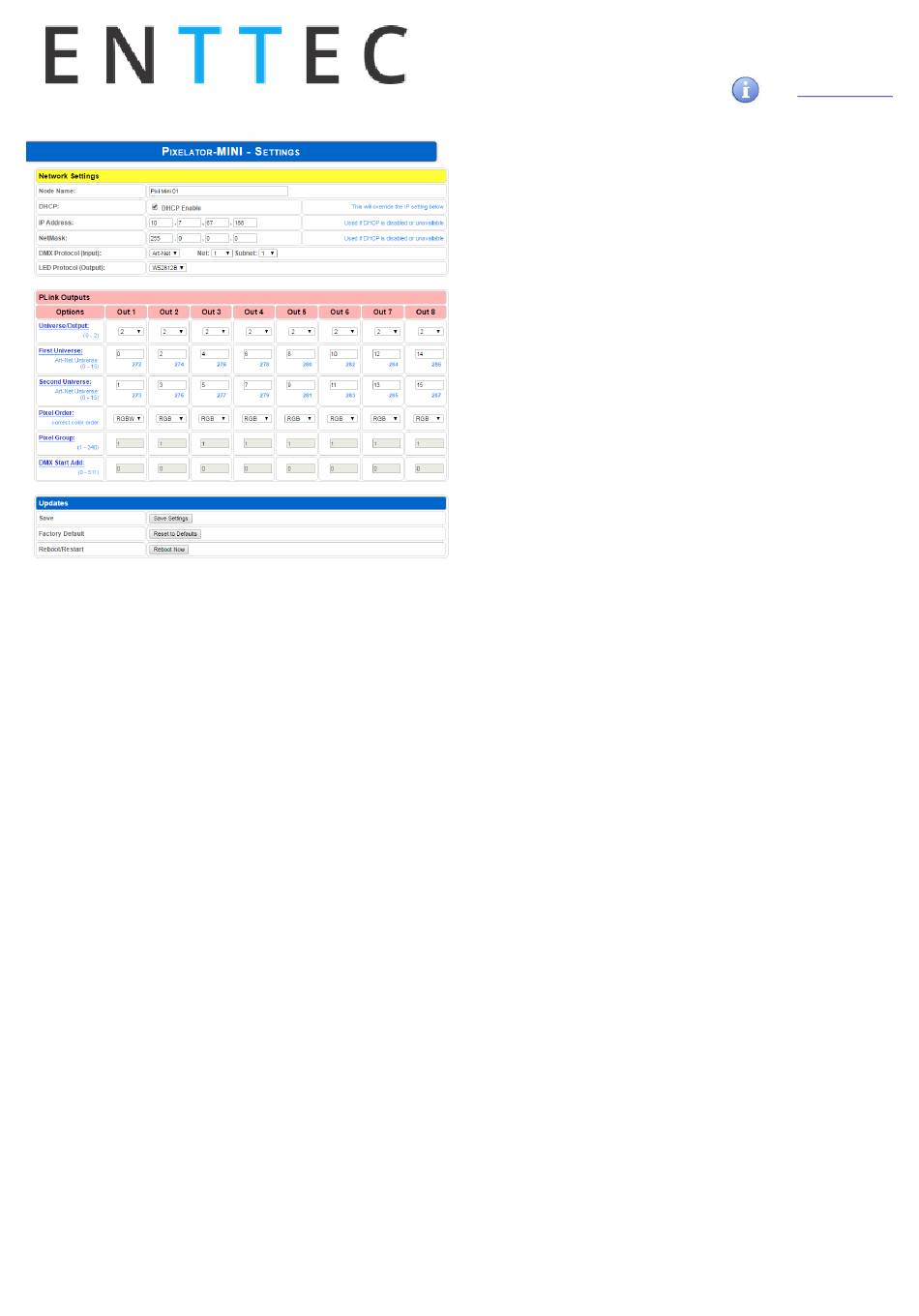

The Plink Outputs table allows all settings to be individ-
ually changed for each Plink Port. The options available
for each Port are as follows:
Universe / Output
Select the number of universe to drive the outputs. Avail-
able options are:
•
None: No output.
•
1: Maps to One universe, and drives first 170 pix-
els in RGB modes, or First 128 Pixels in RGBW
modes.
•
2: Maps the output to two universes, and drives
first 340 pixels in RGB modes, or First 256 Pixels
in RGBW modes.
First Universe
Allows selections of the First universe that the output will
be mapped to. Drives the first 170 Pixels in RGB modes,
or the first 128 Pixels in RGBW modes.
For Art-net universe, please change Net/Subnet to in-
crease combined universe beyond 15. (Combined uni-
verse is shown under the selection).
4
Second Universe
Allows selections of the Second universe that the output
will be mapped to. Drives pixels 171-340 in RGB modes, or
the pixels 129-256 in RGBW modes.
For Art-net universe, please change Net/Subnet to increase
combined universe beyond 15. Combined universe is shown
under the selection.
Pixel Order
Ordering controls, how the DMX slots are mapped to the LED
pixel color on each LED pixel. The ordering selected here
should match the ordering on the Pixel Tape or Dots being
used. The Pixel ordering selected, will also determine the
number of Pixels being driven on the output.
RGB options: uses 3 DMX channels per pixel.
RGBW options: uses 4 DMX channels per pixel.
Pixel Group
Pixel Grouping allows one DMX pixel to drive multiple phys-
ical LED pixels. This option is only available when One Uni-
verse/Output is selected. Defaults to 1.
The max. Group will depend on the Pixel order selected.
DMX Start Add
Selects DMX slot number for the first pixel to output. This
option is only available when One Universe/Output is se-
lected. Defaults to 0.
