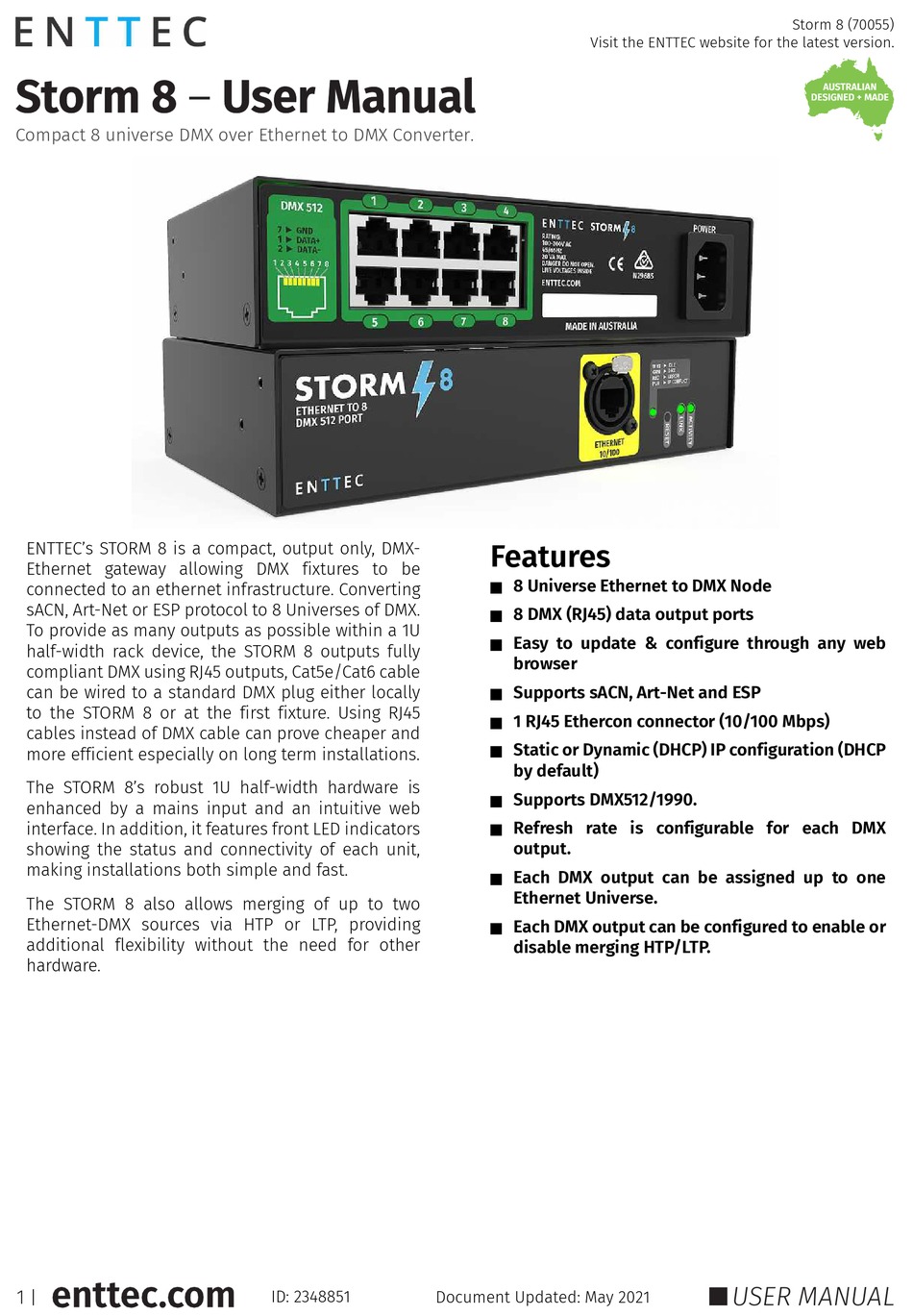

Storm 8 – User Manual
Compact 8 universe DMX over Ethernet to DMX Converter.
ENTTEC's STORM 8 is a compact, output only, DMX-
Ethernet gateway allowing DMX fixtures to be
connected to an ethernet infrastructure. Converting
sACN, Art-Net or ESP protocol to 8 Universes of DMX.
To provide as many outputs as possible within a 1U
half-width rack device, the STORM 8 outputs fully
compliant DMX using RJ45 outputs, Cat5e/Cat6 cable
can be wired to a standard DMX plug either locally
to the STORM 8 or at the first fixture. Using RJ45
cables instead of DMX cable can prove cheaper and
more efficient especially on long term installations.
The STORM 8's robust 1U half-width hardware is
enhanced by a mains input and an intuitive web
interface. In addition, it features front LED indicators
showing the status and connectivity of each unit,
making installations both simple and fast.
The STORM 8 also allows merging of up to two
Ethernet-DMX sources via HTP or LTP, providing
additional flexibility without the need for other
hardware.
1
|
ID: 2348851
Document Updated: May 2021
Visit the ENTTEC website for the latest version.
Features
8 Universe Ethernet to DMX Node
8 DMX (RJ45) data output ports
Easy to update & configure through any web
browser
Supports sACN, Art-Net and ESP
1 RJ45 Ethercon connector (10/100 Mbps)
Static or Dynamic (DHCP) IP configuration (DHCP
by default)
Supports DMX512/1990.
Refresh rate is configurable for each DMX
output.
Each DMX output can be assigned up to one
Ethernet Universe.
Each DMX output can be configured to enable or
disable merging HTP/LTP.
Storm 8 (70055)
USER MANUAL
..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Storm 8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enttec Storm 8

Summary of Contents for Enttec Storm 8

  • Page 1 DMX plug either locally Supports sACN, Art-Net and ESP  to the STORM 8 or at the first fixture. Using RJ45 1 RJ45 Ethercon connector (10/100 Mbps)  cables instead of DMX cable can prove cheaper and Static or Dynamic (DHCP) IP configuration (DHCP more efficient especially on long term installations.

  • Page 2: Table Of Contents

    ENTTEC device. If you are in any doubt about system safety, or you plan to install ENTTEC device in a configuration that is not covered within this guide, contact ENTTEC or your ENTTEC supplier for assistance.

  • Page 3: System Planning And Specification

    Keep the STORM 8 and its accessories in its protective packaging until final installation.  Note the serial number of each STORM 8 and add it to your layout plan for future reference when  servicing.

  • Page 4: Installation Safety Guidelines

    (from different IP addresses) values can be merged if the source is the same protocol and universe. If the STORM 8 receives more sources than expected (Disabled – 1 source & HTP/LTP – 2 sources) the DMX Output will send unexpected data, affecting the lighting fixtures, potentially causing flicker. The STORM 8 LED status light will blink Cyan if merge sources are exceeded.

  • Page 5: Hardware Features

    By default, the STORM 8 is set to output Art-Net Universes 0 through 7 over the eight outputs. The STORM 8 will be set to a DHCP IP address as default. If the DHCP server is slow to respond, or your network does not have a DHCP server, the STORM 8 will fall back to the default Static IP address which will be printed on the STORM 8’s packaging, but also can be calculated from the last three bytes (pairs) of the...

  • Page 6: Networking

    DHCP server, the STORM 8 will request an IP address from the server. If the DHCP server is slow to respond, or your network does not have a DHCP server, the STORM 8 will fall back to the Static IP address. If a DHCP address is provided, this can be used to communicate with the STORM 8.

  • Page 7: Home

    Storm 8 (70055) Visit the ENTTEC website for the latest version. Home The landing page for the Storm 8 web interface is the Home tab. This tab is designed to give you a read- only device overview. This will display:...

  • Page 8: Network Stats

    Storm 8 (70055) Visit the ENTTEC website for the latest version. Save: All changes must be saved to take effect the STORM 8 takes up-to 10 seconds to save.  Factory Default: STORM 8 will be reset to Factory condition, including the DHCP being enabled, with the ...

  • Page 9: Servicing, Inspection & Maintenance

    Do not spray device or accessories. The device is an IP20 product.  To clean an ENTTEC device, use low-pressure compressed air to remove dust, dirt and loose particles. If deemed necessary, wipe the device with a damp microfiber cloth.

  • Page 10: Package Contents

    STORM 8  Ethernet Cable  IEC cable  IEC cable Ordering Information For further support and to browse ENTTEC’s range of products visit the ENTTEC website. Item Part No. STORM 8 70055 RJ45 (MALE) to XLR-5 (FEMALE) -1m 70053 Due to constant innovation, information within this document is subject to change.

This manual is also suitable for:

70055
