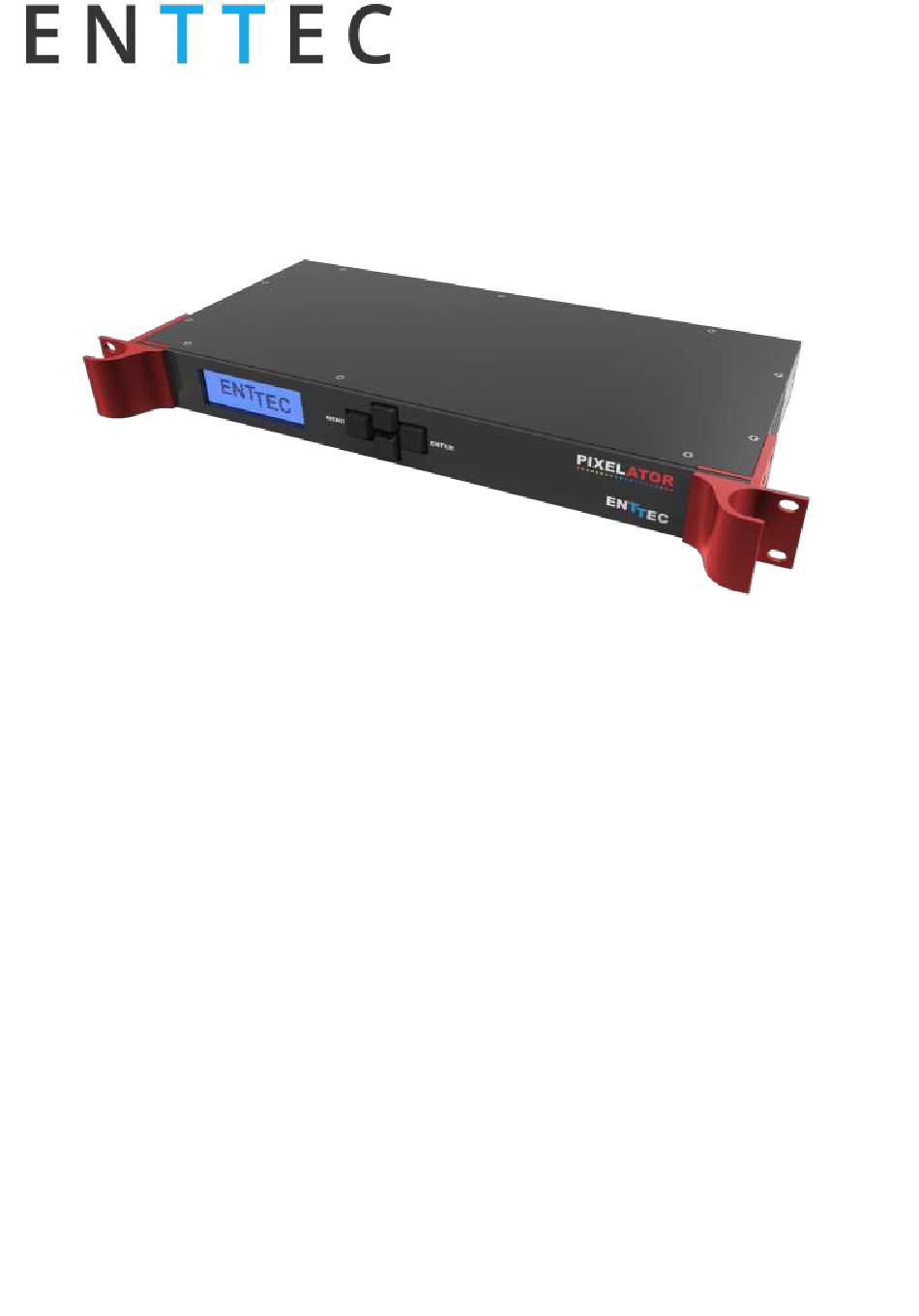

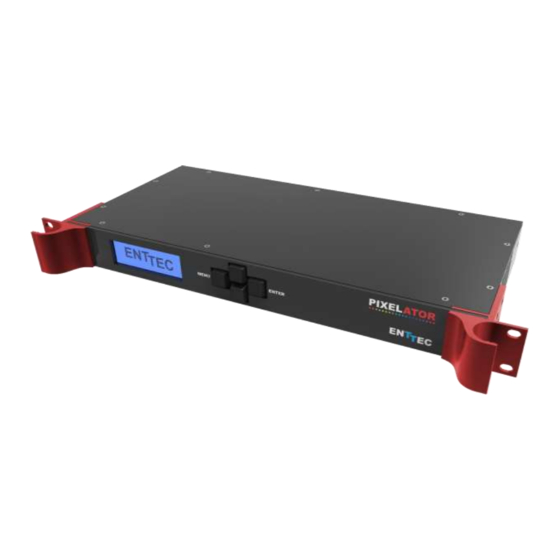

Enttec PIXELATOR Quick Start Manual

Box Contents
• Pixelator (pn:70060)
• Straight connect Ethernet lead (pn:79102)
IEC power cord (country dependent plug)
•
User manual (pn: 50657)
•
Physical Features
• 24 Pixel Link ( RJ-45) ports (data output only)
• Gigabit Ethernet Connection
• LCD display to provide status information on
system and data flow
Software Features
• Pixel Protocol is configurable for each Pixel Link
port (WS2812B WS2811 or APA-104)
• Pixel Grouping is configurable for each Pixel Link
port (up-to 340)
Pixel Ordering is configurable for each Pixel Link
•
port (RGB and RGBW modes)
• Each Pixel Link can be assigned upto 2 Ethernet
Universes. (allows 340 indivudal leds to be
assigned from each port in RGB modes)
•
PIXELATOR
( P N 7 0 0 6 0 )
Safety
Basic Setup
ENTTEC
this, you can use the device with applications, consoles,
US Patent Patenting
• All configurations are made through web browser.
Graphical User Interface for creating and editing
•
ports is flow-chart oriented and documents data
flow as you configure it.
• Clock module to sync multiple universes output
• Supports following DMX over Ethernet protocols:
◦ ESP
◦ Art-Net
◦ StreamingACN (sACN)
◦ KiNet
• DMX Generator and Stream snapshot (web) .
• Do not expose the unit to rain or moisture, doing
this will void the warranty
• Do not remove the cover, there are no serviceable
parts inside
• Since the Pixelator is designed to run 24/7, the fan
will always remain on, however it can be disabled if
needed.
Pixelator is a standard Art-Net node. Because of
Quick Start Manual
50657 (PIXELATOR)
for more information visit:
enttec.com/pixelator
