24" Basket Fan (50576 and 50576-230)
Installation

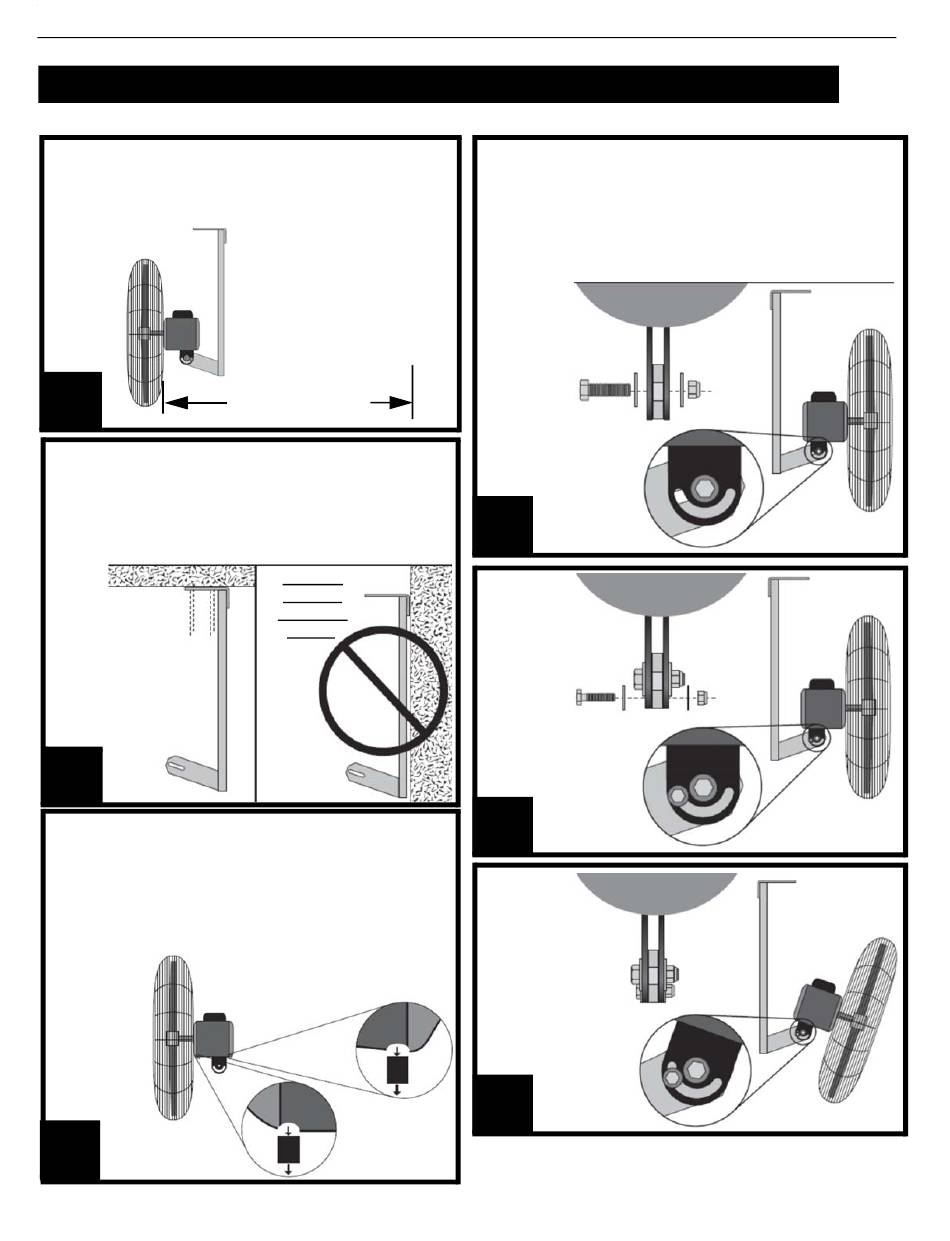

It is important to select a proper location when mounting your
circulation fan. You must provide a minimum of 5' unrestricted
air flow on the back side of the fan. Failure to provide the space
needed for airflow may reduce motor life and void the war-
.
ranty
1
If mounting bracket to structure, verify anchor points are
strong enough for added weight of bracket and fan. Attach top
of bracket to structure with (4) washers and (4) screws or
bolts with nylock nuts (not provided) suitable for your struc-
ture. DO NOT attach bracket to or against wall as this will not
give motor enough unrestricted air flow.
2a
Prep motor for use by removing the 2 drain plugs located on
the bottom (flag mount) side of the motor. Removal of these
plugs allows for drainage of any moisture that might get
inside the motor. DO NOT remove the plugs on the top
(capacitor) side of motor. Removal of these plugs will void
warranty and allow dirt and moisture into the motor, reducing
the life of the motor.
3
MV2478A
Minimum 5'
Unrestricted Space
Required
DO NOT
MOUNT
AGAINST
WALL!
Attach fan to bracket. Insert bracket flag in between the motor
flags and secure using the center holes on the motor flags with
(1) 3/8" x 1-1/4" hex bolt, (2) 3/8" washers and (1) 3/8" nylock
nut as shown in step 4a. Using the crescent openings on the
motor flags, install the (1) 1/4" x 1" hex bolt, (2) 1/4" washers
and (1) 1/4" nylock nut as shown in step 4b. Adjust the fan to
the desired angle and tighten hardware to secure fan angle.
4a
4b
4c
Installation
3
