Summary of Contents for Digitus DN-80069

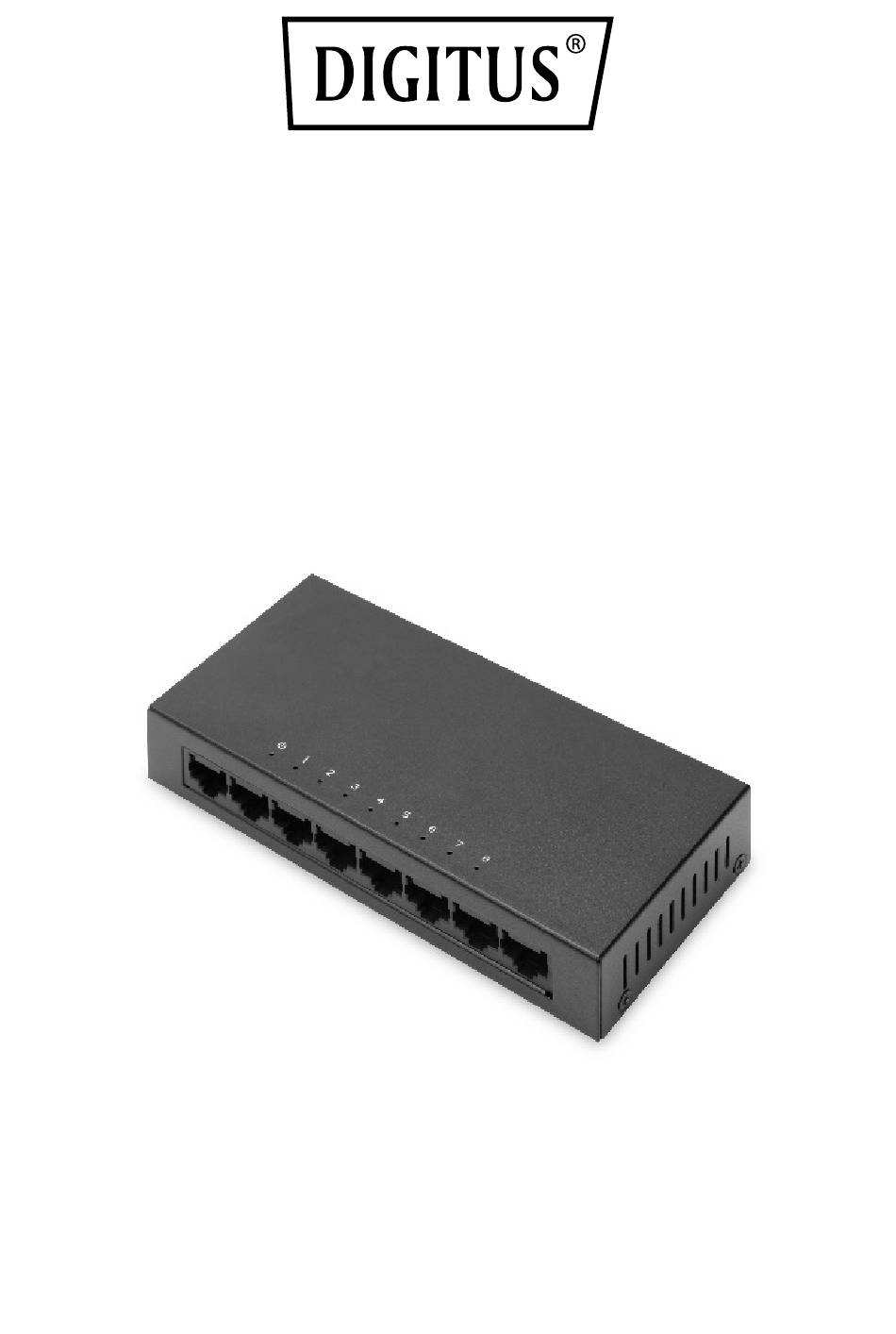

- Page 1 8-Port 10/100Mbps Ethernet Unmanaged Switch Quick Installation Guide DN-80069...
-
Page 2: Copyright Statement
1. Product Introduction The 8-Port 10/100 Mbps Network switch from DIGITUS® provides 5 x RJ45 ports with 10/100Mbps bandwidth each. Easily expand the existing network. No configuration is required on the switch itself;... - Page 3 1.1 Features 8 x RJ45 ports 10/100 Mbps All ports support 10/100 Mbps bandwidth Network standards: IEEE 802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3az Full-duplex flow control IEEE802.3x Store and forward mode operates Auto-negotiation / Auto-MDI/MDI-X No configuration necessary ...
-
Page 4: Hardware Specifications
1.3 Hardware Specifications IEEE802.3i, IEEE802.3u, IEEE802.3x, Standards IEEE802.3az 8 x 10/100Mbps Interface Auto-Negotiation ports 10BASE-T: UTP category 3,4,5 cable (maximum 100m) Network Media 100BASE-T: UTP category 5, 5e cable (maximum 100m) MAC Address Table Per Device Power: Green Indicators Per Port 10/100Mbps Link / Act: Green Switching Capacity 1.6Gbps... - Page 5 1.4 External Component Description Upper Panel The upper panel of the Switch consists of a series of LED indicators LED indicators: The LED Indicators will allow you to monitor, diagnose and troubleshoot any potential problem with the Switch, connection or attached devices. The following chart shows the LED indicators of the Switch along with explanation of each indicator.
- Page 6 Front Panel The front panel of the Switch, contains of 8 x 10/100Mbps RJ-45 ports 10/100 Mbps RJ-45 ports (1~8): Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps. Each has a corresponding Link/Act indicator. Rear Panel The rear panel of the Switch consists of one Grounding Terminal and a 5V DC power adapter interface Grounding Terminal:...
-
Page 7: Installing And Connecting The Switch
2. Installing and Connecting the Switch This part describes how to install your Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 2.1 Installation Please follow the following instructions in avoid of incorrect installation causing device damage and security threat. -
Page 8: Wall Installation
2.3 Wall Installation The Switch can also be installed on a wall. Two installing slots are provided on the bottom of the Switch for this purpose. Please make sure that the front panel is exposed in order to view the LEDs. - Page 9 2.4 Power on the Switch The Switch is powered on by the External DC adapter 5V/500mA power supply. Please follow the next tips to connect: Use the standard DC adapter to connect one end of the power socket to the power DC interface of the back panel of the switch. And check the power indicator is ON or not.
