Multitek RL-B17M User Manual page 3

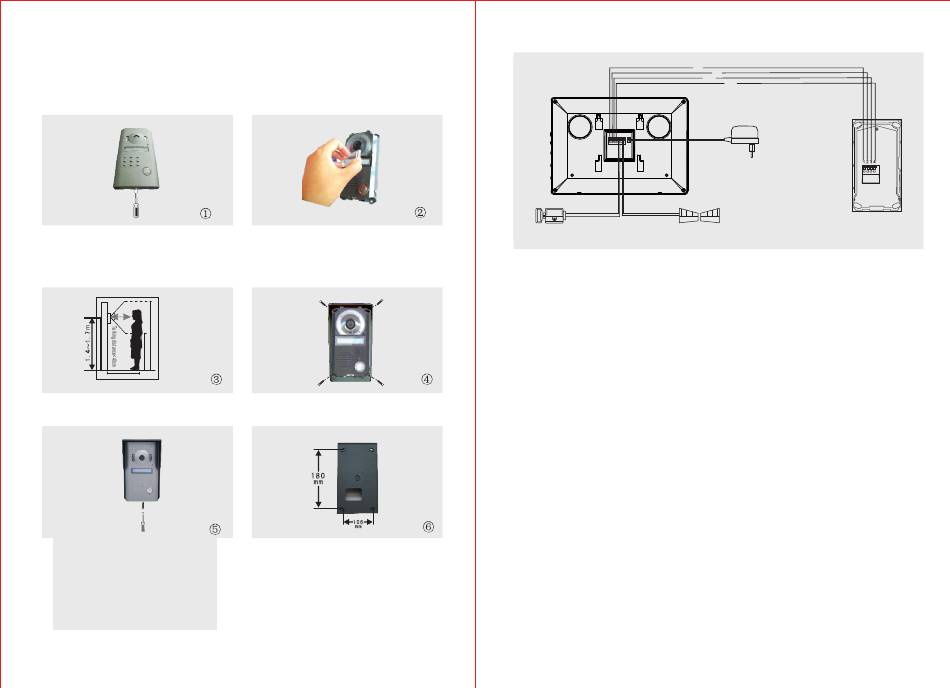

B. Outdoor Unit
1) Take off the screws on the bottom and remove the front cover.
Take off the 'Room No,' lid and write down your respective room/block
2)
number and cover it again with the lid.
3) Install the Outdoor Unit 1.4m ~ 1.7m above the ground level
（according to the camera effect ）.Avoid direct sunlight.
4) Fasten the outdoor unit on the wall with the enclosed screws (4x30BA).
5) Cover the zinc alloy panel and tighten up the screws on the bottom.
3
C. Wiring Diagram
1
1 1 1 2 2 2 3 3 34 4 4 5 5 56 6 67 7 7 8 8 8
DC12V
Indoor Unit
Electronic-lock Gate Unlock
Wiring Requirement
The enclosed cable is 15m, RVV4 x 0.5mm
want to lengthen it to 15m~50m, RVV4
if you want to lengthen it to 50m~100m.
Connect the wiring terminals 1,2,3,4 of indoor unit with wiring terminals 1,2,3,4 of
outdoor unit . The wiring terminals 5 & 6 of indoor unit are connected with electric
2
lock through RVV2 x 1.0 mm connecting wire. The wiring terminals 7 & 8 of indoor
unit are connected with the gate through RVV 2 x1.0mm connecting wire.
Please refer to the wiring diagram during connection.
2
3
4
AC100-240V
50HZ/60HZ
Cables:
1.Audio wire
2.Ground wire
3.Video wire
4.Power wire
Outdoor Unit
2
connecting wire can be chosen if you
2
x 0.75mm connecting wire can be chosen
2
4
