Z8 Series DC Motor Actuator
Chapter 4 Operation and Maintenance

4.1 Compatible Drivers and Software

The Thorlabs compatible controller for this product is the K-Cube Single Channel DC
Servo Controller KDC101. The use of these controllers ensures optimal performance.
All above performance specifications are guaranteed only with use of Thorlabs
controllers and drivers.

4.2 Maintenance

Periodic greasing of the lead screw is advised, particularly in applications with a high
duty cycle. Grease the lead screw thread as follows whenever the thread appears dry
or the motor is noisy:
1) Drive the motor to extend the leadscrew to its full extent.
2) Apply a thin bead of high load, silicon free lubricant (e.g. Apiezon 100) as shown
below.
3) Drive the motor to retract the lead screw and distribute the grease.
4) Remove access grease using a lint free cloth.
Page 6

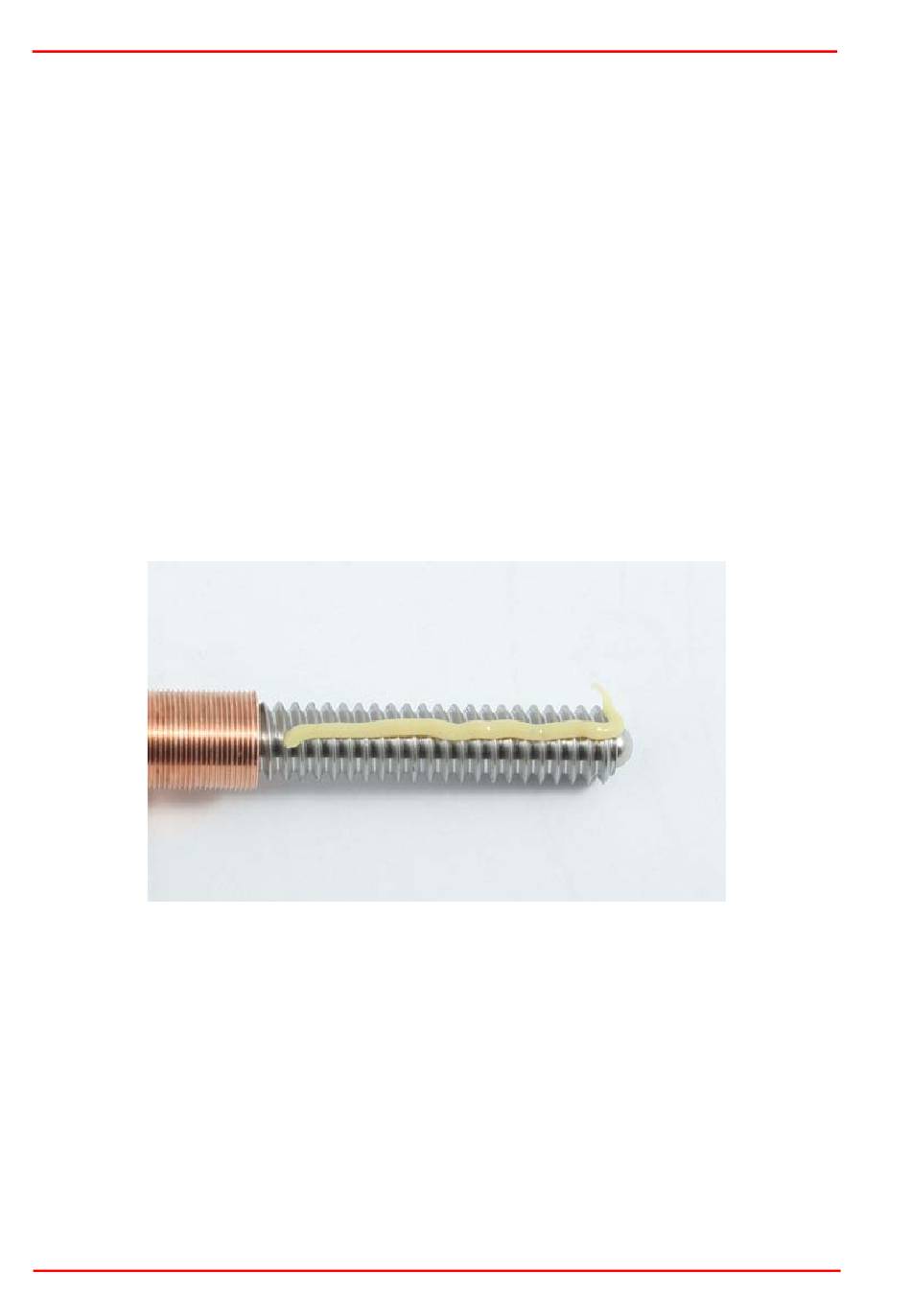

Fig. 4.1 Greasing the Leadscrew
