Operation and maintenance manual AQUAmax
Info indication / Current phase
the wastewater treatment plant. Indicated are the operating hours of the individual units, the
current cycle phase and its duration as well as the time. In the case of malfunction, in addition, the
fault which has occurred is indicated. By a single pressing of any key the background lighting is
activated
lapses 5 minutes after the last operation of a key).
Main Level
Logbook
Errors
Run times
ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com /
Art.-No.: 9060 0210 / Status: 30.01.2019 / Page 12 from 40

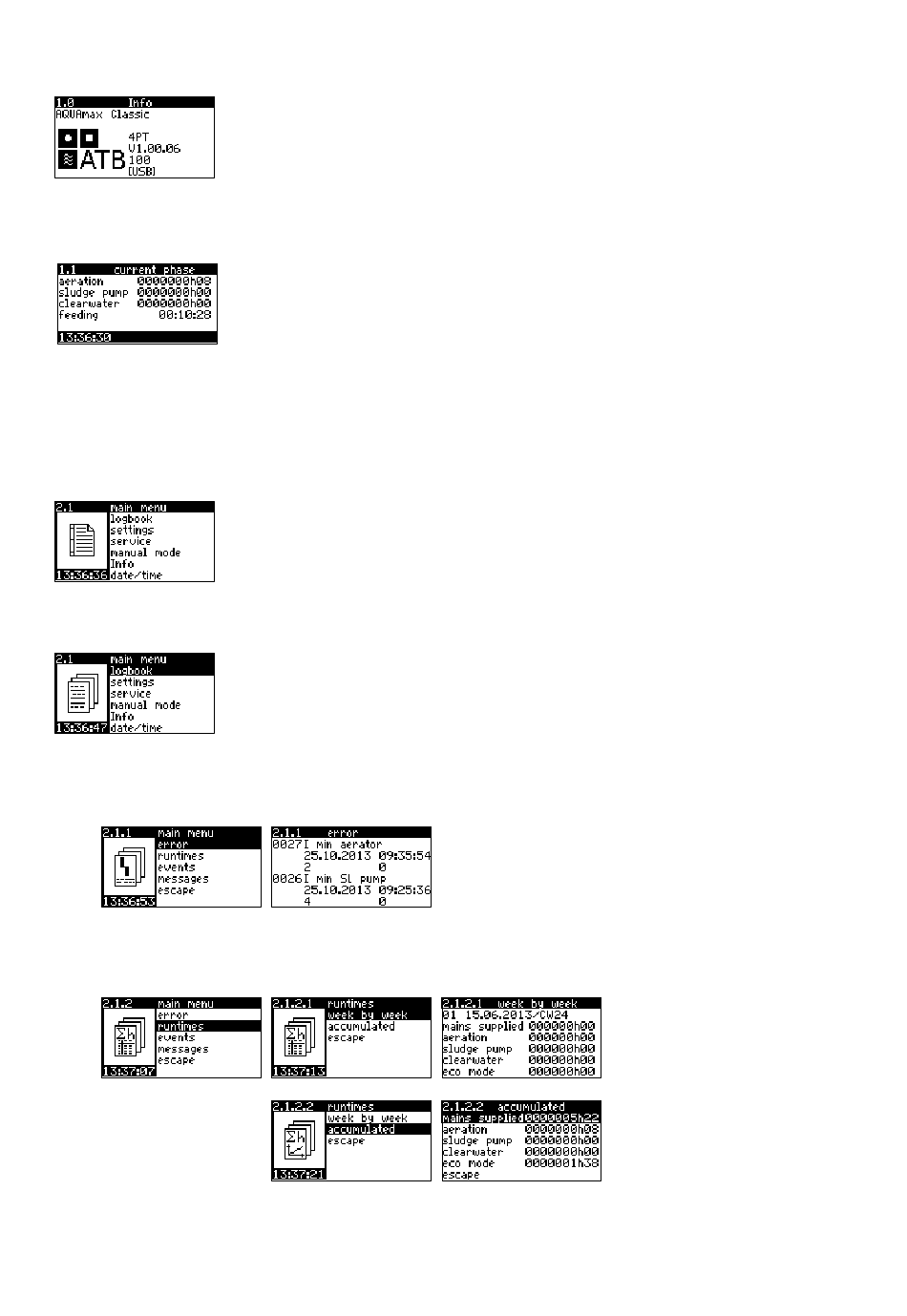

A switchover to info indication now takes place. Indicated is the plant type,
the selected PT number, the software version and serial number of the
wastewater treatment plant type.
With this commissioning is completed. Should in the course of time a
necessity for an amendment to the settings arise, then the specialists have
the possibility of undertaking this in the Service Mode.
The current phase is indicated after ca. 5 minutes. By pressing ↑↓ you,
however, have the possibility of changing over again to info indication or to
the main level.
The indication of the current phase informs you about the current status of
In the main level you have the possibility, using OK, ↑↓ and OK again, of
accessing various sub-menus, which enables the acquisition of further
information, amendment of settings or moving into manual operation.
You leave the main level through ↑↓ until the point Return and OK.
All relevant errors, run times, events and messages are lodged in the
logbook.
You access the individual points using ↑↓ and OK.
®
BASIC/CLASSIC
Recording of the error messages which have
arisen (max. 1000). An explanation of the
indicated messages can be found in the appendix.
Return using OK.
You can have the run times
shown in a weekly summary
and
operating time.
over
the
complete
