For a world with clean water
ATB - HSA
Installation/Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATB HSA

Summary of Contents for ATB HSA

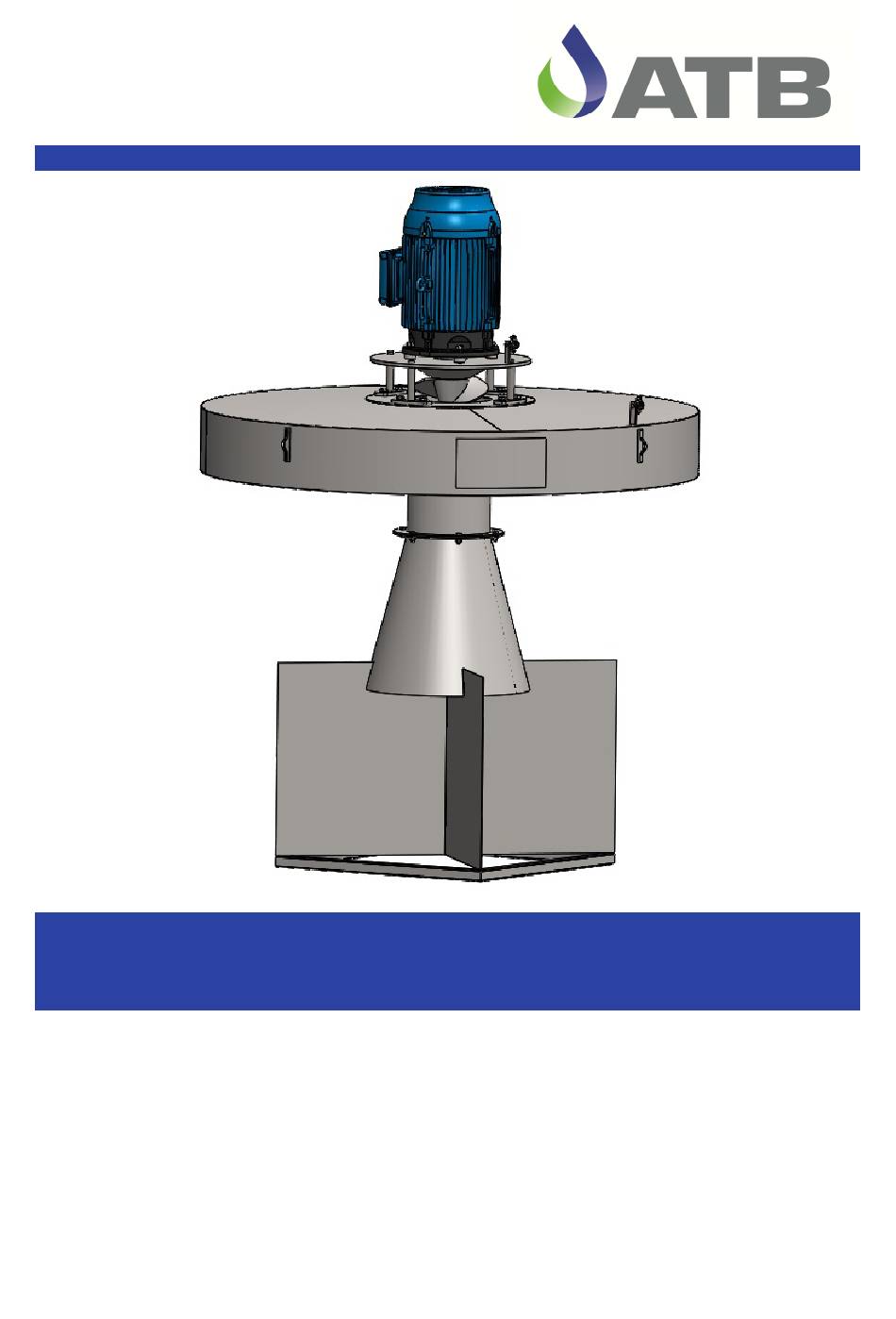

  • Page 1 For a world with clean water ATB - HSA Installation/Operating Instructions...
  • Page 2 Please check the correct rotational direction of the unit.  High turbulence • The motor may never be covered by a foam layer, neither partly nor completely. Foam ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 2 of 41...

  • Page 3: Table Of Contents

    6.1. Temporary storage (= 1 up to 4 weeks) ................35 6.2. Long term storage (= more than a month) ................35 ENCLOSURE I: Part list HSA aerator with standard stabilization cross ......... 36 ENCLOSURE II: Mooring cables and accessories ................37 ENCLOSURE III: General data ......................

  • Page 4: Safety Regulations

    Machinery Directive. • If ATB did not deliver an explosion proof motor, it is forbidden to use the equipment in areas where explosive gases might be present. •...
  • Page 5 During the start up of the aerator nobody may stand be in a boat near the aerator. Make sure that all safety precautions are taken to make sure that nobody can fall into the water. ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 5 of 41...

  • Page 6: Product Overview

    2.2. Working principle The HSA functions as an open pump. The mixed liquor of wastewater and activated sludge is aspirated via the suction pipe. The helical impeller pumps the liquid axially up through the cylindrical volute, bends the liquid flow from axial to radial, and ensures that maximum kinetic energy is transferred to the water surface.

  • Page 7: Receiving And Handling

    Check the goods for visible damage before unloading. • Check if the HELICAL IMPELLER can be rotated manually. If you have any remarks, please note them on the forwarding documents, and contact ATB immediately. The unit is forwarded in 2 or 3 parts: •...
  • Page 8 Never lift with only one motor eye or with the mooring anchors on the float! Drawing 4: How to lift the unit ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 8 of 41...

  • Page 9: Assembly And Installation

    ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 9 of 41...

  • Page 10: Assembly Of Power Section And Float In Case The Unit Is Delivered In 3 Parts

    It is strongly recommended not to start the aerator before the aerator is completely installed in accordance with the instructions described by ATB. Starting the aerator on dry land should not be done without making radical safety provisions.

  • Page 11: Overview Of Mooring Systems

    When you are using a different kind of mooring system, due to a specific situation, this must always be done in dialogue with, and with the approval of ATB. Any warranty claim for damage to the unit or others, due to a faulty designed mooring system, not approved by ATB, will be void.

  • Page 12: Hinged Arm

    Mooring cable Drawing 7: Mooring cables, thimbles, clips, quick connectors and springs If the water level-variation exceeds 1 meter, please contact ATB to agree on the suitable guiding system. ATB should always approve this guidance system. Any warranty claim for damage to the unit or others, due to a faulty designed mooring system not approved by ATB, will be void.
  • Page 13 Installation/Operating Instructions ATB - HSA When the hinged arm is connected to the assembled HSA, the aerator + arm assembly is not stable outside the basin! The hinged arm mooring system consists of 2 or 3 parts, depending on the execution. There are several possible executions, but the system always consists of the following: •...
  • Page 14 Lifting bracket (optional)     Mooring arm  Mooring cables  Mooring anchors Drawing 8b: Hinged arm with 2 degrees of freedom ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 14 of 41...

  • Page 15: Vertical Guiding System

    Guiding brackets Guiding bars (2, 3 or 4 tubes) Drawing 9: Vertical guiding system ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 15 of 41...

  • Page 16: Installation

    If the electrical cable and mooring cables are supplied by ATB, they will normally already be connected to the HSA. If this is not the case, the mooring cables have to be attached to the mooring anchors at float side, and the electrical cable has to be connected inside the junction box of the motor, prior to the installation in the basin.
  • Page 17 If the water level-variation is such that 1 standard spring is not enough to compensate the variation of distance between the mooring anchor at basin side and float, please contact ATB to agree on the suitable guiding system. This guiding system should always be approved by ATB.
  • Page 18 ATB cannot be held liable for accidents caused by non-compliance with these instructions. Once the HSA is in its final position, the mooring cables can be tensioned. A sag of ± 2cm per meter mooring cable is recommended. Excessive tightening may damage the cables in the long run.

  • Page 19: Mounting Sequence For Hinged Arm System

    For vertical lifting of the unit, and to avoid handling damage, a double chain should be used (see drawing). Drawing 12b: Lifting of the hinged arm ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 19 of 41...

  • Page 20: Mounting Sequence For The Vertical Guiding System

    Drawing 12c.: Mounting of the hinged arm to the wall fixation If the HSA is in the correct position, the electrical cable can be connected to the junction box on the side of the basin. Make sure to attach the electric cable to an anchor before it enters the junction box, to avoid that the electric cable pulls at the cable gland entering the junction box.
  • Page 21 As a safety precaution, no person shall walk under the aerator when it is lifted by the crane. If the basin is filled up before the HSA is placed between the guiding posts, a boat can be used to guide the HSA guiding brackets over the guiding posts.

  • Page 22: Electrical Cable And Wiring Instructions

    Anyway, the cable length should be a little oversized to be sure that the unit axis remains vertical (distance between HSA and basin edge x 1,2). 8. The strain relief is mounted on the flange support and gives the electric cable the right direction to the basin edge.

  • Page 23: Position Of The Electrical Cable

    The pulling cable is mounted to the wall of the basin with a quick coupler and a mooring hook. The pulling cable may have 1 or 2 pulling hooks. Drawing 16: Fixation of the electrical cable with pulling cable ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 23 of 41...
  • Page 24 When the cable is placed on the bottom of the tank he may not lay underneath an aerator to prevent suction of the cable into the device. Drawing 18a: Electrical cable on the bottom of the basin ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 24 of 41...
  • Page 25 Drawing 19a: Position of the power cable with hinged arm Electrical cable V-opening in spray Spray Drawing 19b: Position of the power cable with guiding system ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 25 of 41...

  • Page 26: Electrical Connection Diagrams

    For this connection, put power supply on U1 (Brown), V1 (Blue), and W1 (Black). Connect the PTC on T1 and T2 (Black and Grey). Connect the optional heater on H1 and H2 (Brown and Blue). ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 26 of 41...
  • Page 27 3 phases of the electric power supply to the 3 connected leads. Connect the PTC on T1 and T2 (Black and Grey). Connect the optional heater on H1 and H2 (Brown and Blue). ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 27 of 41...
  • Page 28 In the event of non-compliance with this restriction, please contact ATB to discuss this topic otherwise warranty will be void. ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 28 of 41...
  • Page 29 → After 2 seconds: DELTA connection MOTOR Fig. B - If authorised, DOL STAR start-procedure See fig. A - If authorised, DOL DELTA start-procedure See fig. B ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 29 of 41...
  • Page 30 PTC gets over the critical point. CAUTION: The existing PTC is connected by ATB on the motor side. The connection of the PTC is absolutely necessary on site. If no connection is made, frequent cycles can result in engine damage.

  • Page 31: Start Up

    No one shall be sitting in a boat near the HSA as long as the safety switch has not been switched OFF and locked in this position.
  • Page 32 A foam layer may never cover the motor, neither partly or completely. Defects resulting from such situations will not be covered by the warranty. If foam is unavoidable, please contact ATB, to discuss the appropriate solution. Special execution with heater inside the motor The motor of a standard unit may never be partially or completely covered by a foam layer.

  • Page 33: Maintenance

    Both undergreasing and overgreasing will destroy the bearings. We refer to the enclosed motor O&M manual for quantities of grease and recommended grease types. ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 33 of 41...
  • Page 34 Use a dynamometric key. Tightening torque is shown in table 1 (chapter 4). Enclosed you will find a maintenance sheet which can be used for each unit. Extraordinary maintenance and repairs must be carried out by ATB or by ATB authorized workshops.

  • Page 35: Storage

    Prior to starting the unit, after a long period of storage, it is necessary to verify the insulation of the windings. For any value less than the motor manufacturer recommendation, never start the unit, and call ATB. ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 35 of 41...

  • Page 36: Enclosure I: Part List Hsa Aerator With Standard Stabilization Cross

    Installation/Operating Instructions ATB - HSA ENCLOSURE I: Part list HSA aerator with standard stabilization cross Motor with rain cover Motor fastening (bolts + washer) Motor Spacer Cable strain relief Motor flange Flange fastening bolts Flange fastening screw-nut + washer Bolt plate Slinger disc 10.

  • Page 37: Enclosure Ii: Mooring Cables And Accessories

    Usually, there are three anchors, which are equally spread over the periphery of the float. Use only stainless steel mooring cables, thimbles, clips, quick connectors and if necessary springs. If cables are included in the order, ATB connects them to the float. Cable sizes should be as follows: •...

  • Page 38: Enclosure Iii: General Data

    All unit data (Year of production, Type and Serial Number) is indicated on the identification plate of the device. This information has to be given to ATB in warranty case or for ordering spare parts. ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com /...

  • Page 39: Enclosure Iv: Declaration Of Conformity

    Porta Westfalica, Germany, 1.03.2018 ATB WATER GmbH Represented by its Manager Markus Baumann ATB WATER GmbH, Südstraße 2, 32457 Porta Westfalica, Germany, www.atbwater.com / Version: 07.11.2022 / Page 39 of 41...

  • Page 40: Enclosure V: Maintenance Sheet

    ENCLOSURE V: Maintenance sheet Unit no.: __________________________________ Motor no.: __________________________________ Start-up 3 months 6 months 9 months 1 year 15 months 18 months 21 months 2 years Maintenance date ....................Lubrication of bearings In accordance with O&M manual of the motor Remove deposition of sludge on the motor...

  • Page 41: Enclosure Vi: Motor O&M Manual

    ENCLOSURE VI: Motor O&M manual...
