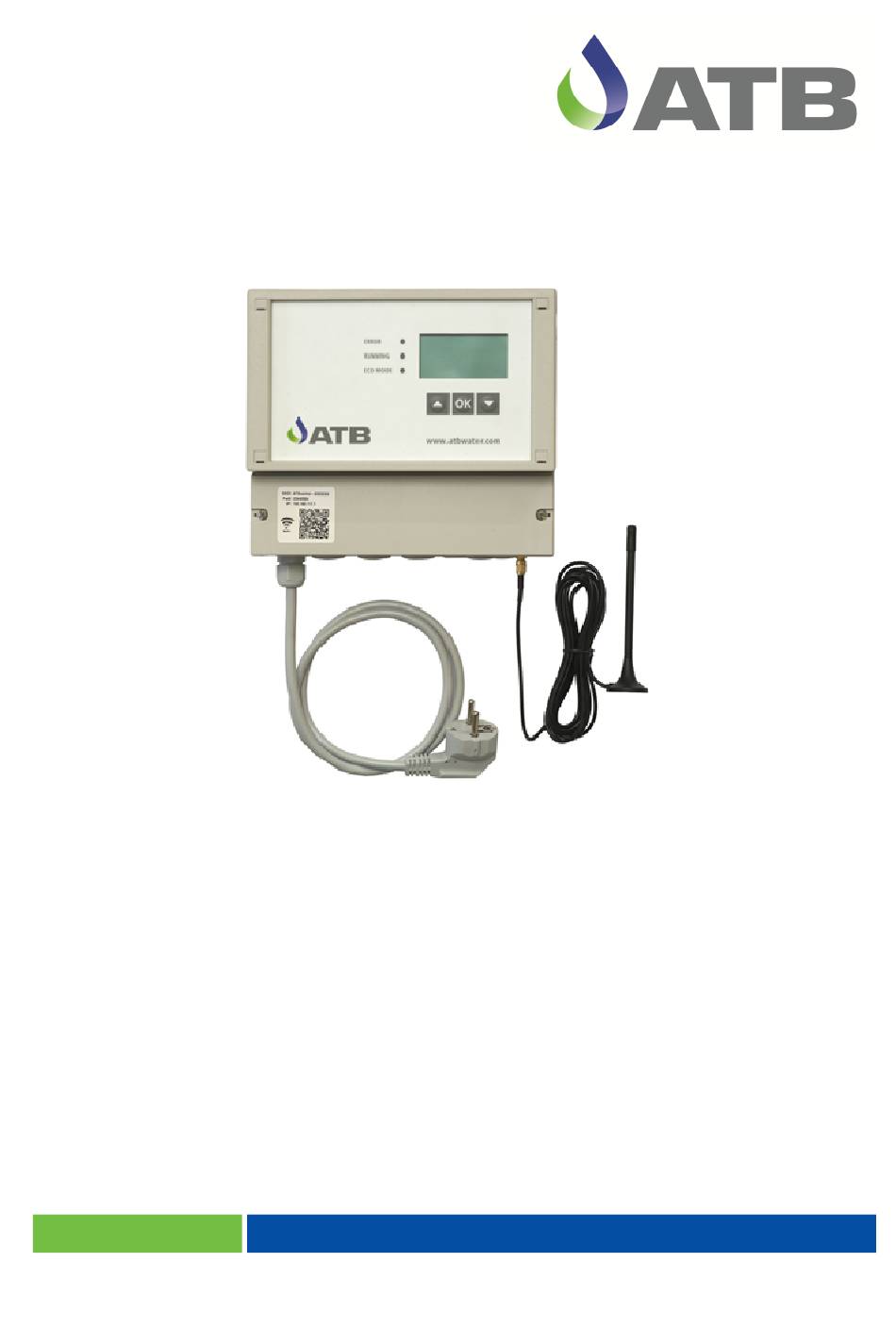

- Page 1 For a world with clean water AQUAMAX® PRO G Operating Instructions...
-
Page 2: Table Of Contents
Regular maintenance is laid down by the authorities. Through the conclusion of a maintenance contract the plant and its biological discharge values are monitored continuously. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 2 from 31... -
Page 3: Disposal Instructions
AQUAMAX ® is used for other employment purposes without the express approval of ATB WATER GmbH and/or if the following safety information is disregard, this can lead to the hazarding or injury of persons and to malfunctions of or defects in the plant. In this case every liability is excluded. - Page 4 Danger of injury! Only with the use of original spare parts or with spare parts authorised by ATB can correct function be assured. Before commissioning all points of the operating instructions are to be checked again.
-
Page 5: Functional Description
Under normal load, the system switches back to the set operating mode. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 5 from 31... - Page 6 The AQUAMAX® PRO G is designed for the treatment of domestic wastewater. It is particularly suitable for objects with irregular waste water production, e.g. hotels, restaurants, butcher's shops, etc. For the treatment of waste water from e.g. apartments, other ATB sewage treatment plants can be used.
-
Page 7: Cycle Process
ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 7 from 31... -
Page 8: The Atbcontrol © 4 Connect Control Unit
2 easily replaceable NiMH rechargeable batteries (AA) in the terminal compartment Integrated audible alarm signal ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 8 from 31... -
Page 9: Installation Instructions
USB-Stick BATT Battery connection 2x AA NiMH Pot-FREE pot.-free contact C, NO, NC max. 250V AC, 150W ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 9 from 31... -
Page 10: General Information About Operation
Activated for 10 min 00:07:42 17:25 ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 10 from 31... -
Page 11: Commissioning
"No". If you confirm the correct entries with OK, the control unit starts the purification cycle 17:25 ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 11 from 31... -
Page 12: Info Displays
Use the arrow buttons to go to the previous messages. 17:25 ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 12 from 31... - Page 13 Escape Aerator 5.9 h Clearwater 0.5 h also shown in Display 2.0. Sludge pump 0.1 h 17:25 ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 13 from 31...
-
Page 14: Settings
When sludge evacuation is done, the aeration times are reduced by 20% for a period of 6 weeks (no further reduction in winter mode). After last activation, this function is blocked for 6 months. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 14 from 31... -
Page 15: Service Mode
UV disinfection or P precipitation is supported. Further explanations of the individual operating parameters can be found below: ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 15 from 31... - Page 16 25% above the calculated actual value. However, the actual pump-down time depends on the tank and the installation situation and may need to be adjusted when the system is commissioned. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 16 from 31...
- Page 17 (see Commissioning). If you select "No", press OK to return to the Service 17:25 menu. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 17 from 31...
- Page 18 P1/P2 or if there is no dosing agent in the tank. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 18 from 31...
-
Page 19: Manual Mode
The display also informs you directly about the current power consumption of the unit currently switched on and the position of the float switches. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 19 from 31... -
Page 20: Info
"Current phase" display. The alarm is deleted via point 4.8 Delete alarms or by activating manual mode. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 20 from 31... -
Page 21: Error Messages
! Buffer switch Float switch in buffer defective Error messages on the display (+ acoustic alarm) + red LED ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 21 from 31... - Page 22 OK button. When power is restored, the control unit automatically 17:25 Cancel restarts. Mains faults and Mains OK are recorded in the logbook. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 22 from 31...
- Page 23 The connection cable is interrupted. s. a. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 23 from 31...
-
Page 24: Pre-Programmed Parameters
"Feeding duration" and "I min / I max feed 1". Due to a pump changeover, these parameters may have to be set manually! Please note! ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0272 / Status: 27 January 2025 / Page 24 from 31... -
Page 25: Technical Data
1 Integrated WLAN module Wi-Fi direct connection via SSID ATBcontrol-XXXXXX and the serial number of the control unit as the password (in the photo it is 23440504). ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0270 / Status: 12 August 2022 / Page 25 from 31... -
Page 26: Notes On Maintenance
Frequently, the lower water authority demands the transmission of the maintenance report by the operator or the maintenance firm. after each maintenance. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0270 / Status: 12 August 2022 / Page 26 from 31... -
Page 27: Fault Correction
Call service support. AQUAMAX for the interruption of the charging pipeline is impaired. Fault Possible cause Rectification ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0270 / Status: 12 August 2022 / Page 27 from 31... - Page 28 (check power intake). The electrical unit Call service support. concerned is defective. ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0270 / Status: 12 August 2022 / Page 28 from 31...
-
Page 29: Important Data For Fault Diagnosis Of The Electrical Units
0.25 ATBlift 2 1.25 0.30 NOVA 180 SV 0.24 NOVA 200 SV 0.35 FEKA 600 11,4 0,68 ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica, www.atbwater.com / Art.-No.: 9060 0270 / Status: 12 August 2022 / Page 29 from 31... -
Page 30: Declaration Of Ec-Conformity
Declaration of EC-conformity ATB WATER GmbH The manufacturer: Südstr. 2 D-32457 Porta Westfalica declares herewith, that the following ® AQUAMAX specified product: 2006/42/EG Directive on machinery implements the requests of following EC- 2014/30/EU Directive to Directives: electromagnetic compatibility 2014/35/EU Directive to electrical... - Page 31 ATB WATER GmbH, Südstraße 2, D-32457 Porta Westfalica,www.atbwater.com Operating Instructions AQUAMAX® PRO G - Art.-Nr.: 9060 0265 / Status: 27.01.2025 ® Operating Instructions AQUAMAX PRO G oCE / Art.-No.: 9060 0272 / Status 27 January 2025...
