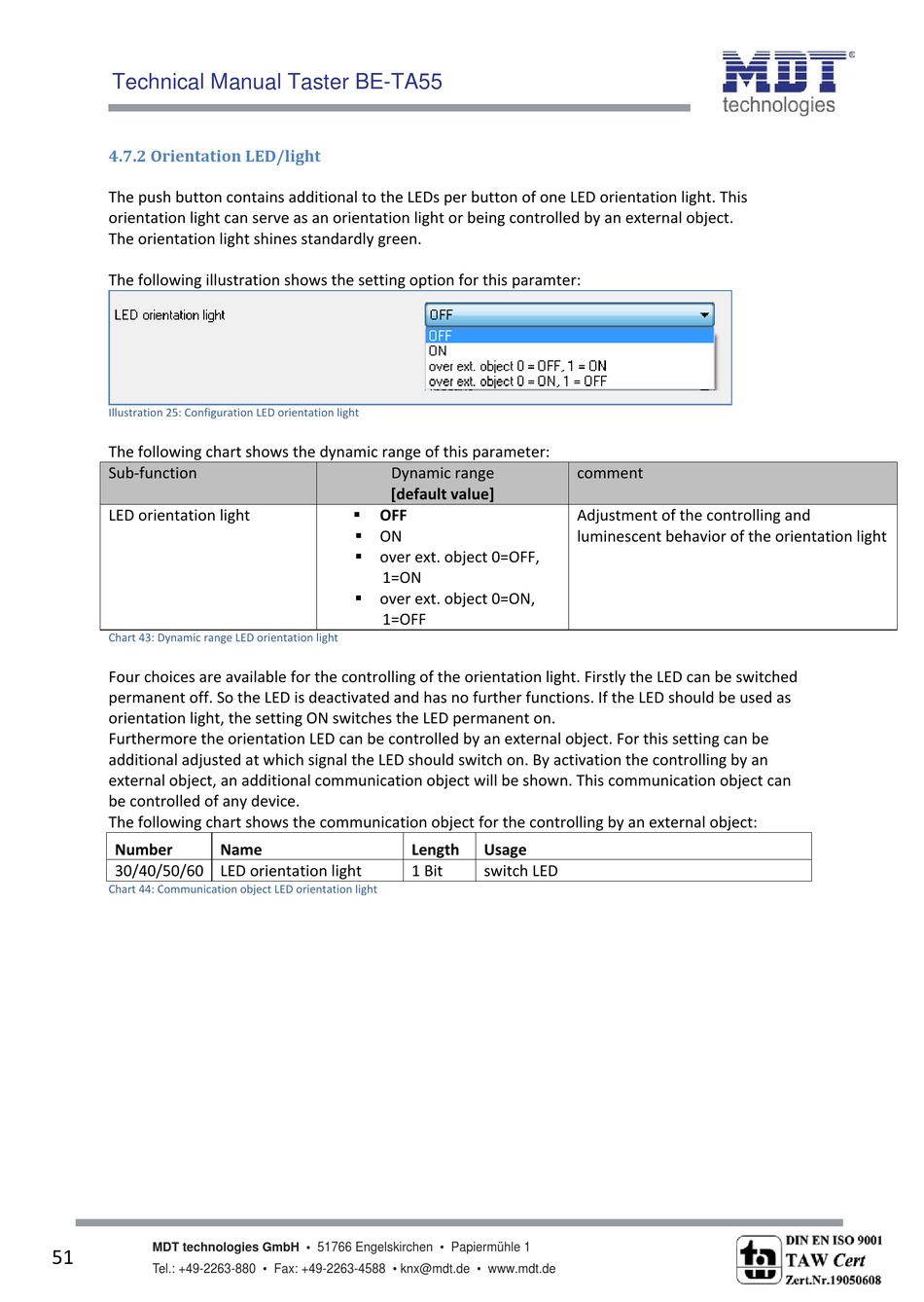

4.7.2 Orientation LED/light
The push button contains additional to the LEDs per button of one LED orientation light. This
orientation light can serve as an orientation light or being controlled by an external object.
The orientation light shines standardly green.
The following illustration shows the setting option for this paramter:
Illustration 25: Configuration LED orientation light
The following chart shows the dynamic range of this parameter:
Sub‐function
LED orientation light
Chart 43: Dynamic range LED orientation light
Four choices are available for the controlling of the orientation light. Firstly the LED can be switched
permanent off. So the LED is deactivated and has no further functions. If the LED should be used as
orientation light, the setting ON switches the LED permanent on.
Furthermore the orientation LED can be controlled by an external object. For this setting can be
additional adjusted at which signal the LED should switch on. By activation the controlling by an
external object, an additional communication object will be shown. This communication object can
be controlled of any device.
The following chart shows the communication object for the controlling by an external object:
Number
Name
30/40/50/60 LED orientation light
Chart 44: Communication object LED orientation light
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
51
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Dynamic range
[default value]
OFF
ON
over ext. object 0=OFF,
1=ON
over ext. object 0=ON,
1=OFF
Length
Usage
1 Bit
switch LED
comment
Adjustment of the controlling and
luminescent behavior of the orientation light
