4.7 LED lights (only at the plus variant)
The functions, described in this segment (4.7), are only available at the plus variant.
The LED display can visualize different switching processes and keystrokes. Every LED can light green
or red. You can also parameterize when the LE D should light green and when red.
The Illustration shows the configuration of the LED display:

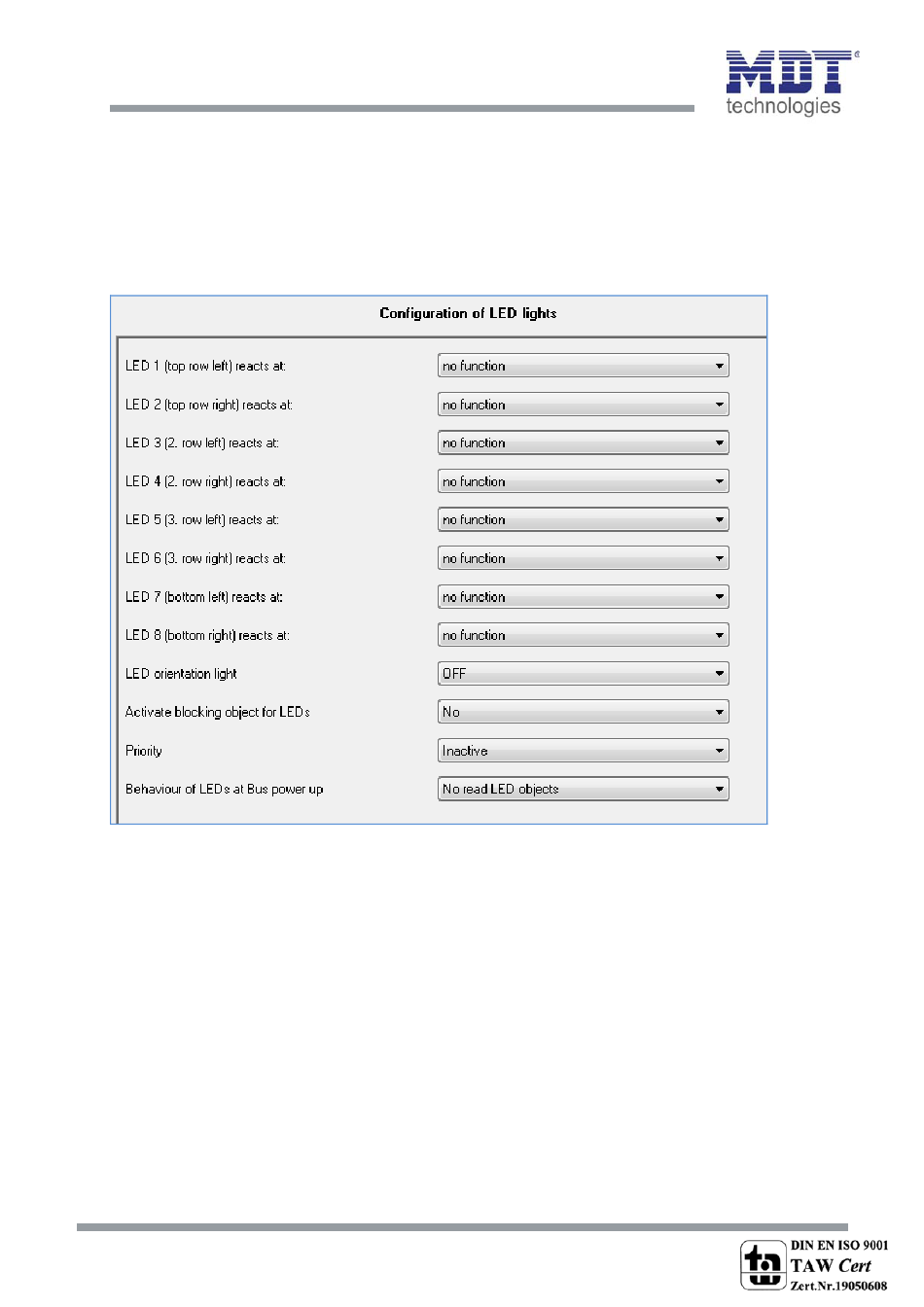

Illustration 22: Configuration LED display
The push buttons (at the plus variant) contains of one LED per button and one orientation LED.
Additional a blocking object for the LEDs can be shown, which blocks all LEDs. The parameterization
of the LEDs is described in the following segments.
