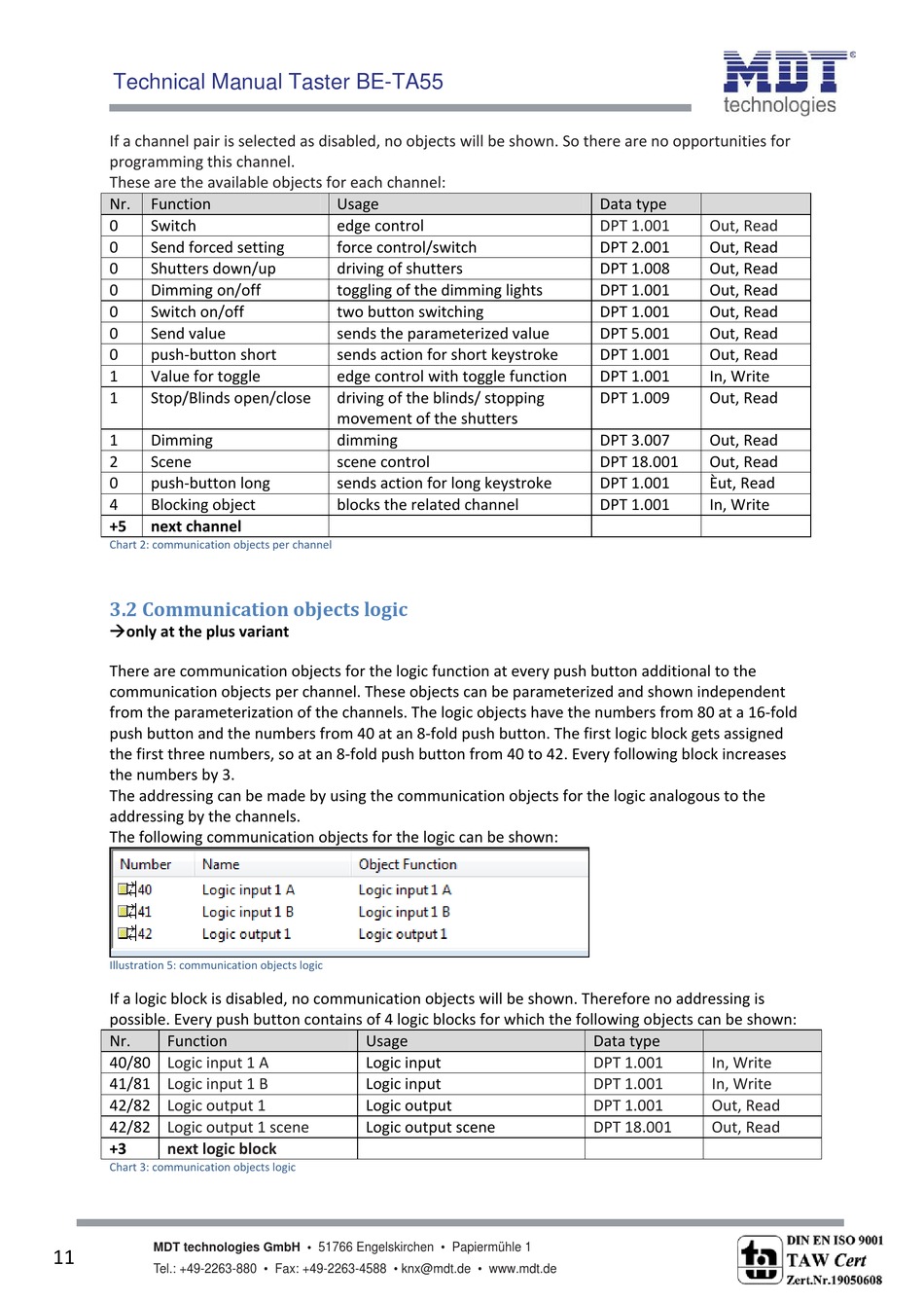

Technical Manual Taster BE-TA55
If a channel pair is selected as disabled, no objects will be shown. So there are no opportunities for
programming this channel.
These are the available objects for each channel:
Nr. Function
0 Switch
0 Send forced setting
0 Shutters down/up
0 Dimming on/off
0 Switch on/off
0 Send value
0 push‐button short
1 Value for toggle
1 Stop/Blinds open/close
1 Dimming
2 Scene
0 push‐button long
4 Blocking object
+5 next channel
Chart 2: communication objects per channel
3.2 Communication objects logic
only at the plus variant
There are communication objects for the logic function at every push button additional to the
communication objects per channel. These objects can be parameterized and shown independent
from the parameterization of the channels. The logic objects have the numbers from 80 at a 16‐fold
push button and the numbers from 40 at an 8‐fold push button. The first logic block gets assigned
the first three numbers, so at an 8‐fold push button from 40 to 42. Every following block increases
the numbers by 3.
The addressing can be made by using the communication objects for the logic analogous to the
addressing by the channels.
The following communication objects for the logic can be shown:
Illustration 5: communication objects logic
If a logic block is disabled, no communication objects will be shown. Therefore no addressing is
possible. Every push button contains of 4 logic blocks for which the following objects can be shown:
Nr. Function
40/80 Logic input 1 A
41/81 Logic input 1 B
42/82 Logic output 1
42/82 Logic output 1 scene
+3 next logic block
Chart 3: communication objects logic
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
11
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Usage
edge control
force control/switch
driving of shutters
toggling of the dimming lights
two button switching
sends the parameterized value
sends action for short keystroke
edge control with toggle function
driving of the blinds/ stopping
movement of the shutters
dimming
scene control
sends action for long keystroke
blocks the related channel
Usage
Logic input
Logic input
Logic output
Logic output scene
Data type
DPT 1.001 Out, Read
DPT 2.001 Out, Read
DPT 1.008 Out, Read
DPT 1.001 Out, Read
DPT 1.001 Out, Read
DPT 5.001 Out, Read
DPT 1.001 Out, Read
DPT 1.001 In, Write
DPT 1.009 Out, Read
DPT 3.007 Out, Read
DPT 18.001 Out, Read
DPT 1.001 Ѐut, Read
DPT 1.001 In, Write
Data type
DPT 1.001 In, Write
DPT 1.001 In, Write
DPT 1.001 Out, Read
DPT 18.001 Out, Read
