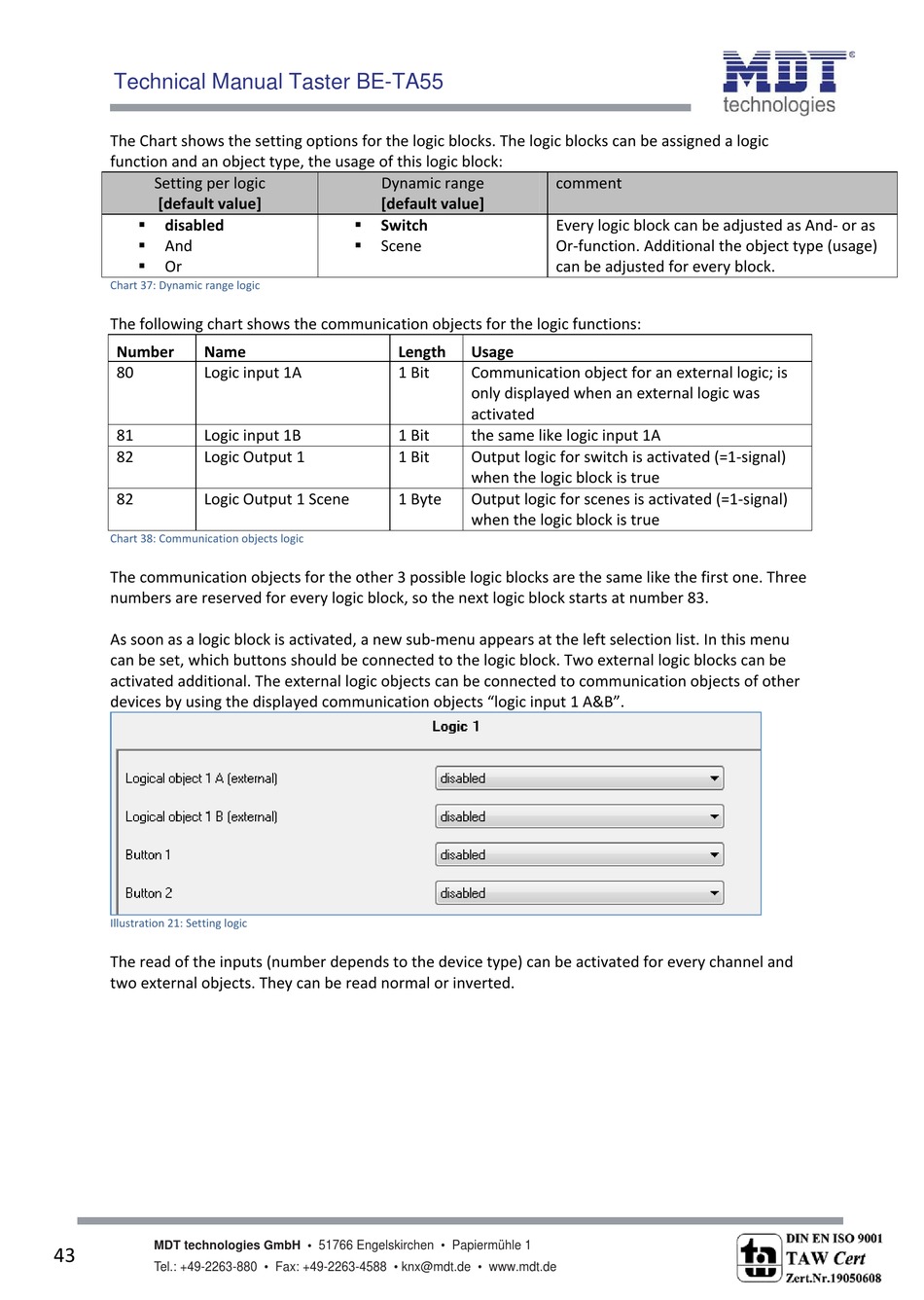

The Chart shows the setting options for the logic blocks. The logic blocks can be assigned a logic
function and an object type, the usage of this logic block:
Setting per logic
[default value]

disabled

And

Or
Chart 37: Dynamic range logic
The following chart shows the communication objects for the logic functions:
Number Name
80 Logic input 1A
81 Logic input 1B
82 Logic Output 1
82 Logic Output 1 Scene
Chart 38: Communication objects logic
The communication objects for the other 3 possible logic blocks are the same like the first one. Three
numbers are reserved for every logic block, so the next logic block starts at number 83.
As soon as a logic block is activated, a new sub‐menu appears at the left selection list. In this menu
can be set, which buttons should be connected to the logic block. Two external logic blocks can be
activated additional. The external logic objects can be connected to communication objects of other
devices by using the displayed communication objects "logic input 1 A&B".
Illustration 21: Setting logic
The read of the inputs (number depends to the device type) can be activated for every channel and
two external objects. They can be read normal or inverted.
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
43
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Dynamic range
[default value]

Switch

Scene
Length Usage
1 Bit Communication object for an external logic; is
only displayed when an external logic was
activated
1 Bit the same like logic input 1A
1 Bit Output logic for switch is activated (=1‐signal)
when the logic block is true
1 Byte Output logic for scenes is activated (=1‐signal)
when the logic block is true
comment
Every logic block can be adjusted as And‐ or as
Or‐function. Additional the object type (usage)
can be adjusted for every block.
