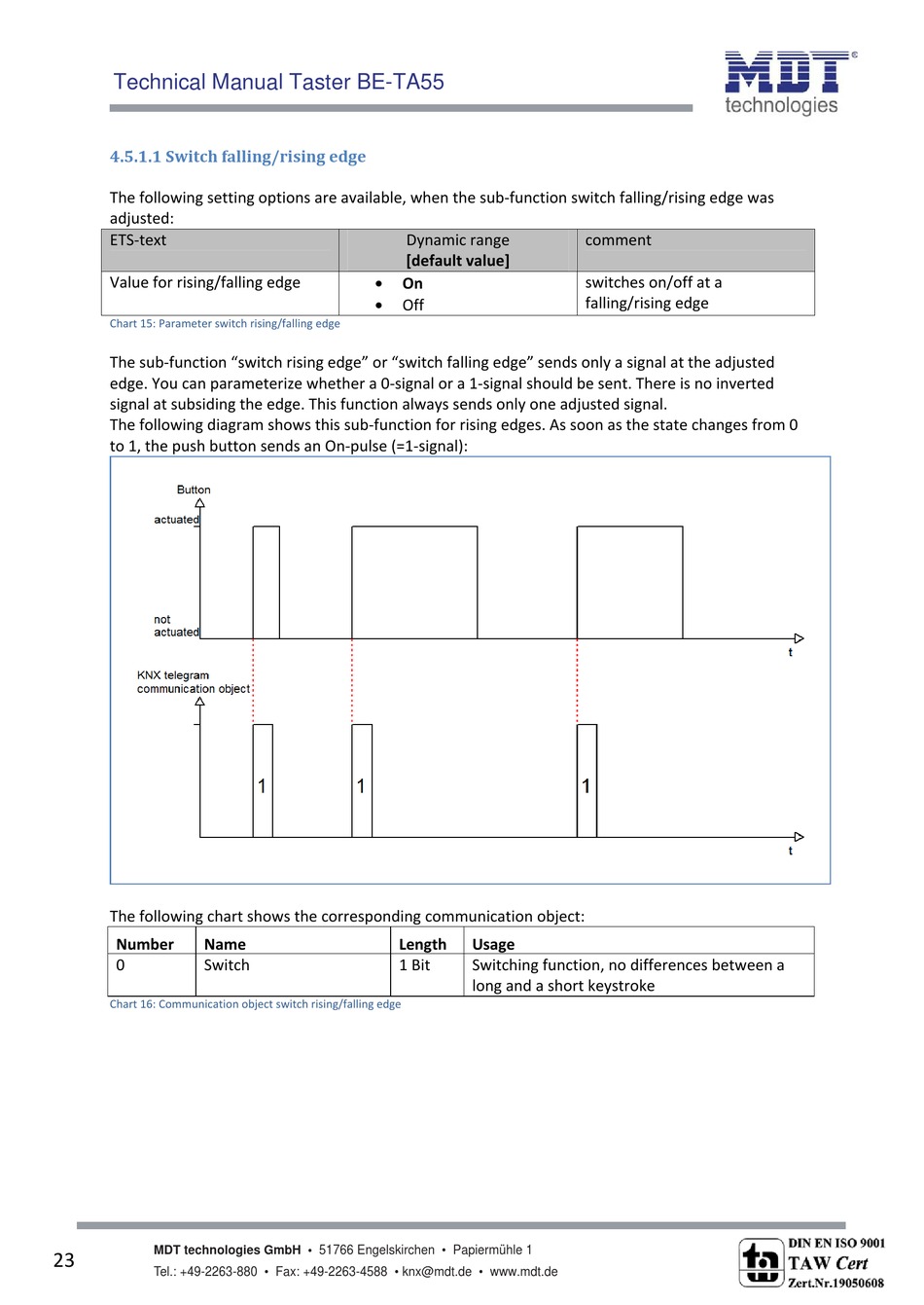

MDT Technologies BE-TA5502.01 Technical Manual page 23

Technical Manual Taster BE-TA55
4.5.1.1 Switch falling/rising edge
The following setting options are available, when the sub‐function switch falling/rising edge was
adjusted:
ETS‐text
Value for rising/falling edge
Chart 15: Parameter switch rising/falling edge
The sub‐function "switch rising edge" or "switch falling edge" sends only a signal at the adjusted
edge. You can parameterize whether a 0‐signal or a 1‐signal should be sent. There is no inverted
signal at subsiding the edge. This function always sends only one adjusted signal.
The following diagram shows this sub‐function for rising edges. As soon as the state changes from 0
to 1, the push button sends an On‐pulse (=1‐signal):
The following chart shows the corresponding communication object:
Number Name
0 Switch
Chart 16: Communication object switch rising/falling edge
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
23
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Dynamic range
[default value]

On

Off
Length Usage
1 Bit Switching function, no differences between a
long and a short keystroke
comment
switches on/off at a
falling/rising edge
