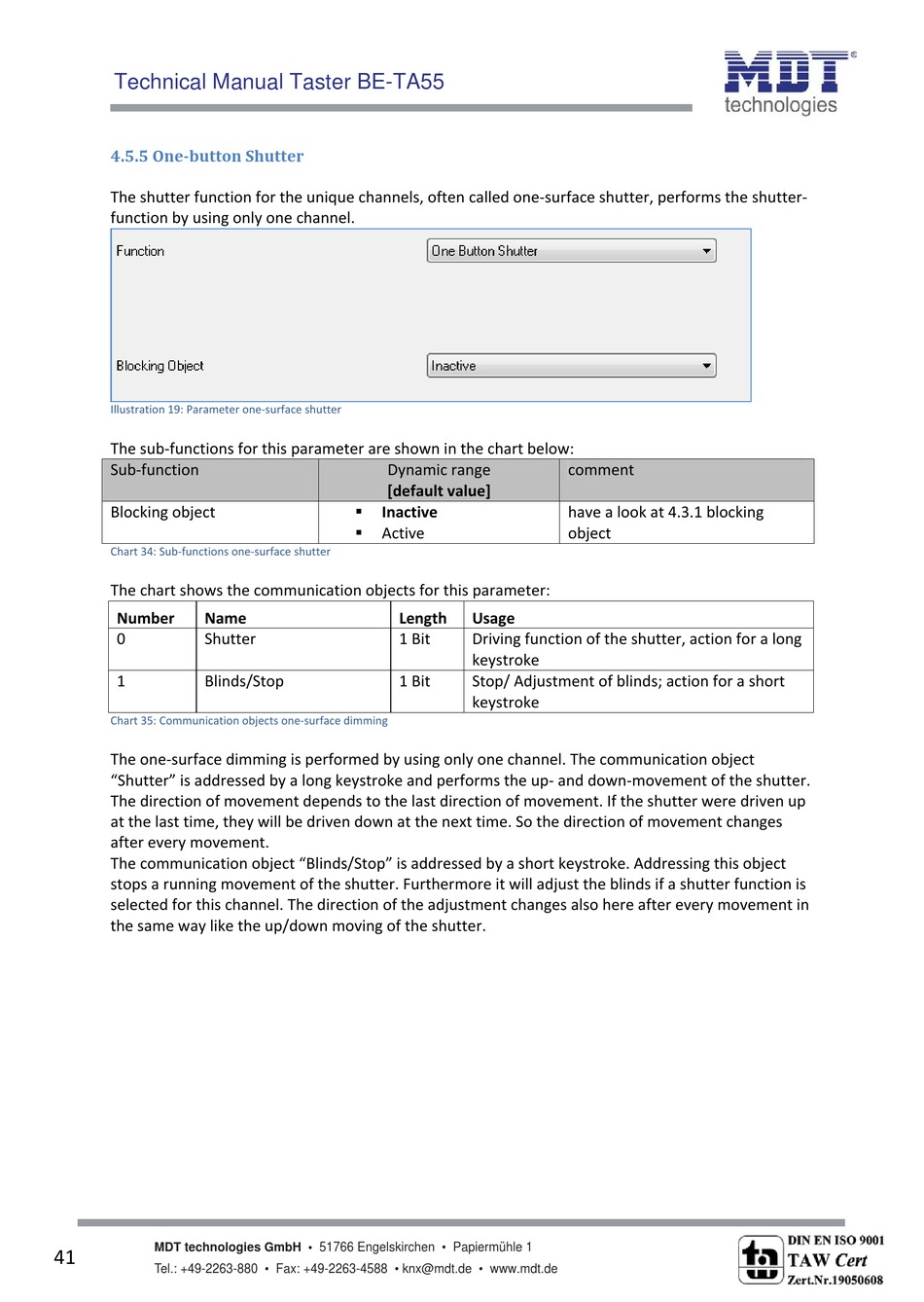

Technical Manual Taster BE-TA55
4.5.5 One‐button Shutter
The shutter function for the unique channels, often called one‐surface shutter, performs the shutter‐
function by using only one channel.
Illustration 19: Parameter one‐surface shutter
The sub‐functions for this parameter are shown in the chart below:
Sub‐function
Blocking object
Chart 34: Sub‐functions one‐surface shutter
The chart shows the communication objects for this parameter:
Number Name
0 Shutter
1 Blinds/Stop
Chart 35: Communication objects one‐surface dimming
The one‐surface dimming is performed by using only one channel. The communication object
"Shutter" is addressed by a long keystroke and performs the up‐ and down‐movement of the shutter.
The direction of movement depends to the last direction of movement. If the shutter were driven up
at the last time, they will be driven down at the next time. So the direction of movement changes
after every movement.
The communication object "Blinds/Stop" is addressed by a short keystroke. Addressing this object
stops a running movement of the shutter. Furthermore it will adjust the blinds if a shutter function is
selected for this channel. The direction of the adjustment changes also here after every movement in
the same way like the up/down moving of the shutter.
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
41
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Dynamic range
[default value]

Inactive

Active
Length Usage
1 Bit Driving function of the shutter, action for a long
keystroke
1 Bit Stop/ Adjustment of blinds; action for a short
keystroke
comment
have a look at 4.3.1 blocking
object
