Technical Manual Taster BE-TA55
2.2 Exemplary circuit diagrams

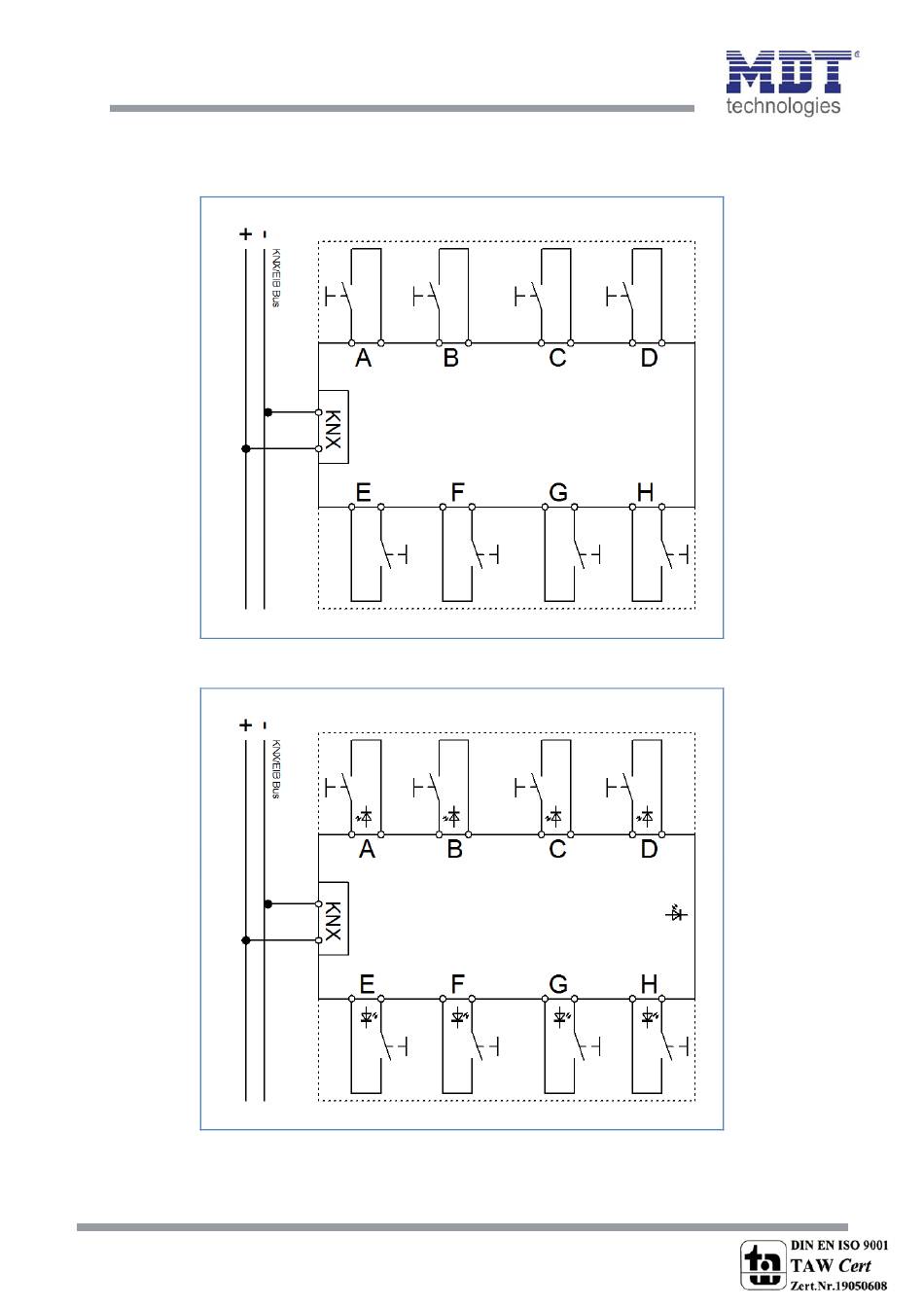

Illustration 1: Exemplary circuit diagram BE‐TA5508.01
Design with 8 push buttons
Illustration 2: Exemplary circuit diagram BE‐TA550P8.01
Plus‐design with 8 push buttons
