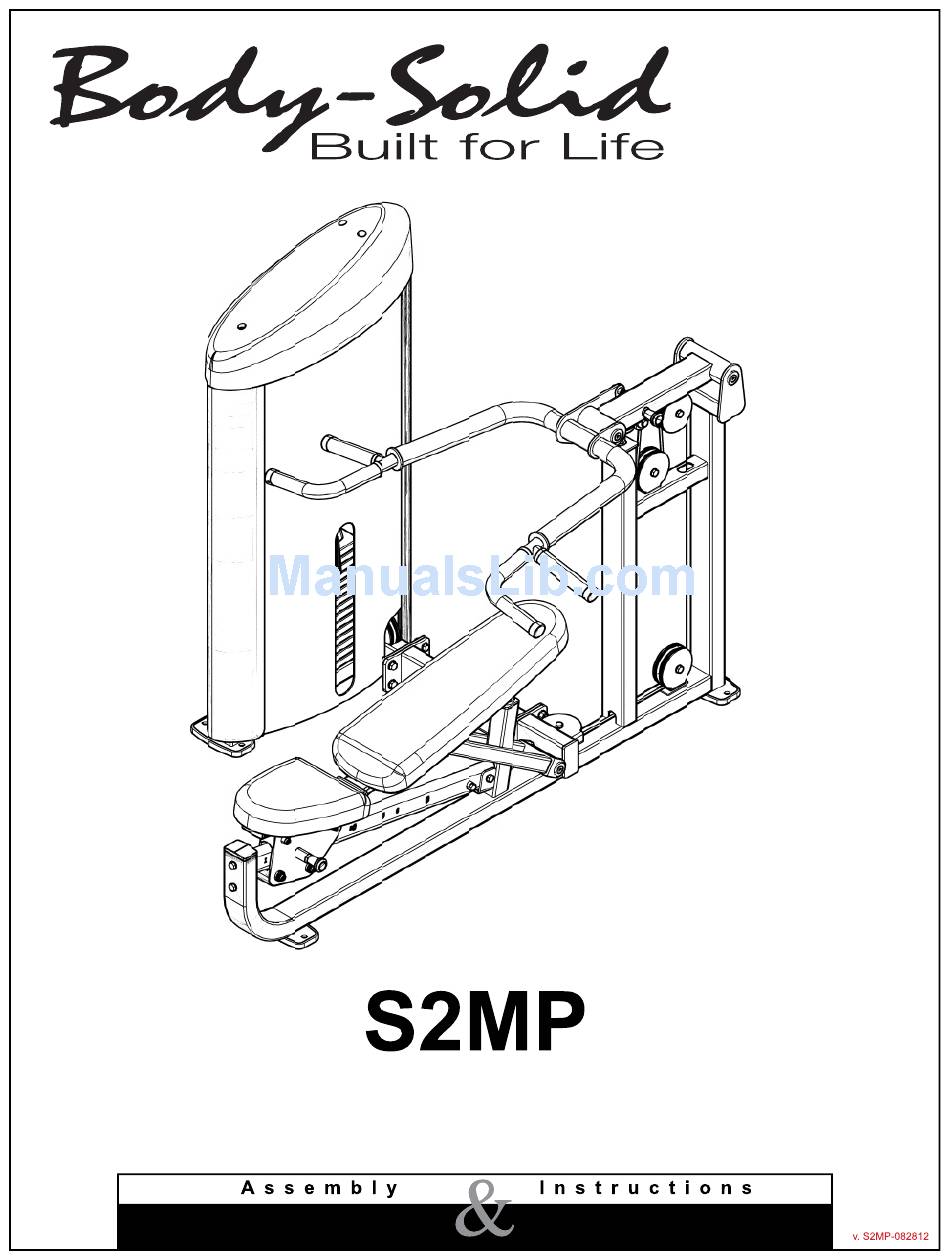

  • Page 1 ® O W N E R ’ S M A N U A L...
  • Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e #DWRULE-4...
  • Page 3 T a b l e o f C o n t e n t s...
  • Page 4 I m p o r t a n t S a f e t y I n s t r u c t i o n s When using exercise equipment, you should always take basic precautions, including the following: Obtaining Service Retain this Owner’s Manual for future reference.
  • Page 5 P r e p a r a t i o n Required Tools Assembly Tips Installation Requirements...
  • Page 6 S 2 M P H a r d w a r e L i s t Part# Size Description Quantity...
  • Page 7 S 2 M P H a r d w a r e L i s t Part# Size Description Quantity...
  • Page 8 S 2 M P H a r d w a r e I l l u s t r a t i o n PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.8 PART #2 HEX HEAD BOLT M10X30 FULL THREAD QTY.6 PART #3 HEX HEAD BOLT M10X35 PARTIAL THREAD...
  • Page 9 S 2 M P H a r d w a r e I l l u s t r a t i o n PART #7 HEX HEAD BOLT M10X65 PARTIAL THREAD-NL PART #8 HEX HEAD BOLT M10X75 PARTIAL THREAD-NL QTY.1 PART #10 HEX HEAD BOLT M12X35 PARTIAL THREAD...
  • Page 10 S 2 M P H a r d w a r e I l l u s t r a t i o n PART #13 ALLEN SCREW M6X6 FULL THREAD QTY.4 PART #14 ALLEN SCREW M8X8 FULL THREAD QTY.4 PART #15 PHILIP BOLT M6X16 FULL THREAD QTY.3...
  • Page 11 S 2 M P H a r d w a r e I l l u s t r a t i o n PART #40 FLANGE NUT M16 QTY.1 PART #41 NYLON LOCK NUT M10 QTY.11 PART #42 NYLON LOCK NUT M12 QTY.9 PART #44 NYLON LOCK NUT M8...
  • Page 12 S 2 M P H a r d w a r e I l l u s t r a t i o n PART #51 FLAT WASHER 11X 20X2 QTY.31 PART #52 FLAT WASHER 13X 24X2.5 QTY.18 PART #53 FLAT WASHER 6.6X 12X1.6 QTY.3 PART #54...
  • Page 13 S 2 M P P a r t s L i s t / I l l u s t r a t i o n PART E -- FRAME E, 1 PCS PART F -- FRAME F, 1 PCS PART G -- FRAME G, 1 PCS PART H -- FRAME H, 1 PCS...
  • Page 14 S 2 M P P a r t s L i s t / I l l u s t r a t i o n 1162.7X286.6X2 1212.7X286.6X2 PART #60--TOP PLATE, 1 PCS...
  • Page 15 S 2 M P P a r t s L i s t / I l l u s t r a t i o n PART #61--SELECTOR ROD, 1 PCS PART #65--BACK PAD, 1 PCS PART #62--TOP PLATE BOLT, 1 PCS PART #66--SHORTER POP PIN, 1 PCS PART #63--CABLE LOCK, 1 PCS PART #67--SELECTOR PLATE, 1 PCS...
  • Page 16 S 2 M P P a r t s L i s t / I l l u s t r a t i o n FOOT PAD, 4 PCS REGULATION BUSHING, 4 PCS BEARING SELECTOR PIN ROLLING WHEEL, 4 PCS BUSHING NYLON BUSHING LONGER HANDLE SLEEVE...

  • Page 17: Nylon Bushing

    S 2 M P P a r t s L i s t / I l l u s t r a t i o n PART #77--SHAFT PIN, 3 PCS NYLON BUSHING PART #78--SHAFT PIN LONGER HANDLE SLEEVE PART #79--END CAP, 8 PCS PART #83--RUBBER DONUT REGULATION BUSHING SHAFT COLLAR...
  • Page 18 S 2 M P P a r t s L i s t / I l l u s t r a t i o n PART #85--PLASTIC END CAP, 2 PCS PART #89--BUSHING, 6 PCS PART #90--PULLEYS, 7 PCS PART #86--PLASTIC END CAP, 1 PCS PART #91--ADJUSTING PAD, 1 PCS PART #87--END CAP, 1 PCS...
  • Page 19 S 2 M P P a r t s L i s t / I l l u s t r a t i o n PART #93--HANDLE RING, 4 PCS PART #94--HANDLE END CAP, 4 PCS PART #102--CABLE, 1 PCS 4855mm...
  • Page 20 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 21 S T E P...
  • Page 22 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware fi rst in this step. Wrench tighten ALL hardware at the end of STEP 2A. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 23 S T E P...
  • Page 24 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware fi rst in this step. Wrench tighten ALL hardware at the end of STEP 3I. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 25 S T E P 18 55 60...
  • Page 26 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware fi rst in this step. Wrench tighten ALL hardware at the end of STEP 4E. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 27 S T E P 1 : 5 18 55...
  • Page 28 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Wrench tighten ALL hardware at the end of Each Step. Some components may be pre-as- sembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 29 S T E P...
  • Page 30 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware fi rst in this step. Wrench tighten ALL hardware at the end of STEP 6B. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 31 S T E P...
  • Page 32 N o t e s...
  • Page 33 S 2 M P E x p l o d e d V i e w...
  • Page 34 ® www.bodysolid.com Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifi cations when we feel it will improve the product. Body-Solid machines maintain several patented and patent pending features and designs. All rights reserved on all design patents and utility patents.
