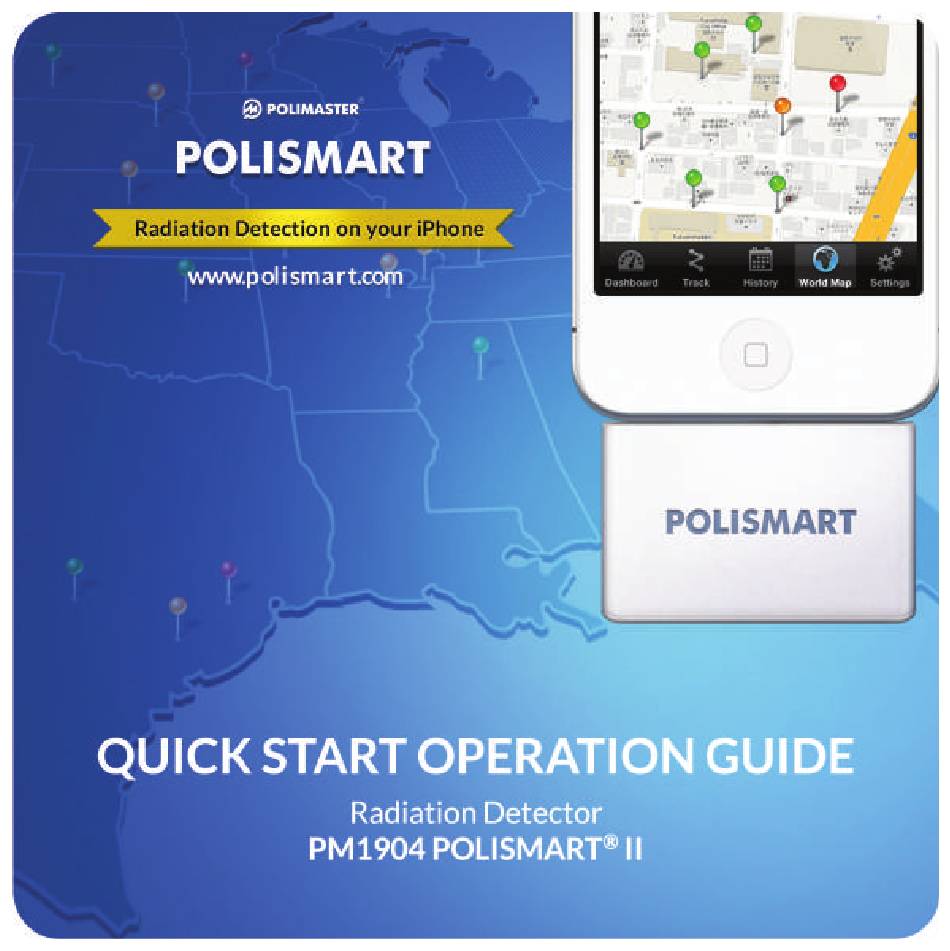

- Page 3 QUICK START OPERATION GUIDE Radiation Detector PM1904 POLISMART ® Made for iPhone 4S, iPhone ® ® Professional technologies for public radiation protection...
-
Page 4: Table Of Contents
Table of ConTenTS ReaD THIS fIRST ..................5 PReCaUTIonS .................... 6 WaRnInG ...................... 6 GeneRal DeSCRIPTIon................ 7 Delivery Kit ..................8 Specifications ..................8 Instrument Design and Control ..........10 oPeRaTIon ....................11 Charging PM1904 ................12 normal operation Mode and alarms ........13 Recording Data to Internal Memory ........15 CoMMUnICaTIon WITH iPhone ..........16... -
Page 5: Read This First
ReaD THIS fIRST Thank you for purchasing this Polimaster product. before ® operating the unit, please read this manual thoroughly and retain it for future reference. Radiation Detector PM1904 PolISMaRT II is designed to ® continuously monitor and measure ionizing radiation from gamma emitting radiation sources and provide a visual alarm whenever the preset thresholds are exceeded. -
Page 6: Precautions
PReCaUTIonS Keep your PM1904 charged at all times for proper exposure • measurement. Charge the instrument for at least 4 hours before the initial use. • Please observe all local regulations and safety procedures when • working with sources of ionizing radiation. WaRnInG The Manufacturer is not responsible for any damage or costs caused by improper understanding of the device operation(s) or... -
Page 7: General Description

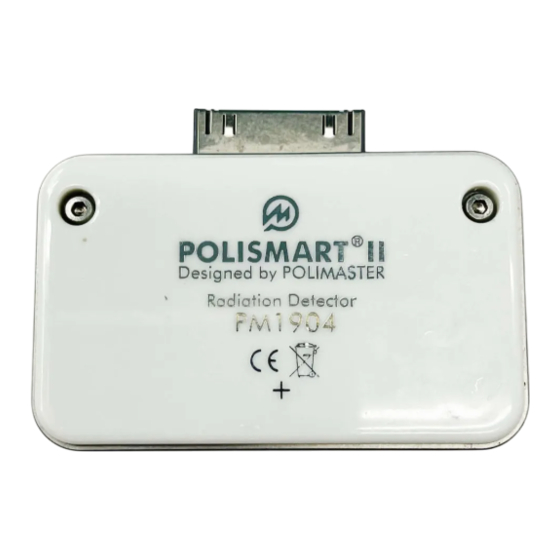

GeneRal DeSCRIPTIon Radiation Detector PM1904 PolISMaRT II belongs to ® Polimaster new family of highly sensitive, small and efficient ® gamma detection devices. When on, the device continuously measures the ambient Dose equivalent Rate ( ) and the ambient Dose equivalent ( ) of gamma radiation and compares those measurements to the preset thresholds. -
Page 8: Delivery Kit
Delivery Kit PM1904; Warranty certificate • • Cable USb – micro USb; Package • • Quick start operation guide • Specifications Detector type Geiger-Müller tube DER Measurement range 0.01 µSv/h – 13 mSv/h; limits of permissible main relative ± 20% DeR measurement error in the range 1.0 µSv/h –... - Page 9 95 % at +30 °C humidity Ingress protection IP30 Drop Test 0.7 m onto concrete surface Dimensions 59 x 45 x 15 mm Weight 30 g NOTE - For more detailed information please contact the Manufacturer or visit http://www.polimaster.com/ Instrument Design and Control...
-
Page 10: Instrument Design And Control
The instrument requires no control buttons and operates fully autonomously when the battery is charged. It automatically records all measurements in non-volatile memory at preset intervals. There is one leD display that can indicate the following: Green light flashing PM1904 every second –... -
Page 11: Operation
oPeRaTIon The normal operation mode of PM1904 is always on. This provides continuous monitoring and correct measuring of the Dose equivalent of gamma radiation and provides accurate readings and measuring of background radiation. When the instrument is charged and operates normally, the green leD light flashes every 10 seconds. -
Page 12: Charging Pm1904
Charging PM1904 PM1904 To charge please connect it to any USb port of a personal computer or use a wall charger with a USb slot. When the battery is charged, the Green light is always on. a full charging cycle requires 4 hours. This will provide 2200 hours of the instrument operation under normal background conditions. -
Page 13: Normal Operation Mode And Alarms
normal operation Mode and alarms after PM1904 is charged and disconnected from the power source it is ready for autonomous operation. The green light flashes every 10 seconds and the instrument continuously measures DeR and De of gamma radiation and compares it to the preset thresholds. If the thresholds are exceeded, PM1904 alerts the User with a red leD indicator. - Page 14 after background radiation drops below the preset threshold. When the De threshold is exceeded it doesn’t necessarily mean that there is a radiation source nearby. Moreover, the red De alarm will not stop even if the current background radiation level returns to its normal state.
-
Page 15: Recording Data To Internal Memory
Recording Data to Internal Memory When operating normally, PM1904 records current DeR and De values to the internal memory. The interval of recording can be set within the values from 1 to 1000 minutes using the supplied User Software. The Manufacturer’s preset value is 1 hour. all data recorded into the instrument’s memory are time stamped with the internal instrument clock. -
Page 16: Communication With Iphone
CoMMUnICaTIon WITH iPhone ® PM1904 PolISMaRT II communicates with an iPhone by using ® ® ioS app available on the app Store. It allows setting up User’s thresholds and data recording intervals, synchronizing the internal instrument time, downloading event data stored in the instrument memory to the database and working with the instrument over the iPhone in real-time data ®... -
Page 17: Software User Manual
SofTWaRe USeR ManUal Working with the detector for working with the PM1904 you should download free PolISMaRT program from app Store. ® iTunes, via USB: Connect the iPhone to your computer. launch iTunes. ® Go to “iTunes Store”. Search for the program by typing in the search box: “polismart”. Select the PolISMaRT program from the directory. - Page 18 Click “apply” to synchronize programs with the iPhone ® application is being installed. Via Wi-Fi from App Store: open app Store on the iPhone ® Search for the program by typing in the search box: “polismart”. Select the PolISMaRT program from the directory. Select the ®...
- Page 19 Dashboard screen. The DeR value appears after the detector initialization is complete. The statistical error of average measured value will be displayed in the middle of the screen to the right from the DeR value. The DeR values can be read when the statistical uncertainty is 20 % and less.
- Page 20 Dose Rate Dose buttons are used to switch the detector between the gamma-radiation DeR measurement mode µSv/h, mSv/h, Sv/h or µR/h, mR/h, R/h (indication units are µSv, mSv, and the De measurement mode (indication units are µR, mR, R ), the De accumulation time is displayed in days, hours and minutes.
- Page 21 Waypoint button allows the User to save the current DeR and De value into the iPhone memory in accordance with the ® actual GPS-position. Press add to save the value.
- Page 22 Track Press the button to switch the device to the tracking Record mode. Press the button to save the route in accordance with the current track settings.
- Page 23 History Press the button to open the history window displaying events/values stored in the instrument memory. Saved events can be sorted by time, alarm or name*. The User can send saved data by e-mail, to the facebook or to the Twitter by pressing the ®...
- Page 24 World Map Press the button to enter the World Map mode. This mode allows viewing the map with the waypoints stored in the iPhone memory. Current user location is marked on the map as ® a blue point. Touch this point to see a pop-up message on current user location.
- Page 25 Settings Press the button to open the settings window. This mode allows the User to choose settings of the device: Units – Imperial (yard, mile) or Metric (meter, kilometer); Readings – Sv (Sievert) or R (Roentgen); Start Screen – Dashboard (by default);...
- Page 26 Sound OFF by Shake – switching off the sound alarm when the instrument is being shaken; Auto Save Waypoints – track auto save on/off; Auto Save Period in sec – set an interval for waypoints automatic record into history. Interval setting discreteness is 1 second. Recommended time interval –...
