- Page 1 АLPHA-BETA RADIATION DETECTOR BDAB OPERATION MANUAL...
- Page 2 CONTENTS 1 General ............................ 4 2 BDAB delivery kit ........................5 3 Technical specifications ......................6 4 Design and operation principle ....................9 4.1 BDAB design ........................9 4.2 Handle. Telescopic extension tube ..................10 4.3 Operation principle ......................11 4.4 BDAB marking .........................
- Page 3 Documented BDAB and its electric circuit, internal and external design and software are subject to change in the manufacturing process with no substantial effect on their functionality or technical and metrological performance. Hence, Polimaster reserves the right not to mention such changes in the current Operation Manual.
-
Page 4: General
1 General 1.1 Designation and Application Range 1.1.1 BDAB is designed to: - measure - radiation flux density; - measure β- radiation flux density; - search for - β- sources. BDAB provides programming of the operation modes. BDAB can be used by emergency, customs, frontier, and other service staff. The instruments are used by radiological and isotope tracing laboratories and customs officers to identify radionuclide matter compositions, measure gamma radiation DER, search ionization sources to prevent the illicit trafficking of radioactive materials. -
Page 5: Bdab Delivery Kit
2 BDAB delivery kit Delivery kit of BDAB is presented in Table 2.1. Table 2.1 Name, type Quantity Аlpha-Beta Radiation Detector BDAB Telescopic extension tube Cable No 2 (1.5 m) Cable No 2-1 (25 m) Cable No 2-2 (0.25 m) Cable No 3 - filter Handle... -
Page 6: Technical Specifications
3.10 In the search mode BDAB registers average count rate of - radiation within 0.01 – 1410 range or - radiation within 0.01 – 1410 . If count rate exceeds the upper limit of the measurement range, the “OVL” message will be displayed by Spectroscopic Radiation Monitor РM1403 / Display and Control Unit PM1403 or PC. - Page 7 - and - radiation density values in the instrument’s non-volatile memory 3.12 Spectroscopic Radiation Monitor РM1403 / Display and Control Unit PM1403 produces discontinuous sound and light alarms and the analogue scale is being filled if set threshold of - and - radiation flux density is reached/exceeded in the measurement mode of - and - radiation flux...
- Page 8 - mean life before failure, no less than 20 000 hours; - mean service life, no less than 10 years; - mean time to recovery, no more than 60 min For additional information on BDAB contact the manufacturer or visit www.polimaster.com...
-
Page 9: Design And Operation Principle

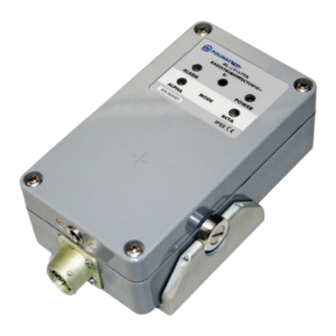

4 Design and operation principle 4.1 BDAB design Constructed as a monoblock, BDAB is enclosed in a shockproof container. Detector of α- β- radiation is based on the proportional counter with a mica window. General BDAB construction is presented in Figure 4.1. a) front panel view;... -
Page 10: Handle. Telescopic Extension Tube
Lower panel bears: 7 – Connector for PC or Spectroscopic Radiation Monitor РM1403 / Display and Control Unit PM1403 (RS485 or USB interfaces); 8 – Hole to fasten a handle or telescopic extension tube. Side BDAB panel bears connector for a cover of the counter window. -
Page 11: Operation Principle
Built-in BDAB microcontroller processes impulses coming from the detector, controls audio and light alarms. Data communication channel enables information exchange with Spectroscopic Radiation Monitor РM1403 / Display and Control Unit PM1403 by RS-485 interface. Data communication channel enables information exchange with PC by USB interface as well. -
Page 12: Bdab Marking
4.4 BDAB marking Front panel of BDAB bears a plate with the following information: - unit’s name: BDAD; - manufacturer’s name; - manufacturer’s trademark; - serial number according to the numbering system of the manufacturer - year of manufacture; - IP protection level; - state register mark. -
Page 13: Making Bdab Ready For Operation
PM1403 or PC USB. “POWER” LED on the BDAB front panel starts blinking (Figure 4.1, position 4) when BDAB is connected to Spectroscopic Radiation Monitor РM1403 / Display and Control Unit PM1403 or PC. 5.3 Safety measures BDAB is electrically safe and corresponds to state safety standards of the manufacturing country. -
Page 14: Functionality Check Of Bdab
5.4 Functionality check of BDAB Switch on BDAB (see item 6.1 or 7.1). Green LED will light on the front panel (“POWER”LED), Figure 4.1, position 4. Check ability of BDAB to switch to every operation mode: "ALPHA" LED lights blue – indicates that the measurement mode of α-radiation flux density is activated (Figure 4.1, position 1);... -
Page 15: Using Bdab With Spectroscopic Radiation Monitor Рм1403
1 – alarm sounder produces sound (audio) alarm when set DER, DE thresholds are exceeded; 2 – "ALARM" LED – for alarming; 3 – "BAT" LED – for On/Off state indication or Spectroscopic Radiation Monitor PM1403 charging; 4 – GPS receiver;... - Page 16 External view of keypad of the Spectroscopic Radiation Monitor PM1403 and functional purpose of the keys functional purpose are presented in Figure 6.2. 1, 2 – (<<, >>) – quick switching between menu items or parameters; 3 – (MENU/SELECT) – enter selected operation mode of Spectroscopic Radiation Monitor РМ1403 or highlighted option of the MENU;...
-
Page 17: Operation Modes
When Spectroscopic Radiation Monitor РМ1403 testing and calibration are finished, the Spectroscopic Radiation Monitor РМ1403’s LCD will indicate a connected BDAB in the "αβ Detector [BDAB"]” line, Figure 6.3 (2). If BDAB is connected but the Spectroscopic Radiation Monitor РМ1403’s LCD doesn’t display the "αβ Detector [BDAB"]” line, then select the "Find Detectors"... -
Page 18: Measurement Mode Of - Radiation Flux Density ("Α Measurement Mode")
Figure 6.4 Position of γ- filter depending on the selected operation mode is presented in Figure 6.5. A – α- measurement mode; B – background measurement mode; C – β- measurement mode. Figure 6.5 Position of gamma filter depending on the selected operation mode of BDAB 6.2.1 Measurement mode of - radiation flux density ("α... - Page 19 2) follow the instructions displayed on the SPECTROSCOPIC RADIATION MONITOR РМ1403’s LCD, see Figure 6.2 (1). Open the γ- filter, see Figure 6.5 (А) and place BDAB on the surface being tested so that the detector window faces the surface; Attention! Handle the detector window of the - -radiation detector with care (don’t damage it) when doing measurements with - filter removed.
-
Page 20: Measurement Mode Of Β- Radiation Flux Density ("Β Measurement Mode")
Figure 6.6 If value of measured flux density of - radiation exceeds upper limit 510 min Spectroscopic Radiation Monitor РМ1403’S LCD will display “OVL”. User in the measurement mode of - radiation flux density can save the measurement results into Spectroscopic Radiation Monitor РМ1403’s memory, switch sound alarm off, change set threshold value, reset accumulated statistics and go to the first step of -radiation flux density measurement. - Page 21 5) holding BDAB on the surface being tested, watch the statistical error values. When the statistical error value gets below 10 %, press MENU key on Spectroscopic Radiation Monitor РМ1403. The lower the statistical error is, the more accurate the measurement data are; 6) select “Next Step”...
-
Page 22: Search Mode Of - Β- Radiation Sources
User in the measurement mode of β- radiation flux density can save the measurement results into Spectroscopic Radiation Monitor РМ1403 memory, switch off sound alarm, change set threshold value, reset accumulated statistics and go to the first step of β- radiation flux density measurement, Figure 6.7 (6). -
Page 23: Bdab Settings
Operation threshold can be changed by setting a new n coefficient within 1.0 – 9.9 range. N coefficient influences the operation threshold value – the lower the n coefficient is, the higher instrument sensitivity is. Note that the instrument false response rate increases at that. Search mode of - β- radiation sources enables the following, Figure 6.8 (4): −... -
Page 24: Using Bdab With Display And Control Unit Рм1403
7 Using BDAB with Display and Control Unit РМ1403 7.1 Switch on/off BDAB Attention! Switch off sound alarm if a cable longer than 1.5 m will be used. BDAB is connected to Display and Control Unit РМ1403 by cable No 2 (1.5m) by RS-485 interface. -
Page 25: Operation Modes
1 – left keypad button (“LEFT”); 2 – upper keypad button (“UP”); 3 – right keypad button (“RIGHT”); 4 – lower keypad button (“DOWN”). Figure 7.2 – External view of Display and Control Unit РМ1403’s keypad The keys are located under the LCD. Each key executes command displayed on LCD above Use keypad to control Display and Control Unit РМ1403 (Figure 7.2). -
Page 26: Measurement Mode Of - Radiation Flux Density (" Measurement Mode")
Figure 7.3 When testing and calibration are completed, the "Search α", "Measure α ", "Search β", "Measure β" options will be listed in the menu indicating that BDAB is correctly connected to Display and Control Unit РМ1403, Figure 7.4 (1). If BDAB is connected but Display and Control Unit РМ1403’s LCD doesn’t display the above mentioned menu items, then select “Find detector”... -
Page 27: Measurement Mode Of Β- Radiation Flux Density ("Β Measurement Mode")
in cps, Figure 7.5 (2). Statistical error of average count rate value is displayed in percents with 0.95 probability under indicated measurement units on Display and Control Unit РМ1403’s LCD. Read the measured value when the statistical error is 10 % or less. The lower the statistical error is, the more accurate the measurement data are;... -
Page 28: Search Mode Of - Β- Radiation Sources
7.2.3 Search mode of - β- radiation sources To search - β- radiation sources: connect BDAB to Display and Control Unit РМ1403 and enter the menu indication mode When the "α Search Mode" line is selected, or "β Search Mode" line is selected, Figure 7.4 (1), BDAB enters the test mode. -
Page 29: Using Bdab With Pc
PC is switched off РМ1403 or PC Sound is off Switch on sound in the PC or Spectroscopic Radiation Monitor PM1403 / Display and Control Sound alarm doesn’t work Unit РМ1403 communication mode Detector is faulty Repaired by manufacturer...
