- Page 1 QUICK START OPERATION GUIDE Electronic Personal Dosimeter ® PM1904А POLISMART...
-
Page 2: Table Of Contents
CONTENT READ THIS FIRST..................5 PRECAUTIONS ..................6 WARNING ....................6 GENERAL DESCRIPTION ............... 7 Delivery kit .................... 8 Specifications ..................8 Instrument design and control ............10 OPERATION .................... 11 Charging PM1904A ................12 Normal operation mode and alarms ..........13 Recording data to internal memory.......... -
Page 3: Read This First
App Store or from Google play iPhone, iPad, iPod touch and the App Store logo are registered trademarks of Apple Inc. Android and the Google play logos are trademarks of Google Inc. POLISMART is a registered trademark of Polimaster Ltd. -
Page 4: Precautions
Contains Transmitter Module FCC ID: QOQBLE112, IC: 5123A-BGTBLE112, MIC: ID R 209- J00046, BLE112-A: KCC-CRM-BGT-BLE112-A. IMPORTANT! To activate the PM1904A for the first time (to exit from the storage mode) please connect it to any USB port of a personal computer or use a wall charger with a USB slot. -
Page 5: General Description

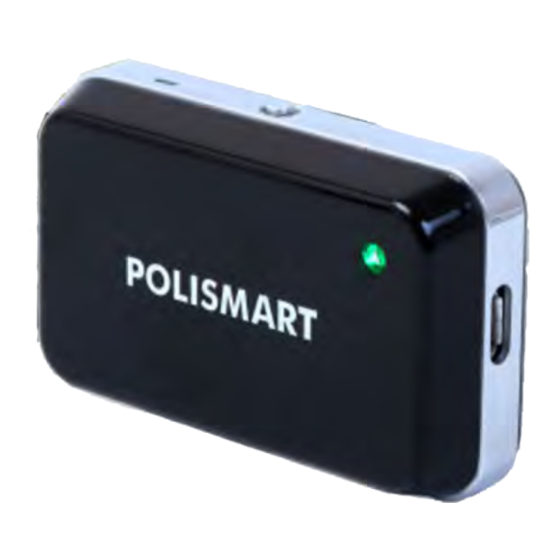

GENERAL DESCRIPTION The Electronic Personal Dosimeter PM1904A POLISMART II belongs to Polimaster’s new family of small and efficient electronic personal radiation dosimeters and radiation detectors for measuring gamma ionizing radiation from gamma emitting radiation sources. And also for transmitting data to the PC, to the mobile devices and to the appropriate radiation protection networks. -
Page 6: Delivery Kit
Delivery kit Electronic Personal Dosimeter PM1904A POLISMART II • Cable USB - µUSB • Strap • PVC badge with clip • Quick start operation guide • DVD with Operation Manual and User Software for PC • Warranty Certificate • Calibration Certificate •... - Page 7 Ingress protection IP30 1.5 m onto concrete surface (in PVC Drop test badge) Dimensions, no more than 60 x 38 x 18 mm Weight, no more than 33 g NOTE For more detailed information please contact the manufacturer or visit http://www.polimaster.com...
-
Page 8: Instrument Design And Control
Instrument design and control The instrument is equipped with a single control button (located on top) that turns ON the Bluetooth 4.0 LE module and temporarily disable the audible alarm for 5 minutes. PM1904A operates fully autonomously when the battery is charged. It automatically records all measurements in the non-volatile memory at preset intervals. -
Page 9: Operation
OPERATION The normal operation mode of PM1904A is always on. This provides continuous monitoring and accurate measurement of both personal Dose Equivalent and personal Dose Equivalent Rate of gamma radiation. When the instrument is charged and operating normally, the green LED light flashes every 10 seconds. If the light does not flash green, but instead flashes white-green, the battery is partially discharged. -
Page 10: Charging Pm1904A
Charging PM1904A To charge PM1904A please connect it to any USB port of a personal computer or use a wall charger with a USB slot. When the rechargeable battery is charged, the green light will be on continuously. A full charging cycle requires 4 hours. This will provide 2,000 hours of instrument operation under normal background conditions. -
Page 11: Normal Operation Mode And Alarms
Normal operation mode and alarms After PM1904A is charged and disconnected from the power supply it is ready for autonomous operation. The green light flashes every 10 seconds and the instrument continuously measures DER and DE of gamma radiation and compares those measurements to preset thresholds. - Page 12 will not stop even if the current background radiation level returns to its normal state. This may means that the user has been in a field with elevated background radiation for too long and the risk of damaging effects to personal health is increased (the worldwide average natural dose to humans is about 2.4 mSv per year).
-
Page 13: Recording Data To Internal Memory
Recording data to internal memory When operating normally, PM1904A records current DER and DE values to the internal memory. The interval between recordings can be set anywhere between 1 minute and 18 hours using the supplied User Software. The manufacturer’s preset value is 1 hour. All data recorded in the instrument’s memory is time stamped according to the internal clock. -
Page 14: Communication With Mobile Device
The mobile app POLISMART is available for iPhone, iPad, iPod touch (iOS) and for Android OS mobile devices and can be downloaded from the App Store or from Google play. The PM1904A POLISMART II communicates with your mobile device using a low energy Bluetooth 4.0 LE connection (Contains Transmitter... -
Page 15: Polismart Mobile Application User Manual
POLISMART MOBILE APPLICATION USER MANUAL Before working with the PM1904A, download the POLISMART Mobile App from the App Store or Google play. Installation of the Application iOS mobile devices Via Wi-Fi from App Store Open App Store on your mobile device. Type polismart in the search box to locate the App. -
Page 16: Android Os Mobile Devices
Go to iTunes Store. Type polismart in the search box to locate the app. Select the POLISMART program from the directory. Enter your account information (name and password). The selected file will be downloaded to your computer. Go to the Programs tab to see downloaded programs. Click the iPhone tab. - Page 17 Launching the POLISMART app Press the yellow and black radiation icon with the POLISMART inscription to launch the POLISMART mobile app. The main application screen will appear as depicted in Figure 2a. Locate and short press the control button on the top of the personal dosimeter PM1904A and wait up to 10 seconds until the dosimeter name and serial number appear on the screen.
-
Page 18: Basic Function Of The Polismart App
Basic function of the POLISMART App Dashboard mode The DER value appears after detector connection is complete (see Figure 3). The measurement error of measured values will be displayed in the middle of the screen to the right of the DER value. DER values can be read when a sufficient level of accuracy, recommend no more than 20 % or less. - Page 19 Figure 3. Dashboard Screen The Dose Rate and Dose buttons are used to switch the detector between gamma-radiation DER measurement mode (indication units are µSv/h, mSv/h, Sv/h or µR/h, mR/h, R/h), and DE measurement mode (indication units are µSv, mSv, Sv or µR, mR, R).
- Page 20 Press the button to open the Settings window (see Figure 4). Here the user can change DER thresholds, enable or disable the sound alarm or restore the default settings. The default DER threshold settings are: DER Threshold 1: 1 µSv/h •...
- Page 21 While in DE measurement mode press the Reset button to reset the accumulated Dose and DE accumulation time values. button to open the Settings window, where the user Press the can change DE thresholds, enable or disable the sound alarm or restore to default settings.
-
Page 22: Track Mode
Track mode Press the Track button to switch the device to Track mode. Press the Record button to save tracking records in accordance with track setting, as depicted in Figure 5. Figure 5. Tracking mode a) for smartphone running iOS, b) for smartphones running Android OS... -
Page 23: History Mode
History mode Press the History button to open the history window, which displays events/values stored in the mobile device memory. Saved events are divided into three types: Measurements (radiometric data without GPS coordinates) • Waypoints (radiometric data with GPS coordinates) •... - Page 24 ® Twitter by pressing the Send button . Press the Delete button to clear the screen and the instrument memory. The User Software will recommend saving the data. Figure 6. History mode on iOS mobile devices...
- Page 25 Figure 7. History mode on Android OS mobile devices...
-
Page 26: World Map Mode
World Map mode Press the World Map button to enter the World Map mode. This mode displays the map with the waypoints stored in the memory of the mobile application. Current user location is marked on the map as a blue point. To zoom the map in/out: double press or slide the fingers apart on the mobile device screen. - Page 27 Figure 9. World Map for Android OS mobile devices...
-
Page 28: Settings Mode
Settings mode Press the Settings button to open the Settings mode. This mode allows the user to choose following settings:... - Page 29 Figure 10. Window of the applications Settings mode...
- Page 30 App settings Language – English / Japanese / Chinese / Russian / • French / German … Readings – select the measurement system: • o Imperial – the distance measurement units (yards) shall be adjusted in the Track mode settings, the distance measurement units (miles) shall be adjusted in the World Map mode settings;...
- Page 31 Auto Save Wavepoints – switch on/off the function of the • automatic saving of the waypoints to the smartphone’s memory. Auto Save Period in sec. – set an interval for waypoints • automatic record into history. Interval setting discreteness is 1 second. Recommended time interval – 3600 seconds. Local Notifications –...
- Page 32 Feedback/Report issue – click to send a report to the • technical support service of the manufacturer. Device Model – instrument’s type. • Serial Number – instrument’s serial number. • Hardware – instrument’s hardware version. • Firmware – instrument’s firmware version and (its •...
- Page 33 (new) event will overwrite the “oldest” one at the moment after the maximum allowed number of records is achieved. In the linear mode the radiometric data will be recorded until the maximum allowed number of records is achieved. Recording interval – set an interval for radiometric data •...
