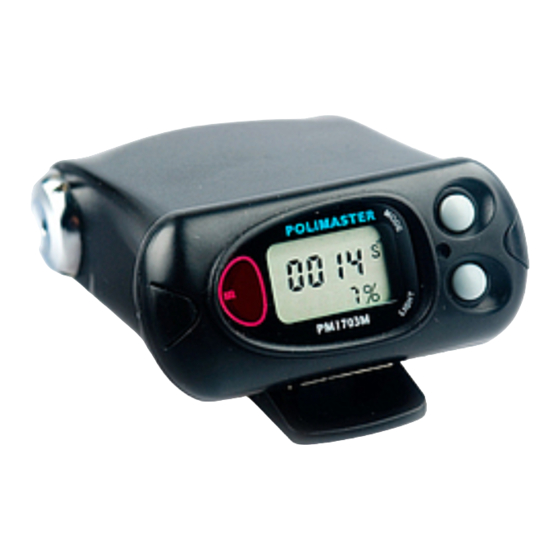

- Page 1 POLIMASTER PERSONAL RADIATION DETECTORS РМ 1703М-О РМ 1703GNО РМ 1703МА РМ 1703GNА РМ 1703МВ РМ 1703GNВ РМ 1703М-О1 РМ 1703М-О1А OPERATION MANUAL http://www.polimaster.com...
-
Page 2: Table Of Contents
CONTENTS General..............................3 Indicator composition..........................5 Specifications ............................6 Provision of explosion protection......................8 FCC statement ............................8 Clamp removal and installation.......................9 Installation and replacement of a power supply cell ................9 Control buttons. Information on LCD.....................9 Indicator operation...........................11 Indicator on/off ............................11 Operation modes............................11 Testing mode.............................12 Calibration mode for the background level.....................12 Searching mode. -
Page 3: General
We thank you for purchase of the personal radiation detector of “Polimaster” Before the beginning of operation with the personal radiation detector you should get acquainted with the present manual. During the search of radiation sources observe the existing rules of operation with radio active materials and sources, as well as the standards of radiation safety. - Page 4 The indicator is manufactured in 7 modifications. Peculiar features of modifications Detector type modifications РМ1703М-О РМ1703М-О1 РМ1703М-О1А РМ1703МА РМ1703МВ РМ1703GNО РМ1703GNА РМ1703GNВ ANSI 42.33(1) ANSI 42.33(1) • • • • γ- • CsI (Tl) scintillator сm • • γ- • сounter •...
-
Page 5: Indicator Composition
INDICATOR COMPOSITION The supply set composition of the indicator complies with the table. Description, type Quantity per model РМ РМ РМ РМ РМ РМ РМ РМ 1703M-O 1703М-О1 1703М-О1А 1703МА 1703МВ 1703GNO 1703GNA 1703GNВ Personal radiation detector РМ1703М-О Personal radiation detector РМ1703М-О1 Personal radiation detector РМ1703М-О1А... -
Page 6: Specifications
SPECIFICATIONS Sensitivity of the indicator to gamma radiation, at least РМ 1703М-О РМ 1703М-О1 70 s /(mcЗv/h) (0.7 s /(mcR/h))– for РМ 1703М-О1А 100 s /(mcЗv/h) (1.0 s /(mcR/h))– for РМ 1703GNО 100 s /(mcЗv/h) (1.0 s /(mcR/h))– for РМ 1703МА РМ... - Page 7 Time of measurement 0,25 s Frequency of false operations in the mode of registration No more than operation per 12 h of continuous of gamma-emissions with the radiation background 0,2 operation mcЗv/h (20mcR/h) Frequency of false operations in the mode of registration of neutron emission No more than operation per 12 h of continuous РМ...
-
Page 8: Provision Of Explosion Protection
Overall dimensions РМ 1703М-О РМ 1703МА РМ 1703GNО 72 х 32 х 87 mm (2 " х 1 ¼" х 3 ") 13/16 7/16 РМ 1703GNА РМ 1703М-О1 РМ 1703М-О1А РМ 1703МВ 75 х 35 х 89 mm (2 " х 1 "... -
Page 9: Clamp Removal And Installation
CLAMP INSTALLATION AND REMOVAL A removable clamp is provided to the indicator for wearing at the waist belt. The clamp may be removed with the aid of a screw driver, as shown in fig.1a. The clamp is installed according to fig. 1б. By an individual order the indicator may be provided with a protecting housing made of synthetic cloth , also providing possibility of wearing at the waist belt. - Page 10 1 (MODE) – a push button for : -switching on the device; -selection of operation modes; -recalibration by the background level -change of parameters in the mode of settings 2 (LIGHT) – a push button for: -switching illumination; -switching communication with the PC; - change of parameters in the mode of settings -switching off the device...
-
Page 11: Indicator Operation
• - indication of the average statistical expected indication error of MED, % • - indication of the count speed of neutron radiation, (s 11 – a cover of the power supply section 12 – a power supply cell 13 – a sound indicator 14 –... -
Page 12: Testing Mode
the mode of registration of neutrons • the mode of indication of the average count of neutrons over the accumulation time • the mode of fast switching of sound and vibrating signaling • the mode of settings: • setting the n factor of gamma channel setting the n factor of neutron channel setting the threshold by MED for the searching mode "0-9"... -
Page 13: Searching Mode. Detection And Localization Of Sources Of Gamma And/Or Neutron Radiation
The processor counts the value of the gamma channel operation threshold Operation threshold = N + n * N – average speed of counting impulses over the calibration time n – number of mean square deviations ( n factor of the gamma channel). n factor changes the value of the operation threshold (the minimum detection level), the less n factor, the less threshold value is and the higher indicator sensitivity is. - Page 14 In this mode the indicator operation is carried out to the following thresholds: 1) The fixed threshold by MED, set up in the communication mode with the PC by the user- administrator; When the installed threshold is exceeded by MED the indicator sends light, sound and/or vibrating signals.
-
Page 15: Measuring Mode Of Power Ambient Equivalent Gamma Radiation Dose
It should be borne in mind that in case of false operations the signals (light, sound and/or vibrating) are not systematic, and therefore, they differ from detection signals in case of II availability, with their frequency being constant and increasing as far as approaching to II. In case of II detection or if any information is available about possible II availability, II localization is started. -
Page 16: Searching Mode "0-9
the searching function is additionally included in the measuring mode (see the order chart – attachment SEARCH MODE "0-9". In the searching mode "0-9" digits from 0 to 9 are indicated on the LCD display. Compliance of MED values by γ - channel and digits indicated on the indicator LCD is shown in the table. Indicated figure Range of From... -
Page 17: Indication Mode Of The Average Speed Of Gamma Radiation Counting Over The Time Of Accumulation
INDICATION MODE OF AVERAGE SPEED OF GAMMA RADIATION INDICATION DURING ACCUMULATION (only for РМ1703М-О1) In this mode in the upper line of LCD a γ is blinking, and the average count time is shown during accumulation time (s The lower LCD line shows the value of the statistical error of the average count speed in percents. -
Page 18: Communication Mode By A Radio Channel With A Pocket Pc
COMMUNICATION MODE BY RADIO CHANNEL WITH POCKET PC In the communication mode with РРС by radio channel, of Bluetooth type the modification indicators: РМ1703МВ, РМ1703GNB make it possible to identify the radio nuclide substance composition. For setting the communication between the indicator and the "Bluetooth" mode should be switched on in the indicator. -
Page 19: N Factor Setting Of The Gamma Channel
- the preset value is to be checked or a new value of the fixed threshold is to be set for the searching mode "0-9" (the threshold setting range constitutes 1.0 – 99.0 s , recommended – 1.5 s ) (РМ1703GNО, РМ1703GNА, РМ1703GNВ);... -
Page 20: Setting Of The Fixed Threshold Of The Count Of Neutrons For The Searching Mode "0-9
Subsequent pressings of the LIGHT push button reduce the preset value of n factor with pitch 0,1. Subsequent pressings of the MODE push button increase the preset value of n factor with pitch 0,1. If the push buttons are kept pressed the values are reduced or increased accelerated with the same pitch. After setting the required n-factor of the gamma channel after expiry of approximately 6 s after the last pressing the push button the indicator will automatically be shifted to the calibration mode. -
Page 21: Mode Of Indication Setting
For changing the value of the threshold of the neutrons count one should shortly press LIGHT push button during subsequent four seconds. The preset threshold value will blink what shows its possible change. If the LIGHT button was not pressed during the said time interval, the indicator automatically returns to the working mode. -
Page 22: Setting Of The Sound Indication Volume
- being so, “Vibr-oFF” or “Vibr-on” message will appear on the LCD. The abbreviated note "Vibr" – indicates the vibrating indication, notes "oFF" (“on”) – the off (on) state of the vibrating indication. Setting of and removal from this mode is performed by actions similar to the aforesaid ones. SETTING THE SOUND INDICATION VOLUME. -
Page 23: Communication Mode With A Personal Computer. Indicator Parameters
COMMUNICATION MODE WITH PC. INDICATOR PARAMETERS ATTENTION! Operation in the communication mode with a PC is intended for a trained user or the user-administrator. Access to the communication mode with a PC for an ordinary user is protected with the password. -
Page 24: Technical Maintenance
-time and indicator readings in case of exceeding the operation threshold of the gamma channel; - time and indicator readings in case of exceeding the operation threshold of the neutron channel;. In settings of indicator/program - to check and/or set up working parameters of the indicator: - to switch on the sound/or vibrating indicators;... -
Page 25: Manufacturer's Guarantees
In case of transportation by the sea transport the indicators in the packed form must be placed to a polyethylene housing with the silica gel drier. During transportation by air the indicators in the packed form must be located in sealed sections. MANUFACTURER’S GUARANTEES The manufacturer hereby guarantees compliance of the indicator with the requirements of Specifications and operation, transportation and storage rules set up in the present Operation Manual. -
Page 26: Limited Warranty
Affected Products to Polimaster for repair or replacement. All Products so returned shall be shipped prepaid or otherwise delivered to Polimaster's facility or authorized service center. If Polimaster fails to repair or replace the Affected Products within a reasonable time after Purchaser has so returned them to Polimaster, Purchaser shall be entitled to repayment or credit of the original price of the defective or nonconforming Product as its exclusive further remedy. -
Page 27: Chart Of Ordering The Operation Modes And Functions Of The Device
Attachment А Order sheet of modes operation and functions of the devices: PM1703М-О, PM1703М-О1, PM1703М-О1A, PM1703МА, PM1703МВ, PM1703GNО, PM1703GNА, PM1703GNВ, Modes and functions On/off Note ---------- set value Search mode (gamma, indication "s ") Can be ON autonomous or combined with modes 2 or 3 Can be ON autonomous or combined with modes 1 or 5 Measurement mode (indication µSv/h) -
Page 28: Additional Settings
Additional for GN - devices Registration mode of neutrons: Modes of storage of counting pulse (neutrons, and average count rate at storage time indication S Neutron threshold: Only for mode 5 threshold: 1.0 - 99.0 s (with interval 0.5) Setting of set threshold count (neutrons) advisable - 1,5 s Additional settings Interval of history record, min...
