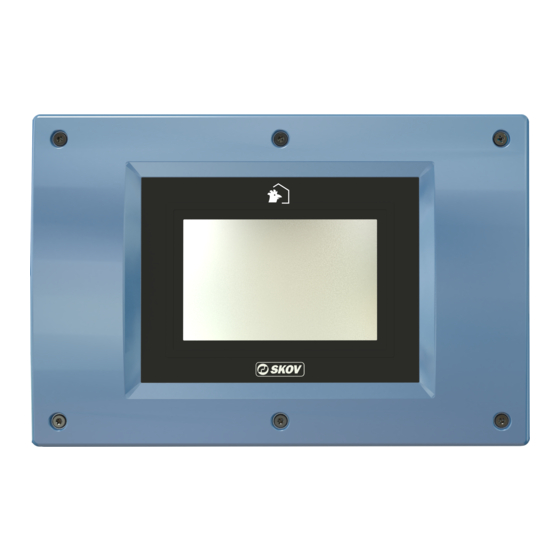

Skov DOL 534 User And Technical Manual
Natural ventilation
Hide thumbs
Also See for DOL 534:
- Technical manual (92 pages) ,
- User manual (88 pages) ,
- Circuit diagrams and cable plans (76 pages)
Table of Contents
Advertisement
Natural Ventilation
DOL 534 • DOL 539 • DOL 634 • DOL 639
User and Technical Manual
English: For other language variants of this document we refer to:
Español: Para otras variantes del idioma de este documento, visite:
Français: Pour les versions dans d'autres langues de ce document veuillez consulter:
http://docs.skov.com/1174
2018.04.23 • 604298
Software version 5.3
Advertisement
Table of Contents
Related Manuals for Skov DOL 534
Summary of Contents for Skov DOL 534
- Page 1 Natural Ventilation DOL 534 • DOL 539 • DOL 634 • DOL 639 User and Technical Manual English: For other language variants of this document we refer to: Español: Para otras variantes del idioma de este documento, visite: Français: Pour les versions dans d'autres langues de ce document veuillez consulter: http://docs.skov.com/1174...
- Page 3 It was released in 2018. Product and Documentation Changes SKOV A/S reserves the right to change this manual and the product described herein without further notice. In case of doubt, please contact SKOV A/S. Date of change appears from the front and the back page.
-
Page 4: Table Of Contents
User and Technical Manual USER MANUAL ......................5 GUIDELINES ....................5 PRODUCT DESCRIPTION ................5 Pure Natural Ventilation ...................6 Natural Ventilation in Combination .................6 USER GUIDE ....................7 Overview of User Menus ..................7 3.1.1 Natural ventilation combined with other ventilation principles ........9 3.1.1.1 Natural ventilation using CO2 sensor .................... -
Page 5: User Manual
2 Product Description Natural ventilation is supplied as part of the system software for the SKOV controllers or as a feature software containing a specific functionality for post-installation in already working controllers. -
Page 6: Pure Natural Ventilation
User and Technical Manual Pure Natural Ventilation Using Natural ventilation, the air change happens when air currents move between the adjustable air inlet and the air outlet without any assistance of fans. Curtain openings on the sides of the livestock house are typically used as both air inlet and the air outlet. -
Page 7: User Guide
User and Technical Manual 3 User Guide Overview of User Menus Main Menu Submenu Climate Ventilation Minimum ventilation setpoints Minimum ventilation natural Reduced minimum ventilation Start at outside temperature Max reduction at outside temperature Natural Natural blocked information Blocked by negative pressure adjustment Blocked by forced-to-stop input 19.0 °C... - Page 8 User and Technical Manual Main Menu Submenu Climate 0.0 % Humidity ventilation Ventilation status Natural inlet 1 position Natural outlet 1 position Weather station Wind direction absolute Rear Wind direction relative 0.0 m/s Air speed Climate/ Ventilation/ Minimum ventilation setpoints Setting in per cent of air inlet and air outlet opening.
-
Page 9: Natural Ventilation Combined With Other Ventilation Principles
User and Technical Manual 3.1.1 Natural ventilation combined with other ventilation principles Climate / Ventilation /Natural Indication of the reason why it is not possible to apply Natural ventilation. Natural blocked information Indication of the high outside temperature where natural ventilation stops Temperature Stop Natural at outside temperature... -
Page 10: Natural Ventilation Using Co2 Sensor
User and Technical Manual Example 2: Natural ventilation is active dependent on the current outside temperature Outside temp. Temp. setpoint High outside temp. offset outside temp. offset Natural Natural 3.1.1.1 Natural ventilation using CO2 sensor Using a CO sensor, the current CO2 level in the livestock house can be monitored and used as an indicator of the air quality. -
Page 11: Natural Ventilation Using Weather Station
User and Technical Manual 3.1.2 Natural ventilation using weather station When Natural ventilation is combined with a weather station, it is possible to take the current wind direction and wind speed into account by adjusting the ventilation. Indication of the maximum allowable opening of the individual air inlets. Inlet maximum opening The controller calculates the opening based on the current wind direction and speed. -
Page 12: Alarm Settings For Natural Ventilation
User and Technical Manual Alarm Settings for Natural Ventilation Alarm settings Climate Inlet and outlet alarm Disabled Error natural inlet Hard Soft Disabled Error natural outlet Hard Soft Inlet and outlet alarms are technical alarms. Error entrada natural The house controller triggers the alarm if the opening differs from the setting which the controller calculates to be correct. -
Page 13: Technical Manual
User and Technical Manual TECHNICAL MANUAL This technical manual deals with the installation of the controller, and is aimed at the electricians who will be installing and testing the controller. The installation must be carried out by expert personnel and according to current national regulations - in Europe also EU regulations. -
Page 14: Loading Feature Software In Controller
User and Technical Manual Loading Feature Software in Controller 2. Loosen the 4/6 screws (A) that hold the front panel in place. 3. Lift out the front panel. Be careful not to pull the flat cable as this will damage the connector (B). Unpack the USB stick and label from the cardboard box. -
Page 15: Installation
User and Technical Manual Installation Select in the installation menu Natural ventilation Technical Setup Installation Climate Natural ventilation The menu Installation Climate Sensors Temperature sensors None Weather station DOL 58 weather sensor Weather station Yes/No CO2 sensor One zone Air inlet Yes/No Natural digital input None... -
Page 16: Adjustment
User and Technical Manual 5.5 Adjustment The menu Adjustment Climate Natural temperature sensors setup Natural outlet setup At Natural ventilation, the opening of the air inlets is adjusted based on the input from the inside temperature sensors - and possibly a weather station. The livestock house can be divided into areas. Each area can be connected to one or several temperature sensors. - Page 17 User and Technical Manual Example 4: Setup of front display with Natural ventilation It can be advantageous to set up the front display so that it reflects the installation in the house. Air inlet The temperature sensors have a central placement on the display to indicate their placement in the house.
-
Page 18: Calibration
User and Technical Manual 6 Calibration Technical/ Calibration/ Climate The menu Calibration Calibrate inlets Natural inlets Autocalibration time of day 04:00 HH:MM Per inlet Running time 00:10 MM:SS Runs before autocalibration Minimum voltage 0.0 V Maximum voltage 10.0 V Inlet Completed Calibration Calibrate outlet flap... -
Page 19: Calibration Of Weather Station
User and Technical Manual Calibration of Weather Station The weather station is used in connection with natural ventilation, where it is indispensable to know the wind direction and speed to be able to regulate the air inlets (openings) with due consideration of the weather situation. -
Page 20: Settings
User and Technical Manual 8 Settings Technical/ Service/ Default settings/ Climate/ Natural This section is only relevant to houses with weather station. The menu Natural Natural Location Air inlet Side/Location Limitation factor Cancellation of limitation at outside 4 °C temperature above setpoint Display reading Functional explanation Indicate where the air inlets are placed physically in the house. -
Page 21: Control Parameters
User and Technical Manual Example 6: The limitation of the opening of the air inlets based on wind direction On the windward side of the house the opening of the air inlets is limited based on wind direction. The more often the wind is directly on the house and the stronger it is, the small will the opening of the air inlet be. -
Page 22: Adjust Opening Of The Air Inlets And Air Outlet
User and Technical Manual The menu Control Parameters Reaction time of the air inlets. Integration time 15 mm:ss Longer time: slow reaction. Shorter time: quicker reaction. Example 7: Reduction of minimum ventilation at low outside temperature The reduction increases linearly (from 0 % at 5 °C, 20 % at -2.5 °C to 40 % at -10 °C). At an outside temperature of -2.5 °C, a minimum ventilation of 30 % is thus reduced by 20 %, giving a reduction of 6 %. - Page 23 User and Technical Manual Natural Ventilation...
- Page 24 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • Fax +45 72 17 59 59 • www.skov.com • Email: skov@skov.dk...
