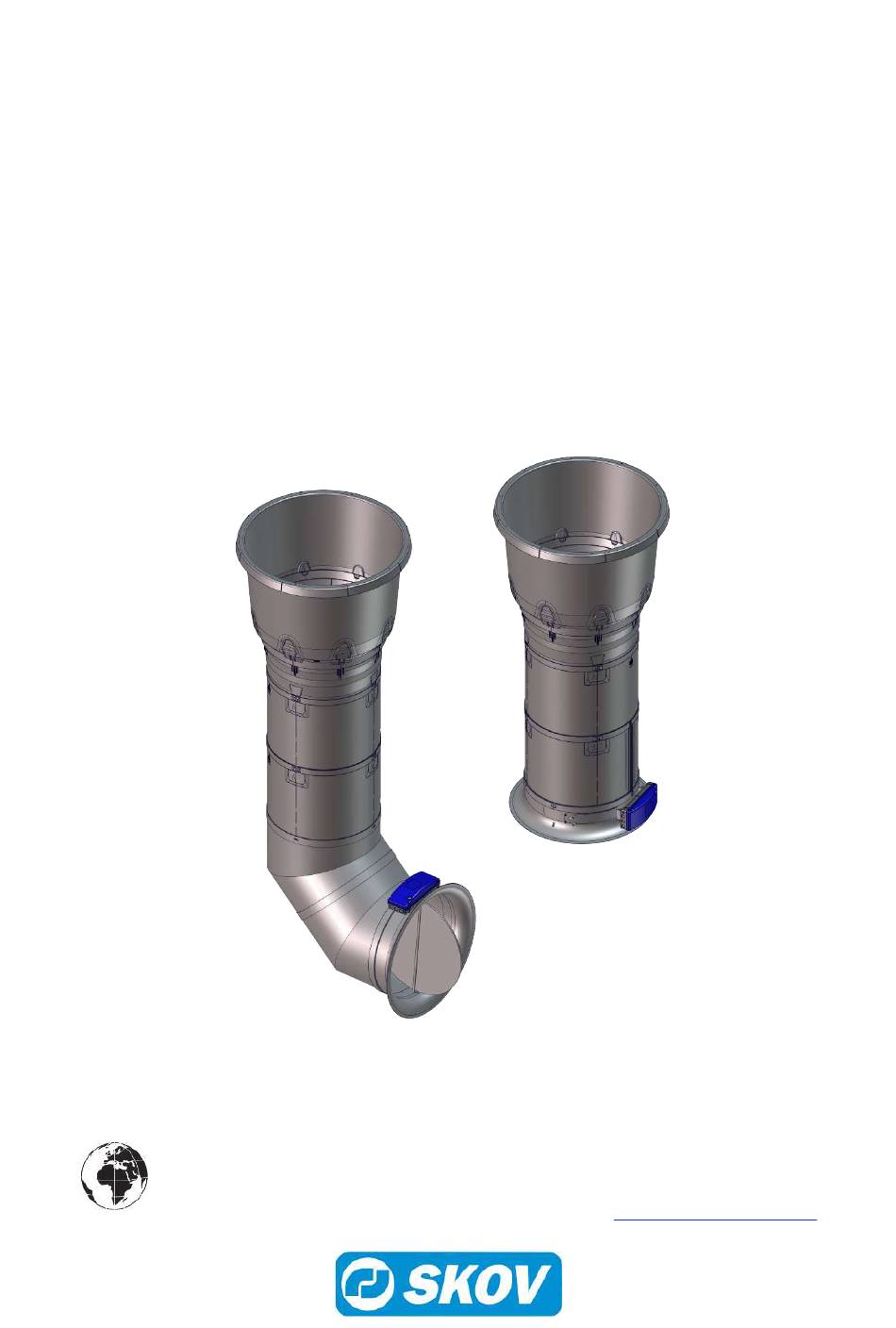

DA 600 Chimney/Wall
Exhaustion
Mounting Guide
English For other language variants of this document we refer to:
Español Para otras variantes del idioma de este documento, visite:
Français Pour les versions dans d'autres langues de ce document veuillez consulter:
http://docs.skov.com/1046
608841 • 2022-12-07
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Skov DA 600
Summary of Contents for Skov DA 600
- Page 1 DA 600 Chimney/Wall Exhaustion Mounting Guide English For other language variants of this document we refer to: Español Para otras variantes del idioma de este documento, visite: Français Pour les versions dans d'autres langues de ce document veuillez consulter: http://docs.skov.com/1046...
- Page 3 The date of change appears from the front and back pages. Note • All rights belong to SKOV A/S. No part of this manual may be reproduced in any manner whatsoever without the expressed written permission of SKOV A/S in each case.
-
Page 4: Table Of Contents
DA 600 Chimney/Wall Exhaustion 1 Product description ............................ 6 2 Product survey ............................... 7 Outline of chimney........................ 7 2.1.1 Above roof............................ 8 2.1.2 Lead-through.......................... 10 2.1.3 Attic/section.......................... 12 2.1.4 Inlet ............................ 14 2.1.5 Central exhaust.......................... 17 2.1.6 Under-floor exhaustion....................... 17 Outline of wall exhaustion ...................... - Page 5 DA 600 Chimney/Wall Exhaustion 3.21 Mounting the light tray/drip tray..................... 47 3.22 Mounting the light bowl...................... 47 3.23 Mounting the light trap ...................... 48 3.24 Wall exhaustion........................ 48 3.24.1 Mounting screws in sandwich panel .................. 48 3.24.2 Mounting screws in concrete wall .................... 48 3.24.3...
-
Page 6: Product Description
1 Product description DA 600 components are used to for extracting air from livestock houses. DA 600 unit is aerodynamic and pro- vides high air output with low energy consumption. DA 600 is made of a special polypropylene material, which withstands heavy high-pressure cleaning. -
Page 7: Product Survey
DA 600 Chimney/Wall Exhaustion 2 Product survey 2.1 Outline of chimney Above roof Lead-through Mounting Guide... -
Page 8: Above Roof
The roof cap with net is to be mounted on the outlet cone. Supplied with a mounting set. 434084 DA 600 bird protection for outlet cone, set Used to prevent birds making contact with the outlet cone. Supplied with screws. - Page 9 434080 DA 600 duct, out ø710x1000 gray 434280 DA 600 duct, out ø710x1000 black Used as an external duct around the DA 600 duct in connection with exten- sion of the duct above the roof. Supplied with a mounting set.
-
Page 10: Lead-Through
Add 329 mm (radius of duct holder) to the measurement to the center of the duct. Supplied with screws. 434089 DA 600 wire set, outside exhaust unit Is used together with brackets for outside exhaust unit when two or more brackets are required. - Page 11 Always use it if a double duct construction is established using 434080/434280. DA 600 roof duct outside (434008/434280) must be ordered separately. 434045 DA 600 roofing sheet ridge gray 434245 DA 600 roofing sheet ridge black The roofing sheet is used for mounting on the side and is available in differ- ent versions in terms of roofing sheet types and pitches.
-
Page 12: Attic/Section
Used in special situations, e.g. to embed underfloor exhaustion and to sta- bilize DA 600 ducts. 434021 DA 600 duct w/door, 500 mm gray 434221 DA 600 duct w/door, 500 mm black Duct with door is used for servicing of fan. - Page 13 Supplied with screws. 530149 Tape PVC 21 black 100 mm x 20 m Tape is used to tighten DA 600 ducts which are not mounted vertical and are placed in a cold area and is without min. 50 mm insulation.
-
Page 14: Inlet
It comes with Dynamic Air sensor, bell mouth, swivel shutter, and a DA 74CV stepless swivel shutter motor. There must always be at least half a meter of DA 600 duct connected to the unit to obtain a stable measurement. - Page 15 DA 600 Chimney/Wall Exhaustion 434067 DA 600 bell mouth with flap, gray 434267 DA 600 bell mouth with flap, black Used for chimney with mechanical drive. 434471 DA 600 bell mouth gray 434472 DA 600 bell mouth black A bell mouth is used where a swivel shutter is not required.
- Page 16 See specifications and limitations for item number 434034 bell mouth/duct stepless DynAir. 434008 DA 600/DA 800 air direction baffles, black Used to improve the accuracy of the minimum ventilation. The baffle plates are used together with stepless fans and include two air baffle plates and mounting screws.
-
Page 17: Central Exhaust
2.1.6 Under-floor exhaustion 434266 DA 600 duct for underfloor exhaust 750 mm ss The duct consists of 2 similar, stainless half ducts which are assembled with screws to make the duct air proof. The duct has fittings on the sides so that it can be fitted to house equipment. -
Page 18: Outline Of Wall Exhaustion
Used for stepless DA 600 wall exhaustion with Dynamic Air. The Dynamic Air sensor is supplied pre-assembled from SKOV A/S. Includes a DA 600 stepless DynAir (434016), 0.5 m duct, roof duct, fan sus- pension, net and mounting kit for DA 600 wall exhaustion. -
Page 19: Mounting Guide
DA 600 Chimney/Wall Exhaustion 3 Mounting guide If the DA 600 is installed in areas with risk of ice/snow slide, precautions must be made to avoid damage to the chimney and wall exhaustion. 3.1 Recommended tools A list of the recommended tools for mounting purposes can be seen below. - Page 20 DA 600 Chimney/Wall Exhaustion Item Description Hammer drill Jigsaw Ladder Screwdriver Adjustable spanner Socket wrench set Allen key Water pump pliers Spirit level Try square Mounting Guide...
-
Page 21: Mounting Examples
DA 600 Chimney/Wall Exhaustion 3.2 Mounting examples Check if the building corresponds to the drawing with regard to chimney placement, roof pitch and roof type. Ridge mounted Side mounted 3.2.1 Long chimney Long chimney with outside duct Long chimney with single layer duct... -
Page 22: General Drawing
DA 600 Chimney/Wall Exhaustion 3.3 General drawing General drawing with references for using the various parts. Mounting the roof cap [} 33] Mounting the outlet cone and roof duct [} 24] Mounting the roof duct and duct [} 24] Mounting the duct [} 23] Long chimney with outside duct [} 34]... -
Page 23: Mounting The Duct
DA 600 Chimney/Wall Exhaustion 3.4 Mounting the duct Assemble the duct by applying slight pressure in order to engage the labyrinth joint. When several subsequent ducts are mounted, the longi- tudinal joint must be offset one quarter of a turn so that the ducts retain their round shape. -
Page 24: Mounting The Outlet Cone And Roof Duct
DA 600 Chimney/Wall Exhaustion Mount he shortened part on the other duct using eight 6x23 mm screws. 3.5 Mounting the outlet cone and roof duct Turn the outlet cone so that the click joints are opposite each other; then press the items firmly together until a click is heard. -
Page 25: Mounting Roof Sheet
DA 600 Chimney/Wall Exhaustion 3.7 Mounting roof sheet 3.7.1 Roofing sheet in a corrugated roofing sheet construction Remove a roofing sheet, which completely or partly matches the chimney roofing sheet and detach the over- lying sheet. Place the roofing sheet and check if there is sufficient passage for the duct at measurement D. - Page 26 DA 600 Chimney/Wall Exhaustion Use a crowbar to loosen the steel plate of the sandwich roofing sheet, so the flat roofing sheet can be slid 70 mm underneath the steel plate of the sandwich roofing sheet. The flat roofing sheet now fits the size measured out.
-
Page 27: Roof Duct In Roof
DA 600 Chimney/Wall Exhaustion 3.8 Roof duct in roof Make a request for paper templates from SKOV Service Department to facilitate the cutting. Use a template that corresponds to the correct roof pitch. Ceiling pitch Measurement A in mm Use a template matching the right roof pitch. -
Page 28: Flat Roofing Sheet In A Corrugated Steel Plate Construction, Ridge
DA 600 Chimney/Wall Exhaustion Mount the flat roofing sheet using screws. Complete jointing of the flat roofing sheet using joint sealer. Make sure that the crests of corrugation at the top and bottom are closed with joint sealer. 3.8.1 Flat roofing sheet in a corrugated steel plate construction, ridge Roof duct requires minimum 600 mm space between the rafters. -
Page 29: Flat Roofing Sheet In A Corrugated Steel Plate Construction, Side
DA 600 Chimney/Wall Exhaustion 3.8.2 Flat roofing sheet in a corrugated steel plate construction, side Roof duct requires minimum 660 mm space between the rafters. Drill through roofing sheet at the lower lath, upon which the flat roofing sheet is to be mounted. - Page 30 DA 600 Chimney/Wall Exhaustion Slide the flat roofing sheet in between lath and corru- gated steel plate. Now push the roof duct so it reaches the corrugated steel plate. Make joints on the sides. Secure the roofing sheet with screws at the sides.
-
Page 31: Check If The Top Is Level
DA 600 Chimney/Wall Exhaustion Secure the flat roofing sheet at the top and bottom. Make joints on the sides at the top. If there is a lath in the way of the roof duct, cut it away. 3.8.3 Check if the top is level Check whether the top level is horizontal. -
Page 32: Mounting The Environment Module
DA 600 Chimney/Wall Exhaustion Mount the duct unit so that the pins (A) on the lower duct are lengthwise and transversely in the house and not 45° to the side, as the bell mouth and swivel shutter can oth- erwise not be mounted correctly. -
Page 33: Mounting The Roof Cap
DA 600 Chimney/Wall Exhaustion 3.11 Mounting the roof cap Roof cap on roof duct ø7 mm Drill 2x8 ø7 mm holes in the roof cap at center marks. Mount 8 x holders on the roof cap with hex screw, washer and lock nut. -
Page 34: Long Chimney With Outside Duct
DA 600 Chimney/Wall Exhaustion 3.13 Long chimney with outside duct 3.13.1 Mounting the insulation Wrap the insulation (A) around the duct and tape it with aluminum tape (B). 3.13.2 Outside duct on roofing sheet Mount the outside duct so that the ø60 mm holes are lo- cated as shown in relation to the building;... -
Page 35: Outlet Cone And Roof Duct On Outside Duct
DA 600 Chimney/Wall Exhaustion 3.13.3 Outlet cone and roof duct on outside duct Outlet cone and roof duct with insulated duct are low- ered into the outside duct. Turn the outlet cone and roof duct so that the direction of the rib (C) is longitudinal and cross-wise in the house and not 45°... -
Page 36: Mounting Storm Protection Kit On Roof Duct With Outside Duct
DA 600 Chimney/Wall Exhaustion 3.13.4 Mounting storm protection kit on roof duct with outside duct Always mount storm protection if more than 2 ducts are mounted above the roofing sheet. 1. Drill 4 ø8.5 mm holes between ribs in the roof duct. Mount eye screws and washers on the outside. Mount large and small washer on the inside, then mount the self-locking nut and shackle. -
Page 37: Long Chimney, Single Layer
DA 600 Chimney/Wall Exhaustion 3.14 Long chimney, single layer 3.14.1 Shortening of roof ducts Measure 137 mm downwards. Shortening roof duct. 3.14.2 Mounting the duct in roof duct Saw off 30 mm of the joint and saw off the 4 screw tow- ers. - Page 38 DA 600 Chimney/Wall Exhaustion Push down the duct, so it is supported on the 8 ribs in the roof duct. Use a spirit level to make sure it is level. Measure 7 mm up in the duct and place 9 screws in the duct and roof duct.
- Page 39 Check before foaming how much the foam expands. Foam between roof duct and duct. SKOV A/S recommends Sikaflex AT Connection or MS polymer single-component or similar. Seal the gap between the roof duct and duct. For mounting in the roof sheet, see section Mounting duct unit on roof sheet [} 31]...
-
Page 40: Duct, Outlet Cone And Roof Duct Up To 7 Ducts
DA 600 Chimney/Wall Exhaustion 3.14.3 Duct, outlet cone and roof duct up to 7 ducts Mount a support ring for every 1.5 meters in connection with long chimneys. Mount 2 support rings if there Mount 1 support ring if there are... -
Page 41: Mounting Storm Protection Kit On Roof Duct
DA 600 Chimney/Wall Exhaustion 3.14.4 Mounting storm protection kit on roof duct Always mount storm protection if more than 2 ducts are mounted above the roofing sheet. 1. Drill 4 ø8.5 mm holes between ribs in the roof duct. Mount eye screws and washers on the outside. Mount large and small washer on the inside, then mount the self-locking nut and shackle. -
Page 42: Outside Chimney
DA 600 Chimney/Wall Exhaustion 3.15 Outside chimney 3.15.1 Fitting for outside chimney Bracket Bracket Bracket Support ring Wire set Wire set Support ring Bracket Bracket Outside exhaust unit, three meter duct. Outside exhaust unit, more than three meter duct. In connection with outside chimney, 2 brackets are required for every 3 meter duct. At least one duct length from mounted fan, if any. -
Page 43: Lead-Through In Ceiling
DA 600 Chimney/Wall Exhaustion 3.16 Lead-through in ceiling Make a request for paper templates from SKOV Service Department to facilitate the cutting. Use a template that corresponds to the correct roof pitch. Ceiling pitch Measurement A in mm Use a plumb and mark the center, place the template and mark up for the hole. -
Page 44: Mounting The Fan
DA 600 Chimney/Wall Exhaustion 3.17 Mounting the fan Ducts with fan suspensions are normally placed as the lowermost duct immediately before the bell mouth and shutter. The connection box on the fan must face downwards when the fan is used as wall exhaustion. -
Page 45: Mounting Air Direction Baffles
DA 600 Chimney/Wall Exhaustion 3.17.2 Mounting air direction baffles Only mount air direction baffles on the units running stepless. Use 6x23 mm screws screwed in at the punch dots. Cut off the spacers on air directions baffle when it is mounted. -
Page 46: Foaming And Sealing Of The Duct Unit
DA 600 Chimney/Wall Exhaustion 3.19 Foaming and sealing of the duct unit Foam the duct unit to ensure insulation. Finally, finish the sealing to ensure a clean finish, which does not give rise to moisture and is easier to clean. -
Page 47: Mounting The Light Tray/Drip Tray
DA 600 Chimney/Wall Exhaustion 3.21 Mounting the light tray/drip tray Light tray/drip tray suspended in 3 chains. Drill 3 ø6.5 mm holes in the bell mouth, the hole position is marked in the surface. Mount screws and washers. Distance between bell mouth and drip tray 480 mm. -
Page 48: Mounting The Light Trap
DA 600 Chimney/Wall Exhaustion 3.23 Mounting the light trap Assemble the light trap. Drill 2 ø6mm holes in the lower edge of the light trap and mount the 2 brackets. Place the light trap in the duct as close to the fan as pos- sible for optimum effect of the light trap and to alleviate the cleaning of the light trap. -
Page 49: Mounting Wall Exhaustion
Mount the bell mouth with screws to the wall around wall exhaustion and secure the bell mouth with screws in the duct, as shown in the drawing. Point around the duct. SKOV A/S recommends Sikaflex 111 Stick & Seal. Mounting Guide... -
Page 50: Mounting Support Ring And Relief Wire
DA 600 Chimney/Wall Exhaustion 3.24.4 Mounting support ring and relief wire >60° In order to ensure that the chimney maintains its round shape and resistance, a support ring is mounted where the fan is placed. Mount a relief wire to support the weight of the wall ex- haust. -
Page 51: Mounting Wall Exhaustion Onto A Box
3.24.5 Mounting wall exhaustion onto a box Mount the wall exhaustion onto a box to prevent it from reaching into the livestock house. The box is not supplied by SKOV A/S. Make a box with internal dimensions of 1000x1000 mm. - Page 52 Apply a sealing edge of joint sealer between the box and the wall as well as between roof duct and the box. SKOV A/S recommends Sikaflex 111 Stick & Seal. See also 2 Mounting support ring and relief wire [} 50]...
-
Page 53: Mounting Of Light Trap On Wall Exhaustion
DA 600 Chimney/Wall Exhaustion 3.24.6 Mounting of light trap on wall exhaustion When the wall exhaustion is mounted on a box, it is pos- sible to mount a light trap. Mounting Guide... -
Page 54: Under-Floor Exhaustion
DA 600 Chimney/Wall Exhaustion 3.25 Under-floor exhaustion Under-floor exhaustion is used for air outlet from the livestock slurry pit through the exhaust unit with fan and swivel shutter. Note that the duct with door must be above the duct with fan. -
Page 55: Maintenance Instructions
DA 600 Chimney/Wall Exhaustion 4 Maintenance instructions The product may be cleaned by a high-pressure cleaner without using: • solvents • corrosive/caustic agents 4.1 Recycling/Disposal Products suitable for recycling are marked with a pictogram. It must be possible for customers to deliver the products to local collection sites/recycling stations in accordance with local instructions. -
Page 56: Technical Data
DA 600 Chimney/Wall Exhaustion 5 Technical data Mechanical PP T20 Material Black, gray Color Environment °C (°F) -30 to +70 (-22 to +158) Temperature, operation °C (°F) -40 to +65 (-40 to +149) – and protected against direct sunlight. Storage temperature... -
Page 57: Dimensioned Sketch
DA 600 Chimney/Wall Exhaustion 5.1 Dimensioned sketch Dimensions in mm. Inside Outside Inside Inside Mounting Guide... - Page 60 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • www.skov.com • E-mail: skov@skov.dk...
