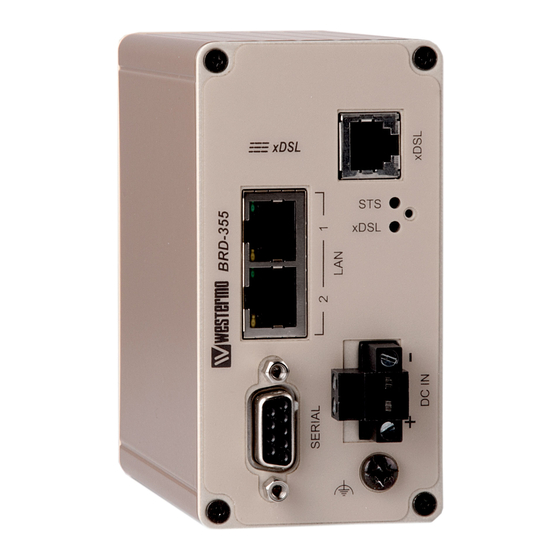

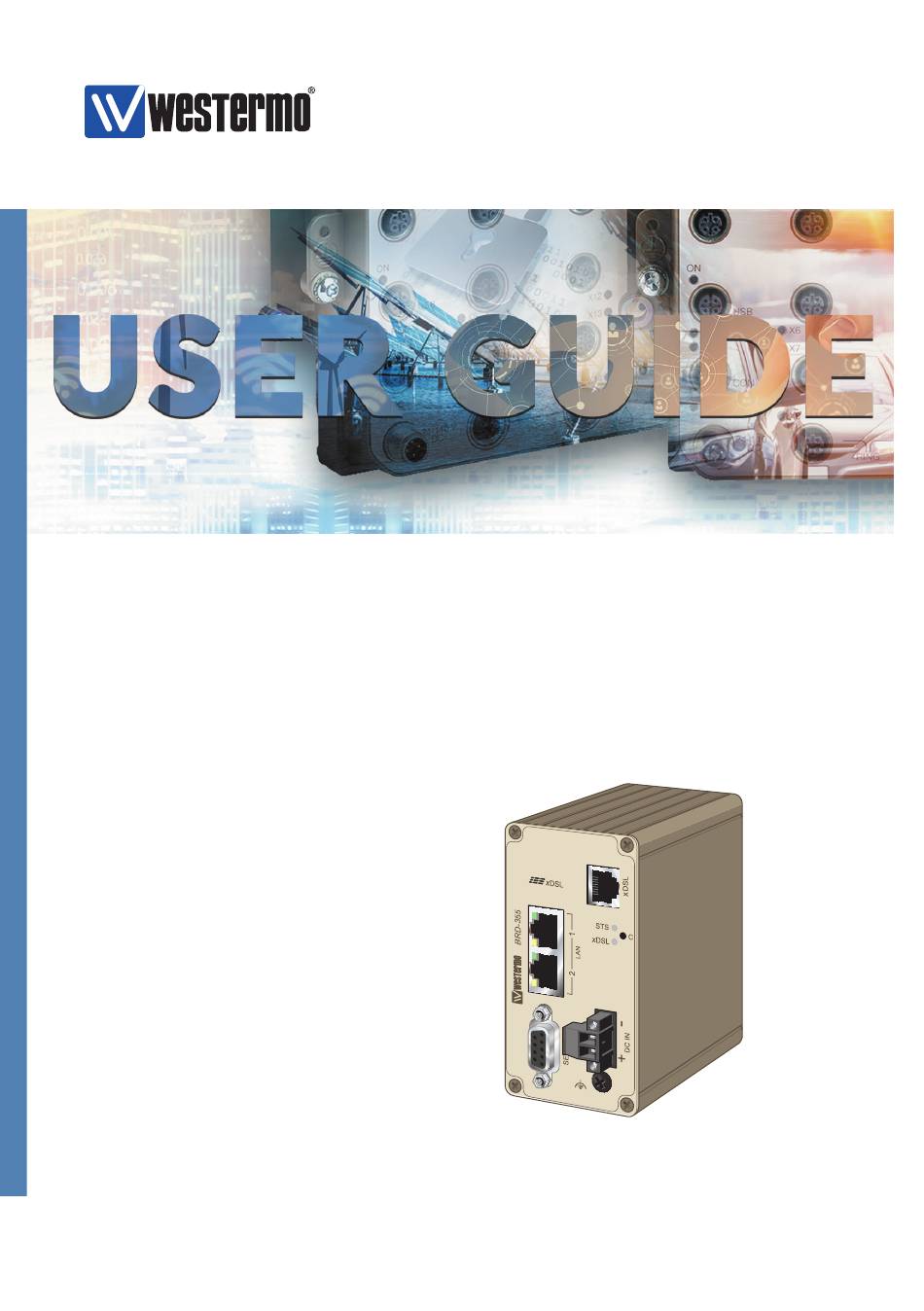

- Page 1 BRD-355 Industrial ADSL/VDSL Router...
- Page 2 6623-2232...
-
Page 3: General Information
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 4: Safety Information
Keep the unit within the specified humidity levels. Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical parts may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. Maintenance No maintenance is required, as long as the unit is used as intended within the specified conditions. -
Page 5: Product Disposal
Product disposal This symbol means that the product shall not be treated as unsorted municipal waste when disposing of it. It needs to be handed over to an applicable collection point for recy- cling electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help to reduce hazardous substances and prevent potential negative consequences to both environment and human health, which could be caused by inappropriate disposal. -
Page 6: Simplified Eu Declaration Of Conformity
Simplified EU declaration of conformity Hereby, Westermo declares that the equipment is in compliance with applicable EU directives. The full EU declaration of conformity and other detailed information are available at the respective product page at www.westermo.com.. Agency approvals and standards compliance... -
Page 7: Type Tests And Environmental Conditions
Type tests and environmental conditions Phenomena Test Description Test levels EN 61000-4-2 Enclosure contact ± 6 kV (crit A) Enclosure air ± 8 kV (crit A) Radiated RF immunity IEC 61000-4-3 Enclosure 20 V/m (crit A) (80 – 2700 MHz) Fast transient EN 61000-4-4 DC power ports... - Page 8 Most devices today comes equipped with an Ethernet port for communications, therefore the BRD-355 has a built-in two port Ethernet switch. For legacy connectivity the unit also features one RS-232-port to provide multiple connection possibilities for both new and legacy replacement installations.
-
Page 9: Interface Specifications
Interface specifications Power Rated voltage 12 – 48 VDC Operating voltage 10 – 60 VDC Operational current (max) 450 mA @ 12 VDC Rated current (max) 1000 mA @ 12 VDC Rated frequency RS-232 Electrical specification EIA RS-232 Data rate 300 bit/s –... - Page 10 Protocol LLC/VC-MUX encap Ethernet, PPPoA, PPPoE, IPoA Connection 1 x RJ-11 Version Common name Standard Downlink Uplink ADSL ADSL ANSI T1.413 8 Mbit/s 1.0 Mbit/s ADSL (G.dmt) ITU G.992.1 8 Mbit/s 1.0 Mbit/s ADSL (G.lite) ITU G.992.2 1.5 Mbit/s 0.5 Mbit/s ADSL over POTS ITU G.992.1 Annex A 12 Mbit/s...
-
Page 11: Power Connector
Connections DSL-connection Ethernet TX Connections Factory default reset switch (RJ-45 connector) LAN1-2 Position Direction Description In/Out In/Out TD– Led indicators In/Out – Not Connected – Not Connected Protective Earth In/Out RD– – Not Connected – Not Connected Router Serial Port (DCE Female) Position Name Direction... -
Page 12: Led Indicators
This is normal behavior during boot-up and does not indicate a fault. Configuring a VPN connection in the BRD-355 and activating the service will cause the STS LED to be lit GREEN but FLASH RED every third (3) second to indicate that no peer is connected on the VPN. -
Page 13: Factory Default Reset Switch
Factory Default Reset Switch The reset switch is used to restore the configuration of the BRD-355 to the factory default settings (for details about the default settings see the Getting started section). The switch is accessed through a small hole, adjacent to the xDSL and STS LEDs, labeled C on the front of the unit. - Page 14 Protocols and Functionality Ethernet Technologies IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseTX Layer-2 QoS IEEE 802.1p Class of Service xDSL Technologies RFC2684 Bridged LLC and Bridged VC-MUX ATM encap. (ADSL) TR-067 Compliance Dying Gasp support ITU K.21 Support Rate adaptive modem at 32 Kbps steps ATM Layer with traffic shaping QoS support (UBR, CBR, VBR-rt,VBR-nrt) AAL5 –...
-
Page 15: Getting Started
Getting started Power Supply The BRD-355 requires a DC power source in the voltage range of 10 to 60 VDC. The unit is designed to self protect from permanent damage if the voltage exceeds 60 VDC or if reverse polarity is applied. The router may need to be returned for service if this occurs. - Page 16 • A login box will popup. If the box fails to display, re-check the cable connections to the unit and the IP address settings of the PC. Enter the following login details: • User Name: admin • Password: westermo 6623-2232...
- Page 17 • The Status summary page will be displayed, it will be similar to Figure 3. Figure 3 Note: If the unit is not yet configured it is likely that the Network Status and Connection Status will indicate a fault condition. This is normal. 6623-2232...
- Page 18 Mounting This unit should be mounted on 35 mm DIN-rail, which is horizontally mounted inside an apparatus cabinet or similar. Snap on mounting, see figure. Mounting the BRD-355 with integrated DIN-clip: Cooling 10mm 10mm The router should be mounted in a...
-
Page 19: Dimensional Drawing
Dimensional drawing Description Date Designer (mm) 92.3 92.3 Pos No Quantity Description Designation / Dimension Materia Approved Date Denomination Designer Dimensional Drawing 230117 BRD-355 Drawing No. 6623-2232... - Page 20 Westermo • SE-640 40 Stora Sundby, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com REV. B 6623-2232 2018-10 Westermo Network Technologies AB, Sweden...
