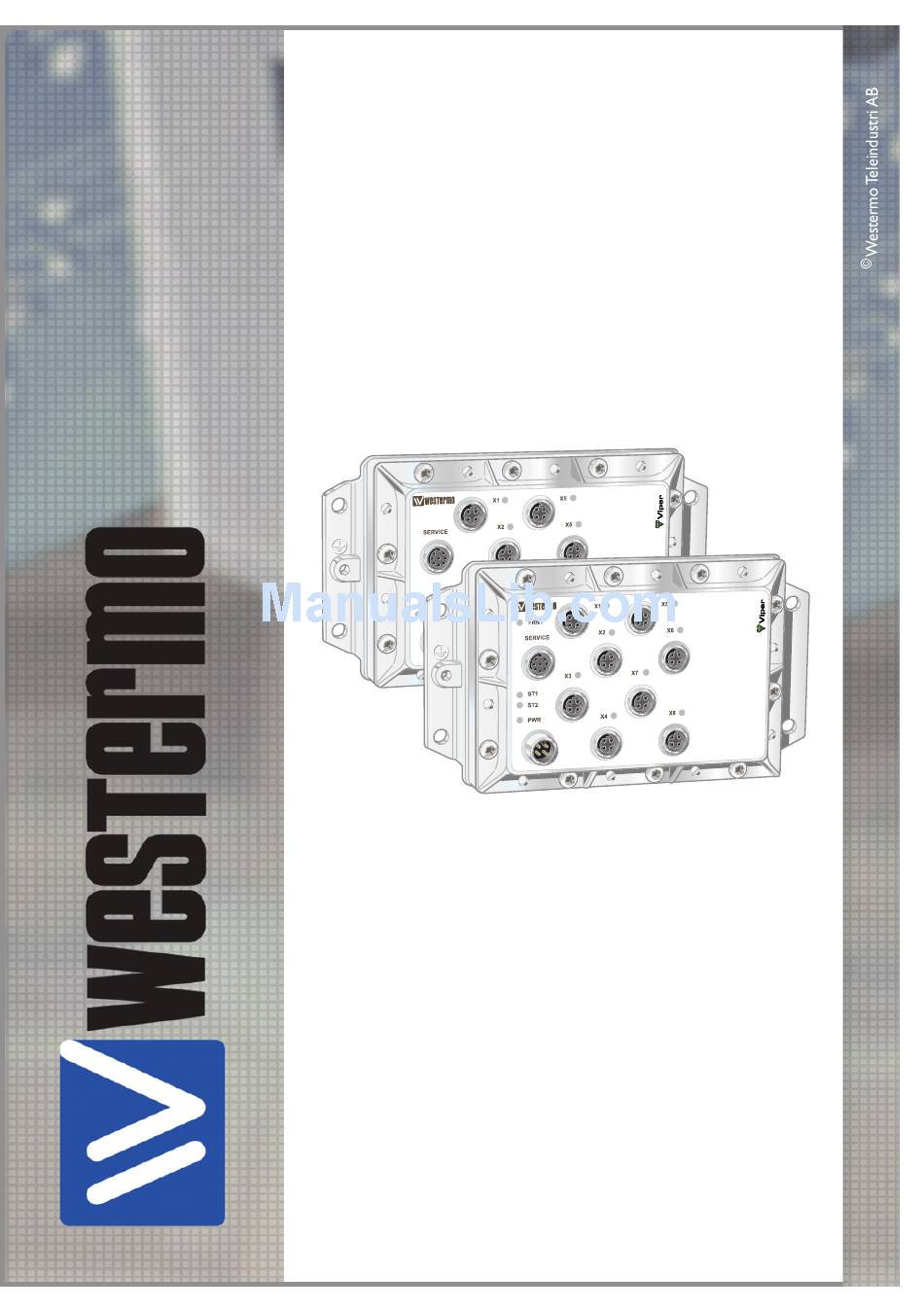

- Page 1 User Guide 6641-2201 Viper 1 0 8 a n d 4 0 8 Managed 8-port Ethernet Switch www.westermo.com...
-
Page 2: Legal Information
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 3: Before Installation
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo dis- tributor office or Westermo Tech support. - Page 4 Agency approvals and standards compliance Type Approval / Compliance EN 61000-6-1, Immunity residential environments EN 61000-6-2, Immunity industrial environments EN 55024, Immunity IT equipment EN 61000-6-3, Emission residential environments EN 61000-6-4, Emission industrial environments EN 50121-3-2, Railway applications - EMC: Rolling stock – Apparatus FCC part 15 Class B EN 50121-4, Railway signalling and telecommunications apparatus IEC 62236-4, Railway signalling and telecommunications apparatus...
-
Page 5: Declaration Of Conformity
Declaration of Conformity Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no Unmanaged Ethernet switch Viper-008 3641-0340 Viper-408 3641-0360 Managed Ethernet switch... - Page 6 Type tests and environmental conditions Phenomena Test Description Test levels EN 61000-4-2 Enclosure contact ± 6 kV (crit A) Enclosure air ± 8 kV (crit A) RF field AM modulated IEC 61000-4-3 Enclosure 20 V/m 80% AM (1 kHz), 80 – 2500 MHz (crit A) Fast transient EN 61000-4-4 Ethernet ports...
- Page 7 Phenomena Test Description Test levels Shock, half sine pulses IEC 60068-2-27, Operating Vertical: 50 m/s Cat. 1 class B Transverse: 50 m/s (EN 61373) Longitudinal: 50 m/s 30 ms, 3 x 6 shocks Shock, sawtooth IEC 60068-2-27, Operating Vertical: 100 m/s Cat.
-
Page 8: Functional Description

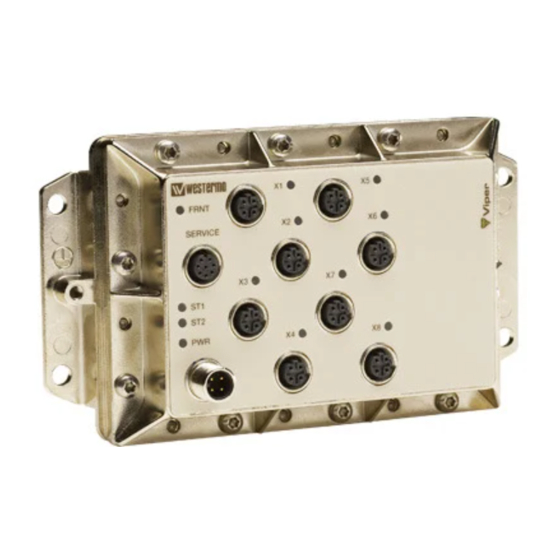

Description Functional description Viper is a range of switches consisting of two different function levels developed for rail and industrial applications. To meet the environmental requirements from rail and harsh industrial applications the switch has rugged M12 Ethernet connectors and full metal housing. -
Page 9: Interface Specifications
Interface specifications Power and fault relay port PWR Rated voltage 24 to 110 VDC Operating voltage 24 to 110 VDC ±40% Rated current 40 mA @ 110 VDC 140 mA @ 24 VDC Rated frequency Inrush current, I Max 0.02 A s @ 24 –... -
Page 10: Service Port
To logic input +24/48 VDC Viper Viper 1 kΩ Input on PLC Service port The Service Port should not be used by non other than the Westermo Technical Support team. Do not connect any device or cable to the Service Port. 6641-2201... - Page 11 Ethernet TX port X1 to X8 Electrical specification IEEE std 802.3. 2000 Edition Data rate 10 Mbit/s or 100 Mbit/s, manual or auto Duplex Full or half, manual or auto Circuit type TNV-1 Transmission range 150 m Isolation to Other Ethernet ports, 500 VAC PWR, 1500 VAC Galvanic connection to None, except for shielded contact to housing...
-
Page 12: Led Indicators
Location of Interface ports, LED's LED indicators Status Description GREEN Unit indicates no fault Unit indicated fault FLASH Connected to IP Configuration tool FRNT FRNT is not enabled or not supported GREEN FRNT is running and the switch is configured as member switch in the ring. - Page 13 The units can easily be configured via the onboard Web based configuration tool. Local IP addresses can also be configured by using the Westermo IP Configuration tool, from the IP Configuration tool it is then possible to browse into the unit for further configuration.
- Page 14 By clicking the “Scan for Devices” button the IP Configuration tool will detect the switches/routers in the network. The software will list all Westermo managed switches or routers connected to the network. Information as in the figure 1 will appear for each detected unit connected to the same network as your PC.
-
Page 15: Configuration Options
Log in via Web Westermo - location - Provided by Westermo UK http://192.168.2.200/conf/p.cgi Google You will be prompted with a Login screen where File Edit View Favorites Tools Help the default settings for Username and Password are: Home Feeds (J) - Page 16 Mounting There are four 6 mm bore holes intended for mounting the unit. The unit can be mount- ed vertical or horizontal. The unit is wall mounted. FRNT SERVICE Removal Disconnect all cables and unscrew the unit from the wall. Cooling This unit uses convection cooling.
-
Page 17: Factory Reset
• All Ethernet ports are enabled and set to Auto Negotiate • All applications are disabled • Password reset to westermo To perform a Factory Reset follow the procedure below. Read all steps before starting. If you have any doubts whether the reset is performed or not, do NOT unplug the power supply, wait for confirmation according to step 5. - Page 18 Dimensions Measurements are stated in millimeters. 175 ±1 53,4 ±1 164 ±1 41,5 ±1 142 ±1 22,7 ±1 3,9 ±0,3 6,5 ±0,2(4x) 55,6 37,2 18,8 6641-2201...
-
Page 20: North America
Tel: +86 21 6145 0400 • Fax: +86 21 6145 0499 Tel: +33 1 69 10 21 00 • Fax: +33 1 69 10 21 01 sales.cn@westermo.com • www.cn.westermo.com infos@westermo.fr • www.westermo.fr Westermo Teleindustri AB have distributors in several countries, contact us for further information.
