- Page 1 Lynx 5600 Series Industrial Gigabit switch...
-
Page 2: Table Of Contents
4.2. Removal of Product ............. 16 4.3. Earth Connection ..............17 4.4. Cooling ................18 5. Specifications ................19 5.1. Interface Specifications ............19 6. Type Tests and Environmental Conditions ......... 22 7. Revision Notes ................27 Lynx 5600 Series... -
Page 3: General Information
Westermo reserves the right to revise this document or withdraw it at any time without prior notice. Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 4: Safety And Regulations
No personal injury Minor damage to the to avoid misuse of the product product, confusion or misunderstanding NOTICE Used for highlighting general, No personal injury Minor damage to the but important information product NOTE Table 1. Warning levels Lynx 5600 Series... -
Page 5: Safety Information
WARNING - PROTECTIVE FUSE It must be possible to disconnect manually from the power supply. Ensure compliance to national installation regulations. Replacing the internal fuse must only be performed by Westermo qualified personell. WARNING - POWER SUPPLY CONNECTION There are safety regulations on which power sources that shall be used in conjunction with the product. -
Page 6: Care Recommendations
There may be a requirement on the minimum temperature rating of the cable to be connected to the field wiring terminals, see Interface Specifications. 2.3. Care Recommendations Follow the care recommendations below to maintain full operation of the product and to fulfill the warranty obligations: Lynx 5600 Series... -
Page 7: Product Disposal
If the product is used in a manner not according to specification, the protection provided by the equipment may be impaired. If the product is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo technical support. -
Page 8: Fcc Part 15.105 Class B Notice
This product has been tested according to IEC 61850-3. Standalone, this product meets the requirements stated in the standard for shielded area. When combined with Westermo PS-60, this product meets the requirements applicable to power stations and MV-substations. The product is defined as a reliability class 1 product. -
Page 9: Simplified Declaration Of Conformity
2.5.6. Simplified Declaration of Conformity Hereby, Westermo declares that this product is in compliance with applicable EU directives. The full EU declaration of conformity and other detailed information is available at www.westermo.com/support/product-support. Figure 2. The European conformity marking Lynx 5600 Series... -
Page 10: Product Description
IEEE 1588v2 applications, making it the ideal solution to meet future security and bandwidth requirements. 3.2. Available Models Art. no. Model Gigabit TX Gbit SFP Software Rated voltage ports ports 3643-0400 Lynx 5612-F4G-T8G-LV 24-48 VDC 3643-0405 Lynx-5612-E-F4G-T8G-LV 24-48 VDC Lynx 5600 Series... -
Page 11: Hardware Overview

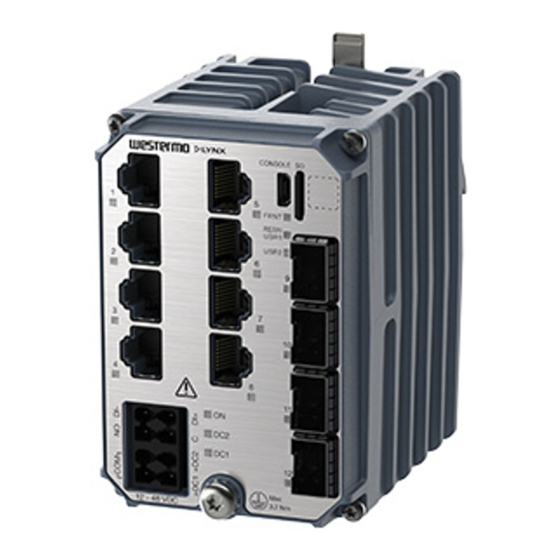

Warning symbol, see warning in Power Input and I/O Connection [12] LED indicators The base MAC address and production date of the product is included in the front label QR code Figure 3. Location of interface ports and LED indicators Lynx 5600 Series... -
Page 12: Connector Information
The console port can be used to connect to the CLI (Command Line Interface). The console connector is a micro USB cable that connects to a FTDI FT232R USB to serial converter internally. For drivers, refer to www.ftdichip.com and download the appropriate VCP driver Lynx 5600 Series... -
Page 13: Micro Sd
3.4.4.1. Cleaning SFP Transceivers In the event of contamination, the optical connectors in the SFP transceivers should only be cleansed with recommended cleaning fluids below and correct cleaning equipment. • Methyl, ethyl, isopropyl or isobotyl alcohol • Hexane • Naphtha Lynx 5600 Series... -
Page 14: Led Indicators
USR2 Configurable, see WeOS user Guide TX/FX No link ports GREEN Link established GREEN Data traffic indication FLASH YELLOW Port alarm and no link. Or if FRNT or RSTP mode, port is blocked. Table 5. LED indicators Lynx 5600 Series... -
Page 15: Dimensions
3.6. Dimensions Dimensions are stated in mm and are regardless model. 92 (DIN surface to front) 2 to 8 2 to 8 Figure 6. Dimensional drawing Lynx 5600 Series... -
Page 16: Installation
4.2. Removal of Product To remove the product either push the support pin down and towards the front of the product, or press down the support at the back with a screwdriver, and lift off the product from the DIN-rail. Lynx 5600 Series... -
Page 17: Earth Connection
Figure 8. Removal of product by pushing the support pin Figure 9. Removal of product with screwdriver 4.3. Earth Connection For correct function, the earth connection needs to be properly connected to a solid ground. See the figure below. Lynx 5600 Series... -
Page 18: Cooling
/ right the unit. Spacing is recommended for the use of unit in full operating temperature range and service life. 10mm 10mm CONSOLE SD FRNT RSTP/ USR1 USR2 3,2 Nm 12 - 48 VDC Figure 11. Miminum spacing of product Lynx 5600 Series... -
Page 19: Specifications
Circuit type SELV Shielded cable Not required CE-compliant Class I or Class II power supplies with SELV/PELV output shall be used with the product Measured for 1 second at startup Recommended external supply current capability for proper startup Lynx 5600 Series... - Page 20 Shielded cable CAT5e or better is recommended Conductive chassis 10/100/1000 Mbit/s ports are no. 1 to 8 NOTE The product is to be connected to internal Ethernet networks without exiting a facility and being subjected to TNVs. Lynx 5600 Series...
- Page 21 USB Micro B connector in device mode External circuits connected to I/O connectors shall be SELV-rated circuits, galvanic isolated from mains. Micro SD Electrical specification Secure Digital 2.0 Circuit type SELV Maximum supply current 100 mA Connector Micro SD connector Lynx 5600 Series...
-
Page 22: Type Tests And Environmental Conditions
AC power port wave CM: ±1 kV 50 Ω/0.5 µF, 10 MHz DM: ±1.5 kV, 200 Ω/0.5 µF, 1 MHz CM: ±2.5 kV 200 Ω/0.5 µF, 1 MHz DC power port CM: ±2 kV 50 Ω/0.5 µF, 10 MHz Lynx 5600 Series... - Page 23 Power supply failure DNVGL- DC power port -100%, 30 s CG-0339 Power supply 1.3 x U (62.4 VDC), 0.75 x U variation VDC), 15 min Immunity to 3 Vrms, 0.05 to 10 kHz conducted low frequency interference Lynx 5600 Series...
- Page 24 Ethernet ports to all other ports Impulse withstand IEC 60255-27 AC power port 5 kV to secondary DC side IEEE 802.3 Ethernet ports to 2.4 kV all other ports In combination with PS-60 Table 6. EMC and electrical conditions Lynx 5600 Series...
- Page 25 , 11 ms, 3 x 6 shocks (saw tooth) Bump Operational Class 2, 20g/16 rms, 6 x 1000 bumps 60255-21-2 Enclosure EN 61010-1 Aluminum Fire enclosure Weight 690 gr Degree of protection EN 60529 Enclosure IP40 Cooling Convection Lynx 5600 Series...
- Page 26 Method 3, 21 days corresponds to Harsh Industrial Environment G3 which is defined in ANSI/ISA 17.04: 2015 The power and I/O cables need to be fastened 200 mm or closer to the unit. The same recommendation applies to the Ethernet cables. Table 7. Environmental and mechanical conditions Lynx 5600 Series...
-
Page 27: Revision Notes
7. Revision Notes Revision Date Change description Rev. A 2020-09 First revision Lynx 5600 Series... - Page 28 Westermo • SE-635 35 Stora Sundby, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com 6643-25002 REV A 2020 09 Westermo Network Technologies AB, Sweden...
