Westermo MRD-310 Reference Manual

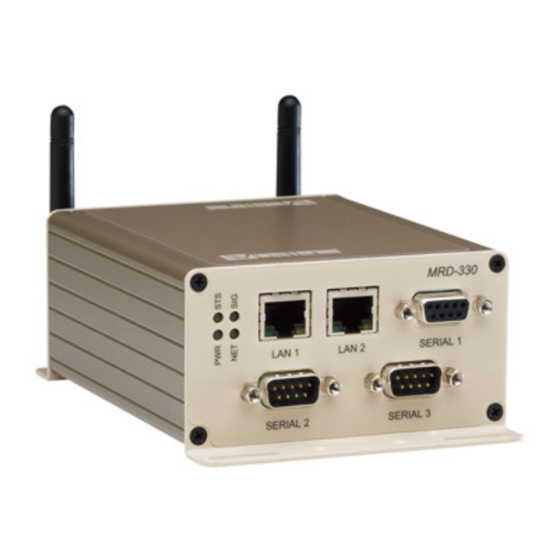

3g cellular modem / router
Hide thumbs Also See for MRD-310:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Web configuration
MRD-310
reference guide
6623-3201
MRD-330
3G Cellular Modem / Router
Web configuration reference guide
www.westermo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRD-310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westermo MRD-310

Summary of Contents for Westermo MRD-310

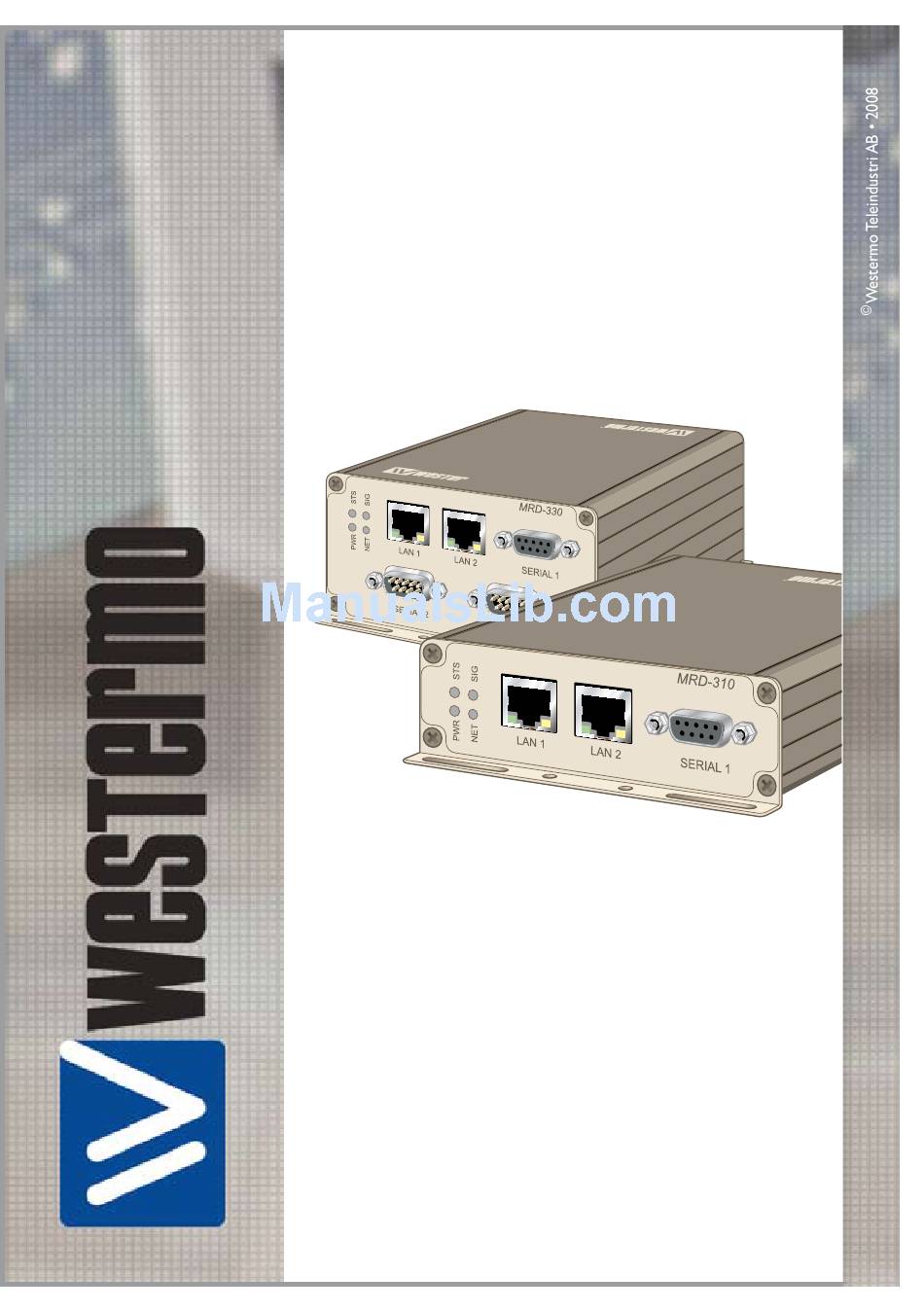

  • Page 1 Web configuration MRD-310 reference guide 6623-3201 MRD-330 3G Cellular Modem / Router Web configuration reference guide www.westermo.com...

  • Page 2: Table Of Contents

    Table of Contents 1   Basic Configuration  ...... 4 3.3.1  Connection Establishment ....40 1.1   Configure the 3G Wireless interface .. 4 3.3.2  Connection Maintenance .....42 3.3.3  Remote Poll Setup .........43 1.1.1  Network Configuration  ......5 1.1.2  Setting the SIM card PIN  ......5 3.3.4  Miscellaneous Options  ......44 1.1.3  Adding a Network  3.3.5  Connect on Demand ......45   Connection Profile  ........6 3.4   Circuit Switched Data (CSD) Mode..45 1.1.4  Enable the Wireless Connection  ..9 3.4.1  CSD Single Port........46 1.1.5  Checking the Status of the  3.4.2  CSD Multiplexed ........47  ...
  • Page 3 6.5.4  Deleting a Certificate  ......154 5.4   Custom Filters ........71 5.4.1  Description  ..........71 7   Serial Server ......156 5.4.2  New Custom Filter Options  ....72 5.4.3  Adding a new custom filter ....75 7.1   Selecting a port function ....156 5.4.4  Editing a Custom Filter  ......79 7.2   Common configuration options ..158 5.4.5  Deleting a Custom Filter......81 7.2.1  Serial port settings  .......158 5.5   Port Forwarding ........83 7.2.2  Packet framer settings ......160 5.5.1  Port Forward Options  ......84 7.3   Raw TCP Client/Server  .......162 5.5.2  Adding a new port forward  ....86 7.3.1  Description  ..........162 7.3.2  Selecting the port function ....162 5.5.3  Editing a port forward ......89 5.5.4  Deleting a port forward .......91...

  • Page 4: Basic Configuration

    1 Basic Configuration The three sections below detail the steps needed to config- ure the MRD-3xx for basic packet mode functionality. For  details on configuring the unit for Circuit Switched mode  and for more advanced configuration refer to the Advanced  Configuration section. 1.1 Configure the 3G Wireless interface To access the configuration page for the 3G Wireless inter- face, click on Wireless. The Basic Wireless configuration page  will be displayed as shown in Figure 1. Figure 1: Wireless Interface Basic configuration. 6623-3201...

  • Page 5: Network Configuration

    1.1.1 Network Configuration The Network Configuration section contains the settings for  the operational mode and the frequency band of the unit, the  default settings will usually be adequate to connect the unit to  a packet based network. 1.1.2 Setting the SIM card PIN The SIM card may have a PIN associated with it and may  require the PIN to be entered before the unit can access the  SIM. To set the SIM PIN click Setup. A dialog box as shown in  Figure 2 will be displayed. Figure 2: SIM PIN control dialog. Set the field marked Enter when requested to Yes and enter the  PIN in the New PIN and Confirm PIN entry boxes. Then click  the Set button to save the PIN. Set to "Yes" Enter PIN in both text boxes Click "Set" to complete Figure 3: SIM PIN control dialog. 6623-3201...

  • Page 6: Connection Profile

    1.1.3 Adding a Network Connection Profile To access the wireless packet mode settings click on the  Packet mode tab. The screen shown in Figure 4 will be displayed.  The page shows the connection configuration details and is  divided into two sections. The first section shows the current  connection state and the selected profile and the second sec- tion lists the available profiles. A connection profile groups  together the settings required to connect to a provider's  network. The unit allows multiple profiles to be configured to  allow quick changes to the network connection settings. For  most applications only one profile is required. Figure 4: Wireless Interface Packet mode settings 6623-3201...
  • Page 7 The 3G network provider will provide the items listed below  which should be entered into the appropriate fields in the Add new profile section as shown in Figure 5.  • APN (Access Point Name) • Dial string • Authentication (None / PAP / CHAP) • Username • Password Note: In order to set a password click the check-box marked  New. The password can now be entered in the text field.  The password is visible as it is being typed so that it can be  checked for errors prior to being set. Once set the password  will no longer be visible. Note: The provider may not supply a username and password  if network authentication is not required. In this case set the  Authentication to None, leave the username blank and do not  set a password.  Enter APN Enter dial string Set Authentication Enter username Enter password Click "Update"  to save profile Figure 5: Adding a new profile. 6623-3201...
  • Page 8 Once the data has been entered click the Update button  to add the profile. The screen will now change to show the  added profile as shown in Figure 6. As this is the only profile  entered it will be automatically selected as the current profile  and the profile entry will be shaded green to indicate that it is  the selected profile. Figure 6: Profile added and selected. 6623-3201...

  • Page 9: Enable The Wireless Connection

    1.1.4 Enable the Wireless Connection To complete the configuration of the wireless connection, set  the Connection state to Always connect and click the Update  button to save the changes. Once the changes have been set,  the MRD-3xx will initiate a 3G connection. Connection will  normally take up to 30 seconds. Figure 7 shows the completed  wireless configuration. Figure 7: Completed wireless configuration. 6623-3201...

  • Page 10: Connection

    1.1.5 Checking the Status of the Connection To check the status of the connection select Status from the  top level menu and then select Wireless from the second level  menu. The Wireless status page will be displayed which will  look similar to that shown in Figure 8. The status of the con- nection will change as the unit connects to the network, first  it will report Checking then Connecting and finally Connected. To  see the value changing the page will need to reload. Figure 8: Wireless Status page. Note: If the status is reported as Error then check that the  profile settings have been entered correctly as shown in  Section 3.2.1 Once connected the Status Alarms page should have no faults  listed as shown in Figure 9 6623-3201...
  • Page 11 Figure 9: Status alarm page. 6623-3201...

  • Page 12: Configure The Lan Interface And Dhcp Server

    1.2 Configure the LAN interface and DHCP Server To access the configuration page for the LAN interface and  DHCP Server, select Network from the top level menu and  LAN from the sub menu. The LAN interface screen similar to  Figure 10 will be shown. Figure 10: LAN interface configuration. 1.2.1 Setting the IP Address If it is desired to change the IP address of the LAN port, fol- low the steps below: • Enter the new IP address and netmask in the  Interface Configuration table. • Click  Update to set the changes. Once the changes  have been set, the IP address of the MRD-3xx Unit  will change. Enter the new address in the browser  on the PC. It will be necessary to login again, follow- ing the procedure described in the previous section. 1.2.2 Enabling DHCP The DHCP server allows clients on the local network to  be automatically allocated IP addresses from the MRD-310.  The unit will also provide the clients with network settings  like their default route and DNS servers. By default the  DHCP server is disabled but if enabled it will be configured  6623-3201...
  • Page 13 192.168.2.240, and the Default and Maximum lease times have  been set to 1440 minutes. So if these values are consistent  with the network that the MRD-310 is connected to, then the  DHCP can be enabled by setting the Enabled field to Yes and  clicking the Update button.  If the standard settings are not applicable for the connected  network, then refer to Figure 11 and follow the steps below,  to configure the DHCP server: Set to "Yes" to  enable DHCP server Set the DHCP  IP address range Set the DHCP  lease times Click "Update"  to save changes Figure 11: DHCP configuration. • Choose a group of available IP addresses on the  local network. For example, if the IP address  of the MRD-3xx is 192.168.2.200 with a net- mask of 255.255.255.0, a group chosen could be  192.168.2.210 to 192.168.2.240. This will provide 31  addresses for clients. • Under the DHCP Server Configuration table,  Set the  Enabled option to Yes. Enter the first address of the group in the  Start Address box. Enter the last address of the group in the  End Address box. Enter a lease time for the  Default Lease time.

  • Page 14: Configure Clients To Use The Mrd-3Xx

    1.3 Configure clients to use the MRD-3xx The MRD-3xx will act as a gateway for connections destined  over the wireless interface. The default configuration will pro- vide Network Address Translation and firewalling to protect  clients on the local network. To configure clients to use the MRD-3xx as their gateway: • If the clients have a DHCP address allocated by the  MRD-3xx, they will have learned the necessary set- tings. No further configuration is needed. • If clients have static IP addresses, set their default  route and DNS server to the IP address of the  MRD-3xx.  6623-3201...

  • Page 15: System Administration

    2 System Administration The System Administration functions are accessed by selecting  the System tab of the main menu. 2.1 Administration • To access the Administration features, select  Administration from the System sub-menu, a page  similar to that shown in Figure 12 will be displayed. Figure 12: System Administration page. 6623-3201...
  • Page 16 The options available are: • Hostname •  Set the required hostname for the MRD-3xx. • Check time with NTP Server Set to Yes to synchronise the internal clock with a NTP  server. • Timezone Specify the timezone for location of the MRD-3xx. • Manually set time Click button to set time manually. • Edit users and passwords Click button to edit users and passwords. • Timed reboot Specify a time in hours after which the MRD-3xx will  automatically reboot. Set to 0 to disable automatic re- boot. • Reboot unit Click the Reboot button to immediately reboot the MRD- 3xx. 6623-3201...

  • Page 17: System Information

    2.2 System Information The MRD-3xx System Information is accessed by selecting the  System Information tab from the System sub-menu. An example  of the System Information page is shown in Figure 13. The first  section of the page lists the Model and serial number of the  unit, plus the firmware and boot-loader version. The seconds  part of the page lists the LAN MAC address the IMEI of the  wireless module, wireless IMSI ant the wireless software ver- sion. Figure 13: System Information page. 6623-3201...

  • Page 18: Configuration Backup & Restore

    2.3 Configuration Backup & Restore The configuration of the MRD-3xx can be saved as a file to a  PC. This file can then be used to restore the configuration of  the unit at some later time or used to configure multiple units  with the same configuration. To access the configuration back- up restore options select Backup & Upgrade from the System  sub-menu.  The Backup & Upgrade page will be displayed as  shown in Figure 14. Figure 14: Backup and Upgrade page. To save the current configuration click on the link in the sec- tion titled Backup current configuration. A pop-up box similar to  that shown in Figure 15 will be displayed, select Save to Disk  and click OK and select a suitable location to save the file. Figure 15: Save configuration. 6623-3201...
  • Page 19 To restore a configuration, click the Browse button in the sec- tion titled Restore a saved configuration select the configuration  file, which should then be shown in the text box, as shown in  Figure 16, click the Upload button to transfer the file to the  MRD-3xx. Once the upload is complete, the MRD-3xx will  need to be rebooted so the restored configuration can take  affect. The details for performing a reboot can be found in the  Administration section. Figure 16: Restore configuration. 6623-3201...

  • Page 20: Firmware Upgrade

    2.4 Firmware Upgrade The MRD-3xx firmware can be upgraded via the web inter- face. To access the firmware upgrade page select Backup & Upgrade from the System sub-menu, the Backup & Upgrade  page will be displayed as shown in Figure 17. Figure 17: Backup and Upgrade page. To upgrade the MRD-3xx firmware click the Browse button in  the section titled Upgrade MRD-3xx firmware then select the  navigate to and select the upgrade file.  Figure 18: Select firmware upgrade file. 6623-3201...
  • Page 21 To upload the file to the MRD-3xx click the Upload button.  The file will now be uploaded to the MRD-3xx  and, when it  is complete, information on the upgrade file will be displayed,  as shown in Figure 19. At this point the you can chose to can- cel the upgrade by clicking the Cancel Upgrade button. Figure 19: Upload the upgrade file. To proceed with the upgrade click the Upgrade button, the  page will change to that shown in Figure 20. The firmware  upgrade will now proceed. Figure 20: Upload the upgrade file. Note: The upgrade will take several minutes to complete  after which the MRD-3xx will reboot, during this time the  power to the MRD-3xx must not be removed. 6623-3201...

  • Page 22: Snmp

    2.5 SNMP The MRD-3xx supports SNMP for network management of  the unit. The SNMP configuration page can be accessed by  selecting the SNMP tab of the System sub-menu. Figure 21: The SNMP configuration page. 6623-3201...

  • Page 23: Gpio

    2.6 GPIO (MRD-330 only) The MRD-330 has two general purpose digital inputs and two  general purpose digital outputs, the options for these can be  found by selecting GPIO on the System sub-menu. Figure 22: The General Prupose I/O configutration page. 6623-3201...
  • Page 24 3 Wireless Interface Configuration This section describes the 3G Wireless interface options of  the MRD-3xx. The MRD-3xx supports two modes of opera- tion: packet mode and Circuit Switched Data (CSD) mode.  The Wireless menu contains the settings for the Wireless  Interface. To display the settings, click on the Wireless tab on  the top menu bar. The subsections of the configuration are: Network Configure the operation mode, select the frequency band of  operation and set the SIM PIN. Packet mode Configure the packet mode. Connection Management Advanced configuration of the network connection. Circuit switched mode Configure the circuit switched data mode. Configure the Short Message Service (SMS) functionality of  the unit. Events Configure the event reporting of the unit. 6623-3201...

  • Page 25: Network Configuration

    3.1 Network Configuration The Wireless Network options are used to set the operat- ing mode, select the frequency band of operation and set the  SIM PIN. To display the Network page select Wireless from the  main menu, the Network page is the default page displayed, it  should appear similar to that of Figure 23. Figure 23: Wireless Network configuration. 6623-3201...

  • Page 26: Wireless Operating Mode

    3.1.1 Wireless Operating Mode The MRD-3xx support two modes of operation, packet mode  and Circuit Switched Data (CSD) mode. In packet mode the  MRD-3xx acts as a TCP/IP unit and router, data can be routed  between the LAN ports and the Wireless port and the serial  server is used to interface the serial ports to the packet inter- face of the network. Circuit Switched Data mode is similar  to tradition dial-up unit, in this mode one serial port of the  MRD-3xx is connected to the Wireless interface, once con- nected all data coming into the Wireless port is directed to  the serial port and all data received by the serial port is trans- mitted to the Wireless interface. To set the mode of the MRD-3xx select Wireless from the  main menu and Network from the Sub-menu then select either  Packet mode (HSDPA/GPRS) or Circuit switched mode from  the drop-down menu adjacent to Operating mode, once the  mode has been selected click the Update button the commit  the change. Figure 24 displays the MRD-3xx operating mode  options. Figure 24: Wireless Network operating mode options. 6623-3201...

  • Page 27: Operating Frequency Band

    3.1.2 Operating Frequency Band The MRD-3xx is capable of operating on several frequencies  and using the GSM or UMTS (3G) protocols. By default the  MRD-3xx is set to operate on all bands, this means that when  powered on the MRD-3xx will start to search for available  networks, when a network is found it will check if the SIM  is valid for that network and if so attempt to connect to it.  If it cannot connect to the network it will then move to the  next network and try again. The search will start using UMTS  (3G) if the network list is exhausted without finding a valid  network the MRD-3xx will then attempt to connect using  GSM. Using the options available for the frequency band it is  possible to restrict the band and protocol search to a limited  number, this may mean a quicker connection time and it also  means that the MRD-3xx will not connect in an unexpected  mode. Frequency band selection shows the available frequency  band options. 3.1.3 Setting the SIM card PIN The SIM card will have a PIN associated with it, if PIN check- ing is enabled on the SIM then in order for the unit to access  the SIM, the PIN will need to be set in the unit. To set the  SIM PIN click Setup a dialog box as shown in Figure 26 will be  displayed. Set to "Yes" Enter PIN in both text boxes Click "Set" to complete Figure 26: SIM PIN control dialog. 6623-3201...
  • Page 28 Set the field marked Enter when requested to Yes and enter the  PIN in the New PIN and Confirm PIN entry boxes.  Then click the Set button to save the PIN. Figure 27: SIM PIN control dialog. 6623-3201...

  • Page 29: Packet Mode Configuration

    3.2 Packet Mode Configuration The packet mode options are described in this section. 3.2.1 Adding a Network Connection Profile To access the wireless packet mode settings select Wireless  from the main menu then select the Packet mode tab from the  sub-menu, the screen shown in Figure 28 will be displayed. The  page shows the connection configuration details and is divided  into two sections. The first section shows the current connec- tion state and the selected profile. The second section lists the  available profiles. To add a new profile, click Add a new profile  and a screen similar to Figure 29 will be displayed.  A connec- tion profile groups together the settings required to connect  to a provider's network, the MRD-3xx allows multiple pro- files to be configured to allow quick changes to the network  connection settings. For most applications only one profile is  required. Figure 28: Wireless Interface Packet mode settings. 6623-3201...
  • Page 30 The 3G network provider will provide the items listed below  which should be entered into the appropriate fields in the Add new profile section as shown in Figure 29. • APN (Access Point Name) • Dial string • Authentication (None / PAP / CHAP) • Username • Password Enter APN Enter dial string Set Authentication Enter username Enter password Click "Update"  to save profile Figure 29: Adding a new profile. Note: In order to set a password click the check-box marked  New, the password can now be entered in the text field. The  password is visible as it is being typed so that it can be  checked for errors prior to being set, once set the password  will no longer be visible. Note: The provider may not supply a username and password  if network authentication is not required, in this case set the  Authentication to None, leave the username blank and do not  set a password. Once the data has been entered click the Update button  to add the profile. The screen will now change to show the  added profile as shown in Figure 30, as this is the only profile  entered it will be automatically selected as the current profile ...
  • Page 31 Figure 30: Profile added and selected. Additional profiles can be added using the same procedure, to  a maximum of five profiles. This is illustrated in Figure 31, the  configuration shown has 4 profiles, profile 1 is the selected  profile, this is highlighted by the green background of  this profile in the profile index. Figure 31: Multiple profiles added. 6623-3201...

  • Page 32: Deleting A Profile

    3.2.2 Deleting a Profile A profile can be deleted by clicking the Bin icon located in the  Delete column, for the profile to be deleted. For example to  delete profile 4 from the profile list shown in Figure 31, click  on the Delete icon, a warning dialog box will appear, similar to  that shown in Figure 32 click OK to delete the profile. Figure 32: Profile delete warning. The page will be re-displayed as shown in Figure 33 with pro- file 4 removed from the profiles index. Figure 33: Profile 4 deleted. 6623-3201...

  • Page 33: Editing A Profile

    3.2.3 Editing a Profile To edit an existing profile click on the Edit icon for the profile  you wish to edit. For example to edit profile 1 in the  profile list shown in Figure 33 click the Edit icon for profile  1, the information for that profile will now appear in a new  screen as shown in Figure 34. Complete the changes to the  profile, then click the Update button to commit the changes. Figure 34: Editing a profile. 6623-3201...

  • Page 34: Enable The Wireless Connection

    3.2.4 Enable the Wireless Connection To complete the configuration of the wireless connection,  the connection needs to be enabled. There are two connec- tion options available, Always connect and Disabled, select the  desired option, select the desired profile and click the Update  button to save the changes. Once the changes have been set,  the MRD-3xx will initiate a 3G connection, connection may  take up to 120 seconds. Figure 35 shows an example of a  Wireless packet mode configuration. Figure 35: Completed wireless configuration. 6623-3201...

  • Page 35: Connection

    3.2.5 Checking the Status of the Connection To check the status of the connection select the Status tab  from the main menu and then select the Wireless tab from the  sub-menu. The Wireless status page will be displayed which  will look similar to that shown in Figure 36. The status of  the connection will change as the unit connects to the net- work, first it will report Checking then Connecting and finally  Connected, to see the value changing the page will need to be  refreshed. Indicates modem is  registerd to a network Received Signal Level  (RSSI) Network provider  details plus cell  locations and ID Indicates modem is  connected to a network Session timers Wireless interface IP  address Packet and byte counter Figure 36: Wireless status page. 6623-3201...
  • Page 36 The section titeld Network Status details the quality of the  service available from the 3G network. • The SIM Card field will only be shown if an error with  the SIM card has been detected, and will be reported as  Absent or faulty as shown in Figure 38. • If the SIM card fault is reported, possible causes include: o  The SIM card has not be inserted correctly, refer  to the User Guide, for details on how to insert the  SIM card. o  The SIM card pin number has not been entered or  is incorrect, refer to section 3.1.3, for details on  entering the SIM card PIN. • The  Network Registration field indicates whether the  MRD-3xx is actively registered to the 3G network.  No connection is possible without registration. If the  Network Registration field is No, possible causes include: o  Poor signal strength. Check that the antenna is  properly connected and experiment with different  locations for the MRD-3xx to achieve a higher RF  Level. o  Problem with the SIM card. Ensure that the SIM  card fitted to the MRD-3xx is currently enabled  with the network provider. • The  RF Level indicates the current strength of received  signal from the network, with a maximum of 30. Any level  over 10 should provide acceptable connection speeds. The Connection Status table shows the statistics for the cur- rent connection.
  • Page 37 Figure 38: Wireless Status page showing a SIM fault. • If the Status item doesn't show  Connected, verify the fol- lowing: • Operation is  Enabled under the Wireless configuration. • If the Status field always shows  Connecting..., a problem  with the APN, username or password is likely. Check  that the values these settings with the network provider.  Refer to Section 3.2.1 for details on how to enter these  values into the MRD-3xx. The remaining fields list the length of time connected, IP  address allocated by the network and data counters. All of this  information will reset if a connection is restarted, except the  Total Session Time field, which will accumulate across all ses- sions. 6623-3201...
  • Page 38 Once all errors have been resolved and the MRD-3xx is con- nected to a wireless network, the Status Alarms page should  have no faults listed as shown in Figure 39. Figure 39: Status Alarm page. 6623-3201...

  • Page 39: Connection Management

    3.3 Connection Management The MRD-3xx has numerous options for managing the wire- less network connection, these option cover two main areas,  connection establishment and connection maintenance.  To access the Wireless connection management options  select the Wireless tab from the main menu and then select  the Connection management tab from the sub-menu, the  Connection management page as shown in Figure 40 will be  displayed. Figure 40: Wireless connection management page. 6623-3201...

  • Page 40: Connection Establishment

    3.3.1 Connection Establishment The connection establishment options are used to set the  parameters for initial connection to a providers wireless net- work. The options are: Timeout for network initialisation: Specify the maximum time in seconds to allow for a network  initialisation, the minimum value accepted is 60 Seconds. Timeout for connection establishment: Specify the maximum time in seconds to allow for a con- nection to be established, the minimum value accepted is 30  Seconds. Remote poll required for successful connection: Specify if a remote poll should be completed before consider- ing the connection successful. If this option is set to Yes then  the Remote Poll Setup must be enabled and configured cor- rectly, refer to section 3.3.3 Timeout between remote poll attempts: Specify the time in seconds to wait between successive  polls should a poll fail. This option is only available when the  Remote poll required for successful connection option is set  to Yes. Failed establishment attempts before RF restart: Specify the number of failed connection attempts before ...
  • Page 41 Time to spend in CSD: Specify a time in minutes to remain in CSD mode before  reverting to packet mode and attempting to establish a con- nection. This value value is only used if the Failed establish- ment attempts before dropping to CSD option is  set to a  value greater than 0. 6623-3201...

  • Page 42: Connection Maintenance

    3.3.2 Connection Maintenance The connection maintenance refers to the tests employed by  the MRD-3xx to determine that a valid network connection is  available. Should the connection maintenance test fail then  the MRD-3xx will attempt to re-establish the connection. The  remote poll and server configuration is described in section  3.3.3. The connection maintenance options are: Remote polling mode Specify the connection maintenance operating mode, the 4  options are: 1. Disable: Connection maintenance is disabled. 2. Poll at fixed interval: Poll the specified server at the interval  specified. 3. Poll if Rx idle for interval: Only poll the specified server  when not data has been received from the wireless interface  for the specified interval. 4. Reconnect if Rx idle for interval: Reconnect if data has not  been received by the wireless interface for the specified inter- val. Interval between successful polls: Specify the time interval in minutes between polls. Timeout between failed polls: Specify the time in seconds between failed polls. Failed polls before returning to establishment: Specify the number of failed polls to declare the link failed and  to re-start the establishment process. Traffic generator enabled, interval (secs) and addresses: Specify the address of the remote server that the on-board ...

  • Page 43: Remote Poll Setup

    3.3.3 Remote Poll Setup The remote poll setup is used to specify the poll type to use  and the address of the server to poll. A primary and second- ary server may be specified, the secondary server will be used  if the primary server cannot be contacted. The options are: Primary poll type Specify the poll type, the options are: 1. Disabled: Primary poll is disabled. 2. Ping (ICMP): Ping the specified address. 3. TCP Socket: Establish a TCP socket to the specified address,  the connection will be established then after a few seconds  terminated. Primary poll address Specify the address of the primary server to poll. Backup poll type 1. Disabled: Primary poll is disabled. 2. Ping (ICMP): Ping the specified address. 3. TCP Socket: Establish a TCP socket to the specified address,  the connection will be established then after a few seconds  terminated. Backup poll address Specify the address of the secondary server to poll. 6623-3201...

  • Page 44: Miscellaneous Options

    3.3.4 Miscellaneous Options Automatically obtain DNS: If set to Yes the DNS server address passed when a connec- tion is established will be used by the MRD-3xx to direct  DNS requests. If this value is set to No a DNS server should  be entered manually. Verbose output to system log: If set to Yes verbose connection information will be included  in the system log. As the size of the system log is limited, this  option should only be enabled if connection problems are  being experienced. 6623-3201...

  • Page 45: Connect On Demand

    3.3.5 Connect on Demand The connect on demand settings are only valid if the Wireless  connection state has been set to always connect, refer to sec- tion 3.2.4. The options are: Idle time to disconnect: Specify the time in minutes after the last data receive or  transmit to terminate the connection. Minimum time between reconnections: Specify the minimum time in seconds to re-connect to the  network after a disconnect from the network. 3.4 Circuit Switched Data (CSD) Mode MRD-3xx can be configured to work in Circuit switched  Data (CSD) mode. This mode works in a similar manner to a  traditional dial-up unit. The MRD-3xx can be "dialed" by call- ing its associated data number, the MRD-3xx will answer the  call and make a direct connection from the wireless port to a  serial port. Once connected all data coming into the wireless  port will be directed to the serial port and all data received  by the serial port will be directed to the wireless port. When  in CSD mode the MRD-3xx can only connect one serial port  to the wireless port. The LAN interface will still be active and  the MRD-3xx will still be accessible however no packet will  be able to be routed to the wireless port. The MRD-3xx can  operate in CSD "Single port" meaning only one serial port can  be accessed, or CSD "Multiplexed" meaning one of the serial  ports can be selected on connection. Note: This section does not describe the serial port configu- ration, for details on configuring the serial ports refer to sec- tion 7 Serial Server. 6623-3201...

  • Page 46: Csd Single Port

    3.4.1 CSD Single Port The simplest configuration for Circuit Switched Data (CSD) is  single port operation, this means that when a connection is  established the pre-configured serial port is always connected.  The Circuit switched mode settings are access by select- ing the Wireless tab from the main menu and then Circuit switched mode from the sub-menu, Figure 41 shows the Circuit  switched mode page. The selected port will always be provid- ed with a standard "AT" command interface, allowing a device  attached to the port to initiate dialing and answer incoming  calls. Figure 41: Circut Switched Data (CSD) mode page. 1. Set the Operating mode to Direct to single port and click  Update. 2. Click on the Edit icon of desired serial port to access unit  configuration. A new screen will be displayed. 3. Set the number of rings until answered, the DCD Mode and  the DTR function for the port selected in step 2. 4. Click Update to save the changes. 6623-3201...

  • Page 47: Csd Multiplexed

    3.4.2 CSD Multiplexed The Circuit Switched Data (CSD) Multiplexed mode allows any  one of the available MRD-3xx serial ports to be selected at  the time of connection. This is achieved through having a vir- tual console to which the initial connection is made. The caller  can then issue a command to select a port. Once selected, all  data will be directed to the port.  Multiplexed mode can be configured to have a default port.  This port will be selected should no connection command  have been received within a specified time period or a number  of bytes have been received.  A disconnection sequence can be described which when  received by the MRD-3xx will disconnect the serial port cur- rently selected and return the connection to the virtual termi- nal. Another port can then be selected, allowing communica- tion with multiple devices in one CSD telephone call. The virtual terminal can operate in a verbose mode which  will send prompts and echo characters sent to it. This mode is  best used when issuing the commands manually as it provides  the user with feedback. Alternatively the virtual terminal can  operate in silent mode returning no character to the connec- tion. This mode is best used when doing a machine-to-machine  type connection, where spurious character could cause prob- lems. The command used to select the required port is: PORT=x\r where x is the number of port and \r is a carriage return  (0x0d ASCII). No spaces should be present within the com- mand string and the command. The disconnect string is of the form: <guard time><disconnect character><disconnect character><disconnect character><guard time> 6623-3201...
  • Page 48 For example if the guard time is set to 2 seconds and the dis- connect character is 3F (? ASCII) then the disconnect sequence  would be: <2 seconds>???<2 seconds> Upon receiving this sequence the MRD-3xx would disconnect  from the currently connected serial port and return control  to the virtual terminal. Figure 42: Circuit Switched Data (CSD) mode port multiplexed page. 6623-3201...
  • Page 49 To configure CSD Multiplexed mode complete the following steps: 1. Select the Wireless tab from the main menu and then select  Circuit switched mode tab from the sub-menu. 2. Set the Operating mode to Multiplexed and click Update.  Click the Edit icon for desired port. 3. In the section titled Multiplexed Mode Configuration: •  Set the Menu visibility to either  Silent or Verbose. •  Set the  Disconnect character in hex, leave it blank for  no disconnect character. This value is specified in  hex so that it is not limited to text values. •  Set the  Disconnect guard time in seconds. •  Set the  Default port to use should a port select com- mand not be received. •  Set the number  Bytes to wait from connection until the default port selected.

  • Page 50: Sms Triggers

    3.5 SMS Triggers The MRD-3xx provides SMS triggers which can be used to  change the Wireless operating mode, reboot the unit and  request a status summary. Each SMS trigger can individually be  enabled and disabled and the text trigger can be defined for  each trigger.  Access control is provided to control what numbers have  access to the SMS triggers. 3.5.1 Trigger configuration To access the SMS Triggers select the Wireless tab from the  main menu and the SMS tab from the sub-menu. A page simi- lar to that of Figure 43 will be displayed. To configure the trig- gers complete the following steps: 1. For each of the triggers to be enabled, tick the Enabled  checkboxes. 2. For each of the triggers to be disabled, untick the Enabled checkboxes. 3. For each of the triggers that has been enabled set the  Match on field to: (a) Exact: The received text must exactly match the  Trigger string, any additional characters will cause a mis- match. (b) Contains: The received text must contain the  Trigger string, additional characters can be received. (c) Start with: The received text must start with the  Trigger string, no additional characters can be received  before the Trigger string. 4. For each of the enabled triggers set the Trigger string to the  desired text. 5. Click the Update button to save the changes. 6623-3201...
  • Page 51 Figure 43: SMS Triggers configuration page. 6623-3201...

  • Page 52: Access Control

    3.5.2 Access Control The SMS Access Control allows fine control over the access  to the SMS triggers. The default policy can be set to allow  which will allow any number that has not be specifically set to  be denied, or the default policy can be set to deny in which  case all numbers will be denied unless specifically set to allow. 6623-3201...

  • Page 53: Example: Default Policy Accept

    3.5.2.1 Example: Default policy accept To set the SMS Access Control for a default action of allow  and to specifically block a number, refer to Figure 43. and complete the following steps: 1. Click the Add new access control button. 2. In the section titled Add new SMS access control: (a) Add a label for the new entry. (b) Enter the phone number. (c) Set the Action to Drop. 3. Click the Update button to save the changes. 4. Repeat the steps above to add further numbers. When complete the page will include the number to be  dropped, as shown in Figure 44. 4 4 . Figure 44: SMS Triggers number to drop added. 6623-3201...

  • Page 54: Example: Default Policy To Drop

    3.5.2.2 Example: Default policy to Drop To set the SMS Access Control for a default action of drop  and to specifically accept a number, refer to Figure 45 and  complete the following steps: 1. In the section titled SMS Access Control set the Default  policy Action to Drop. 2. In the section titled Add new SMS access control: (a) Add a label for the new entry. (b) Enter the phone number. (c) Set the Action to Accept. 3. Click the Update button to save the changes. 4. Repeat the steps above to add further numbers. When complete the page will include the number to be  accepted, as shown in Figure 46. Figure 45: SMS Triggers accept entry. 6623-3201...
  • Page 55 Figure 46: SMS Triggers number to accept added 6623-3201...

  • Page 56: Network

    4 Network This section describes the confiuration of the Network or  LAN settings. This includes setting the IP Address of the MRD- 3xx Unit, configuring the DHCP server and the DNS settings. 4.1 LAN Interface The LAN Interface refers to the two switched Ethernet ports  located on the front of the MRD-3xx. To access the LAN  Interface settings select the Network tab from the main menu  then the LAN tab from the sub-menu. 4.1.1 Changing the IP Settings of the LAN  Interface The LAN IP address is the address used to access the MRD- 3xx via the LAN (Ethernet) interface. The default IP settings of  the MRD-3xx Unit / Router are: • IP Address: 192.168.2.200 • Netmask: 255.255.255.0 The Network settings are contained on the Network / LAN  page under the Interface Configuration heading. To change the IP  settings : 1. Click the Network tab on the main menu, this will display the  LAN page as shown in Figure 47, the LAN interface settings are  in the section titled Interface Configuration. 2. Ensure that Enabled is set to Yes. 3. Enter the IP address in the IP Address box.  4. Enter the Netmask in the Netmask box, to that of the sub- net to which the unit is connected. 5. Click the Update button at the bottom of the page to com- mit the changes. 6623-3201...
  • Page 57 Figure 47: LAN Interface configuration. Note: Once the IP Address has been changed the new IP  address will need to entered into the web browser to re-gain  access the MRD-3xx web interface, it will also be necessary to  login again. For details on accessing the web pages and logging  into the MRD-3xx refer to the User Guide. 6623-3201...

  • Page 58: Disabling The Lan Interface

    4.1.2 Disabling the LAN Interface By default the LAN interface is enabled. The LAN interface  can be disabled if the LAN ports are not required. Note: If the LAN ports are disabled then access to the web  configuration pages will only be available via the wireless inter- face if the the Firewall settings allow access to the Web Server,  for details on the Firewall configuration refer to Section 5. To  re-enable the LAN ports without accessing the Web interface,  it will be necessary to perform a factory reset of the MRD- 3xx as described in the User Guide, this will clear all the  configuration settings of the MRD-3xx to the factory default  settings and the LAN ports will be enabled. To disable the LAN Interface : 1. Click the Network tab on the main menu, this will display the  LAN page as shown in Figure 47 the LAN interface settings are  in the section titled Interface Configuration. 2. Untick Enabled checkbox.  4. Click Ok. 5. Click the Update button at the bottom of the page to com- mit the changes. The LAN interface will now be disabled, if the connection to  the MRD-3xx was via the LAN ports, a page error may now  be indicated. 6623-3201...

  • Page 59: Dhcp Server Configuration

    4.2 DHCP Server Configuration The DHCP server allows clients on the local network to be  automatically allocated IP addresses from the MRD-3xx. The  MRD-3xx will also provide the clients with network settings  like their default route and DNS servers. By default the DHCP server is disabled however it has been  configured to serve IP addresses in the range 192.168.2.210  through 192.168.2.240, and the Default and Maximum lease  times have been set to 1440 minutes. So if these values are  consitant with the network that the MRD-3xx is connected  to, then the DHCP can be enabled by setting the Enabled field  to Yes and clicking the Update button. Figure 49: DHCP configuration. If the standard settings are not applicable for the connected  network, then refer to Figure 49 and follow the steps below,  to configure the DHCP server: 1. Click the Network tab on the main menu, this will display the  LAN page as shown in Figure 49, the DHCP settings are in the  section titled DHCP Server Configuration. 6623-3201...

  • Page 60: Configuring Clients To Use The

    2. Choose a group of available IP addresses on the local  network. For example, if the IP address of the MRD-3xx is  192.168.2.200 with a netmask of 255.255.255.0, a group cho- sen could be 192.168.2.100 to 192.168.2.199. This will provide  100 addresses for clients. 3. Tick the Enabled checkbox. 4. Enter the first address of the group in the Start Address box. 5. Enter the last address of the group in the End Address box. 6. Enter a lease time for the Default Lease time. 7. Enter a lease time for the Maximum Lease time. 8. Click the Update button to commit the changes. 4.3 Configuring clients to use the MRD-3xx The MRD-3xx will act as a gateway for connections destined  over the wireless interface. The default configuration will pro- vide Network Address Translation (NAT) and firewalling to  protect clients on the local network. To configure clients to use the MRD-3xx as a gateway: • If the clients have a DHCP address allocated by the  MRD-3xx, they will have learned the necessary set- tings. No further configuration is needed. • If clients have static IP addresses, set the default  route and DNS server to the IP address of the  MRD-3xx.  6623-3201...

  • Page 61: Domain Name System (Dns)

    4.4 Domain Name System (DNS) The Domain Name System (DNS) is used to resolve domain  names to IP addresses. When connecting to a wireless net- work the MRD-3xx normally receives the IP address of a DNS  server to use for DNS requests. The MRD-3xx supports DNS  proxy, Manual DNS Configuration and a Dynamic DNS client.  The features can be accessed by selecting Network from the  main menu and then DNS from the sub-menu. The DNS set- tings page is shown as in Figure 50. Set to "Yes" to  enable DNS client Set the DNS service Enter the DNS domain address  Enter DNS client username Enter DNS client password Click "Update" to save changes Figure 50: Domain Name Service (DNS) configuration. 4.4.1 DNS Proxy The MRD-3xx is configured by default to act as a Domain  Name Server (DNS) proxy, this means that the MRD-3xx  passes DNS requests from the LAN interface to an external  DNS server, and returns the result to the client which initi- ated the DNS request.  Therefore all devices connected to the LAN Interface can  specify the IP address of the MRD-3xx as the DNS server. If  the DHCP server of the MRD-3xx has been enabled, then any  device that is connected to the LAN interface and requests an  IP address via DHCP will automatically be given the IP address  of the MRD-3xx as the DNS server. 6623-3201...

  • Page 62: Manual Dns Configuration

    4.4.2 Manual DNS Configuration The manual DNS configuration is used to select a DNS server  other than the one automatically supplied by the wireless net- work. To configure the manual DNS : 1. Enter an IP address for the primary DNS server in the  Primary DNS Server box. 2. Optionally enter the IP address for a secondary DNS server  in the Secondary DNS Server box. 3. Enter the DNS domain in the DNS Domain box. 4. Click the Update button at the bottom of the page to com- mit the changes. The MRD-3xx will now use the DNS Server at the supplied IP  addresses for all DNS requests. 4.4.3 Dynamic DNS Client Configuration Dynamic DNS is a system which allows the domain name  data held in a name server to be updated in real time. The  most common use for this is in allowing an Internet domain  name to be assigned to a device with a dynamic IP address.  Depending on the system used by the wireless provider the  MRD-3xx may receive a dynamic IP address, using this service  it may be possible to establish connections to the MRD-3xx  without needing to track the IP address of the MRD-3xx. This  makes it possible for other sites on the Internet to establish  connections to the machine without needing to track the IP  address themselves. Note: Some service providers do not allow access to dynam- ic IP address, so even though the Dynamic DNS client will  connect and register the IP address provided to the MRD-3xx  unit, all attempts to connect to that IP address will fail. In order to use the Dynamic DNS feature of the MRD-3xx  you will first need to register at a Dynamic DNS provider, the  MRD-3xx supports the follwoing providers: Drop-down option Provider dyndns.com      http://www.dyndns.com/  ...
  • Page 63 Once registration is complete follow the steps below to  configure the MRD-310/330, for reference Figure 51 show an  example configuration. 1. Click the Network tab on the main menu, then select  DNS from the sub-menu, this will display the DNS page, the  Dynamic DNS settings are in the section titled Dynamic DNS  Client Configuration. 2. Tick Enabled checkbox. 3. Select the service provider from the Service drop-down  menu. 4. Enter the Domain in the Domain text box. 5. Enter the username for your account in the Username text  box. 6. Enter the password for your account in the Passoword text  box. 7. Click the Update button to save the changes. Figure 51: Dynamic Domain Name Service (DNS) Client configuration. 6623-3201...

  • Page 64: Firewall

    5 Firewall  The MRD-3xx has a Stateful Packet Inspection (SPI)  Firewall that controls the connections from the wireless port  to the LAN ports and to the unit itself. The firewall can be  used to limit the connections that can be established to or via  the unit. For example, if the unit is only to be used for serial  communications then the firewall can be set-up to only allow  connections through to the serial server (which connects to  the serial ports). 5.1 Firewall Setup The MRD-3xx firewall configuration is accessed by selecting  the Firewall tab from the main menu. When selected the page  shown in Figure 52 will be displayed. This page shows  and allows configuration of the basic settings for the firewall. Figure 52: Basic firewall conguration. 6623-3201...

  • Page 65: Network Address And

    5.1.1 Network Address and Port Translation  (NAPT) As connection pass from the LAN network out the wire- less port, the firewall can perform Network Address and Port Translation (NAPT). When set, this option will cause the fire- wall to substitute the address of the wireless port for the  source address of connections received from the LAN net- work. This is most useful where the LAN network is a private  network but the wireless port has a public address. In some cases, for example, if connected to an IP WAN that  supports direct routing to the LAN network of the unit, it  may be desirable to disable the NAPT function. This will allow  clients on the LAN to be directly addressed without the need  for port forwards. To disable NAPT, uncheck the Connections  from LAN checkbox and press Update. 5.1.2 Stateful Packet Inspection (SPI) The firewall in the unit can function in Stateful Packet Inspection (SPI) mode. When enabled, the firewall will track  the state of each connection passing through it (for example,  TCP streams) and only allow packets belonging to a known  connection to enter from the wireless port. In most cases, SPI  should be enabled for greater security. When disabled, the fire- wall will allow all incoming packets from the wireless port to  be forwarded through to the LAN network. In some cases, for example, if connected to an IP WAN that  supports direct routing to the LAN network of the unit, it  may be desirable to disable the SPI function. This will allow  clients on the LAN to be directly addressed without the need  for port forwards. To disable SPI, uncheck the Accept only established destined to LAN checkbox and press Update. 6623-3201...

  • Page 66: Connection Tracking Options

    5.1.3 Connection tracking options The firewall can be configured to optionally provide connec- tion tracking and NAT support for a number of additional  protocols. The protocols are listed in Table 1. To enable support for a protocol, click the checkbox for the  protocol and press Update. Protocol  Description FTP  Adds support for active mode File Transfer  Protocol TFTP  Adds support for the Trivial File Transfer  Protocol H.323  Adds support for the H.323 voice and videocon- ferencing protocol PPTP  Adds support for the Point-to-point Tunneling  Protocol IRC  Adds support for the Internet Relay Chat pro- tocol Table 1Firewall Connection tracking options 6623-3201...

  • Page 67: Access Control

    5.2 Access Control The Access Control page allows configuration of the firewall  to allow or deny access to internal services of the unit from  the wireless port and VPN tunnels. By default, the firewall  will block access from the wireless port to all internal serv- ices such as the web server, and allow access to all internal  services from the VPN tunnels. In certain situations it may be  desired to enable access to some services from the wireless  port or to disable access to some services from the VPN tun- nels, by changing the settings on this page. The port numbers for internal services are the standard port  numbers for the service type, for example, port 80 is used for  the web server. It is possible to change the port number for a  particular service. This may be a requirement if a conflict  exists with a particular port or service. To access the Access Controls, select the Firewall tab from the  main menu then select the Access Control tab from the sub- menu. Figure 53: Firewall access control options. 6623-3201...

  • Page 68: Accessing Unit Services From The Wireless Port Or Vpn Tunnels

    5.2.1 Accessing unit services from the wireless  port or VPN tunnels The External Access table on the Access Control page is shown  in Figure 53. It controls which services can be accessed from  the wireless port and VPN tunnels. By default, the unit will  block all requests received on the wireless port and allow all  requests received from VPN tunnels. There are several modes for determining which services can  be accessed: No access All incoming requests are dropped. Set the Default policy set  to Deny and check no boxes in the Allow column. Restricted access Incoming requests for particular services will be allowed.  Set the Default policy to Deny and check the  boxes for the  desired services in the Allow column. Full access All incoming requests allowed. Set the Default policy to Allow. To change the port number that a service is received on,  change the entry in the Port column for the given service. For  example, to change the web server to port 8080 on the wire- less port, enter 8080 in the WLS column on the Web Server  row. 6623-3201...

  • Page 69: Dos Filters

    5.3 DoS Filters A denial of service attack (DoS attack) is an attempt to  render a network device unavailable to intended users. The  most common method of attack involves saturating the target  device with external communications requests, such that it  cannot respond to legitimate traffic, or responds so slowly as  to be rendered effectively unavailable. The intention of DOS  attacks is to cause the targeted device to reset or consume  resources to such a level that it is unable to provide the  intended service. A consequence of such an attack is that even  if the device is able to handle the large number of communica- tions requests, the bandwidth over the communications chan- nel used for the attack may be completely consumed, poten- tially preventing legitimate connections to the targeted device. The firewall has filters that can detect and drop packets that  may be part of a Denial of Service (DOS) attack, for example,  TCP packets with invalid header information. Options to ena- ble and disable these filters can be found on DoS Filters page. 6623-3201...

  • Page 70: Enabling The Denial Of Service Filters

    5.3.1 Enabling the Denial of Service filters The Filter Description table provides a number of DOS filters,  as shown in Figure 54. The filters can be applied to packets  received from the LAN port, the wireless port (WLS), and  from any VPN tunnel by checking the boxes in the appropriate  column. Figure 54: Firewall DoS filter options. The function of each filter is described below: Rate limit TCP SYN packets This will limit the number of new TCP connection requests  (SYN packets) allowed from the given interface. The rate will  be limited to 5 per second. Drop invalid TCP flag combinations Some DOS attacks will send packets that present an invalid  combination of TCP flags which may cause problems for some  operating systems. The filter will drop packets with invalid  combinations received on the given interface. Rate limit ICMP requests This will limit the number of ICMP requests (for example, ping  requests) allowed from the given interface. The rate will be  limited to 5 per second. Accept limited ICMP types The types of ICMP packets that are accepted will be limited ...

  • Page 71: Custom Filters

    5.4 Custom Filters 5.4.1 Description Custom Filters allow new rules to be added to the firewall to  allow or deny specific packets. Packets can be matched based  on which of the unit's network interfaces they arrive on or  will leave on, the protocol, the source or destination address. Some example custom filters are: •  A filter than only allows traffic from a particular host on  the WAN to access through to the LAN ports. •  A filter that drops all traffic from a particular host on the  WAN. To select the Custom Filters page click the Custom Filters tab  on the sub-menu. Figure 55 shows the custom filter page with  no filters configured. Figure 55: Custom Filter main page with no filters configured. 6623-3201...

  • Page 72: New Custom Filter Options

    5.4.2 New Custom Filter Options The custom filter options are shown when the Add new cus- tom filter button on the Custom Filters page is clicked. The Add  new custom filter page will be displayed as shown in Figure 56. Figure 56: Adding a new custom filter 6623-3201...
  • Page 73 The following options can be set for each custom filter: Enabled Set the Enabled check box to have the rule installed in the  firewall. A rule can be temporarily disabled by unchecking this  box. Apply to Custom filters can be applied at three separate points in the  unit: • Forwarded packets. The filter will be applied to packets that are received  from one network interface and then routed out  another network interface • Locally destined packets. The filter will be applied to packets destined for the  unit's internal services. • Locally generated packets. The filter will be applied to packets generated by one  of the unit's internal services.  Incoming interface If selected, packets will be matched based on the network  interface they have been received on. Note that this can't be  applied to Locally generated packets as they have been gener- ated by the unit itself. Outgoing interface If selected, packets will be matched based on the network  interface they will be transmitted on. Note that this can't be  applied to Locally destined packets as they will be received by  the unit itself. Protocol If selected, packets will be matched based on their protocol ...
  • Page 74 Source address If selected, either a single address (for example, 172.16.1.132)  or a subnet range (for example, 172.16.0.0/24) can be entered.  Only packets matching this source address will have the filter  applied to them. Source port or range If selected, packets will be matched based on their TCP or  UDP source port. Either an individual port (for example, 443)  or a range of ports (80-143) can be entered. Destination address Similar to the Source address, but instead matching on the  destination address. Destination port or range Similar to the Source port or range, but instead matching on  the destination port. Action Determines what action on packets who meet all of the  matching criteria for the filter. If set to Deny, the packet will  be dropped. If set to allow, the packet will be passed. Insert this entry at position Determines where this entry will be inserted in the list of  custom filters. 6623-3201...

  • Page 75: Adding A New Custom Filter

    5.4.3 Adding a new custom filter From the main Custom Filters page click the Add new custom filter button. This will select the Add new custom filter page.  An example of adding a new custom filter is shown in Figure 57.  In this example, a new filter will be created to allow  packets received via the wireless port, from IP address  112.112.112.112 and destined to the LAN network. Figure 57: Adding a new custom filter. As shown in the example that in the centre column, Incoming interface, Outgoing interface and Source address are checked.  This indicates that these are the matching criteria that will be  applied to packets. All criteria that are unchecked will be  ignored. 6623-3201...
  • Page 76 To save the new filter click the Update button. The main  Custom Filter page will again be shown with the new filter  listed, as shown in Figure 58. Figure 58: The custom filter page with a single filter. 6623-3201...
  • Page 77 To add a second filter, again click the Add new custom filter  button. In the example shown in Figure 59, a custom filter is  created which will deny packets received from the LAN port,  from IP address 211.211.211.211 and destined to the wire- less network. Again notice that in the centre column, Incoming interface, Outgoing interface and Source address are checked. This  indicates these are the matching criteria that will be applied to  packets. All criteria that are unchecked will be ignored. Figure 59: Adding a new custom filter 6623-3201...
  • Page 78 To add the filter to the filters table click the Update button,  the main page will again be shown with the new filter added,  as seen in Figure 60. Figure 60: The custom filter table with 2 filters. 6623-3201...

  • Page 79: Editing A Custom Filter

    5.4.4 Editing a Custom Filter A custom filter can be edited by clicking the pencil icon in  the Edit column of the filter to be changed. Once clicked, the  details of the filter will display in the same table as shown  when adding a new filter. As an example, to edit the second filter, click the pencil icon in  the second row of the table. A page similar to the Add new fil- ter page will be displayed, but now showing the details of filter  2. Changes that add protocol and port number matching to  the criteria are shown in Figure 61. Figure 61: Editing a custom filter. 6623-3201...
  • Page 80 To save the changes click the Update button or to lose any  changes click the Cancel button. The main page will again be  displayed as shown in Figure 62, with the changes for filter 2  added to the table. Figure 62: The main custom filter table after editing filter 2. 6623-3201...

  • Page 81: Deleting A Custom Filter

    5.4.5 Deleting a Custom Filter A custom filter can be deleted by clicking the bin icon in the  Delete column of the filter to be deleted. A warning box will  be displayed. Click OK to confirm the deletion or Cancel to  prevent the filter from being deleted. For example, to delete filter 2 from the table shown in Figure 63 click the bin icon in row 2 of the table. A warning box will  now be displayed, as shown if Figure 63. Click OK to confirm. Figure 63: Deleting a custom filter. 6623-3201...
  • Page 82 The filter table will be displayed with the filter removed, as  shown in Figure 64. Figure 64: Custom filter table with filter 2 removed. 6623-3201...

  • Page 83: Port Forwarding

    5.5 Port Forwarding Port forwarding rules alter the destination address (and  optionally the destination port) of packets received on the  wireless port or VPN interfaces of the unit. Port forwards can  be used to forward specific services (eg HTTP) to a private  machine on the LAN network without needing to expose the  entire private machine to the public network. To access the port forward configuration page, select the  Firewall tab from the main menu, then the Port Forwards tab  from the sub-menu. The page will list a table showing all cur- rent port forwards. When first selected the table will be  empty as shown in Figure 65 Figure 65: Port forward page with no port forwards configured. 6623-3201...

  • Page 84: Port Forward Options

    5.5.1 Port Forward Options To access the port forward options click the Add new port for- ward button on the main port forwards page. Figure 66 shows  the page for entering a new forward. Figure 66: Page to add a Port forward. The following options can be set for each port forward: Enabled Set the enabled check box to have the rule installed in the  firewall. A rule can be temporarily disabled by unchecking this  box. Protocol The unit is able to forward TCP, UDP, GRE, ESP and AH. Most  forwards will be either TCP or UDP. Select the appropriate  protocol from the list. Incoming interface Select the interface that the packets to be forwarded on will  arrive (in this case, WLS, the wireless port, is selected). 6623-3201...
  • Page 85 Source address For greater security, the source addresses that the forward  will be applied to can be limited. In this field, either a single  address (for example, 172.16.1.132) or a subnet range (for  example, 172.16.0.0/24) can be entered. Original destination port or range This is the port number (80 in the example) but can also be a  range (entered as, for example, 120-150) that the firewall will  match on to forward to the new destination address. New destination address This is the IP address of the server to forward to  (192.168.2.230 in the example). New destination port In addition to changing the destination address, it is also pos- sible to change the destination port. To do so, enter the port  in this field. This field can be left blank to keep the port the  same. Insert this entry at position Determines where this entry will be inserted in the list of  port forwards. 6623-3201...

  • Page 86: Adding A New Port Forward

    5.5.2 Adding a new port forward From the main port forwards page, click the Add new port forward button. This will select the Add new port forward  page. An example of adding a new port forward is shown in  Figure 67. In this example a new port forward is created to  forward from port 80 of the wireless port to a HTTP server  at address 192.168.2.240. Figure 67: Adding a Port forward. 6623-3201...
  • Page 87 Click Update to save the new port forward. The port forward  table will be updated to include the new port forward as  shown in Figure 68. Figure 68: The port forward page with a single port forward. To add a second port forward click the Add new port forward button. In the example shown in Figure 69, a port forward  is created which forward packets received for IP address  112.112.112.112 on port 80 of the wireless port to LAN IP  address 192.168.2.232. Figure 69: Adding a second port forward 6623-3201...
  • Page 88 To add the new port forward to the port forward table click  the Update button. The main page will again be shown with the  new port forward added, as seen in Figure 70. Figure 70: The port forward page with a two port forwards. 6623-3201...

  • Page 89: Editing A Port Forward

    5.5.3 Editing a port forward A port forward can be edited by clicking the pencil icon in the  Edit column of the port forward to be changed. Once clicked,  the details of the port forward will be displayed in the same  table as when creating a new port forward. As an example, to edit the second port forward in the port  forward table, click the pencil icon in the second row of the  table. A page similar to the Add new port forward page will be  displayed but will show the details of port forward 2. Changes   were made so the destination is now port 22 as shown in  Figure 71. Figure 71: Editing a port forward. 6623-3201...
  • Page 90 To save the changes, click the Update button or to lose  changes click the Cancel button. The main page will again be  displayed as shown in Figure 72, with the changes for port for- ward 2 added to the table. Figure 72: Main port forward page with revised port forward. 6623-3201...

  • Page 91: Deleting A Port Forward

    5.5.4 Deleting a port forward A port forward can be deleted by clicking the bin icon in the  Delete column of the forward to be deleted. A warning box  will be displayed. Click OK to confirm the deletion. For example, to delete port forward 2 from the table shown  in Figure 72, click the bin icon in row 2 of the table. A warning  box will now be displayed as shown if Figure 73. Click OK. Figure 73: Deleting a port forward. 6623-3201...
  • Page 92 The port forward table will be displayed with the port for- ward removed, as shown in Figure 74. Figure 74: Port forward table of deleting a port forward 6623-3201...

  • Page 93: Custom Nat

    5.6 Custom NAT 5.6.1 Description Custom NAT allow new rules to be added to the firewall to  carry out Network Address Translation (NAT) that is differ- ent to the usual NAT provided by the firewall. Packets can  be matched based on which of the unit's network interfaces  they arrive on or will leave on, the protocol, the source or  destination address. The packets can have Source-NAT (SNAT)  applied, where the source address is altered, or Destination- NAT (DNAT) applied, where the destination address is  altered.  Some example custom NATs are: •  Source-NAT on all packets being transmitted out a  VPN tunnel.  Destination-NAT to redirect packets to a host on the  LAN. To access the Custom NAT configuration page, select the  Firewall tab from the main menu, then the Custom NAT tab  from the sub-menu. The page will list a table showing all  current custom NATs. When first selected the table will be  empty as shown in Figure 75. Figure 75: Main custom NAT page, with no custom NAT entries in the table. 6623-3201...

  • Page 94: Custom Nat Options

    5.6.2 Custom NAT Options To access the Custom NAT options click the Add new custom NAT button on the main Custom NAT page. Figure 76 shows  the page for entering a custom NAT. Figure 76: Add new Custom NAT page. 6623-3201...
  • Page 95 The following options can be set for each custom NAT: Enabled Set the enabled check box to have the rule installed in the  firewall. A rule can be temporarily disabled by unchecking this  box. NAT Type Determines the type of NAT the entry will perform. Apply to When entering a destination NAT, there are two places the  NAT can be applied: • Incoming packets The rule will be applied to packets received from  the unit's network interfaces. • Locally generated packets The rule will be applied to packets generated by  one of the unit's internal services. Incoming interface If selected, packets will be matched based on the network  interface they have been received on. Note that this can only  be applied to a Destination NAT on Incoming packets. Outgoing interface If selected, packets will be matched based on the network  interface they will be transmitted on. Note that this can only  be applied to a Source NAT. Protocol If selected, packets will be matched based on their protocol  type. Note that if you wish to match on source or destination  ports, the protocol must be set to TCP or UDP. Source address If selected, either a single address (for example, 172.16.1.132)  or a subnet range (for example, 172.16.0.0/24) can be entered. ...
  • Page 96 Source port or range If selected, packets will be matched based on their TCP or  UDP source port. Either an individual port (for example, 443)  or a range of ports (80-143) can be entered. Destination address Similar to the Source address, but instead matching on the  destination address. Destination port or range Similar to the Source port or range, but instead matching on  the destination port. Target address This is the address that the NAT rule will apply to packets.  When set to Custom, any IP address can be entered in the  text box. If an interface is selected from the dropdown box,  the current address of that interface will be applied to packets. Target port For rules that specify either the TCP or UDP protocol, it is  possible to also alter the port number. If no change of port  number is desired, this field can be left blank. Insert this entry at position Determines where this entry will be inserted in the list of  custom NAT rules. 6623-3201...

  • Page 97: Adding A New Custom Nat

    5.6.3 Adding a new custom NAT From the main port forwards page click the Add new custom NAT button. This will select the Add new custom NAT page.  An example of adding a new custom NAT is shown in Figure 77. In this example, a new custom NAT is created which will  source NAT packets outgoing on the SSL VPN interface to the  IP address of the SSL VPN. Figure 77: Adding a custom NAT. It can be seen in the example that in the centre column only  Outgoing interface is checked. This indicates these are the  matching criteria that will be applied to packets. In this case,  all packets outgoing on the SSL VPN will be source NAT'd. 6623-3201...
  • Page 98 Click Update to save the new custom NAT. The custom NAT  table will be updated to include the new custom NAT as  shown in Figure 78. Figure 78: Main custom NAT page showing new custom NAT added to the table. 6623-3201...
  • Page 99 To add a second custom NAT again click the Add new custom NAT button. In the example shown in Figure 79, a destination  NAT is created for packets destined for the wireless port. Figure 79: Adding a custom NAT. To add the new custom NAT click the Update button. The  main page will again be shown with the new custom NAT  added, as seen in Figure 80. Figure 80: Main custom NAT page showing new custom NAT added to the table. 6623-3201...

  • Page 100: Editing A Custom Nat

    5.6.4 Editing a Custom NAT A custom NAT can be edited by clicking the pencil icon in  the Edit column of the filter to be changed. Once clicked, the  details of the custom NAT will be displayed in the same table  as when creating a new custom NAT. As an example, to edit the second custom NAT in the  Custom NAT table shown in Figure 80, click the pencil icon in  the second row of the table.  A page similar to the new cus- tom NAT page will be displayed but with the details of custom  NAT 2. To set the protocol for the custom NAT to be UDP,  changes were made as shown in Figure 81. Figure 81: Editing a custom NAT. 6623-3201...
  • Page 101 To save the changes click the Update button or to lose the  changes click Cancel. The main page will again be displayed as  shown in Figure 82, with the changes for custom NAT 2 added  to the table. Figure 82: Main custom NAT page with revised custom NAT 2. 6623-3201...

  • Page 102: Deleting A Custom Nat

    5.6.5 Deleting a Custom NAT A custom NAT can be deleted by clicking the bin icon in the  Delete column of the NAT to be deleted. A warning box will  be displayed. Click OK to confirm the deletion. For example, to delete custom NAT 2 from the table shown  in Figure 82, click the bin icon in row 2 of the table. A warning  box will now be displayed as shown if Figure 83. Click OK. Figure 83: Deleting a Custom NAT. 6623-3201...
  • Page 103 The custom NAT table will be displayed with the custom NAT  removed, as shown in Figure 84.   8 4 . Figure 84: Custom NAT table after deleting a Custom NAT. 6623-3201...

  • Page 104: Virtual Private Network (Vpn) 1

    6 Virtual Private Network (VPN) A virtual private network (VPN) is a communications network  tunneled through another network, in the case of the MRD- 3xx unit the secured communications network is tunneled  through the 3G wireless network and then over the Internet  or private network to a VPN capable router or server. The  MRD-3xx unit has support for SSL, IPsec and PPTP/L2TP  based VPNs and can be configured for multiple VPN tunnels to  operate simultaneously. 6623-3201...

  • Page 105: Secure Sockets Layer (Ssl) Vpn

    6.1 Secure Sockets Layer (SSL) VPN. Secure Sockets Layer (SSL), are cryptographic protocols that  provide secure communications over a communications net- work. SSL operates at the transport layer, layer 4 of the OSI  model, this means that it is can be used to create a tunnel  through which other layer 4 protocols such as TCP & UDP  can pass.  An example of an SSL VPN is OpenVPN which is a free and  open source virtual private network (VPN) program for creat- ing point-to-point or server-to-multiclient encrypted tunnels.  It is capable of establishing direct links between computers  that are behind NAT firewalls. For information on installing  and configuring OpenVPN refer to the OpenVPN website:  http://openvpn.net/ 6623-3201...

  • Page 106: Ssl Vpn Configuration

    6.1.1 SSL VPN Configuration To access the SSL VPN configuration page, select VPN on the  main menu, the SSL VPN configuration page is the first option  on the sub-menu so it will be automatically displayed. Figure 85 shows the MRD-3xx SSL based VPN configuration options  available.  Figure 85: SSL based VPN configuration web page. The configuration options are dived into Basic Configuration  in the top part of the page and Advanced Configuration in the  bottom section of the page. The details of each option is  described below: 6623-3201...
  • Page 107 Basic Configuration options Enabled Check the box to enable the SSL VPN. Connection Protocol Dropdown box to select the connection protocol, either TCP  or UDP (default). Transport Type Select the transport type from either routed (default) or  bridged mode. • Bridged Bridging is a technique for creating a virtual, wide- area Ethernet LAN, running on a single subnet.  The advantages of bridging are broadcasts will  traverse the VPN which in some situations is  desirable, and no routing rules are required. The  disadvantages are broadcasts can be problematic  on a wireless network as the over-the-air traffic is  increased and bridging does not scale well as new  devices are added to the network. • Routed Routing will create a separate sub-net for each  VPN connection, to access one subnet from  another requires routing rules to be configured  at the VPN router. The advantages of routing are  efficiency, scaleability and no broadcast traffic, this  is particularly important with wireless networks  to reduce the over-the-air traffic. The disadvan- tage is that routing rules are required which adds  to the configuration. Remote address Specify the address of the remote VPN server. Remote port Specify the port number of the remote VPN server. 6623-3201...
  • Page 108 Certificate Specify the certificate to use for authentication. For details  on how to load certificates refer to Section 6.5 Certificate  Management. Advanced Configuration options Ping interval (secs) Specify the interval in seconds at which to Ping the remote  server. This is used to determine the status of the connection. Ping timeout (secs) Specify the ping timeout in seconds. This is used to determine  if the VPN connection has terminated, if this time is exceeded  the connection will be re-established. Compression Specify if compression is to be used for the data being trans- mitted through the VPN tunnel. Select one of the following  options from the drop-down list: • Compression is disabled. • Adaptive The performance will be measured with com- pression on and with compression off, the option  with the higher performance will be selected. • Compression is enabled. 6623-3201...

  • Page 109: Encryption Algorithm

    Encryption algorithm Specify the encryption algorithm to use from the drop-down  list, the options are: • Data Encryption Standard. • 3DES (192) 192 bit Triple Data Encryption Standard. • Blowfish (128) 128 bit Blowfish (Default). • AES (128) 128 bit Advanced Encryption Standard (AES). • AES (192) 192 bit Advanced Encryption Standard (AES). • AES (256)   256 bit Advanced Encryption Standard (AES). 6623-3201...

  • Page 110: Connecting To A Vpn Server

    6.1.2 Connecting to a VPN Server An example of connecting to a VPN server will be described.  Figure 86 illustrates the network which will be established.  For this example a connection will be established from the  MRD-3xx to an OpenVPN server using a routed connection  and UDP as the connection protocol. The IP address of the  OpenVPN server is 123.123.123.123 and the port number  is 1194. The certificate supplied for authentication is called  demoClient. To ensure the connection remains connected the  ping interval will be set to 30 seconds with a timeout of 120  seconds. Compression will be disabled and the Encryption  algorithm will 128 bit Blowfish. Figure 86: SSL based VPN example network. 6623-3201...
  • Page 111 Select VPN on the main menu, to display the the SSL VPN con- figuration page. Figure 87 shows the MRD-3xx SSL based VPN  configuration with the options set for the example.  Figure 87: SSL based VPN configuration web page. The following are configuration settings used for the example: 6623-3201...
  • Page 112 Basic Configuration options Enabled: Checked Connection Protocol: UDP Transport Type: Routed  Remote address: 123.123.123.123 Remote port: 1194 Certificate: demoClient Advanced Configuration options Ping interval (secs): 30 Ping timeout (secs): 120 Compression: Off Encryption algorithm: Blowfish (128)  6623-3201...
  • Page 113 Once the configuration has been completed click the Update  button to save the changes. The SSL VPN will now be started  and it will attempt to establish a connection with the VPN  server specified. The status of the VPN can be checked on the  VPN status page, to access this page click Status on the main  menu then VPN on the sub-menu, a page similar to that shown  in Figure 88 will be shown. This page indicates that the VPN is  connected and lists the local IP address. Figure 88: SSL VPN status page. In order to test the VPN a ping command can be run from  a machine connected to the VPN server, the following is the  result of the ping: $ ping 10.90.91.30 PING 10.90.91.30(10.90.91.30) 56(84) bytes of data. 64 bytes from 10.90.91.30: icmp_seq=1 ttl=62 time=141 ms 64 bytes from 10.90.91.30: icmp_seq=2 ttl=62 time=122 ms 64 bytes from 10.90.91.30: icmp_seq=3 ttl=62 time=120 ms 64 bytes from 10.90.91.30: icmp_seq=4 ttl=62 time=121 ms 64 bytes from 10.90.91.30: icmp_seq=5 ttl=62 time=121 ms...
  • Page 114 The MRD-3xx has responded to the ping and the byte  counters on the status page have increased as seen in Figure Figure 89: SSL VPN status after running Ping, the byte counts have increased. The VPN is now operational as can be used to pass data. 6623-3201...

  • Page 115: Internet Protocol Security

    6.2 Internet Protocol Security (IPsec)  Internet Protocol Security (IPsec) is a suite of standards and   protocols for securing Internet Protocol (IP) communications  by authenticating and/or encrypting each IP packet in a data  stream. Also include within IP sec are protocols for cryp- tographic key establishment. IPsec protocols operate at the  network layer, layer 3 of the OSI model, this means that it can  be used for protecting layer 4 protocols, including both TCP  and UDP, the most commonly used transport layer protocols.  Using strong encryption and public key cryptography IPsec can  secure data links over public networks which would otherwise  be insecure. IPsec is a framework which is built in to various security  products from companies such as Cisco and Juniper, to pro- vide end-to-end security. The MRD-3xx unit IPsec functionality  has been tested for interoperability with the Cisco implemen- tation of IPsec know as Cisco IOS IPsec. 6623-3201...

  • Page 116: General Ipsec Configuration

    6.2.1 General IPsec Configuration To access the MRD-3xx IPsec VPN configuration page click  VPN on the main menu then click IPsec VPN on the sub-menu.  The page shown in Figure 90 will be displayed. The page con- tains general IPsec configuration options at the top and a list  of configured tunnels at the bottom. Figure 90: IPsec based VPN main page. 6623-3201...
  • Page 117 General IPsec Configuration Enabled Check the box to enable the IPsec VPN. Default is disdisabled. NAT traversal enabled & keepalive period (secs) Check box to enable NAT Traversal and set the keepalive  time. • NAT Traversal When passing through a Network Address  Translator (NAT) an IP packet is modified in such  a way that is incompatible with Internet Protocol  Security (IPsec). NAT-Traversal protects the  original IPsec encoded packet by encapsulating it  within another layer of UDP and IP headers. If the  wireless interface of the MRD-3xx is allocated  a dynamic and private IP address then the con- nection to the Internet will be via a Network  Address Translator (NAT), this will require the  use of NAT-Traversal for IPsec to establish a con- nection. • Keepalive Period NAT keepalives are used to keep the dynamic  NAT mapping alive during a connection between  two peers. NAT keepalives are UDP packets  with an unencrypted payload of 1 byte. Although  similar to dead peer detection (DPD), NAT keep- alives are different, DPD is used to detect peer  status, while NAT keepalives are sent if the IPSec  entity did not send or receive the packet at a  specified period of time. IPsec MTU Maximum Transmission Unit (MTU) is the size (in bytes) of ...

  • Page 118: Adding An Ipsec Tunnel

    6.2.2 Adding an IPsec Tunnel To add an IPsec tunnel click the Add new tunnel button, this  will display the first of 3 pages used to configure the IPsec  VPN tunnel. The first page is the Tunnel Configuration shown  in Figure 91, the second page is Phase 1 configuration shown  in Figure 92 and the third page is the Phase 2 configuration  shown in Figure 93. Figure 91: IPsec tunnel configuration. 6623-3201...
  • Page 119 Tunnel Configuration IPsec Tunnel configuration is the first stage in adding a new  IPsec tunnel. The options are as follows: Label Set the label or name for the tunnel. This is used as a refer- ence and is particularly useful when more than one tunnel is  configured. Enabled Check the box to enable the IPsec VPN. Local interface Select the interface over which to create the tunnel, from the  following options: • Default (Default) The interface to which the default route directs  connections. • The wireless interface. • The LAN (Ethernet) interface. 6623-3201...
  • Page 120 Local nexthop The nexthop gateway IP address for the connection to the  public network. If the local interface is set to default this  option will be set to Auto and is not able to be changed. Select  one of the following options: • Default Use default route • Auto (Default) Use the gateway IP address of the selected local  interface. • Custom Set an IP address. Remote host IP address or fully qualified domain name of remote host, to  which the connection is to be established. Operating mode Select the operating mode of the IPsec tunnel, from the fol- lowing options: • Tunnel (Default) Tunnel mode encapsulates the entire IP packet  to provide a secure connection between two  gateways. In tunnel mode the payload, the header  and the routing information are all encrypted, and  then encapsulated into a new IP packet, this mode  is generally used to create a VPN. • Transport Transport mode provides a secure connection  between two hosts, only the the payload of the IP  packet is encrypted. 6623-3201...
  • Page 121 Initiate tunnel Check the box to enable the tunnel initiation. If the wireless  IP address is dynamic then this option would normally be  enabled. Init rekeying, margin (mins) & fuzz Rekeying is used to re-negotiated the connection prior to it  expiring. The options are: • Init rekeying Check to enable rekeying. Default is On. • Margin The time in minutes prior to the connection  expiring at which attempts to negotiate a new  connection begin. Default is 10 Minutes. • Fuzz Defines the maximum percentage by which the  margin can be increased in order to randomise  rekeying intervals. Default is 100%. Dead peer detection delay & timeout (sec) Dead Peer Detection (DPD) is a method of detecting a dead  Internet Key Exchange (IKE) peer. The method uses IPsec traf- fic patterns to minimise the number of messages required to  confirm the availability of the connection. The options are: • Delay Set the delay in seconds between Dead Peer ...

  • Page 122: Authentication Method

    Figure 92: IPsec Phase 1 configuration. Phase 1 Configuration The Phase 1 Configuration is used to set the parameters for  the first phase of IPsec Key Exchange (IKE). The first phase  is a set-up phase in which the two hosts agree on how to  exchange further information securely. The options for Phase 1 are: Authentication method Select the authentication method from the drop-down list, the  options are: • Pre-shared key The Pre-Shared Key (PSK) is a key value which is  entered into each host and is used for authentica- tions. • Certificate A certificate is an electronic document containing  a public key and a digital signature.  6623-3201...
  • Page 123 Pre-shared key This field is used to enter the Pre-Shared Key if this method  of authentication was selected. To enter a new key check the  box and enter the key in the text field. During key entry the  key will be in clear-text, once the page is updated the key will  no longer be visible. The text immediately prior the check-box  will indicate if a key has been Set or Not set. Certificate Select the certificate to use if Certificate authentication has  been selected. For information on how to enter certificates  refer to Section 6.5 Certificate Management. Remote ID The remote host ID. Local ID The local host ID. Negotiation mode Select the negotiated mode from the drop-down list, the  options are: • Main mode Main mode provides identity protection for the  hosts initiating the session. Main mode cannot be  used when there is Network Address Translation  (NAT) on the connection between hosts. • Aggressive mode Aggressive mode is quicker to establish a con- nection than Main mode but provides no identity  protection. Main mode can be used when there is  Network Address Translation (NAT) on the con- nection between hosts. 6623-3201...
  • Page 124 IKE proposal A set of parameters for Phase I IPSec negotiations. The param- eters are encryption algorithm, authentication algorithm and  the Diffie-Hellman group. • Encryption Algorithm Select the encryption algorithm from the drop- down list, the options are:  AES (128) 128 bit Advanced Encryption  Standard (AES).  AES (256) 256 bit Advanced Encryption  Standard (AES).  3DES Triple Data Encryption Standard (3DES).  DES Data Encryption Standard (DES). • Authentication Algorithm Select the authentication mode from the drop- down list, options are:  MD5 Message-Digest algorithm 5.  SHA1 Secure Hash Algorithm. • Diffie-Hellman Group A cryptographic protocol which allows two  parties to establish a shared secret key over an  insecure network without the parties having any  prior knowledge of the other party. Select the  Diffie-Hellman Group from the drop-down list,  the options are:  DH Grp 1 (768) The 768 bit Diffie-Hellman  group.  DH Grp 2 (1024) The 1024 bit Diffie-Hellman  group.  DH Grp 5 (1536) The 1536 bit Diffie-Hellman  group.  DH Grp 14 (2048) The 2048 bit Diffie-Hellman  group. IKE lifetime (mins) Specify the IKE lifetime in minutes. Default is 60 minutes.
  • Page 125 Figure 93: IPsec Phase 2 configuration. 6623-3201...
  • Page 126 Phase 2 Configuration Phase 2 establishes the IPsec Security Associations (SA)  parameters in order to establish an IPsec tunnel. Phase 2 has  one mode called Quick mode, it starts after IKE has started  a secure tunnel in phase 1. Quick mode is also used to re- negotiate a new IPsec SA when the current IPsec SA lifetime  expires. The phase 2 options are: ESP proposal Encapsulating Security Payload (ESP) is used to encrypt the  data transmitted in IP datagrams. The proposal establishes the  Encryption algorithm and Authentication protocol to use. • Encryption Algorithm Select the encryption algorithm from the drop- down list, the options are:  AES (128) 128 bit Advanced Encryption  Standard (AES).  AES (256) 256 bit Advanced Encryption  Standard (AES).  3DES Triple Data Encryption Standard (3DES).  Blowfish (128) 128 bit blowfish.  Blowfish (256) 256 bit blowfish. • Authentication Algorithm Select the authentication algorithm from the  drop-down list, the options are:  MD5 Message-Digest algorithm 5.  SHA1 Secure Hash Algorithm. 6623-3201...
  • Page 127 Perfect forward secrecy & group In an authenticated key-agreement protocol using public key  cryptography, such as Diffie-Hellman key exchange, perfect  forward secrecy (PFS) is the property that ensures a session  key derived from a set of long-term public and private keys  will not be compromised if one of the private keys is compro- mised in the future. • Perfect_forward_secrecy Check to enable perfect forward secrecy.  • Diffie-Hellman Group Select the Diffie-Hellman Group from the drop- down list, the options are:  DH Grp 1 (768) The 768 bit Diffie-Hellman  group.  DH Grp 2 (1024) The 1024 bit Diffie-Hellman  group.  DH Grp 5 (1536) The 1536 bit Diffie-Hellman  group.  DH Grp 14 (2048) The 2048 bit Diffie-Hellman  group. Key lifetime (mins) Key lifetime in minutes, default is 480 minutes. 6623-3201...
  • Page 128 Tunnel Networks The second section on this page is used to configure the IPsec  tunnel networks. Up to 3 tunnel definitions can be configured  in the table. The IPsec tunnel can be terminated at each end  in one of two ways, host and network. In a host connection  the tunnel is connected to a single IP address, in a network  connection the tunnel is connected to a network subnet. The  tunnel network table allows the connections for each end of  the tunnel to be defined. Enabled Check to enable tunnel network definition. Local Configure the local connection: Network • None (Host only) The tunnel is connected in host mode, the IP  address will be that of the interface used for the  IPsec tunnel. If the IPsec tunnel is over the wire- less interface the IP address will be that of the  wireless interface. This may not be desirable if the  wireless interface is assigned a dynamic IP address  as the remote end will not know the IP address  and so will not be able to route traffic to it. • Virtual Host The tunnel is connected in host mode, the IP  address will be that set in the address field. • LAN subnet The tunnel is connected in network mode to the  LAN subnet. • Specify a subnet The tunnel is connected to the specified subnet.
  • Page 129 Addresses For host connections enter an IP address, for network con- nections enter an network IP address including netmask, for  example 10.10.10.0/24 Remote Configure the remote connection: • Network • None The tunnel is connected in host mode. • Specify a subnet The tunnel is connected to a specified subnet. • All traffic All traffic is directed to the IPsec tunnel. • Address For host connections enter an IP address, for net- work connections enter an network IP address  including netmask, For example 10.10.10.0/24 6623-3201...

  • Page 130: Ipsec Configuration Example

    6.2.3 IPsec Configuration Example The following example demonstrates how to add an IPsec  tunnel to the MRD-3xx, Figure 94 illustrates the connection  which will be created in the example. The MRD-3xx unit is  configured for a standard Internet connection, this means that  the IP address assigned to it will be dynamic and private. The  example assumes that the router has been configured, has a  static IP address and is directly accessible from the Internet.  The IPsec tunnel will be terminated as a virtual host on the  MRD-3xx with IP address 11.22.33.44 and will be terminated  on a LAN subnet at the router with address 192.168.2.0/24 Internet 3G Network IPSec VPN tunnel MRD-3XX modem Router Dynamic and private Static IP address IP address 123.123.123.123 Viritual Host LAN Subnet 11.22.33.44 192.168.2.0/24 Figure 94: IPsec configuration example network. Tunnel Configuration To start select the IPsec main page, by first clicking VPN on ...
  • Page 131 Figure 95: IPsec tunnel configuration. To configure the tunnel as describe the following parameters  are entered: Label: Test Enabled: On (Checked) Local interface: WLS Local nexthop: Auto Remote host: 123.123.123.123 Operating mode: Tunnel Initiate tunnel: On (Checked) Init rekeying, margin (mins) & fuzz:   Init rekeying: On (Checked)   Margin: 10 Minutes   Fuzz: 100% Dead peer detection delay & timeout (sec):    Delay: 0   Timeout: 0 6623-3201...
  • Page 132 Once entered click the Next button to continue to Phase 1  configuration. Phase 1 Configuration The Phase 1 Configuration page is shown in Figure 96. In this  phase the authentication method is set to pre-shared keys and  the key entered. The remote ID is xy.example.com and local  ID is ab.example.com. As the wireless IP address is dynamic  and private the network provider will use Network Address  Translation (NAT) so main mode cannot be used for the  negotiation mode requiring the negotiating mode to be set  to aggressive mode. The IKE proposal will use Triple DES as  the encryption algorithm, SH1 for authentication and Diffie- Hellman group 3. The IKE lifetime will be left at the default  value of 60 minutes. Figure 96: IPsec phase 1 configuration. 6623-3201...
  • Page 133 To achieve the configuration described the following param- eters are entered: Authentication method: Pre-shared key  Pre-shared key:    New: Checked   Key: abcdef Certificate: N/A Remote ID: @ab.example.com Local ID: @xy.example.com Negotiation mode: Aggressive mode IKE proposal:    Encryption Algorithm: 3DES   Authentication Algorithm: SHA1   Diffie-Hellman Group: DH Grp 2 (1024) IKE lifetime (mins): 60 Once entered click the Next button to continue to Phase 2  configuration. Phase 2 Configuration The Phase 2 Configuration page is shown in Figure 97, this  page also include the Tunnel network settings. For the Phase  2 configuration the ESP proposal encryption algorithm is set  to Triple DES and the authentication algorithm set to SHA1.  Perfect forward secrecy will not be enabled and the key life- time will be left at the default value of 480 minutes. 6623-3201...
  • Page 134 Figure 97: IPsec phase 2 and tunnel configuration. The configuration described requires the following parameters  to be entered: ESP proposal:    Encryption Algorithm: 3DES   Authentication Algorithm: SHA1 Perfect forward secrecy & group:    Perfect_forward_secrecy: Off (un-checked)   Diffie-Hellman Group: DH Grp 2 (1024)    (Non-selectable default value) Key lifetime (mins): 480 6623-3201...
  • Page 135 Tunnel Network Settings The local tunnel will be configured as a virtual host with the  IP address 11.22.33.44 and the remote connection will be to  the LAN 192.168.2.0/24.  For this configuration the following  parameters are entered: Enabled: Checked Local:   Network: Virtual Host   Address: 11.22.33.44 Remote:   Network: Specify a subnet   Address: 192.168.2.0/24 To complete the process of adding the tunnel click the  Update button. The tunnel will be saved and the General IPsec  Configuration page will again be displayed, now with the new  tunnel added to the Tunnels table, a shown in Figure 98. Figure 98: IPsec based VPN main page with new tunnel listed in Tunnels table. 6623-3201...
  • Page 136 Enable IPsec To complete the configuration in the General IPsec  Configuration enable IPsec by checking the enabled check-box,  and as the tunnel will traverse a NAT enable NAT traversal.  Click Update to save the settings. Figure 99: IPsec based VPN main page, with IPsec enabled. IPsec Status Once the settings have been save IPsec will start and attempt  to establish a tunnel with the remote host, note this may take  several minutes to complete. To check the status of the tunnel  click Status on the main menu then VPN on the sub-menu, a  page similar to that shown in Figure 100 will be displayed. If  the Status of the tunnel is Connected then the tunnel has been  established and data can be passed over it. To obtain further details on the VPN connection click the link  Detailed IPsec status, a page similar to that shown in Figure 101 will be displayed. This information is usually only required  if the link is not behaving as expected or if the tunnel is not  able to be established. 6623-3201...
  • Page 137 Figure 100: IPsec connection status. Figure 101: IPsec connection status detail. 6623-3201...

  • Page 138: Pptp And L2Tp

    6.3 PPTP and L2TP 6.3.1 Point-to-Point-Tunneling-Protocol The Point-to-Point-Tunneling-Protocol (PPTP) is used for  establishing Virtual Private Network (VPN) tunnels over an  insecure network such as the Internet. PPTP uses a client  server module for establishing the VPN, the MRD-3xx pro- vides a PPTP client. PPTP was developed by Microsoft and is  provided with most versions of the Windows operating sys- tem. An advantage of PPTP is it is easy to configure.  6623-3201...

  • Page 139: Layer 2 Tunnel Protocol

    6.3.2 Layer 2 Tunnel Protocol The Layer 2 Tunnel Protocol (L2TP) is an Internet Engineering  Task Force (IETF) standard which combines the best features  of two existing tunneling protocols, Layer 2 Forwarding (L2F)  developed by Cisco and the Point-to-Point Tunneling Protocol  (PPTP). L2TP can be viewed as an extension to the Point- to-Point Protocol (PPP). One endpoint of an L2TP tunnel is  called the L2TP Network Server (LNS), the LNS waits for  new tunnels to be established. The other endpoint is called  the L2TP Access Concentrator (LAC), the LAC initiates tunnel  connections to the LNS, the MRD-3xx implements an L2TP  LAC. Once the L2TP tunnel has been established the traffic  over the tunnel is bidirectional. 6623-3201...

  • Page 140: Pptp And L2Tp Configuration

    6.3.3 PPTP and L2TP Configuration To access the PPTP & L2TP configuration page click VPN on  the main menu then PPTP & L2TP on the sub-menu. The PPTP  & L2TP page will list the currently configured tunnels, Figure 102 shows the page with no tunnels configured. Figure 102: The PPTP & L2TP main page. 6623-3201...

  • Page 141: Add A Pptp Or L2Tp Tunnel

    6.3.4 Add a PPTP or L2TP Tunnel To add a new PPTP or L2TP tunnel click the Add new tunnel  button, the Add new tunnel page will be displayed as shown in  Figure 103. Figure 103: The PPTP & L2TP Add new tunnel page. Add new tunnel options Label A label or name for the tunnel. Enabled Check the box to enable the tunnel. Type Select the type of tunnel from the drop-down list, the options  are: PPTP Point-to-Point Tunneling Protocol l2TP  Layer 2 Tunneling Protocol 6623-3201...
  • Page 142 Remote host Specify the IP address or fully qualified domain name of the  remote host. Domain Specify the Windows network domain. (Optional) Username The username for authentication. Password Specify the password for connection with the remote host. To  set a new password click the New check-box and then enter  the password. Specify Maximum Transmission Unit (MTU), the size (in bytes)  of the largest packet which can be sent over the IPsec tunnel.  Default value is 1400. Use peer DNS Check the box to enable peer DNS. 6623-3201...

  • Page 143: Pptp Configuration Example

    6.3.5 PPTP Configuration Example The following is an example of connecting a PPTP tunnel to  a PPTP VPN server, Figure 104 illustrates the network which  will be established. For this example a connection will be  established from the MRD-3xx to an PPTP server. The tunnel  will be called test, it is of type PPTP and the remote host is at  IP address 123.123.123.123. The domain is x, the username is  qwerty and the password password. The MTU setting is left at  the default of 1400 and peer DNS is enabled. PPTP VPN tunnel PPTP Server Figure 104: SSL based VPN example network. 6623-3201...
  • Page 144 To access the PPTP & L2TP configuration page click VPN on  the main menu then PPTP & L2TP on the sub-menu. The PPTP  & L2TP page will then be displayed, to add a tunnel click the  Add new tunnel button on the main PPTP & L2TP page, the  Add new tunnel page will be displayed. Figure 105 illustrates  the PPTP add tunnel page with the parameters entered for  the configuration described above. Figure 105: The PPTP & L2TP main page. 6623-3201...
  • Page 145 The following settings are used to configured the tunnel as  described: Label: Test Enabled: On (Checked) Type: PPTP Remote host: 123.123.123.123 Domain: x Username: qwerty Password: password MTU: 1400 Use peer DNS: On (Checked) Once the options have been entered click the Update button  to add the tunnel. The settings will be saved and the main PPTP & L2TP page  will be displayed with the new tunnel added to the Tunnels  table, as shown in Figure 106. The MRD-3xx will now attempt  to establish a connection with the PPTP server. Figure 106: The PPTP & L2TP main page. 6623-3201...
  • Page 146 To check the status of the page click Status on the main menu  and then VPN on the sub-menu, the VPN status page will then  be displayed. Figure 107 is the status page for the PPTP VPN  created in this example. Figure 107: The PPTP & L2TP main page. The status of the tunnel is connected, indicating that the tun- nel has been established and traffic can flow. The status page  also indicates the local IP address of the tunnels and the  number of bytes that have been received and transmitted. 6623-3201...

  • Page 147: Multiple Vpn Tunnels

    6.4 Multiple VPN Tunnels The MRD-3xx allows multiple VPN tunnels to operate simul- taneously. One SSL VPN, up to 3 IPsec tunnels and up to 3  PPTP/L2TP tunnels can be configure to operate simultane- ously. Figure 108 is an example of the VPN Status page with  one SSL, one IPsec and one PPTP VPN tunnel operating. Figure 108: The VPN status page showing 3 active VPN connections 6623-3201...

  • Page 148: Certificate Management

    6.5 Certificate Management Digital certificates are a form of digital identification used for  authentication. A digital certificate contains information that  identifies a device or user, they is issued in the context of a  Public Key Infrastructure (PKI), which uses public-key/private- key encryption to ensure security. The MRD-3xx unit supports  X.509 digital certificates (International Telecommunications  Union Recommendation X.509), including SSL (Secure Sockets  Layer) certificates.  To access the certificate management page select VPN from  the main menu and Certificates from the sub-menu, the page  shown in Figure 109 will be displayed. The top part of the page  lists the currently loaded certificates and second section is for  uploading a new certificate to the MRD-3xx. Figure 109: VPN Certificate management. 6623-3201...

  • Page 149: Add A Certificate

    6.5.1 Add a Certificate To add a certificate click the Browse button, then navigate to  the certificate and select it. In the example shown in Figure 110, the file demoClient.p12 is selected this contains the certifi- cate demoClient. Figure 110: Uploading a VPN Certificate. 6623-3201...
  • Page 150 To upload the certificate to the MRD-3xx click the Upload to MRD-3xx button the page will be updated and the certificate  will be added to the Certificates table as shown in Figure 111. Figure 111: VPN Certificate table listing the uploaded certificate. 6623-3201...

  • Page 151: Checking The Certificate Details

    6.5.2 Checking the Certificate Details Once uploaded the details of a certificate can be displayed by  clicking view located in the detail column of the table, Figure 112 is an example of the details of a certificate. Figure 112: VPN Certificate details. 6623-3201...

  • Page 152: Adding Further Certificates

    6.5.3 Adding Further Certificates Additional certificates can be uploaded to the MRD-3xx, the  process is the same as adding the first certificate. For each  additional certificate click the Browse button, navigate to the  certificate then click the Upload to MRD-3xx button. Figure 113: Adding a second VPN Certificate. 6623-3201...
  • Page 153 An example of adding a second certificate is shown in Figure 113. In this example the file demoClient2.p12 is selected, this  file contains the certificate demoClient2, Figure 114 shows the  certificate table with the second certificate added. Figure 114: VPN Certificate table listing both uploaded certificates. 6623-3201...

  • Page 154: Deleting A Certificate

    6.5.4 Deleting a Certificate A certificate can be deleted by clicking the bin icon in the  Delete column of the certificate to be deleted. When the icon  is clicked a warning box will be displayed. Click OK to confirm  the deletion or Cancel to prevent the certificate from being  deleted. For example to delete certificate 2 from the table shown in  Figure 114, click the bin icon in row 2 of the table. A warning  box will now be displayed as shown if Figure 115, click OK. Figure: 115 Deleting a VPN Certificate 6623-3201...
  • Page 155 The certificate table will be displayed with certificate removed,  as shown in Figure 116. Figure 116: VPN Certificate list with the second certificate deleted 6623-3201...

  • Page 156: Serial Server

    7 Serial Server The serial server is used to transfer data between a physical  serial port and an IP connection. The IP connection can be  via the Ethernet or the wireless connection of the unit. The  remote host that connects to the serial server could be a  SCADA master, desktop PC or even another unit.  7.1 Selecting a port function Each port of the serial server can be configured to operate  with a different function. The function selected for an applica- tion will be determined by the serial equipment attached to  the port and the type of IP connection required. The unit  offers the following functions: Disabled Serial server functionality is disabled for the port. Raw TCP Client/Server The serial server function create a transparent pipe between  the serial port and a TCP network connection. Example uses  of this mode include connecting to a remote PC running serial  port redirector software with virtual COM ports or connect- ing two units back-to-back to create a serial bridge. Raw UDP This function is similar to Raw TCP Client/Server mode, but  uses UDP as the network transport. UDP has lower over- heads than TCP, but as UDP offers no lost packet detection,  this function should only be used with serial protocols than  can provide the necessary error correction. Unit Emulator The serial server provides an AT command interface at the  serial port that simulates a traditional dial-up unit. However,  instead of dialing out phone calls, the emulator creates TCP  network connections. The emulator will also simulate incom- ing calls if it receives a TCP connection. The function is suited  to applications where equipment attached to the serial port  expects to see a dial-up unit. 6623-3201...
  • Page 157 DNP3 IP-Serial Gateway The serial server will act as a DNP3 outstation to be polled  by a SCADA master. The outstation mode is configurable as  a TCP listen endpoint, TCP dual-function endpoint or UDP  endpoint. Modbus IP-Serial Gateway The serial server will perform conversion from Modbus/ TCP to Modbus/RTU or Modbus/ASCII, allowing polling by a  Modbus/TCP master. Telnet (RFC 2217) Server The serial server will function as a Telnet server, including the  protocol extensions defined in RFC 2217. In addition to trans- porting data, this mode also allows a remote PC with appro- priate software to change the port configuration (baud rate  etc) and read and write the handshaking lines during a session. 6623-3201...

  • Page 158: Common Configuration Options

    7.2 Common configuration options 7.2.1 Serial port settings Regardless of the selected port function, each port needs  to be configured to match the parameters of the equipment  attached to the port. As the configuration of a port function is  edited, the options displayed in Figure 117 will be shown. Figure 117: Common port configuration parameters For each port, the following parameters can be set: Baudrate The port can be configured for any standard baudrate from  300 baud to 230400 baud. Databits The port can be configured for operation with 5 to 8 databits.  Stopbits The port can be configured for operation with 1 or 2 stopbits. Parity The port can be configured for none, odd or even parity. Flow control The serial server port can be configured for the following  modes: 6623-3201...
  • Page 159 None No flow control is enabled. Hardware The port will use the RTS and CTS handshake lines to control  the flow of data. Software The port will use XON/XOFF software flow control. The  XOFF character is hex 0x11. The XON character is hex 0x13. Both The port will use both hardware and software flow control. Line state when disconnected This field determines the state of the port's RTS and DTR  handshaking lines while the port is disconnected. To set a sig- nal active while disconnected, check the associated box. Most equipment uses 8 databits, 1 stopbit and no parity, how- ever, this should be verified against the reference manual for  the equipment. 6623-3201...

  • Page 160: Packet Framer Settings

    7.2.2 Packet framer settings The packet framer is available for all port functions that  carry raw data (these settings are not available for the DNP3  IP-Serial Gateway or Modbus IP-Serial Gateway). The packet  framer allows data received from the serial port to be pack- etised into larger blocks, reducing the overhead incurred when  repeated packets of small sizes are sent over the network. Figure 118: Packet framing configuration options The following options control the packet framer: Maximum packet size This value determines the largest packet size to be passed to  the network for transmission. If set to 0, the packet framer  will be disabled and data will bypass the packet framer. The  value chosen will depend on the application, however, the  value should not be set higher than 1024, so the packet will fit  a conventional Ethernet frame. Minimum size before sending In some applications, it may not be desirable to wait for the  exact number of bytes specified in Maximum packet size  before sending the packet. The value set in this field, which  must be less than or equal to the Maximum packet size, acts  as a send threshold. Once the accumulated byte count reaches  this value, the packet will be sent.  6623-3201...
  • Page 161 Timeout before sending The timeout allows data accumulated by the framer to be sent  after a specified period of serial receive inactivity. This pre- vents data from being held in the framer indefinitely should no  more data arrive on the serial port. The timeout is set in 100  millisecond units, so, for example, a one second timeout would  be set as a value of 10. Immediate send character matching This field allows the framer to be configured so that if certain  characters are received the accumulated data is immediately  sent. The character matching can function in two modes: Match any character If either of the characters set the in Match characters field are  received, the data will be sent immediately. Match all characters If both of the characters set in the Match characters field are  received in order, the data will be sent immediately. Match characters Used in conjunction with the Immediate send character  matching field, these characters determine what data will  cause an immediate send. The values are entered as a hex  value, so, for example, a newline (ASCII 10) would be entered  as 0A. To delete a value, clear the text in the field. Characters to wait after match Used in conjunction with the Immediate send character  matching field, this count determines how many additional  characters will be received after an immediate match charac- ter is detected. This is useful if some trailing characters always ...

  • Page 162: Raw Tcp Client/Server

    7.3 Raw TCP Client/Server 7.3.1 Description The serial server will create a transparent pipe between the  serial port and a TCP network connection. Example uses of  this mode include connecting to a remote PC running serial  port redirector software with virtual COM ports or connect- ing two units back-to-back to create a serial bridge. 7.3.2 Selecting the port function The serial server configuration is accessed by selecting Serial Server from the main menu and Port Setup from the submenu.  To enable a port for Raw TCP Client/Server function, select  Raw TCP Client/Server from the Function column of the appro- priate port. Once selected, click Update to confirm the change.  Once confirmed, the port will display as shown in Figure 119. Figure 119: Selecting Raw TCP Client/Server function 6623-3201...

  • Page 163: Configuring The Port Function

    7.3.3 Configuring the port function Once the port function has been selected, click the pencil icon  in the Edit column to change the configuration of the port. Figure 120: Raw TCP Client/Server configuration 6623-3201...
  • Page 164 As shown in Figure 120, the following options can be set for  the Raw TCP Client/Server: Network type The Raw TCP serial server can be configured for three differ- ent network modes: Accept The serial server will listen for TCP connections on  the specified port number. Connect The serial server will establish a TCP connection to  the specified address and port number. Accept and Connect The serial server will normally listen for TCP connec- tions on the specified port number, however, if data is  received at the serial port and no connection exists,  it  will attempt to establish a connection to the specified  address and port number. Connect address For Connect or Accept and Connect network modes, this is the  address the server will attempt to connect to. The address  entered should be in IPv4 decimal dotted notation. Connect port For Connect or Accept and Connect network modes, this is the  TCP port number the server will attempt to connect to. The  value entered should be a valid TCP port number. Timeout after failed connect For Connect or Accept and Connect network modes, if a con- nection request has failed, the server will wait the amount ...
  • Page 165 Failed connects before giving up For Accept and Connect network modes, the serial server will  attempt to establish a connection for the number of times  specified in this field before giving up and waiting for a con- nection to be accepted. Accept port For Accept or Accept and Connect network modes,  this is the  TCP port number that the server will listen for connections  Drop current if new accept For Accept or Accept and Connect network modes, if a TCP  connection is currently active on the serial server, and a  new connection request is accepted, this field determines  the action that will be taken. If set, the new connection will  become the active connection and the existing connection will  be closed. If not set, the existing connection will remain active  and the newly received connection will be closed. TCP keepalive time When set to a value greater than 0, TCP keepalives will be  enabled for connections, with probes sent at the frequency  specified (minutes). This may assist in detecting failed connec- tions. For information on setting the Port Configuration, see section  7.2.1. For information on setting the Packet Framing, see sec- tion 7.2.2. 6623-3201...

  • Page 166: Raw Udp

    7.4 Raw UDP 7.4.1 Description This function is similar to Raw TCP Client/Server mode, but  uses UDP as the network transport. UDP has lower over- heads than TCP, but as UDP offers no lost packet detection,  this function should only be used with serial protocols than  can provide the necessary error correction. 7.4.2 Selecting the port function The serial server configuration is accessed by selecting Serial Server from the main menu and Port Setup from the submenu.  To enable a port for Raw UDP function, select Raw UDP from  the Function column of the appropriate port. Once selected,  click Update to confirm the change. Once confirmed, the port  will display as shown in Figure 121. Figure 121: Selecting Raw UDP function 6623-3201...

  • Page 167: Configuring The Port Function

    7.4.3 Configuring the port function Once the port function has been selected, click the pencil icon  in the Edit column to change the configuration of the port. Figure 122: Raw UDP configuration 6623-3201...
  • Page 168 As shown in Figure: 122, the following options can be set for  Raw UDP mode: Send address This is the address the serial server will send UDP packets to.  The address entered should be in IPv4 decimal dotted nota- tion. Send port This is the UDP port number the server will send UDP pack- ets to. The value entered should be a valid UDP port number. Local receive port This is the UDP port number that UDP packets will be  received on at the unit. The value entered should be a valid  UDP port number. For information on setting the Port Configuration, see section  7.2.1. For information on setting the Packet Framing, see sec- tion 7.2.2. 6623-3201...

  • Page 169: Unit Emulator

    7.5 Unit Emulator 7.5.1 Description The serial server provides an AT command interface at the  serial port that simulates a traditional dial-up unit. However,  instead of dialing out phone calls, the emulator creates TCP  network connections. The emulator will also simulate incom- ing calls if it receives a TCP connection. The function is suited  to applications where equipment attached to the serial port  expects to see a dial-up unit. 7.5.2 Selecting the port function The serial server configuration is accessed by selecting Serial Server from the main menu and Port Setup from the submenu.  To enable a port for the Unit Emulator function, select Unit Emulator from the Function column of the appropriate port.  Once selected, click Update to confirm the change. Once con- firmed, the port will display as shown in Figure 123. Figure 123: Selecting Unit Emulator function 6623-3201...

  • Page 170: Configuring The Port Function

    7.5.3 Configuring the port function Once the port function has been selected, click the pencil icon  in the Edit column to change the configuration of the port. Figure 124:Unit Emulator configuration 6623-3201...
  • Page 171 As shown in Figure 124, the following options can be set for  the Unit Emulator: Dial out destination address This field determines how the emulator will handle dial  requests from the serial port (ATDxxxx commands). The dial  address may be set by: Fixed destination Regardless of the value entered after the ATD command, the  emulator will always connect to the host specified in the Fixed  destination address and Fixed destination port fields. From dial string The emulator will parse the ATD command to extract the  destination address and port number. The examples below  show the two different formats that can be used to create a  connection to the address 192.168.2.200 and port number  6001. Dotted Dial string is ATD 192.168.2.220:6001 Padded Dial string is ATD 0109020106080202020006001 From phone book When a dial command is entered, the emulator will look up  the unit's phone book and attempt to translate the number to  an address and port number. More details on the phone book  can be found in section 7.9. Accept incoming calls When set, the emulator will listen for TCP connections on the  port number specified in the Accept port field. When a con- nection is received, the emulator will indicate a ring condition  at the serial port. The equipment can then answer the call or  wait for the emulator to automatically answer. Once answered, ...
  • Page 172 Accept port This is the TCP port number that the server will listen for  connections on. On-answer signaling When set, the emulator will behave as follows: When accept- ing an incoming connection, the emulator will transmit a single  byte to the remote host when the call is answered. When  establishing an outgoing connection, the emulator will wait  for the first byte of data before signaling that the call has con- nected at the serial port. TCP keepalive time When set to a value greater than 0, TCP keepalives will be  enabled for connections, with probes sent at the frequency  specified (minutes). This may assist in detecting failed connec- tions. Rings until answered This field determines the default number of rings the emulator  will wait before automatically answering a call. This is equiva- lent to setting the ATS0 S-Register in a conventional unit. DCD mode This field determines the default state of the Data Carrier  Detect (DCD) handshaking line. The following modes are sup- ported: Always on Regardless of the online state of the emulator, the DCD line  will be active (equivalent to AT&C0). Follow carrier The DCD line will be active when the emulator is in the  online state (equivalent to AT&C1). 6623-3201...
  • Page 173 DTR function This field determines the default response of the unit to  changes in the Data Terminal Ready (DTR) handshaking line.  The following modes are supported: Ignore The emulator will ignore changes to the state of DTR (equiva- lent to AT&D0). Command mode If the DTR line transitions from the active to inactive state  while the emulator is on online data mode, the emulator will  drop to AT command mode (equivalent to AT&D1). Hangup If the DTR line transitions from the active to inactive state  while the emulator is on online data mode, the emulator will  terminate the current call (equivalent to AT&D2). For information on setting the Port Configuration, see section  7.2.1. For information on setting the Packet Framing, see sec- tion 7.2.2. 6623-3201...

  • Page 174: Dnp3 Ip-Serial Gateway

    7.6 DNP3 IP-Serial Gateway 7.6.1 Description The DNP3 IP-Serial Gateway carries out translation between  DNP3 Serial and DNP3 TCP protocols. This has several advan- tages: •  DNP3 frames are not fragmented. The translation soft- ware identifies and transmits DNP3 link layer frames  without fragmentation, ensuring reliable transport of the  DNP3 data in a single TCP or UDP packet.  •  Sever serial port emulation is not required. The SCADA  server can communicate with the DNP3 device directly  via TCP rather than through serial port emulation soft- ware. This reduces the complexity and number of soft- ware layers required on the SCADA servers.  •  Dual function endpoint. The remote station can return  unsolicited messages, DNP3 serial data to the SCADA  server. 6623-3201...

  • Page 175: Selecting The Port Function

    7.6.2 Selecting the port function The serial server configuration is accessed by selecting Serial Server from the main menu and Port Setup from the submenu.  To enable a port for the DNP3 IP-Serial Gateway function,  select DNP3 IP-Serial Gateway from the Function column of  the appropriate port. Once selected, click Update to confirm  the change. Once confirmed, the port will display as shown in  Figure 125. Figure:125: Selecting DNP3 Gateway function 6623-3201...

  • Page 176: Configuring The Port Function

    7.6.3 Configuring the port function Once the port function has been selected, click the pencil icon  in the Edit column to change the configuration of the port. Figure 126: DNP3 Gateway configuration 6623-3201...
  • Page 177 As shown in Figure 126 the following options can be set for  the DNP3 Serial-IP Gateway: Station type The DNP3 IP-Serial Gateway can be configured to operate in  three modes: TCP listen endpoint The serial server will listen for TCP connections on the speci- fied port number. TCP dual endpoint The serial server will normally listen for TCP connections on  the specified port number, however, if a valid DNP packet is  received at the serial port and no connection exists, a connec- tion will be established to the specified master address. This  is useful if a SCADA master will poll periodically but facility is  required to support unsolicited responses. UDP endpoint The serial server will operate in UDP mode,  receiving data  on the specified port number and transmitting responses to  the specified master. Listen port For all station types, this determines the TCP/UDP port  the serial server will listen for connections (TCP) or data  (UDP) on. The value entered should be a valid TCP/UDP port  number. The default DNP3 port number is 20000. Master address This is the IP address of the SCADA master. The address  entered should be in IPv4 decimal dotted notation. Master port This is the TCP/UDP port the serial server will connect to  (TCP) or transmit to (UDP). The value entered should be a  valid TCP/UDP port number. The default DNP3 port number ...
  • Page 178 Only accept data from master IP address When set, this field will cause the serial server to only accept  data sourced from the address set in the Master address field. Timeout for TCP connections For TCP connections only, when this field is set to a value  greater than 0, the serial server will close connections that  have had no receive activity for longer than specified (sec- onds). Drop existing TCP connection if new received For TCP connections only, if a connection is currently active  on the serial server, and a new connection request is accepted,  this field determines the action that will be taken. If set, the  new connection will become the active connection and the  existing connection will be closed. If not set, the existing con- nection will remain active and the newly received connection  will be closed. Timeout between failed TCP connects For TCP dual endpoint only, if a connection request has failed,  the server will wait the amount of time (in seconds) specified  in this field before attempting another connection request.  While a short timeout may cause the connection to be estab- lished more quickly, it may also cause greater network traffic if ...
  • Page 179 Master address and port Packets transmitted over network will always be sent to the  address specified in the Master address and Master port fields. Address and port of last request Packets transmitted over network will be sent to the source  address of the most recently received packet. If no packets  have been received, packets will be transmitted to the address  specified in the Master address and Master port fields. For information on setting the Port Configuration, see section  7.2.1. 6623-3201...

  • Page 180: Modbus Ip-Serial Gateway

    7.7 Modbus IP-Serial Gateway 7.7.1 Description The Modbus IP-Serial Gateway carries out translation between  Modbus/TCP and Modbus/RTU or Modbus/ASCII. This means  that Modbus serial slaves can be directly attached to the unit's  serial ports without any external protocol convertors. 7.7.2 Selecting the port function The serial server configuration is accessed by selecting Serial Server from the main menu and Port Setup from the submenu.  To enable a port for the Modbus IP-Serial Gateway function,  select Modbus IP-Serial Gateway from the Function column of  the appropriate port. Once selected, click Update to confirm  the change. Once confirmed, the port will display as shown in  Figure 127. Figure 127: Selecting Modbus Gateway function 6623-3201...

  • Page 181: Configuring The Port Function

    7.7.3 Configuring the port function Once the port function has been selected, click the pencil icon  in the Edit column to change the configuration of the port. Figure 128: Modbus Gateway configuration As shown in Figure 128, the following options can be set for  the Modbus Gateway: TCP accept port This field determines the TCP port number that the serial  server will listen for connections on. The value entered should  be a valid TCP port number. The default Modbus/TCP port  number is 502. Drop current if new accept If a connection is currently active on the serial server, and a  new connection request is accepted,  this field determines  the action that will be taken. If set, the new connection will  become the active connection and the existing connection will  be closed. If not set, the existing connection will remain active  and the newly received connection will be closed. 6623-3201...
  • Page 182 Connection timeout When this field is set to a value greater than 0, the serial serv- er will close connections that have had no network receive  activity for longer than the specified period Transmission mode Select RTU or ASCII, based on the Modbus slave equipment  attached to the port. Response timeout This is the timeout (in milliseconds) to wait for a response  from a serial slave device before retrying the request or  returning an error to the Modbus master. RTU framing timeout This is the timeout (in milliseconds) the the serial server will  use to determine the boundaries of Modbus/RTU packets  received on the serial port. Retries Should no valid response be recieved from a Modbus slave,  the value in this field determines the number of times the  serial server will retransmit requests before giving up. For information on setting the Port Configuration, see section  7.2.1. 6623-3201...

  • Page 183: Telnet (Rfc 2217) Server

    7.8 Telnet (RFC 2217) Server 7.8.1 Description Telnet server mode is ideal for connecting serial terminal  equipment, as a standard Telnet client can be used to connect  to the server. The Telnet sever mode also supports the RFC 2217 exten- sions, which, when used with a remote PC running appropri- ate serial port redirector software, allow port configuration  changes (such as the baudrate) to be transmitted over the  network to the unit. Changes in unit handshaking lines are  also transmitted. 6623-3201...

  • Page 184: Selecting The Port Function

    7.8.2 Selecting the port function The serial server configuration is accessed by selecting Serial Server from the main menu and Port Setup from the submenu.  To enable a port for the Telnet Server function, select Telnet (RFC 2217) Server from the Function column of the appropri- ate port. Once selected, click Update to confirm the change.  Once confirmed, the port will display as shown in Figure 129. Figure 129: Selecting Telnet Server function 6623-3201...

  • Page 185: Configuring The Port Function

    7.8.3 Configuring the port function Once the port function has been selected, click the pencil icon  in the Edit colum to change the configuration of the port. Figure 130: Telnet Server configuration 6623-3201...
  • Page 186 As shown in Figure 130, the following options can be set for  the Telnet Server: Accept port This field determines the TCP port number that the serial  server will listen for connections on. The value entered should  be a valid TCP port number. Drop current if new accept If a connection is currently active on the serial server, and  a new connection request is accepted, this field determines  the action that will be taken. If set, the new connection will  become the active connection and the existing connection will  be closed. If not set, the existing connection will remain active  and the newly received connection will be closed. TCP keepalive time When set to a value greater than 0, TCP keepalives will be  enabled for connections, with probes sent at the frequency  specified (minutes). This may assist in detecting failed connec- tions. For information on setting the Port Configuration, see section  7.2.1. For information on setting the Packet Framing, see sec- tion 7.2.2. 6623-3201...

  • Page 187: Phone Book

    7.9 Phone Book 7.9.1 Description The Phone Book works in conjunction with the Unit Emulator  to provide a translation table from traditional phone num- bers to IP addresses and port numbers. This allows the Unit  Emulator to be used as a drop in replacement for a traditional  dial-up unit and to create IP connections rather than phone  calls. For more information on the Unit Emulator, see section 7.5. To access the Phone Book configuration, select Serial Server  from the main menu and Phone Book from the submenu. The  page will initially have no entries, as shown in Figure 131. Figure 131: Phone Book with no entries configured 6623-3201...

  • Page 188: Phone Book Options

    7.9.2 Phone Book Options To access the phone book options click the Add new phone book entry button on the main Phone Boook page. Figure 132  shows the page for entering a new entry. Figure 132: Page for adding Phone Book entry The following options can be set for each entry: Dial string This is the phone number that the dial command will attempt  to match against. Connect address This is the IP address the serial server will  attempt to con- nect to. Connect port This is the IP port number the serial server will attempt to  connect to. 6623-3201...

  • Page 189: Adding A New Phone Book Entry

    7.9.3 Adding a new phone book entry From the main phone book page click the Add new phone book entry button. An example of adding a new entry is  shown in Figure 133. In this example a new entry is cre- ated that translates dial string 123 to connection address  123.123.123.123:123. Figure 133: Adding a Phone Book Entry 6623-3201...
  • Page 190 Click Update to save the new entry. The phone book table will  be updated to include the new entry as shown in Figure 134. Figure 134: The Phone Book page with a single entry To add a second entry click the Add new phone book entry  button. In the example shown in Figure 135, an entry is cre- ated which translates dial string 234 to connection address  234.234.234.234:234. Figure 135: Adding a second entry 6623-3201...
  • Page 191 To commit the new phone book entry to the table, click the  Update button. The main page will again be shown with the  new entry added, as seen in Figure 136. Figure 136: The phone book page with two phone book entires 6623-3201...

  • Page 192: Editing A Phone Book Entry

    7.9.4 Editing a phone book entry A phone book entry can be editied by clicking the pencil icon  in the Edit column of the entry to be changed. Once clicked,  the details of the entry will be displayed in the same table as  when creating a new phone book entry. As an example, to edit the second phone book entry in the  table, click the pencil icon in the second row of the table. To  change the connect port of the entry to 235, changes were  made as shown in Figure 137. Figure 137: Editing a phone book entry To save the changes click the Update button or to lose any  changes click the Cancel button. The main page will again be  displayed as shown in Figure 138, with the changes for entry 2  added to the table. 6623-3201...

  • Page 193: Deleting A Phone Book Entry

    Figure 138: Main phone book page with revised entry 7.9.5 Deleting a phone book entry A phone book entry can be deleted by clicking the bin icon in  the Delete column of the entry to be deleted. A warning box  will be displayed. Click OK to confirm the deletion. For example, to delete phone book entry 2 from the table  shown in Figure 138, click the bin icon in row 2 of the table.  A warning box will now be displayed as shown if Figure 139.  Click OK. 6623-3201...
  • Page 194 Figure 139: Deleting a phone book entry The phone book table will be displyed with the entry  removed, as shown in Figure 140. Figure 140: Phone boook table after deletion of entry 6623-3201...
  • Page 195 Phone +46 16 42 80 00  Fax +46 16 42 80 01  E-mail: info@westermo.se  Westermo Web site: www.westermo.com Subsidiaries Westermo Data Communications AB  Westermo Data Communications S.A.R.L.  SE-724 81 Västerås  9 Chemin de Chilly 91160 CHAMPLAN  Phone: +46 (0)16 42 80 00 • Fax: +46 (0)21 35 18 50  Tél : +33 1 69 10 21 00 • Fax : +33 1 69 10 21 01  info.sverige@westermo.se E-mail : infos@westermo.fr  Westermo Data Communications Ltd  Westermo Data Communications Pte Ltd  Talisman Business Centre • Duncan Road  2 Soon Wing Road #08-05  Park Gate, Southampton • SO31 7GA  Soon Wing Industrial Building  Phone: +44(0)1489 580-585 • Fax.:+44(0)1489 580586  Singapore 347893  E-Mail: sales@westermo.co.uk Phone +65 6743 9801 • Fax +65 6745 0670  E-mail: earnestphua@westermo.com.sg  Westermo Data Communications GmbH  Goethestraße 67, 68753 Waghäusel  Tel.: +49(0)7254-95400-0 • Fax.:+49(0)7254-95400-9  E-Mail: info@westermo.de   Westermo Teleindustri AB have distributors in several countries, contact us for further information.

This manual is also suitable for:

Mrd-330

Table of Contents
