B. FAQ ..................................................................................................................... 53
PPENDIX

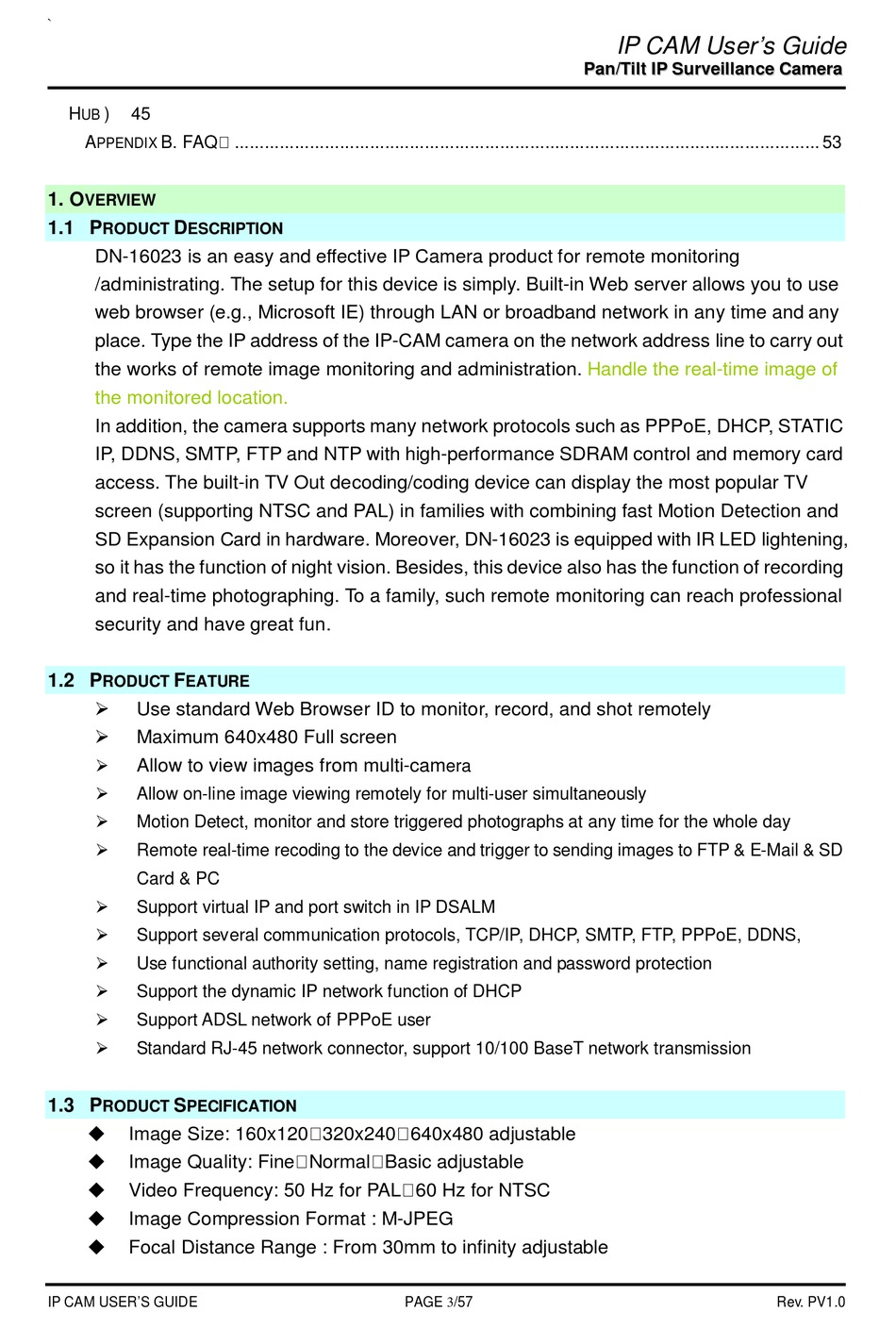

1. O
VERVIEW
1.1 P
D
RODUCT
ESCRIPTION
DN-16023 is an easy and effective IP Camera product for remote monitoring
/administrating. The setup for this device is simply. Built-in Web server allows you to use
web browser (e.g., Microsoft IE) through LAN or broadband network in any time and any
place. Type the IP address of the IP-CAM camera on the network address line to carry out
the works of remote image monitoring and administration.
the monitored location.
In addition, the camera supports many network protocols such as PPPoE, DHCP, STATIC
IP, DDNS, SMTP, FTP and NTP with high-performance SDRAM control and memory card
access. The built-in TV Out decoding/coding device can display the most popular TV
screen (supporting NTSC and PAL) in families with combining fast Motion Detection and
SD Expansion Card in hardware. Moreover, DN-16023 is equipped with IR LED lightening,
so it has the function of night vision. Besides, this device also has the function of recording
and real-time photographing. To a family, such remote monitoring can reach professional
security and have great fun.
1.2 P
F
RODUCT
EATURE
Use standard Web Browser ID to monitor, record, and shot remotely
Ø
Maximum 640x480 Full screen
Ø
Allow to view images from multi-cam
Ø
Allow on-line image viewing remotely for multi-user simultaneously
Ø
Ø
Motion Detect, monitor and store triggered photographs at any time for the whole day
Ø
Remote real-time recoding to the device and trigger to sending images to FTP & E-Mail & SD
Card & PC
Support virtual IP and port switch in IP DSALM
Ø
Ø
Support several communication protocols, TCP/IP, DHCP, SMTP, FTP, PPPoE, DDNS,
Ø
Use functional authority setting, name registration and password protection
Ø
Support the dynamic IP network function of DHCP
Support ADSL network of PPPoE user
Ø
Standard RJ-45 network connector, support 10/100 BaseT network transmission
Ø
1.3 P
S
RODUCT
PECIFICATION
u
Image Size: 160x120 320x240 640x480 adjustable
Image Quality: Fine Normal Basic adjustable
u
u
Video Frequency: 50 Hz for PAL 60 Hz for NTSC
u
Image Compression Format : M-JPEG
Focal Distance Range : From 30mm to infinity adjustable
u
IP CAM USER' S GUIDE
era
PAGE 3/57
IP CAM User' s Guide
P
a
n
/
T
i
l
t
I
P
S
u
r
v
e
i
l
l
a
n
P
a
n
/
T
i
l
t
I
P
S
u
r
v
e
i
l
l
a
n
Handle the real-time image of
c
e
C
a
m
e
r
a
c
e
C
a
m
e
r
a
Rev. PV1.0
