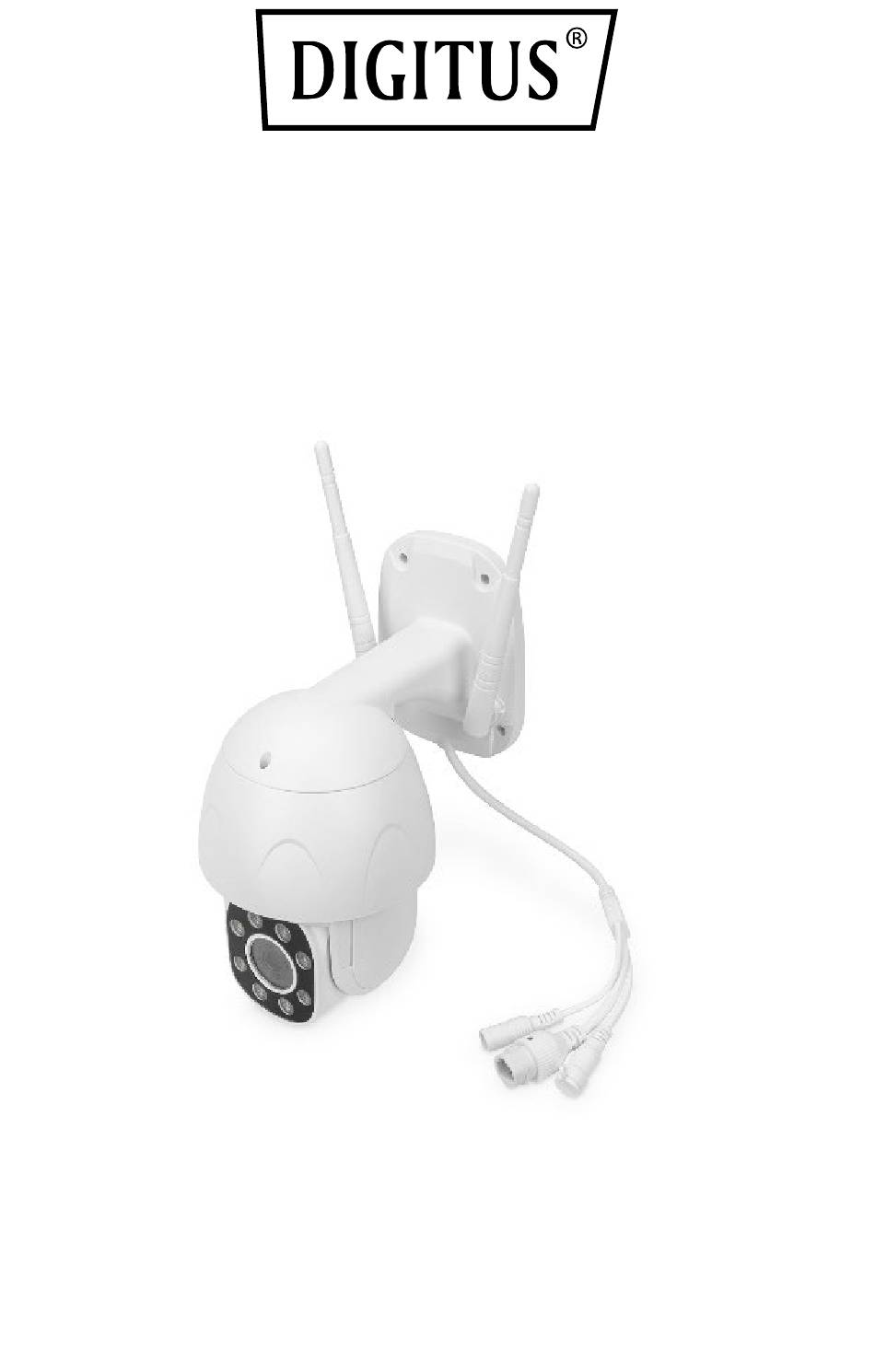

- Page 1 Smart Full HD PTZ Outdoor Camera with Auto Tracking, Dual LED, WiFi + Voice Control Quick Installation Guide DN-18604...
- Page 2 1. Introduction The weatherproof WiFi outdoor camera from DIGITUS® can be rotated 355° and panned 90° and is equipped with auto-tracking, this enables automatic tracking of movements within the field of view. Thanks to the wide-angle lens of 85° with razor-sharp Full HD resolution, you won't miss a single detail.
-
Page 3: Main Features
Thanks to the included bracket, the camera can be individually aligned and mounted. Go for security and flexibility with the voice-controlled Full HD PTZ outdoor camera from DIGITUS®. 2. Main features • Full HD video resolution 1080p with a wide angle of 85°. -
Page 4: Package Content
3. Package Content • 1 x Smart full HD PTZ outdoor camera with auto- tracking, dual-LED, WiFi + voice control • 1 x Power adapter • 1 x Mounting material • 1 x Quick Start Guide IMPORTANT: If any part is missing or damaged, please contact your local dealer or reseller for assistance. - Page 5 • Built-in speaker and microphone • Two-way audio communication / compression: G.711 • Connection types: Wireless LAN / LAN RJ45 • wireless LAN: 2.4 GHz (IEEE 802.11b/g/n) - dual antenna • LAN: RJ45 10/100M • Recording modes: Manual / Motion / Schedule •...
-
Page 6: Safety Instructions
5. Safety instructions Please read these instructions carefully before first use and retain them for future reference. The safety precautions contained herein will reduce the risk of fire, electric shock and injury when followed correctly. This product is designed for residential use. This product is IP 65 rated, so there is protection against heavy seas and dust tightness. - Page 7 • Always lay cables to the device in such a way that they do not pose a danger to persons or animals. • Use the device only within the specified temperature range of: 0 ~ 40°C. • When not in use, store the product in a clean and dry place with temperatures between 0°C and 40°C.
- Page 8 7. Note on Video Surveillance Observe all applicable laws regarding camera surveillance. The cameras are intended for private use at home. Inform your family members, relatives and household helpers in your household about the video surveillance. Ensure that public areas and your neighbors' property cannot be seen.
- Page 9 App Store is a service mark of Apple Inc. registered in the U.S. and other countries. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. Google Play and the Google Play logo are trademarks of Google Inc.
-
Page 10: Commissioning Guide
10. Commissioning guide: Hardware overview: Smart Full HD PTZ Outdoor Camera with Auto Tracking, RJ45 waterproof Dual LED, WiFi + Voice Control connector cap Power supply Mounting kit... -
Page 11: Hardware Installation
11. Hardware installation: Wall mounting Select a location for the camera and then use the bracket to mark the position of the four drill holes. Select a suitable drill bit with the same diameter as the expansion anchor and drill the four holes in the wall. Insert the expansion anchors into the holes and fasten the camera and bracket with the four screws provided. - Page 12 11. Setting up the Smart Life User Account In order to use your DIGITUS® Smart Full HD Outdoor Camera with LED Floodlight, WiFi & Voice Control, you need to register an user account. The setup and control can be done from your Smartphone/tablet, with Android system 4.4.2 and above, or iOS system 8...
- Page 13 Apple App Store® Google™ Play In the Search results the "Smart Life"-App will be marked with this symbol. Then please download and install the App on your mobile device. Apple App Store® Google™ Play You can also scan below QR code to download and install the app.
- Page 14 Start the App and you will enter the login page. For first time user, please create your account by “Register”. Create new account with Smart Life Click on "Register". 1. Please enter your email or phone number, which would be your login account. 2.
- Page 15 3. Press “Continue”, you will receive a verification code by email or SMS. You will receive the email or SMS immediately. If you do not receive the email, please check your Spam Folder. If you do not receive the SMS, please check your registered phone number...
- Page 16 4. Enter verification code 5. Create a password that you can remember. (Alphabet and numerical characters are supported).
- Page 17 6. Please enter a name, which you can choose freely (e.g. home). Optionally, you can now also determine the location and in which room your socket is used. 7. Connect the camera to your Wi-Fi...
- Page 18 flash slowly, the device is ready to connect. 2. Please tab the “+” icon or tab “Add Device” in the app and follow the instructions in the app to connect your DIGITUS® Smart Full HD Outdoor Camera with LED Floodlight, WiFi & Voice Control to your WiFi.
- Page 19 3. Please select “Security & Sensor” and afterwards “Smart Camera” to start.
- Page 20 4. Confirm that the LED is fast blinking.
- Page 21 5. Your WiFi´s SSID will be shown to connect with. Please make sure, your mobile device is connected to your 2.4GHz WiFi network. 5GHz WiFi networks will not be supported. Please key in the password for your router/AP at home.
- Page 22 6. A QR-code will be automatically generated in the app, as shown in the picture. Let the QR-code aim at the cameras lens, keep their distance at around 15cm – 30cm. When hear a “beep” sound and see the red light turn blue, click “I heard the beep”.
- Page 23 7. The DIGITUS® Smart Full HD Outdoor Camera with LED Floodlight, WiFi & Voice Control is now connecting to your WiFi network.
- Page 24 8. After the camera is successfully connected, it can be renamed. For the use with a voice controlled system like Amazon Alexa or Google Home, we recommend to give the camera an identifiable name, e.g. main entrance. Once the camera is renamed, press “Save” and “Done”...
- Page 25 9. You will be linked to the main menu. Now you can use your DIGITUS® Smart Full HD Outdoor Camera with LED Floodlight, WiFi & Voice Control.
-
Page 26: Technical Description
12. Technical description Technical data: Frequency range: 2412MHz-2472MHz (HT20) Transmit power: <20 dBm EIRP Hardware Version: 1.01 Software Version: V1.0.33.R_20200910 13. General notes on radio operation During installation and operation, make sure to keep at least 20 cm distance to persons. The signal transmission takes place on a non-exclusive transmission path. - Page 27 ASSMANN Electronic GmbH hereby declares that the Declaration of Conformity is part of the shipment contents. If the Declaration of Conformity is missing, you can request it by mail at the manufacturer's address given below. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
