2. U
TILITIES AND TOOLS
2.1 CAM_EZ S
CAM_EZ Search is an IP search engine offered by this product. It can search IP CAM
connected in LAN. Through sending the inquiry of broadcasting packets, after IP CAM
responds the question, the window will display a list of all IP CAMs in the network. And it
allows you to modify the network settings of specified IP CAM, such as IP address or IP
CAM naming.

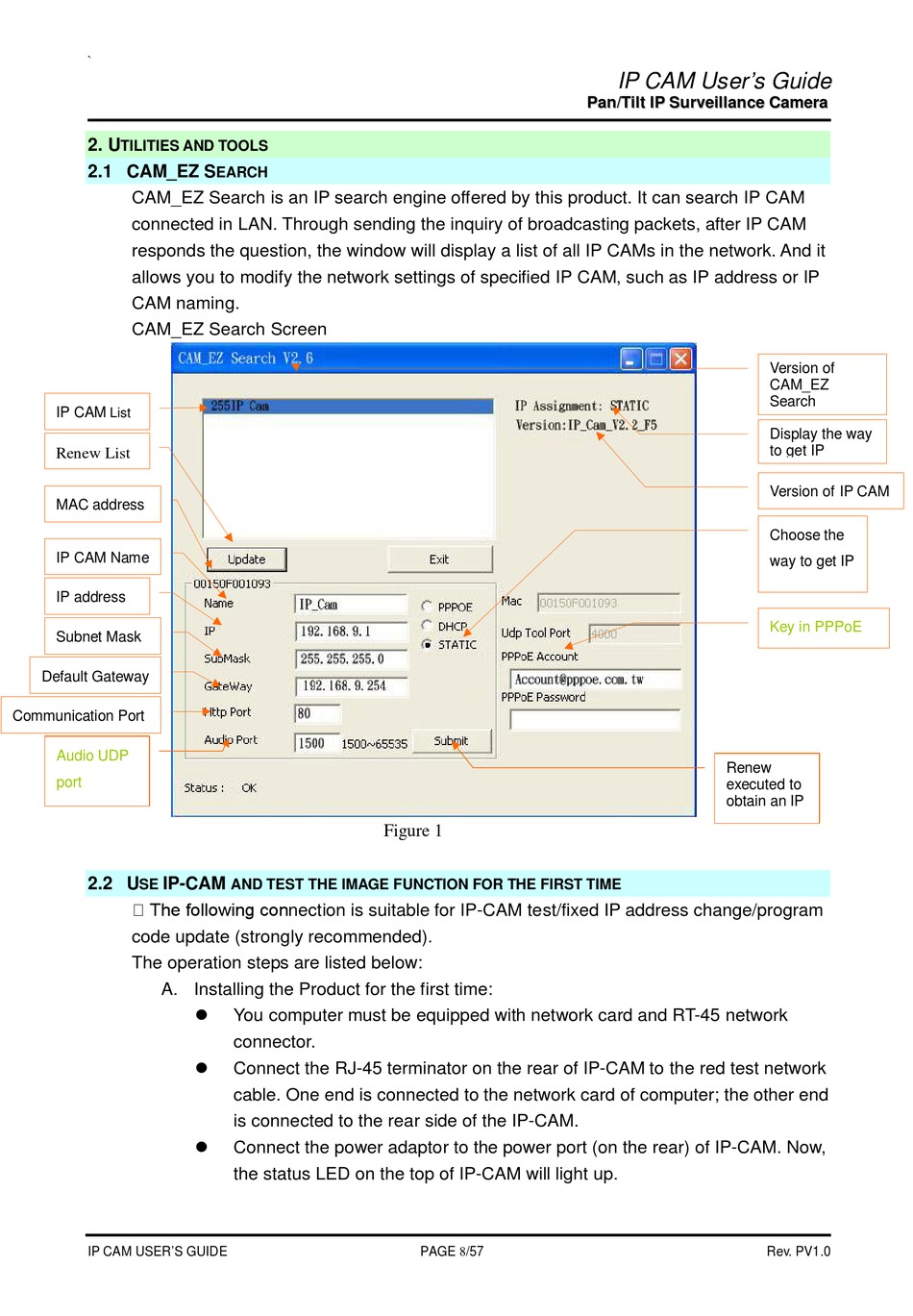

CAM_EZ Search Screen
IP CAM
List
Renew List
MAC address
IP CAM Name
IP address
Subnet Mask
Default Gateway
Communication Port
Audio UDP
port
2.2 U IP-CAM
SE
The following connection is suitable for IP-CAM test/fixed IP address change/program
code update (strongly recommended).
The operation steps are listed below:
A. Installing the Product for the first time:
IP CAM USER' S GUIDE
EARCH
AND TEST THE IMAGE FUNCTION FOR THE FIRST TIME
You computer must be equipped with network card and RT-45 network
l
connector.
l Connect the RJ-45 terminator on the rear of IP-CAM to the red test network
cable. One end is connected to the network card of computer; the other end
is connected to the rear side of the IP-CAM.
l Connect the power adaptor to the power port (on the rear) of IP-CAM. Now,
the status LED on the top of IP-CAM will light up.
Figure 1
PAGE 8/57
IP CAM User' s Guide
P a n / T i l t I P S u r v e i l l a n c e
P a n / T i l t I P S u r v e i l l a n c e
Renew
executed to
obtain an IP
C a m e r a
C a m e r a
Version of
CAM_EZ
Search
Display the way
to get IP
Version of IP CAM
Choose the
way to get IP
Key in PPPoE
Rev. PV1.0
