Digitus DN-16085 Quick Installation Manual

QUICK INSTALLATION GUIDE
DN-16085
for more product details, please go to
www.digitus.info
 Installation

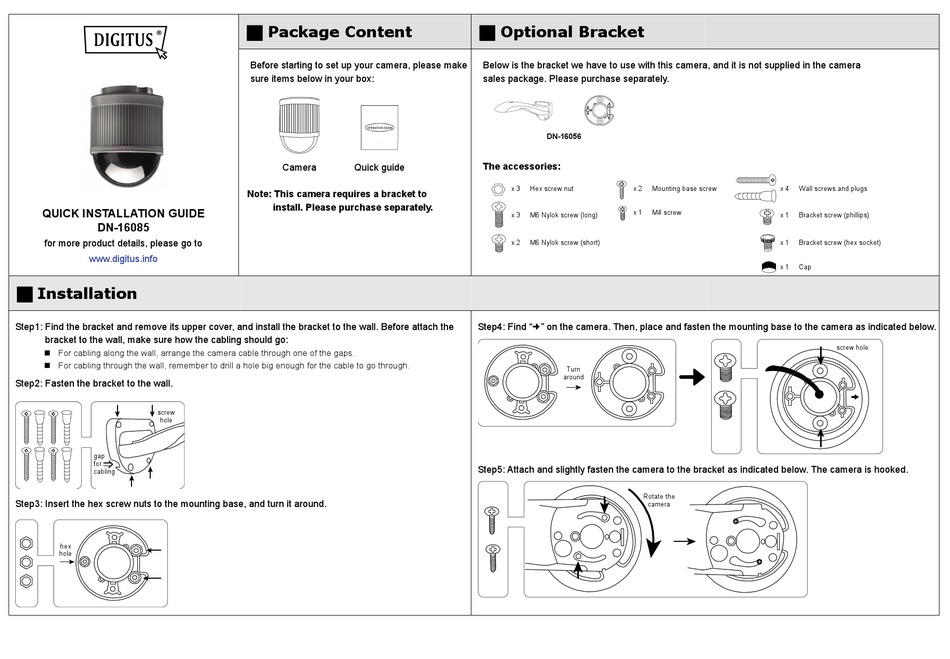

Step1: Find the bracket and remove its upper cover, and install the bracket to the wall. Before attach the
bracket to the wall, make sure how the cabling should go:
 For cabling along the wall, arrange the camera cable through one of the gaps.
 For cabling through the wall, remember to drill a hole big enough for the cable to go through.
Step2: Fasten the bracket to the wall.
screw
hole
gap
for
cabling
Step3: Insert the hex screw nuts to the mounting base, and turn it around.
hex
hole
 Package Content

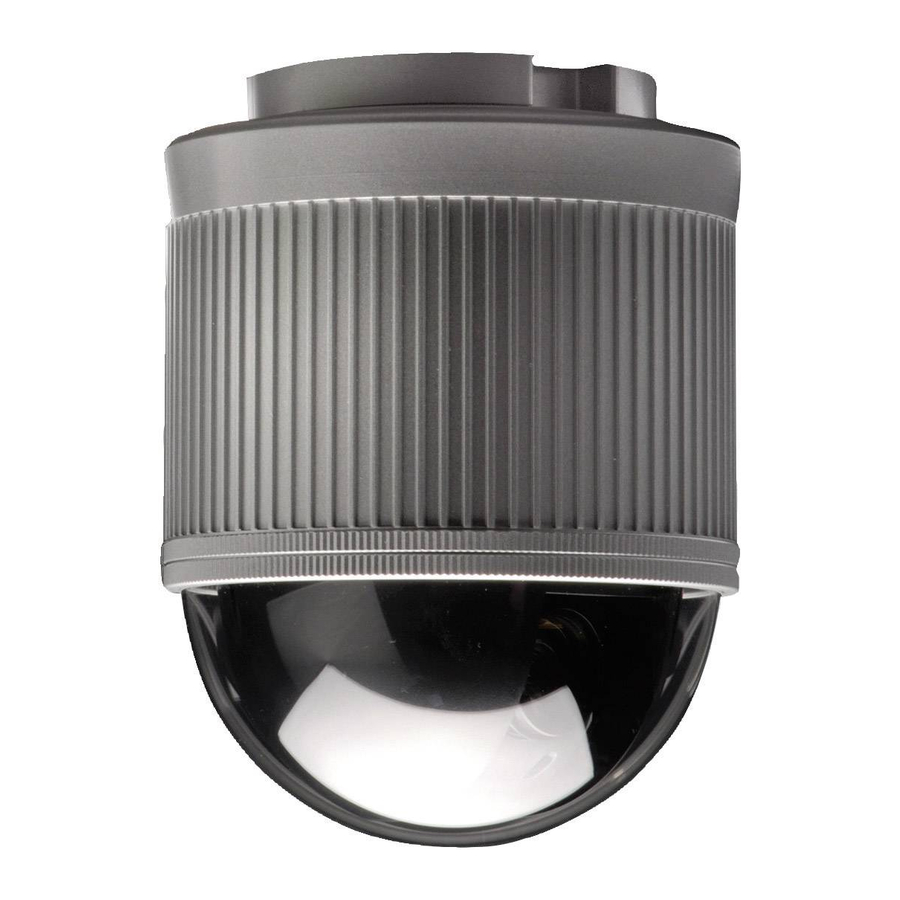

Before starting to set up your camera, please make
sure items below in your box:
Camera Quick guide
Note: This camera requires a bracket to
install. Please purchase separately.
 Optional Bracket
Below is the bracket we have to use with this camera, and it is not supplied in the camera
sales package. Please purchase separately.
DN-16056
The accessories:
x 2 Mounting base screw
x 3 Hex screw nut
x 1 M4 screw
x 3 M6 Nylok screw (long)
x 2 M6 Nylok screw (short)
Step4: Find "" on the camera. Then, place and fasten the mounting base to the camera as indicated below.
Turn
around
Step5: Attach and slightly fasten the camera to the bracket as indicated below. The camera is hooked.
Rotate the
camera
x 4 Wall screws and plugs
x 1 Bracket screw (phillips)
x 1 Bracket screw (hex socket)
x 1 Cap
screw hole
