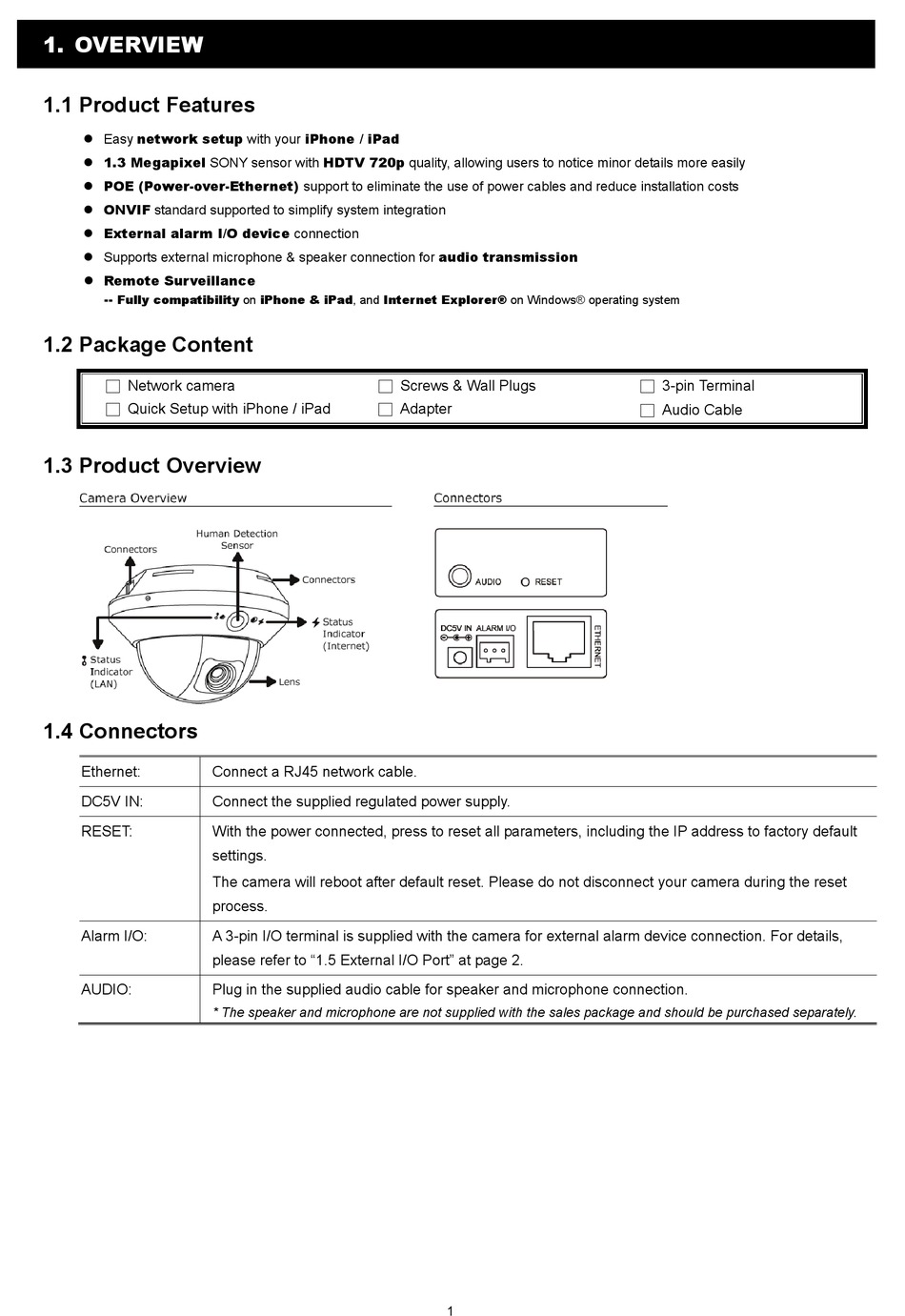

1. OVERVIEW

1.1 Product Features

 Easy network setup with your iPhone / iPad
 1.3 Megapixel SONY sensor with HDTV 720p quality, allowing users to notice minor details more easily
 POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
 ONVIF standard supported to simplify system integration
 External alarm I/O device connection
 Supports external microphone & speaker connection for audio transmission
 Remote Surveillance
--
Fully compatibility on iPhone & iPad, and Internet Explorer® on Windows® operating system

1.2 Package Content

□ Network camera
□ Quick Setup with iPhone / iPad

1.3 Product Overview

1.4 Connectors

Ethernet:
Connect a RJ45 network cable.
DC5V IN:
Connect the supplied regulated power supply.
RESET:
With the power connected, press to reset all parameters, including the IP address to factory default
settings.
The camera will reboot after default reset. Please do not disconnect your camera during the reset
process.
Alarm I/O:
A 3-pin I/O terminal is supplied with the camera for external alarm device connection. For details,
please refer to "1.5 External I/O Port" at page 2.
AUDIO:
Plug in the supplied audio cable for speaker and microphone connection.
* The speaker and microphone are not supplied with the sales package and should be purchased separately.
□ Screws & Wall Plugs
□ Adapter
1
□ 3-pin Terminal
□ Audio Cable
