Administrative Tasks
Remote Image Upgrade
1. Log into [Configuration Manager], click [Admin] tab, and then
click [Remote Image Upgrade] in the task bar.
The [Remote Image Upgrade] page is shown in Figure 59.1.
2. In the [IP Address] text boxes, type the IP address
of the server from which the file is to be downloaded.
Contact your ISP if you do not have this information.
3. In the [Upgrade File] text box, type the complete name
of the file to be downloaded.
Note:
4. In the [Username] and [Password] fields, type the information
required to log on the ISP's server (if needed).
5. Click [Upload]. An alert window pops up displaying the
following message:
system will reboot.
168

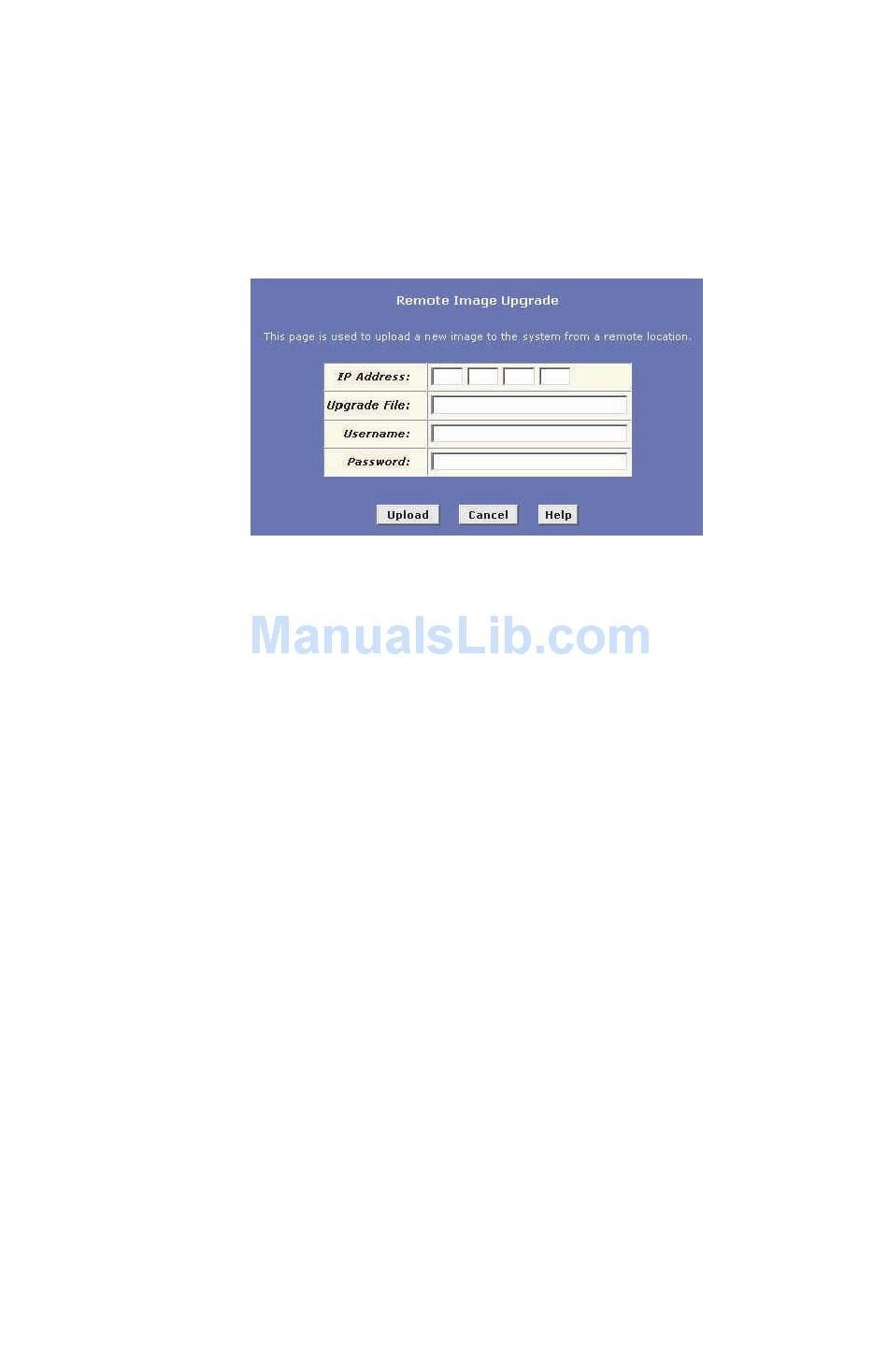

Figure 59.1. Remote Image Upgrade page
The name of the upgrade file must be one
of the following:
- TEImage.bin
- TEPatch.bin
Image upgrade may take a few minutes after which the
